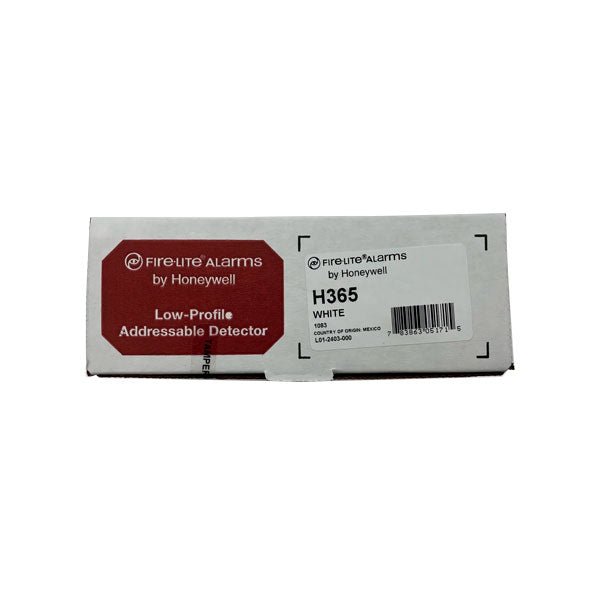

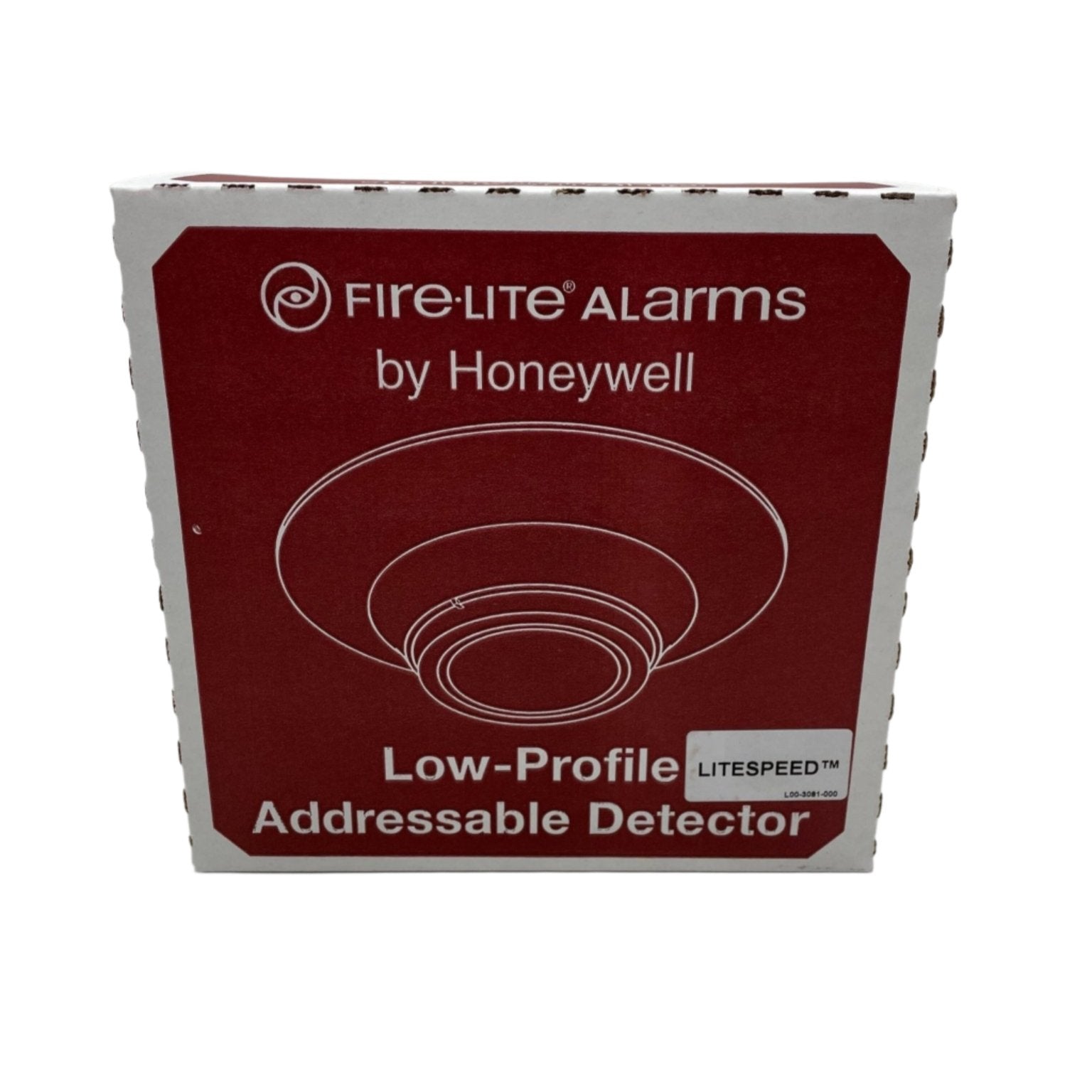

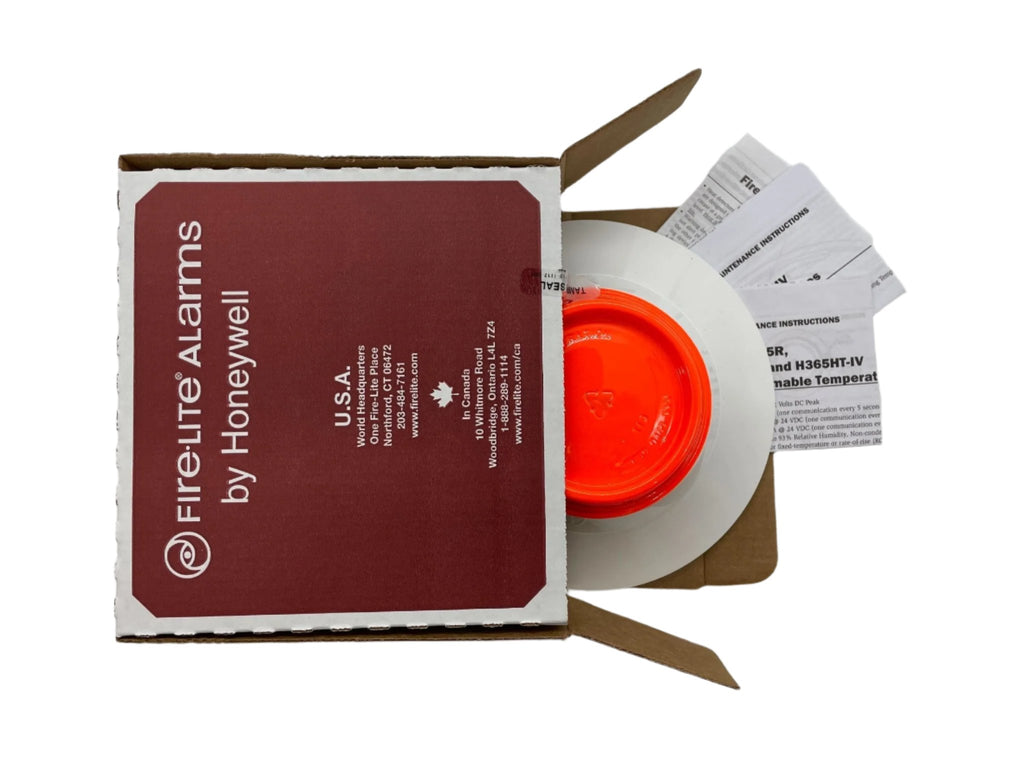

Fire-Lite H365 addressable heat detector: 135°F fixed temperature, LiteSpeed only

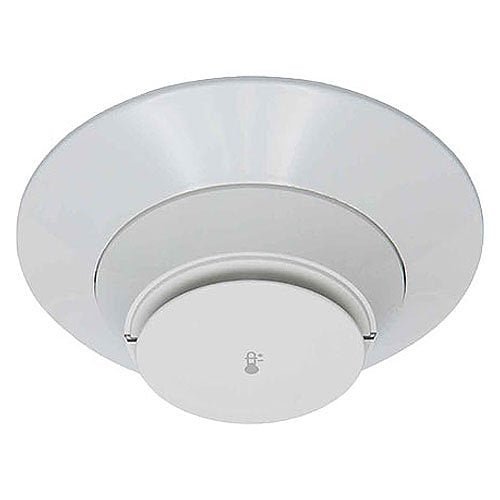

The Fire-Lite H365 is a low-profile intelligent plug-in thermal (heat) detector with a 135°F (57°C) fixed-temperature set point, in white, for LiteSpeed protocol only. The H365 Series is designed for both performance and aesthetics, with modern styling and thermistor technology for fast response.
Features
- Sleek, low-profile, stylish design
- State-of-the-art thermistor technology for fast response
- Integral communications and built-in device-type identification
- Built-in tamper-resistant feature
- Built-in functional test switch activated by an external magnet
- Two-wire SLC loop connection; the detector uses a base for wiring
- Rotary decimal address switches (device capacity depends on the panel)
- Color options include white, ivory and black (color kit)
Specifications
| Model |
H365 (white) |
| Protocol |
LiteSpeed only |
| Thermal rating |
Fixed temperature, 135°F (57°C) |
| Voltage range |
15 to 32 VDC peak |
| Standby current |
200 µA at 24 VDC (one communication every 5 seconds, LED enabled) |
| Maximum current |
4.5 mA at 24 VDC |
| Operating temperature |
-4°F to 100°F (-20°C to 38°C) |
| Humidity |
10% to 93% non-condensing |
| Spacing |
UL: 50 ft. center to center; FM: 25 x 25 ft. |
| Size |
2.0 in. high; diameter set by base (B300-6: 6.1 in., B501: 4 in.) |
| Base |

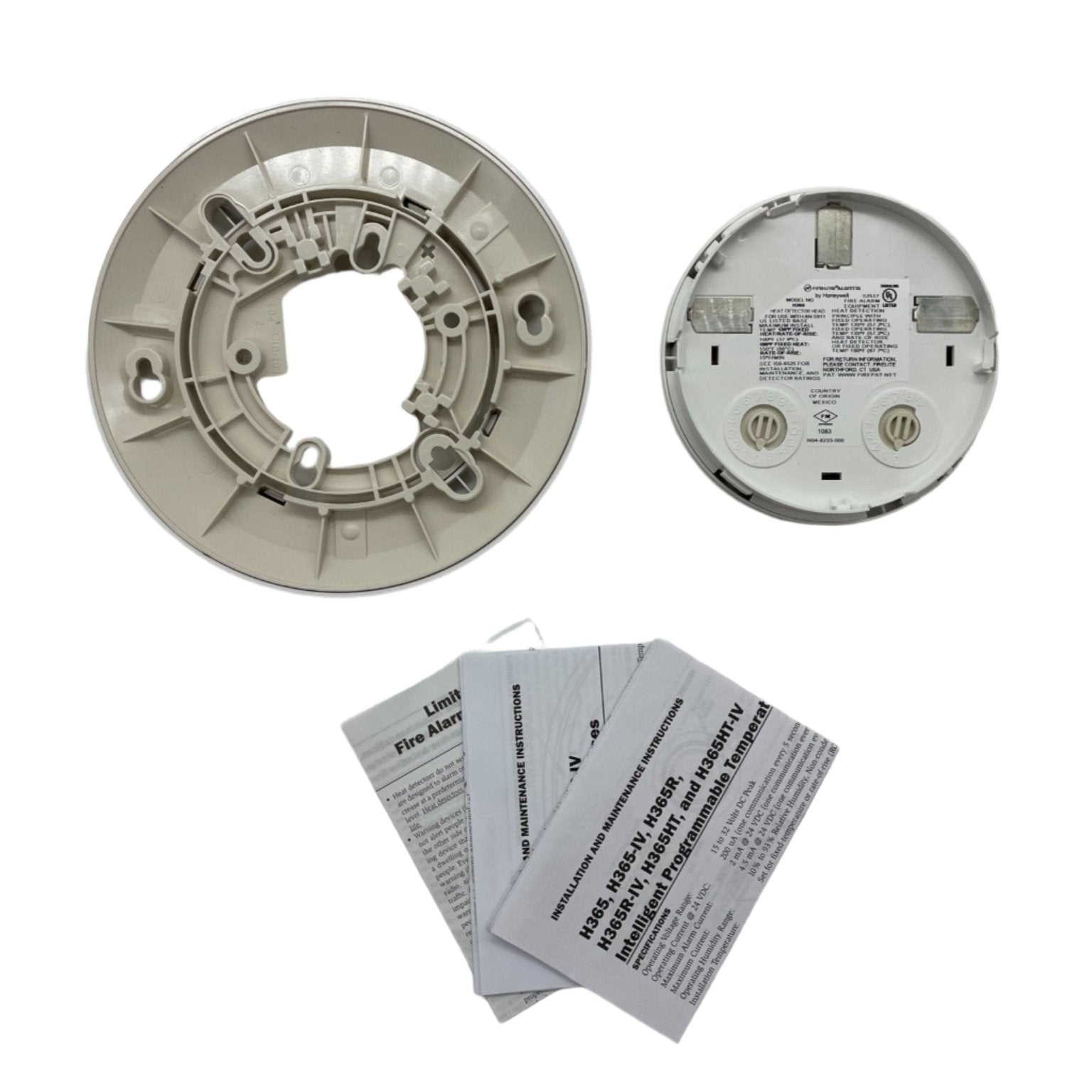

B300-6(A) flanged base included |
| Listings |
UL/ULC S2517, FM Approved, CSFM 7272-0075:0501 |
Compatibility
The white H365 runs LiteSpeed only. For a loop that needs CLIP and LiteSpeed, use the ivory H365-IV. The H365 pairs with addressable manual stations such as the Fire-Lite BG-12LX to give manual activation on the same SLC loop.
Related models
-
H365R - rate-of-rise plus 135°F fixed, white
-
H365HT - 190°F high-temperature detector, white
-
H365-IV - ivory, CLIP and LiteSpeed
Specifications taken from the Fire•Lite Alarms data sheet "H365(A) Series Addressable Thermal Detectors," document DF-61011. Manufacturer specifications are subject to change without notice.
