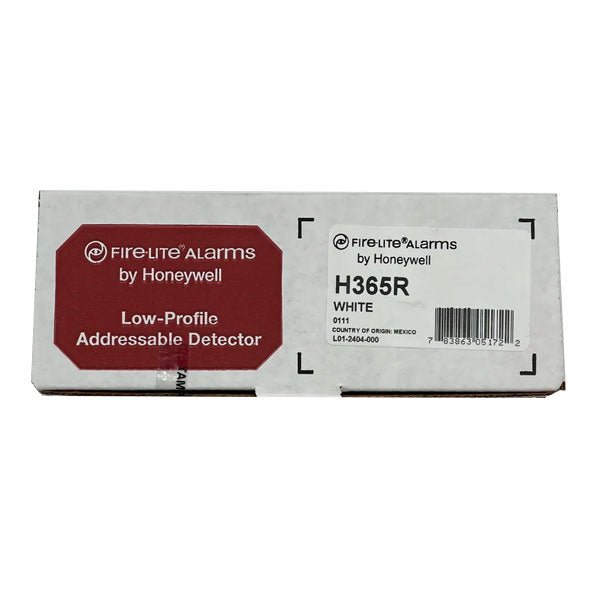

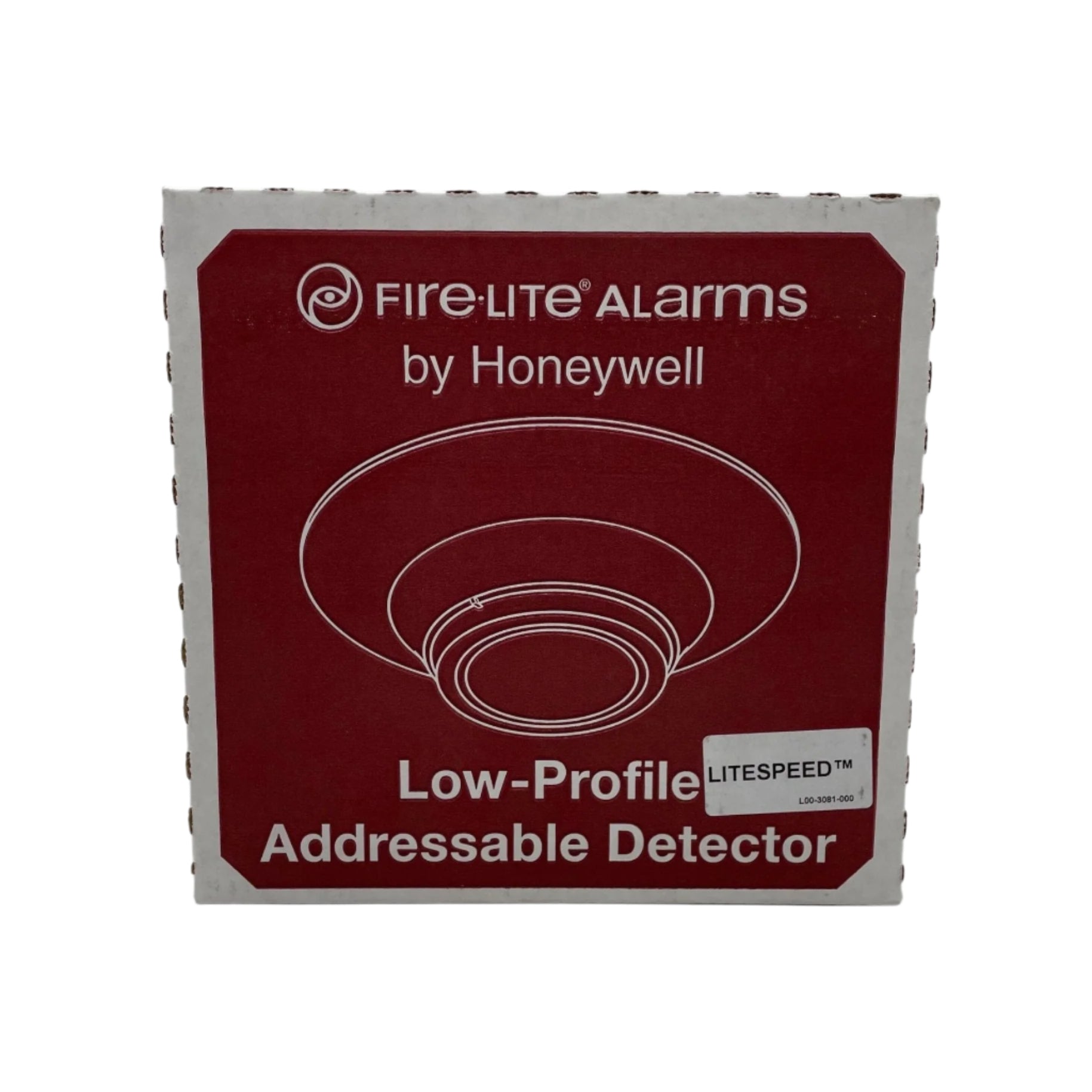

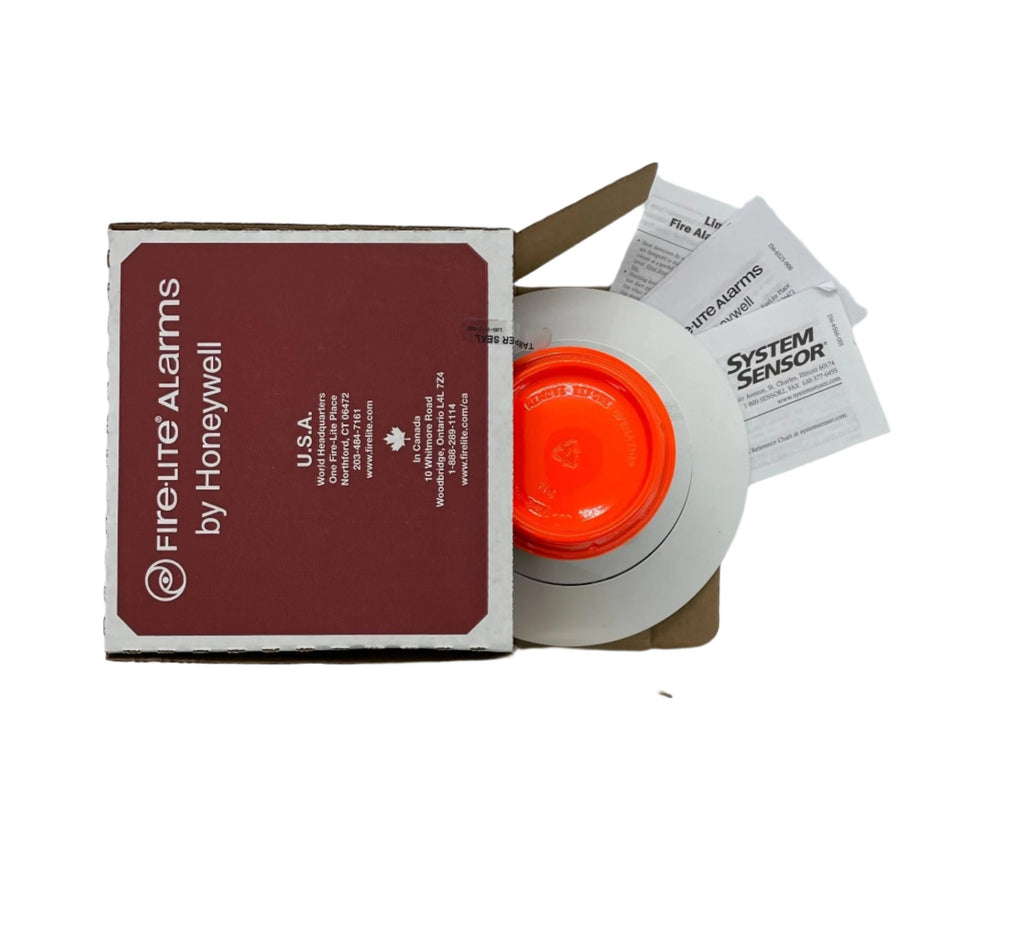

Fire-Lite H365R — white addressable plug-in thermal detector whose default setting is rate of rise together with a 135 °F fixed temperature element.
All six H365 models share one thermistor sensing circuit and are field programmable from the control panel as 135 °F fixed, as rate of rise plus 135 °F fixed, or as 190 °F high temperature. The catalogue number sets the behaviour it falls back to on a panel without that feature, and for the H365R that is rate of rise plus 135 °F fixed.
- Rate of rise responds to more than 15 °F per minute, with a 135 °F set point
- LiteSpeed protocol only; the ivory H365R-IV is the version that also runs CLIP
- 15 to 32 volts DC peak; 200 µA standby at 24 VDC, 4.5 mA maximum
- UL 521 certified, UL approved for 50 ft. spacing, FM for 25 by 25 ft.
- Installation temperature minus 4 to 100 °F, 10 to 93 percent RH
- Rotary decimal addressing; 2.0 in. high in a B300-6 base

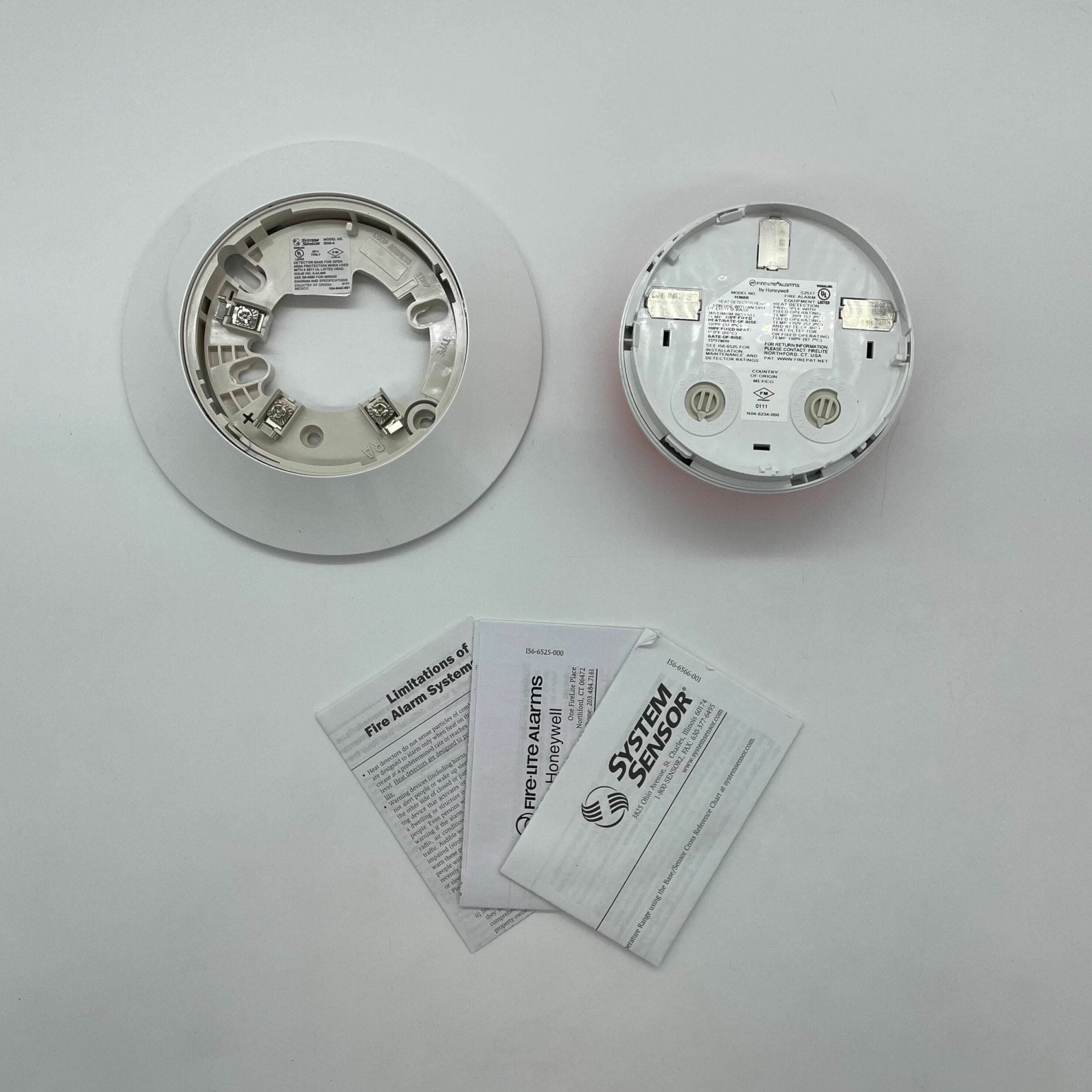

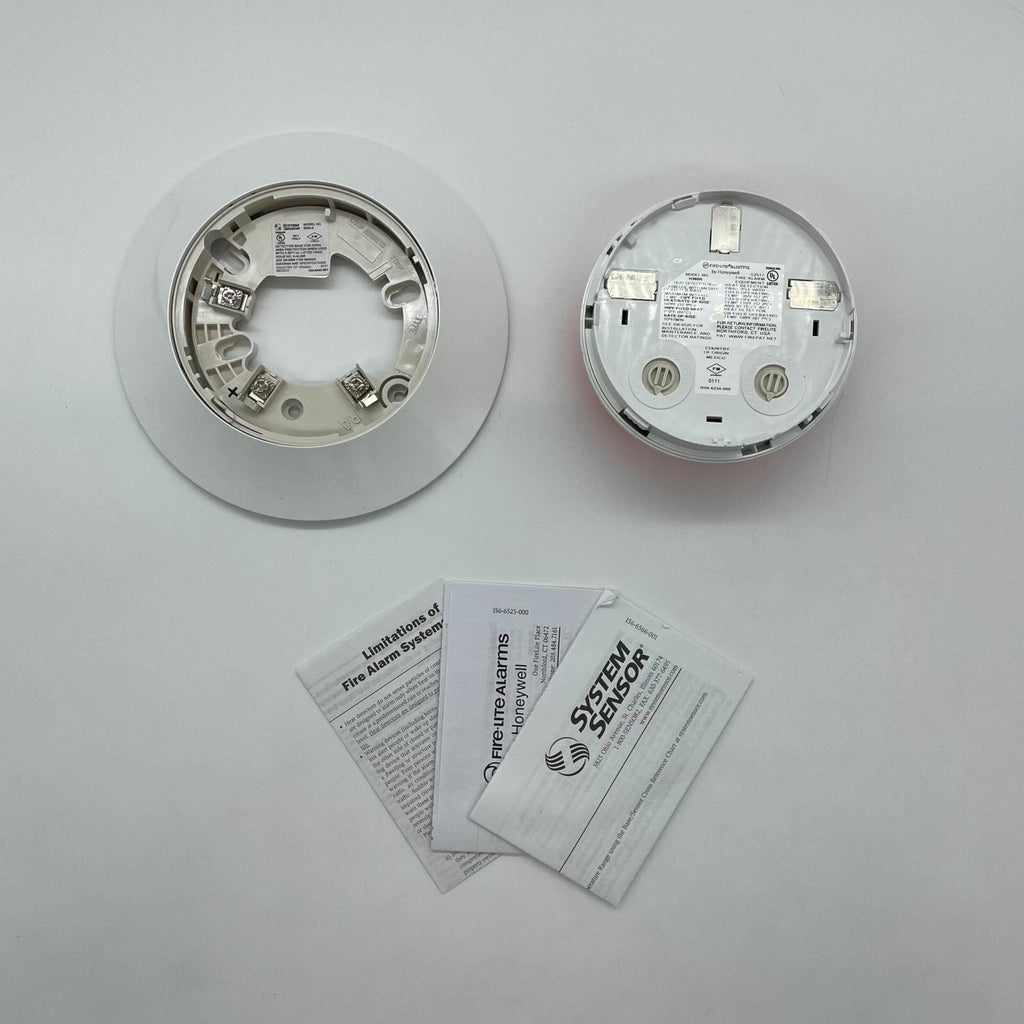

H365 is the 135 °F fixed model and H365HT the 190 °F one. It plugs into a separate base such as the B300-6, and Fire-Lite documents disagree over whether one ships with it, so confirm before ordering.
Documents
FAQ
Which panels and protocol does the H365R use?
It is exclusively for Fire-Lite addressable panels and runs LiteSpeed only. The ivory H365R-IV runs both LiteSpeed and CLIP.
What base does it plug into?
The H365R plugs into a separate base, such as the B300-6 6 in. flanged base or the B501-WHITE 4 in. flangeless base. Fire-Lite lists the bases as separate catalog items.
How does the rate-of-rise setting work?
The H365R responds to a temperature rise of more than 15°F (8.3°C) per minute and also has a 135°F (57°C) fixed setting. On panels without programmable heat detection, it defaults to 135°F fixed plus rate of rise.
Does it replace the H355R?
Yes. Fire-Lite describes the H365 Series as a direct replacement for the H355 Series.
