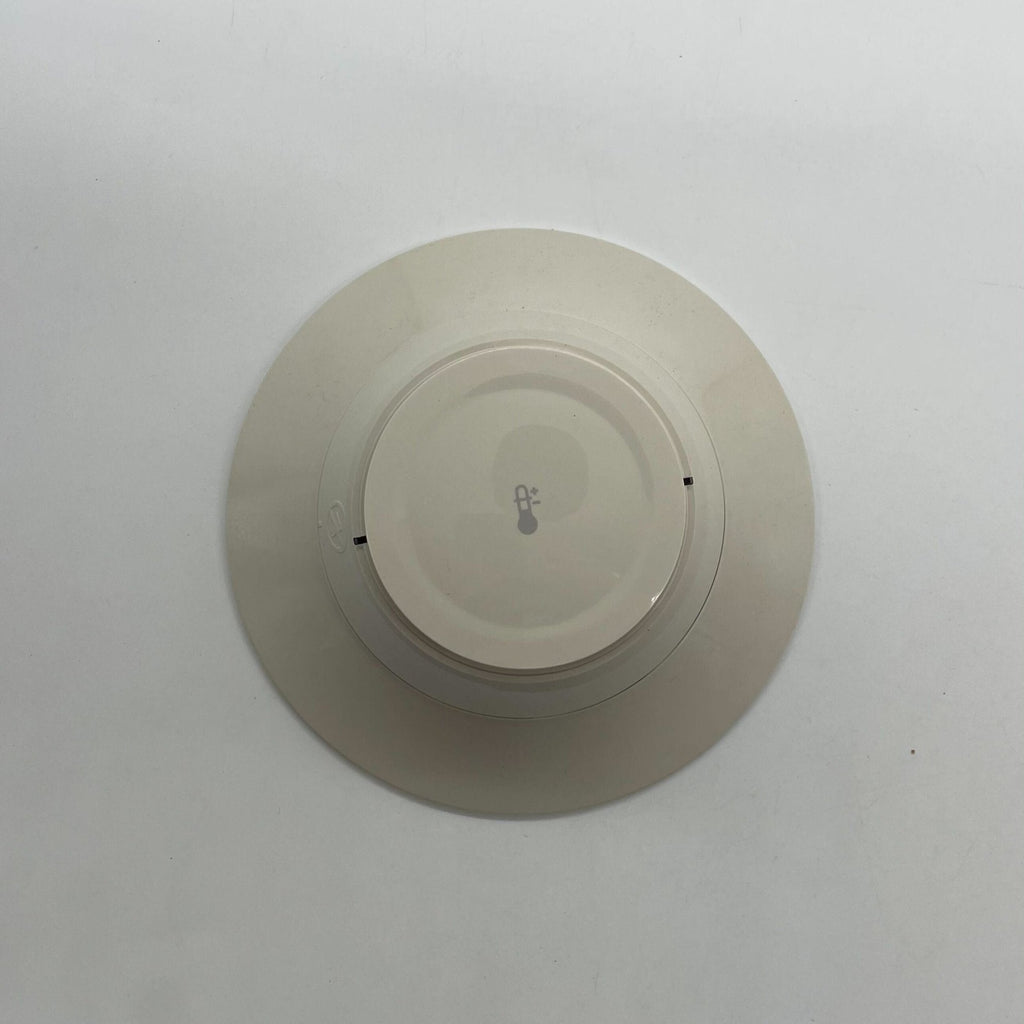

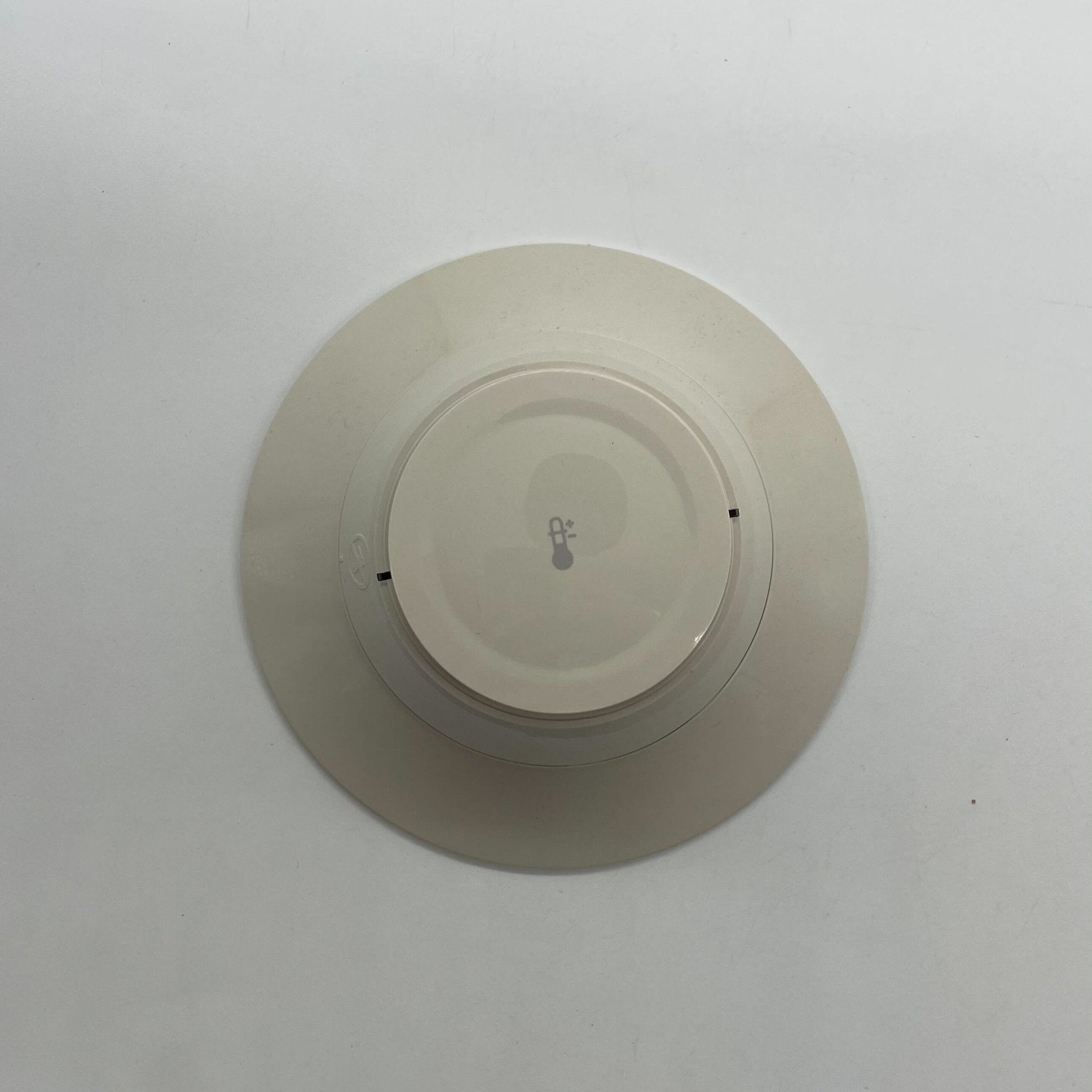

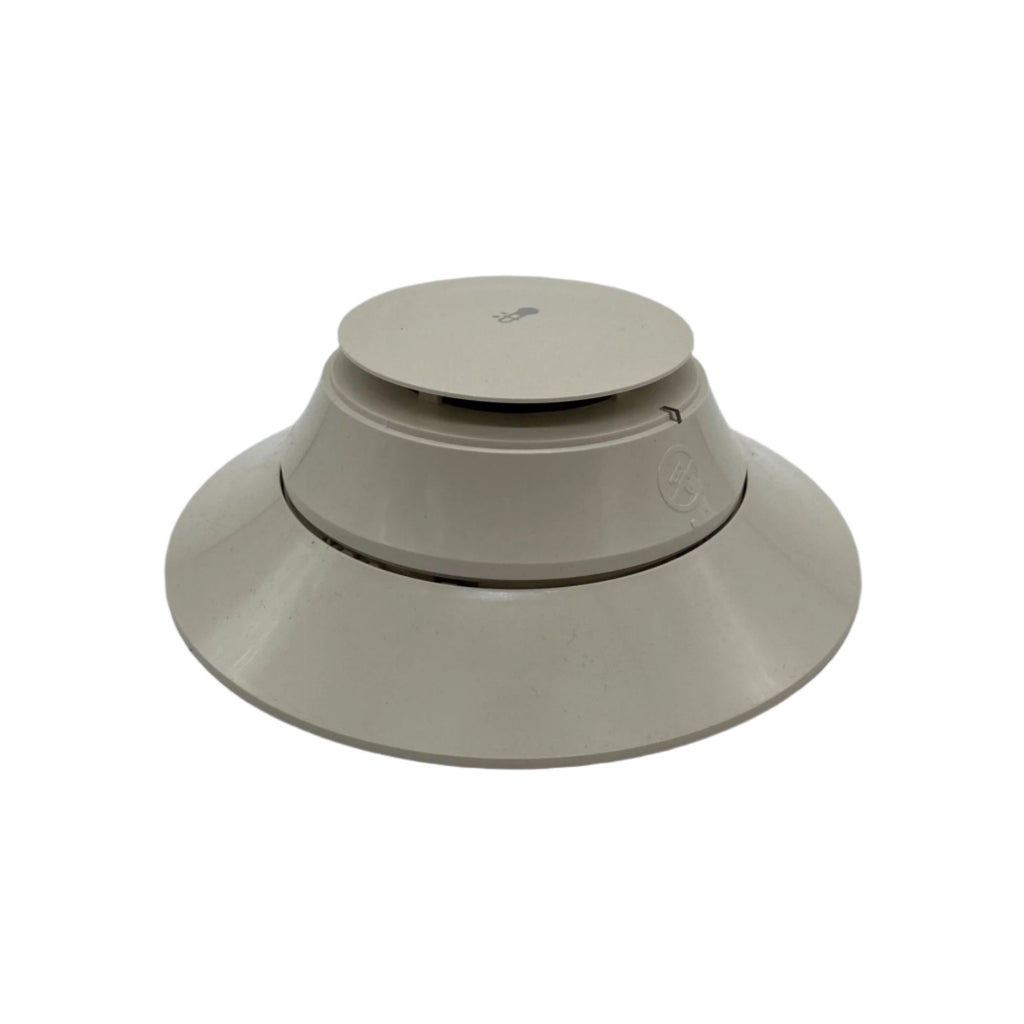

Fire-Lite H365-IV — addressable plug-in thermal detector, fixed temperature, factory preset to 135°F (57°C), in ivory.
Heat detectors protect property rather than life, and suit places where smoke detection would nuisance-alarm: boiler rooms, kitchens, loading docks, parking decks. The ivory suffix is not only a colour. Per the data sheet, -IV models run both LiteSpeed and CLIP while the white H365 is LiteSpeed only, which decides whether it works on an older panel.
- Fixed-temperature set point 135°F (57°C), thermistor sensing, no rate-of-rise element
- UL approved 50 ft (15.24 m) centre-to-centre; FM approved 25 × 25 ft
- 15 to 32 VDC peak; 200 µA standby average, 4.5 mA maximum at 24 VDC
- Operating range minus 4°F to 100°F, 10 to 93% RH non-condensing
- UL/ULC S2517, FM, CSFM 7272-0075:0501; direct replacement for the H355 Series
Pick the right member: H365R-IV is rate-of-rise at 15°F per minute, H365HT-IV the 190°F high-temperature model, H365 the white LiteSpeed-only version, H365A-IV the ULC variant. Bases and the RA100Z remote annunciator carry their own numbers.
Documents
FAQ
Will it work on my Fire-Lite panel?
The -IV models support both LiteSpeed and CLIP protocols, while the white H365 is LiteSpeed only. It is for use with Fire-Lite addressable fire alarm control panels.
Which bases can it use?

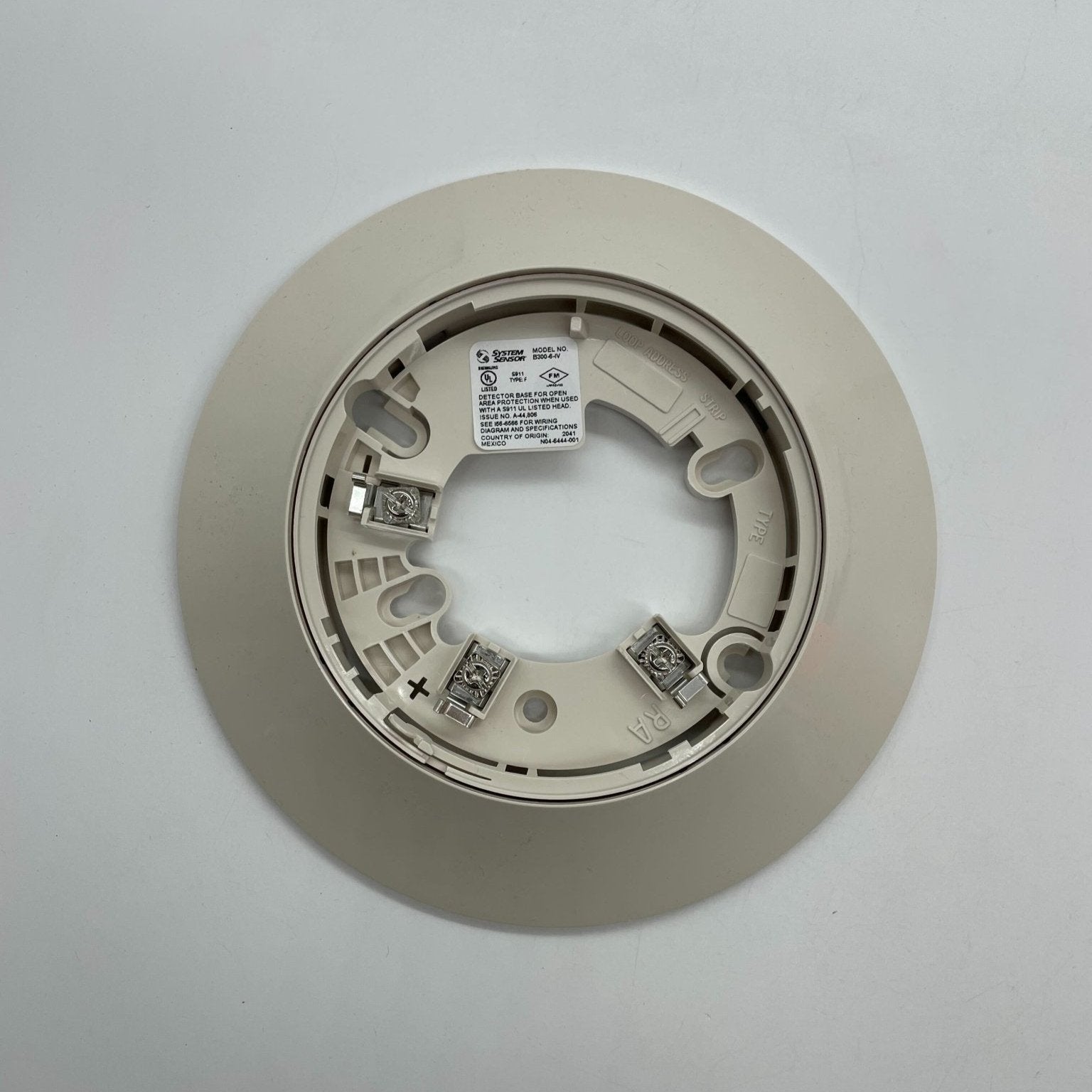

Fire-Lite lists the B300-6-IV flanged base, B501-IV flangeless base, B224RB-IV relay base, B224BI-IV isolator base and the B200S series sounder bases.
What happens if the panel does not support programmable heat settings?
The H365 and H365-IV default to a 135°F fixed heat detector.
Does it replace the H355?
Yes. The H365 Series is a direct replacement for the H355 Series.
