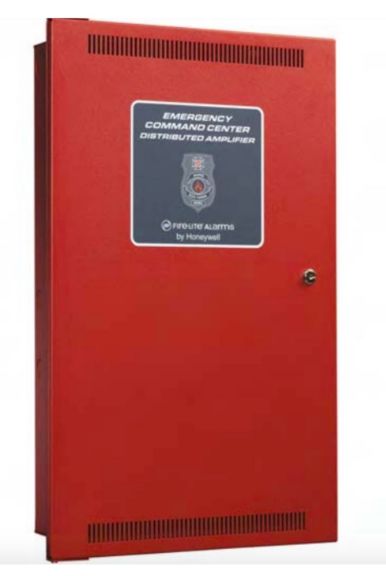

Fire-Lite ECC-50DA is a 50 watt intelligent distributed (remote) audio amplifier for the Fire-Lite ECC-50/100(E) Emergency Command Center. It is installed near the area it serves to amplify voice messages and tones when additional audio power is needed, reducing speaker circuit wiring runs. It has its own power supply and battery charger and is supervised by the ECC-50/100 over the data bus and audio riser.
Specifications
| Audio power |
50 W, primary only |
| Speaker voltage |
25 Vrms or 70.7 Vrms, field selectable |
| Speaker circuits |
Four supervised Class B (Style Y) or Class A (Style Z), expandable to eight with ECC-CE4 |
| Primary power |
120 VAC, 60 Hz, 1200 mA max. |
| Battery charging |
Lead acid, 7 to 35 Ah; cabinet holds batteries up to 18 Ah |
| Cabinet |
16 in. W x 26.25 in. H x 4.125 in. D (40.64 x 66.68 x 10.48 cm), surface or flush mount |
| Shipping weight |
25.8 lb (11.7 kg) |
| Operating environment |
32 to 120 °F (0 to 49 °C), 93% RH non-condensing |
| Listings |
UL S2424, CSFM 7300-0075:0227, FDNY COA #6152; UL 864, UL 2572 |
Compatibility and installation notes
- Compatible only with the ECC-50/100(E) Emergency Command Center.
- Up to eight ECC-50DA, ECC-50BDA or ECC-125DA amplifiers in any combination per system, for up to 1100 W and 24 speaker circuits.
- Wired to the ECC-50/100 data bus and audio riser; the amplifier must also be enabled in the ECC-50/100 programming, where 70 V operation is set.
- For batteries larger than 18 Ah use the BB-26 or BB-55F battery box.
- Honeywell lists the Intelligent Distributed Audio Amplifier family (ECC-50DA(E), ECC-50BDA, ECC-125DA(E)) as discontinued.
Related models
Documents
Specifications from Fire-Lite data sheet DF-60763:C, 6/30/2015, and manual LS10027-000FL-E:D, 5/21/2015. Manufacturer specifications are subject to change.
