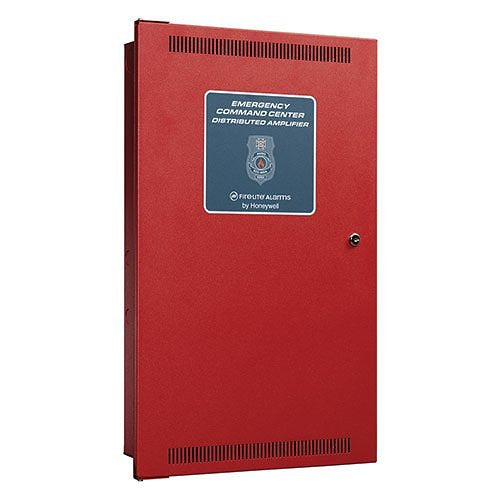

Fire-Lite ECC-50BDA Distributed Audio Amplifiers with Backup, 50/100W at 25 or 70Vrms
The ECC-50BDA is an intelligent amplifier that can be configured for 50 watts or 100 watts of total audio power.
It is used with the ECC-50/100(E) emergency voice evacuation system to amplify an audio message for distribution throughout a facility when additional power is required.
It provides 50 watts or 100 watts of primary power along with 50 watts of backup power and comes standard with eight built-in, fully supervised speaker circuits/zones.
It can be conveniently installed near an area of protection to reduce wiring demands for speaker circuit.
Features
- Can be configured for three modes of operation:
- 50W Primary/50W Backup
- 100W Primary only
- 100W Primary/50 Watt Backup (ECC-50WBU installed)
- Each unit includes eight onboard fully supervised audio circuits
- Any combination of up to eight ECC-50DA(E)s, ECC-125DA(E)s or ECC-50DBAs per system for a total of 1100 watts of audio power and 24 speaker circuit outputs.
- Supports both Class A (Style Z) and Class B (Style Y) wiring.
- Easy setup and configuration by using a simple, built-in web based programming utility on the ECC-50/100(E)
- UL2572 (Communication and Control Units Mass Notification Systems).
- Built-in power supply and battery charger that supports up to 35AH. (For batteries larger than 18 AH, use the BB-26 or BB-55F Battery Box.)
