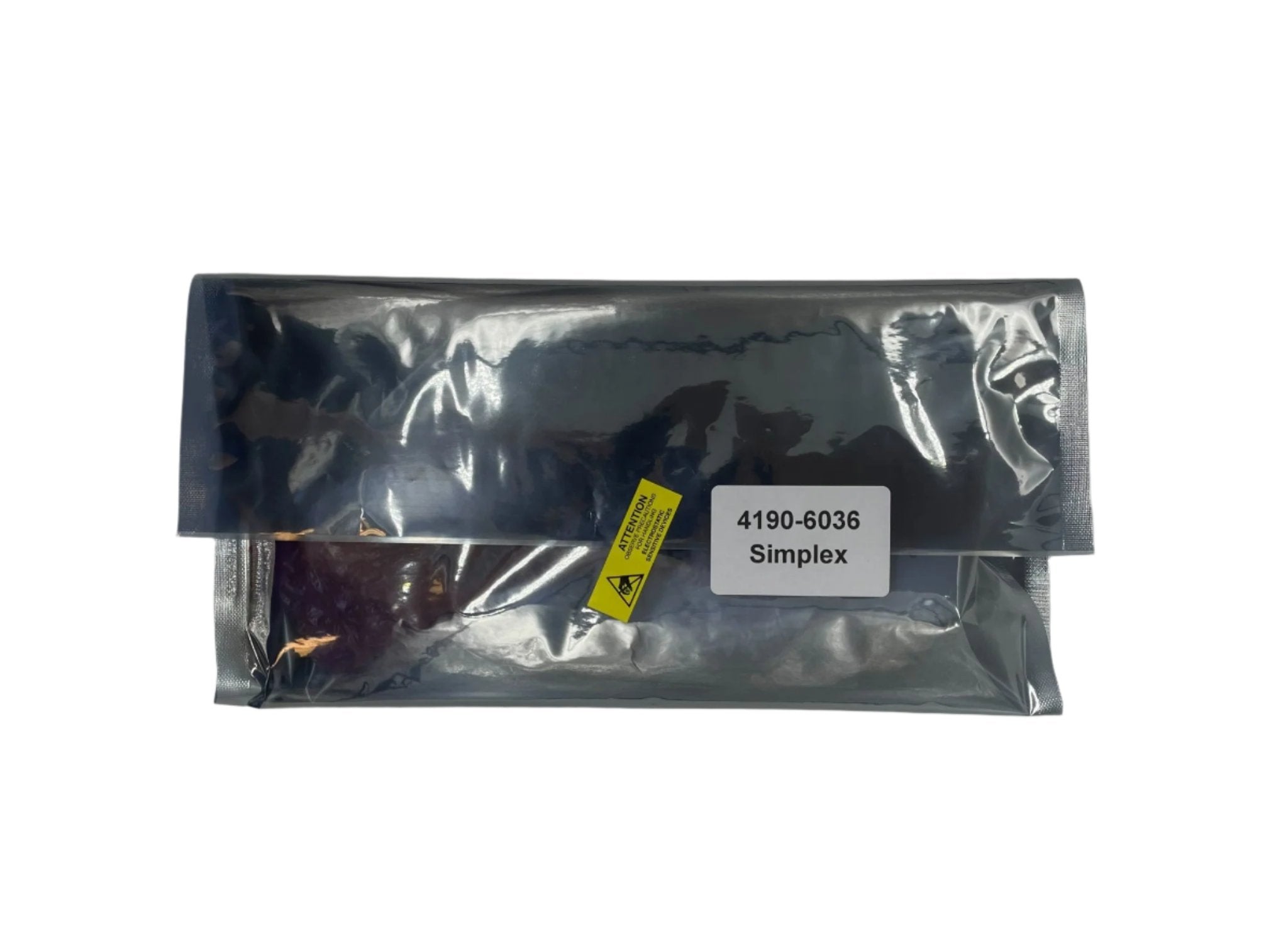

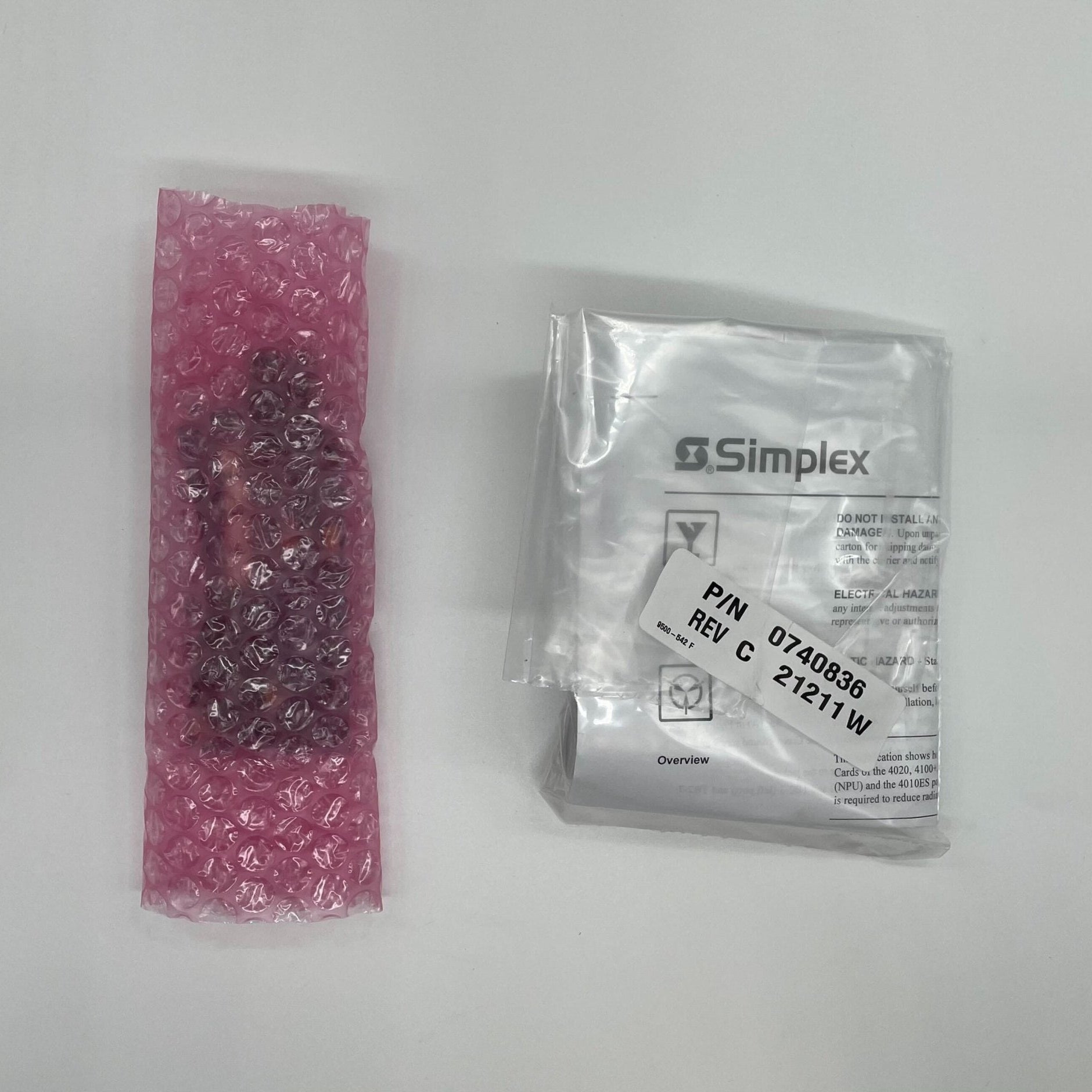

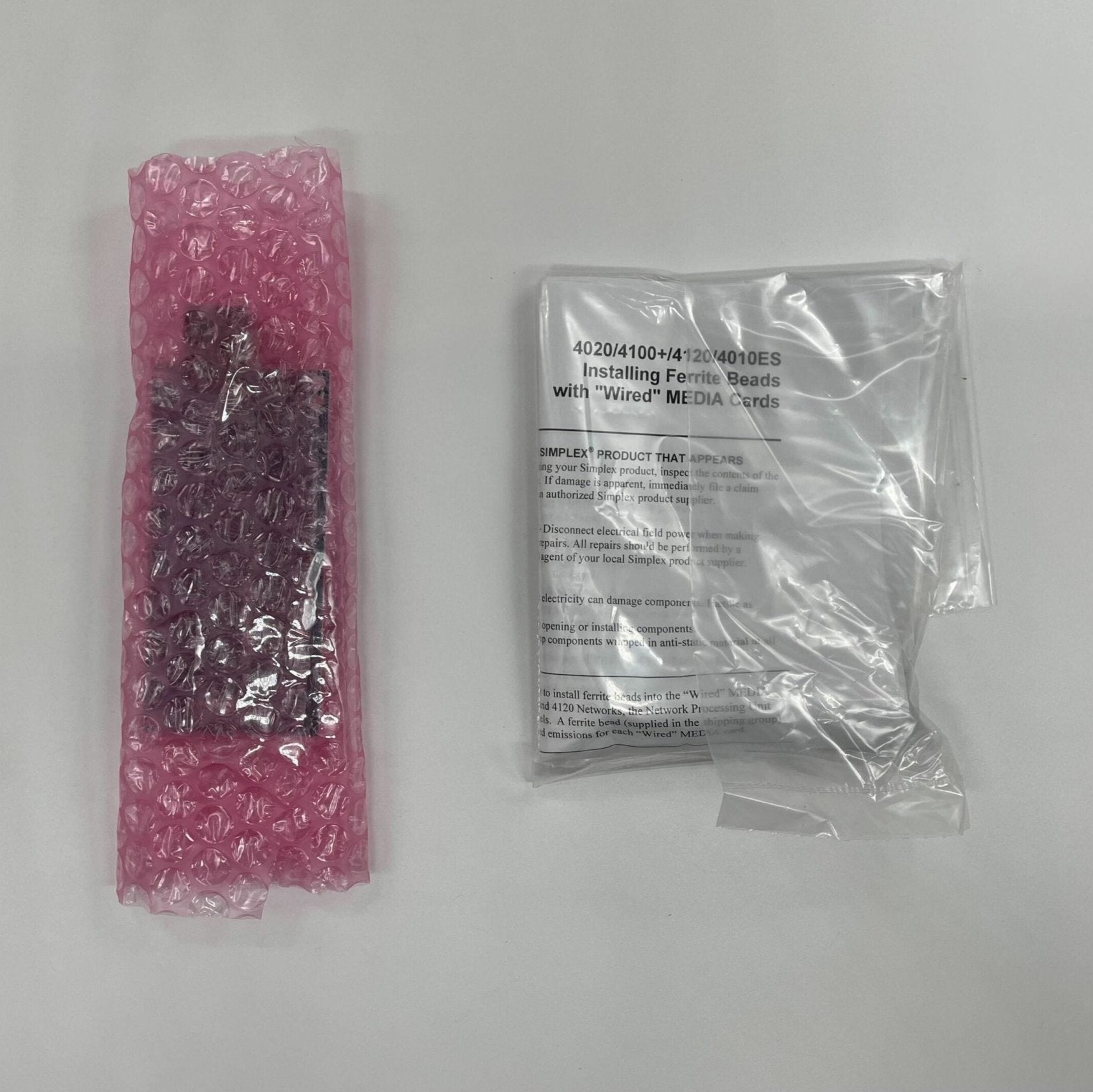

Simplex 4190-6036 is the wired media card for the TrueSite Workstation on a Simplex 4120 fire alarm network. It mounts on the 4190-6061 modular network interface, the PCI-slot card used in the workstation, and provides the twisted-pair network connection. Panel-side wired media cards are different part numbers, listed below.
Specifications
| Function |
Wired media card for the TrueSite Workstation |
| Mounts on |
4190-6061 modular network interface, PCI slot card (1 PCI slot, 46 mA) |
| Current |
55 mA |
| 18 AWG UTP (58 pF/ft max) |
17,000 ft (5.4 km) at 9600 baud; 10,000 ft (3 km) at 57.6 k |
| 24 AWG telephone UTP (22 pF/ft max) |
12,000 ft (3.65 km) at 9600 baud; 7,000 ft (2.13 km) at 57.6 k |
Compatibility and installation notes
- Distances apply with or without isolated loop protectors or over-voltage protectors.
- Shielded cable and circuit protection are required when wiring leaves the building.
- For fiber at the workstation, Simplex lists 4190-6301 to 4190-6304 duplex fiber media cards.
Related models
-
4190-6061: PCI modular network interface this card mounts on
-
4100-6056: wired media card for 4100ES/4100U
-
4010-9818: wired media card for 4010/4010ES
-
4007-9813: wired media card for 4007ES
Documents
Specifications from Simplex data sheet S4100-0056 Rev. 11, 4/2019, 4120 Network Applications, Communications, Options and Specifications. Manufacturer specifications are subject to change.
