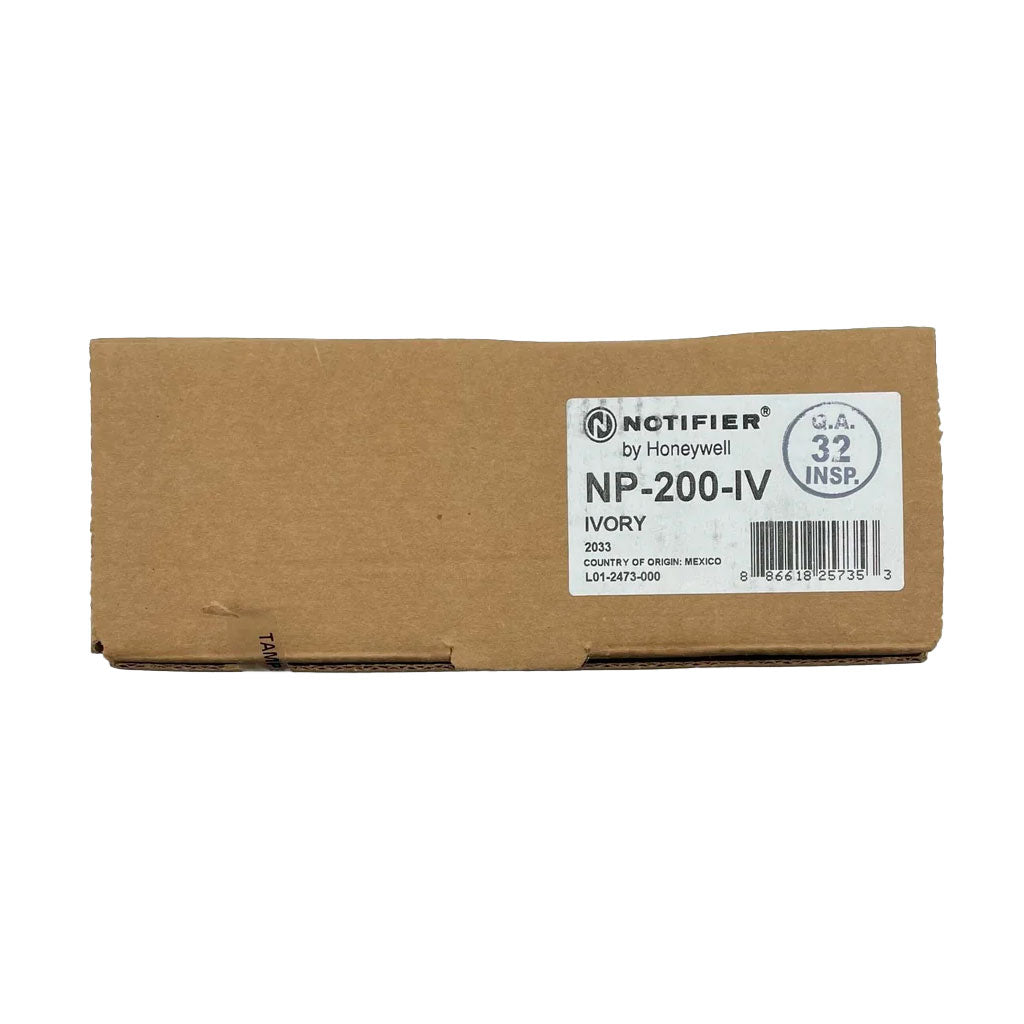

Notifier NP-200-IV is an ivory, low-profile intelligent photoelectric smoke detector with FlashScan and CLIP communication, for FireWarden Series panels. Notifier states that the NP-200 Series is exclusively for use with its FireWarden Series addressable fire alarm control panels, so this is not an ONYX or NFS device. The NP-200 Series is the direct replacement for the NP-100 Series.

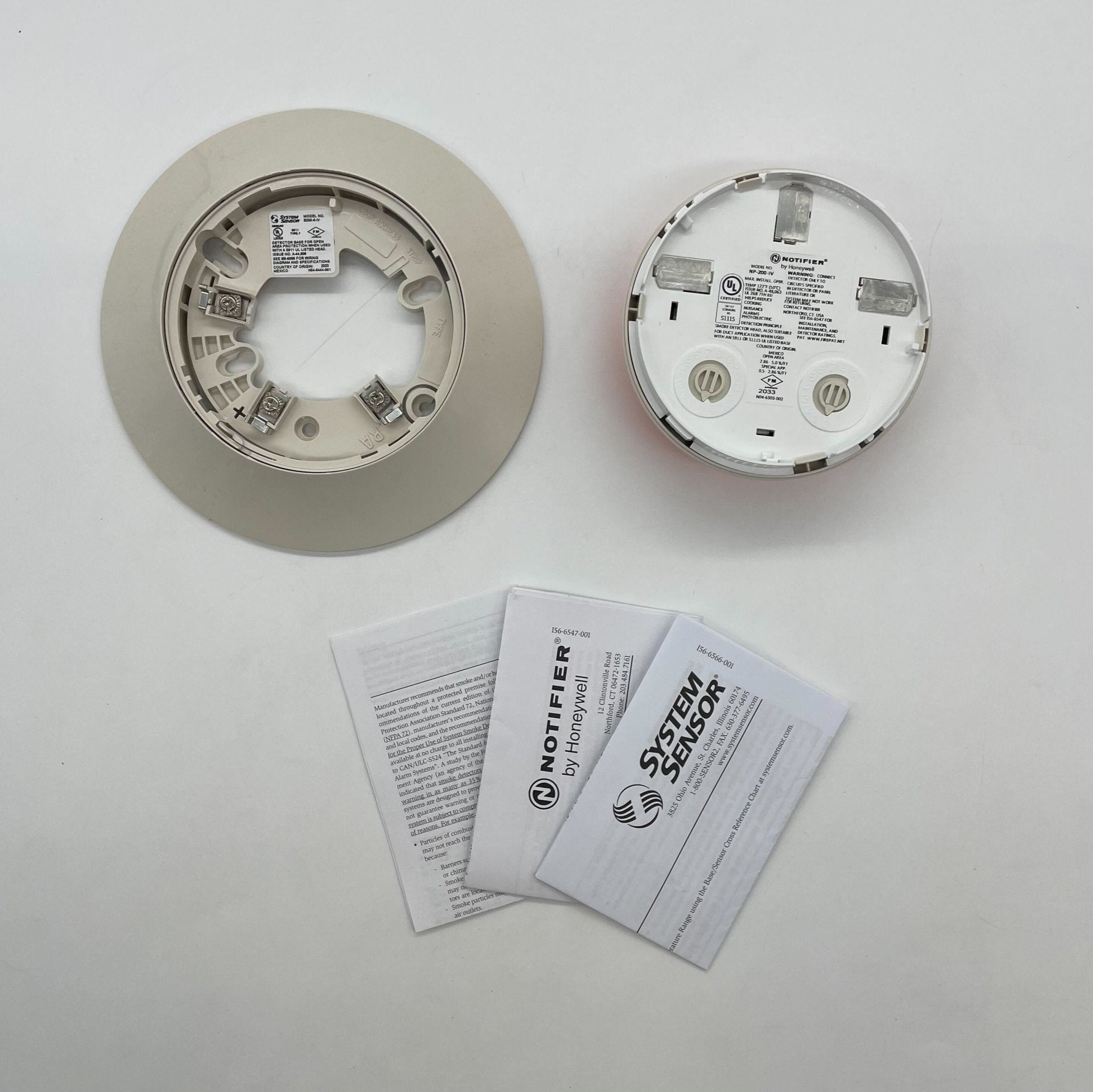

The head plugs into a detachable base, takes one address set by rotary decimal switches, and reports its type and status to the panel. Two LEDs blink when polled and latch in alarm. Sensitivity can be tested from the panel and printed for the NFPA 72 record, and a built-in test switch is activated by an external magnet such as the M02-04-00.
Specifications
| Type |
Intelligent photoelectric smoke sensor, ivory |
| Protocol |
FlashScan and CLIP (-IV suffix) |
| Panels |
FireWarden Series only |
| Alarm threshold |
Factory preset at 1.5 percent nominal |
| Sensitivity |
0.5 to 4.0 percent per foot obscuration |
| Operating voltage |
15 to 32 VDC peak |
| Standby current |
200 µA at 24 VDC; 4.5 mA maximum |
| Temperature / humidity |
32°F to 122°F; 10 to 93 percent non-condensing |
| Air velocity |
0 to 4,000 ft/min |
| Height |
2.0 in.; base sets the diameter |
| Shipping weight |
3.4 oz |
| Standards |
UL 268 7th Edition; UL and ULC file S1115; FM approved; CSFM 7272-0028:0503 |
| Bases |
B300-6-IV and B501-IV (ivory) |
Compatible bases and panels
Related models
-
NP-200 is the white version and runs FlashScan only.
-
NP-200T-IV adds a 135°F thermal element.
-
NP-200R-IV is the remote-test model for DNR and DNRW duct housings.
More: Notifier and smoke detectors.
FAQ
Can I use the NP-200-IV on an ONYX or NFS panel?
No. Notifier states the NP-200 Series is exclusively for use with FireWarden Series panels.
Does it replace the NP-100?
Yes. Notifier describes the NP-200 Series as direct replacements for the NP-100 Series.
Does it have a thermal element?
No. The NP-200T-IV adds the 135°F thermal element.
