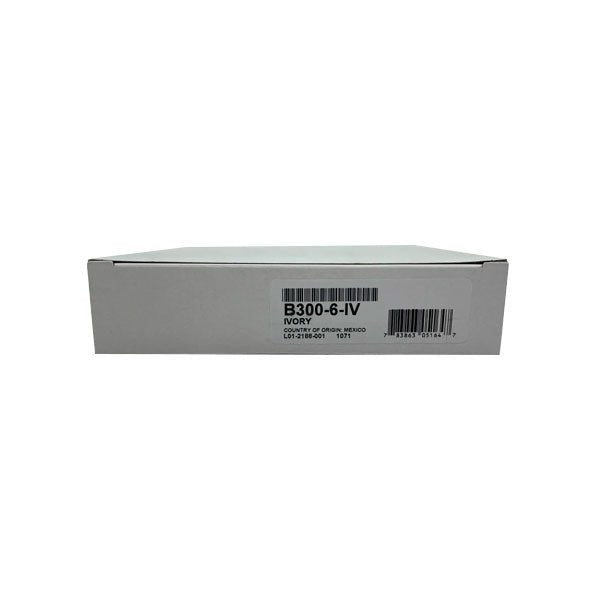

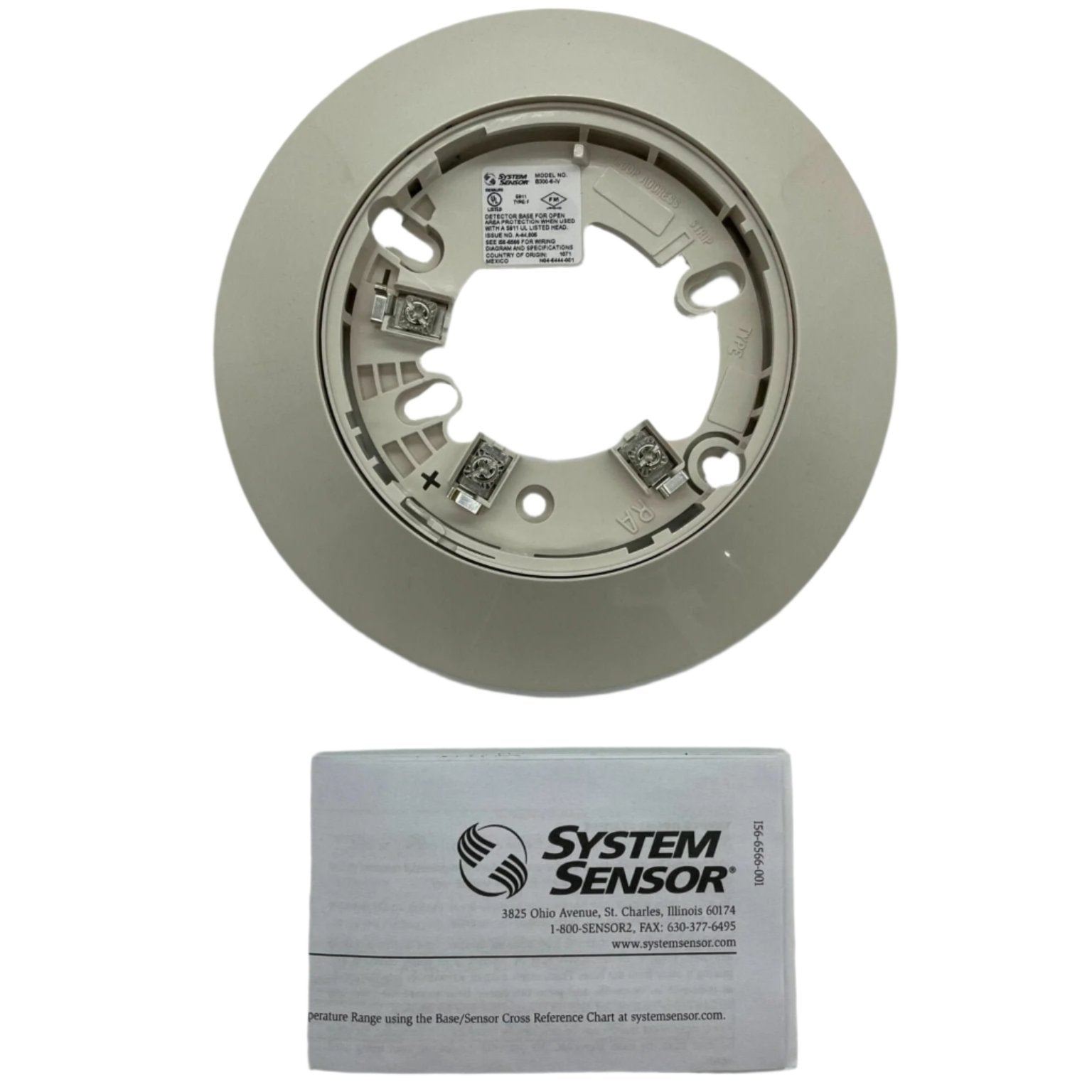

System Sensor B300-6-IV is a 6 in. flanged plug-in detector base in ivory, for intelligent (addressable) Select Series detectors. Screw terminals are provided for power (+ and –) and a remote annunciator; communication takes place over the power lines. The 6 in. format fits a wider range of junction boxes than the 4 in. B501, and a snap-on decorative ring covers the mounting screws. A mechanical locking feature restricts removal of the attached sensor head.
Specifications
| Diameter |
6.1 in. (155 mm) |
| Height |
0.76 in. (19 mm), without sensor |
| Weight |
0.32 lb (145 g) |
| Color |
Ivory |
| Operating voltage |
15 to 32 VDC |
| Standby current |
170 µA max. |
| Wire gauge |
18 AWG to 12 AWG |
| Humidity |
10% to 93% RH non-condensing |
| Terminals |
1: Power (–) / remote annunciator (–); 2: Power (+); 3: remote annunciator (+) |
| Certification |
UL 268; CSFM 7300-1653:0109 |
Installation notes
- Mounts to 4 in. square (with or without plaster ring), 4 in. octagon, 3-1/2 in. octagon and single-gang boxes.
- Remove the decorative ring, fasten the base with the box screws, then snap the ring back on.
- Strip about 3/8 in. of insulation and slide the wire under the clamping plate; do not loop the wire.
- Check loop wiring for continuity, polarity and ground faults before installing detector heads.
- Record zone, address and detector type in the area provided on the base.
Related models
-
B300-6 — the same 6 in. base in white.
-
B501-IV — 4 in. flangeless base, ivory.
-
B224RB-IV — relay base with one Form C contact.
-
B224BI-IV — isolator base for SLC short-circuit isolation.
Documents
FAQ
Is the detector included?
No. The B300-6-IV is the 6 in. plug-in base only; the detector head is ordered separately and plugs into it.
What electrical boxes does it mount to?
It mounts directly to 4 in. square boxes (with or without plaster ring), 4 in. octagon, 3-1/2 in. octagon and single-gang junction boxes.
What wire sizes does it accept?
System Sensor recommends signal wiring no smaller than 18 AWG; wire up to 12 AWG can be used with the base.
What is the difference from the B300-6?
The B300-6-IV is the ivory version; the B300-6 is white. Both share the same 6.1 in. diameter and specifications.
