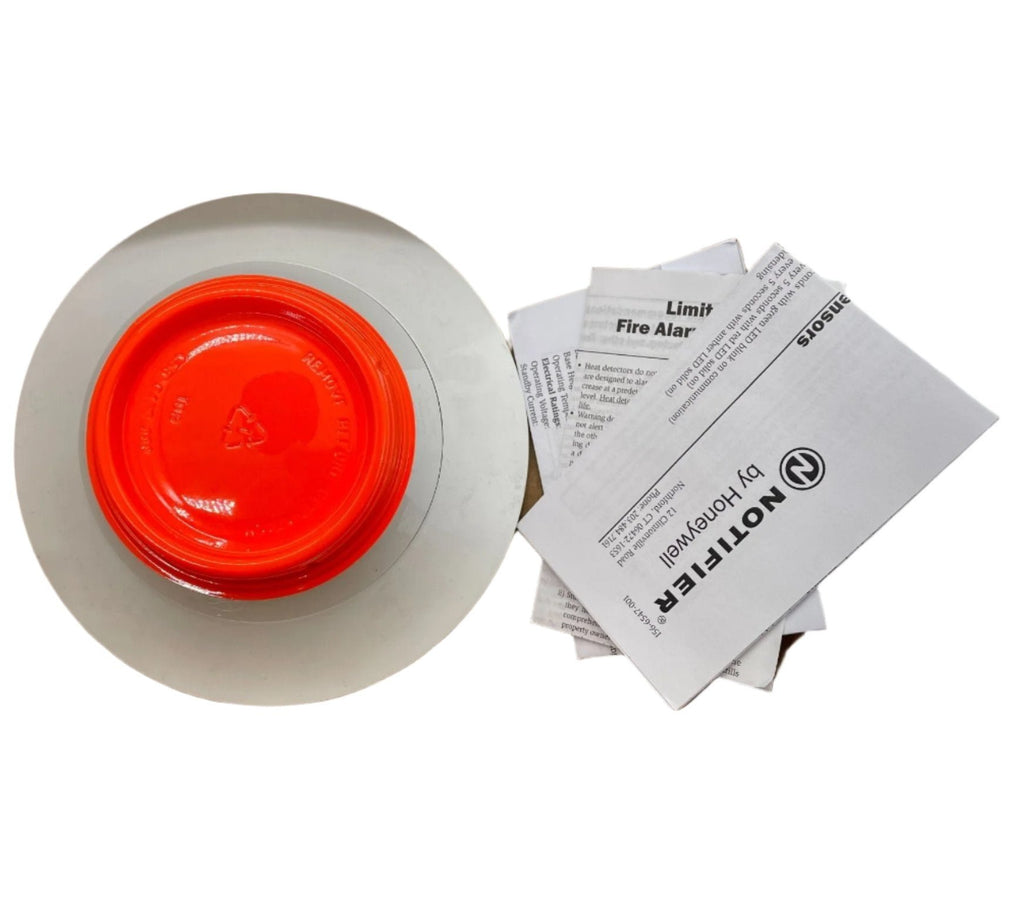

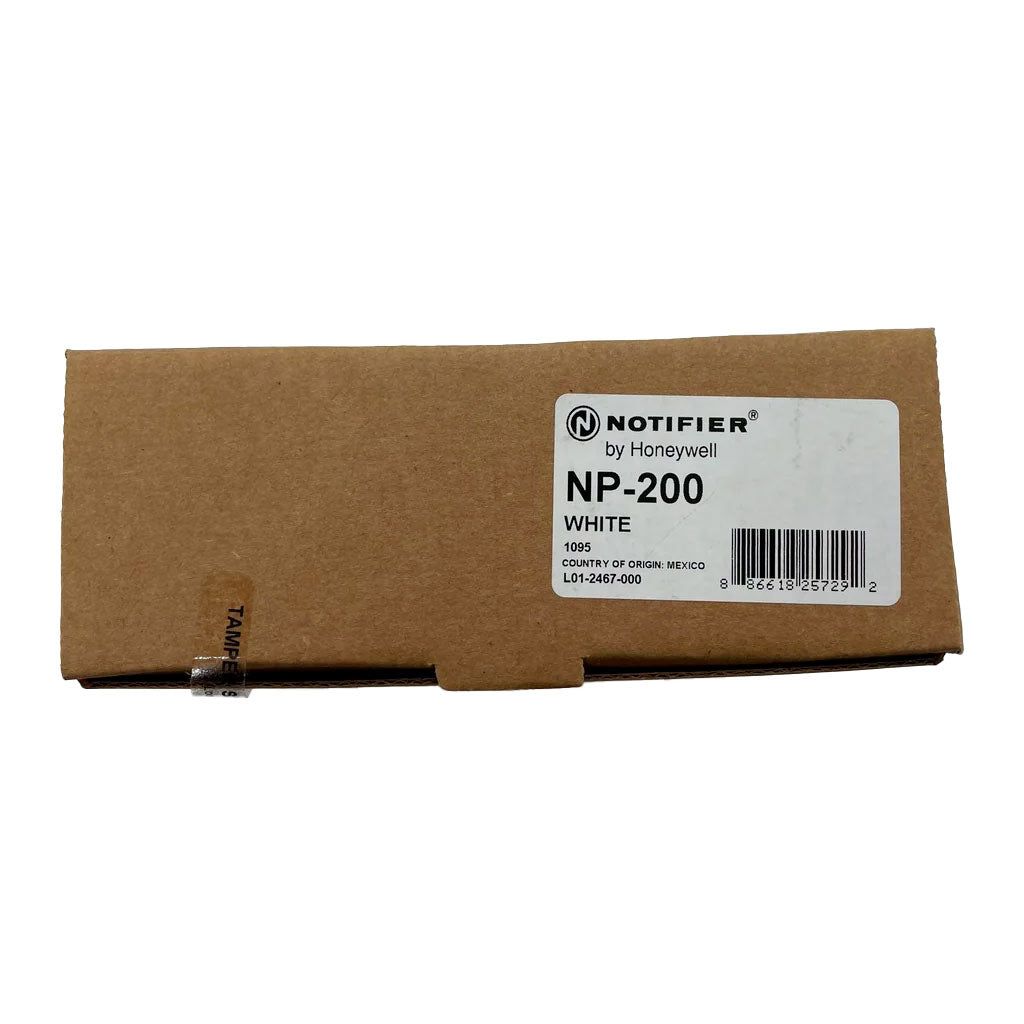

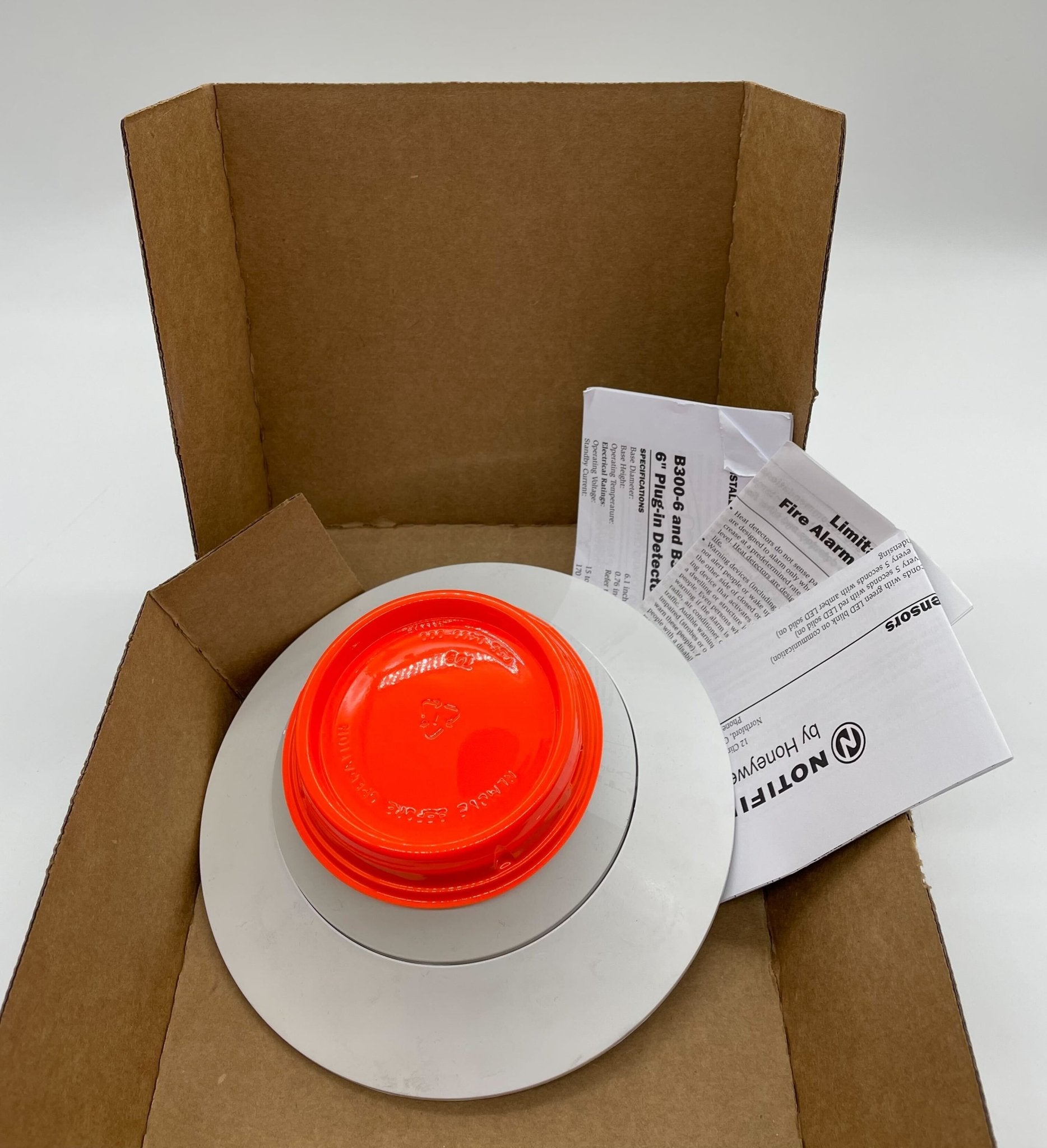

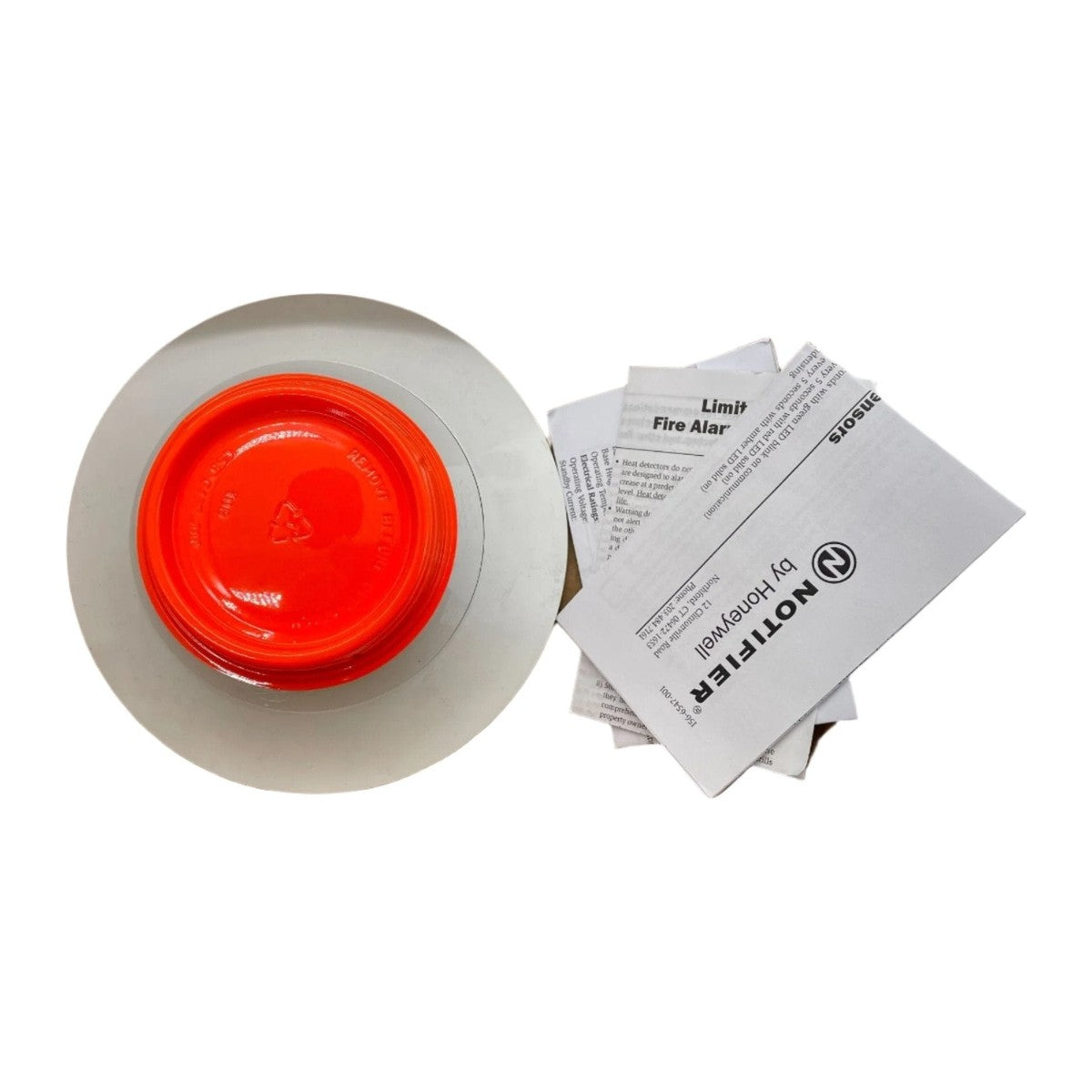

NOTIFIER NP-200 — white, low-profile intelligent plug-in photoelectric smoke sensor for NOTIFIER FireWarden Series addressable panels, FlashScan only.

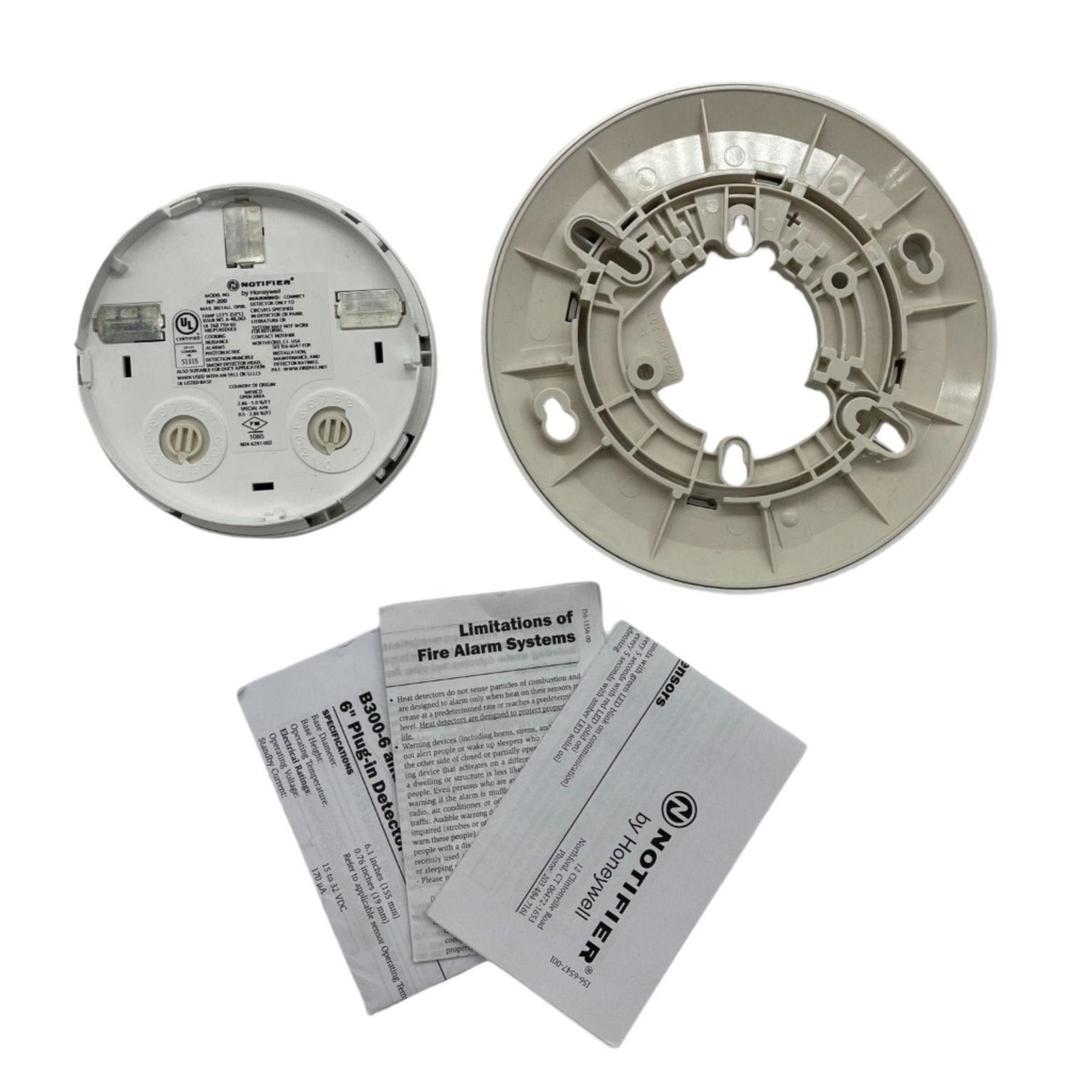

The NP-200 Series intelligent plug-in smoke detectors are designed for both performance and aesthetics, and are direct replacements for the NP-100 Series. A modern, sleek, contemporary design and an enhanced optical sensing chamber is engineered to sense smoke produced by a wide range of combustion sources in accordance with more stringent code standards. Exclusively for use with NOTIFIER’s FireWarden Series addressable fire alarm control panels, point ID capability allows each detector’s address to be set with rotary decimal address switches, giving emergency personnel the exact detector location during the early stages of a fire. Two LEDs on each sensor provide a local visible indication. The detector plugs into a separate base, ordered separately, which carries the field wiring and accepts photoelectric, ionization and thermal sensors interchangeably.
Specifications
| Type |
Intelligent plug-in photoelectric smoke detector |
| Panel compatibility |
Exclusively for use with NOTIFIER FireWarden Series addressable fire alarm control panels |
| Protocol |
FlashScan only |
| Colour |
White |
| SLC connection |
Two-wire SLC loop; unit uses base for wiring |
| Addressing |
Rotary, decimal address switches |
| Sensitivity (UL) |
0.5% to 4.0% per foot obscuration |
| Sensitivity (ULC) |
0.5% to 3.5% per foot obscuration |
| Factory preset |
1.5% nominal sensitivity for panel alarm threshold level |
| Voltage range |
15 – 32 volts DC peak |
| Standby current (max. avg.) |
200 µA @ 24 VDC (one communication every 5 seconds with LED enabled) |
| Max current |
4.5 mA @ 24 VDC (“ON”) |
| Operating temperature range |
NP-200: 32°F to 122°F (0°C to 50°C) |
| Relative humidity |
10% – 93% non-condensing |
| UL/ULC listed velocity range |
0 – 4000 ft/min. (1219.2 m/min.), suitable for installation in ducts |
| Size |
2.0 in. (5.3 cm) high; base determines diameter — B300-6 6.1 in. (15.6 cm), B501 4 in. (10.2 cm) |
| Shipping weight |
3.4 oz. (95 g) |
| Standard |
Designed to meet UL 268 7th Edition |
| Listings and approvals |
UL/ULC Listing S1115; FM Approved; CSFM 7272-0028:0503 |
| Country of origin |
Mexico |
Installation notes
-
FireWarden panels only: the NP-200 Series is published as exclusively for use with NOTIFIER FireWarden Series addressable panels. Refer to the FireWarden panel manuals for device capacity per loop.
-
Base sold separately: mount the detector base (all base types) on an electrical backbox at least 1.5 in. (3.81 cm) deep. For a chart of compatible junction boxes see DN-60054; for the full base list see DN-60981.
-
FlashScan only: the plain NP-200 is a FlashScan device. In the ordering table the “-IV” suffix designates the CLIP and FlashScan version, so specify NP-200-IV where CLIP operation is required.
-
No end-of-line resistor: because of the supervision inherent in the SLC loop, end-of-line resistors are not required. Wiring “T-taps” or branches are permitted for Style 4 (Class B) wiring only.
-
Isolator and sounder bases: when using relay or sounder bases, consult the N100-ISO installation sheet I56-3625 for device limitations between isolator modules and isolator bases.
-
Spacing: NOTIFIER recommends spacing in compliance with NFPA 72; in low airflow applications with a smooth ceiling, space detectors 30 feet (9.1 m).
-
Sensitivity testing: each detector can have its sensitivity tested as required by NFPA 72 Chapter 14 when connected to a FireWarden Series panel, and the results can be printed for record keeping.
Related models
-
NP-200-IV — ivory version; the -IV suffix indicates a CLIP and FlashScan device.
-
NP-200T — white, same as NP-200 but with a built-in 135°F (57°C) fixed-temperature thermal device, FlashScan only. Operating range is narrower at 32°F to 100°F (0°C to 38°C).
-
NP-200R — white, remote test capable, for use with DNR/DNRW duct detector housings, FlashScan only; rated -4°F to 158°F (-20°C to 70°C) when installed in that housing.
-
NP-200R-IV / NP-200T-IV — ivory remote-test and thermal versions.
-
NP-100 Series — the previous generation; the NP-200 Series is its direct replacement.
Specifications taken from the NOTIFIER data sheet “NP-200 Series Photoelectric Smoke Detectors for FireWarden Series,” document DN-60979:B (7/1/2019). Manufacturer specifications are subject to change without notice.
