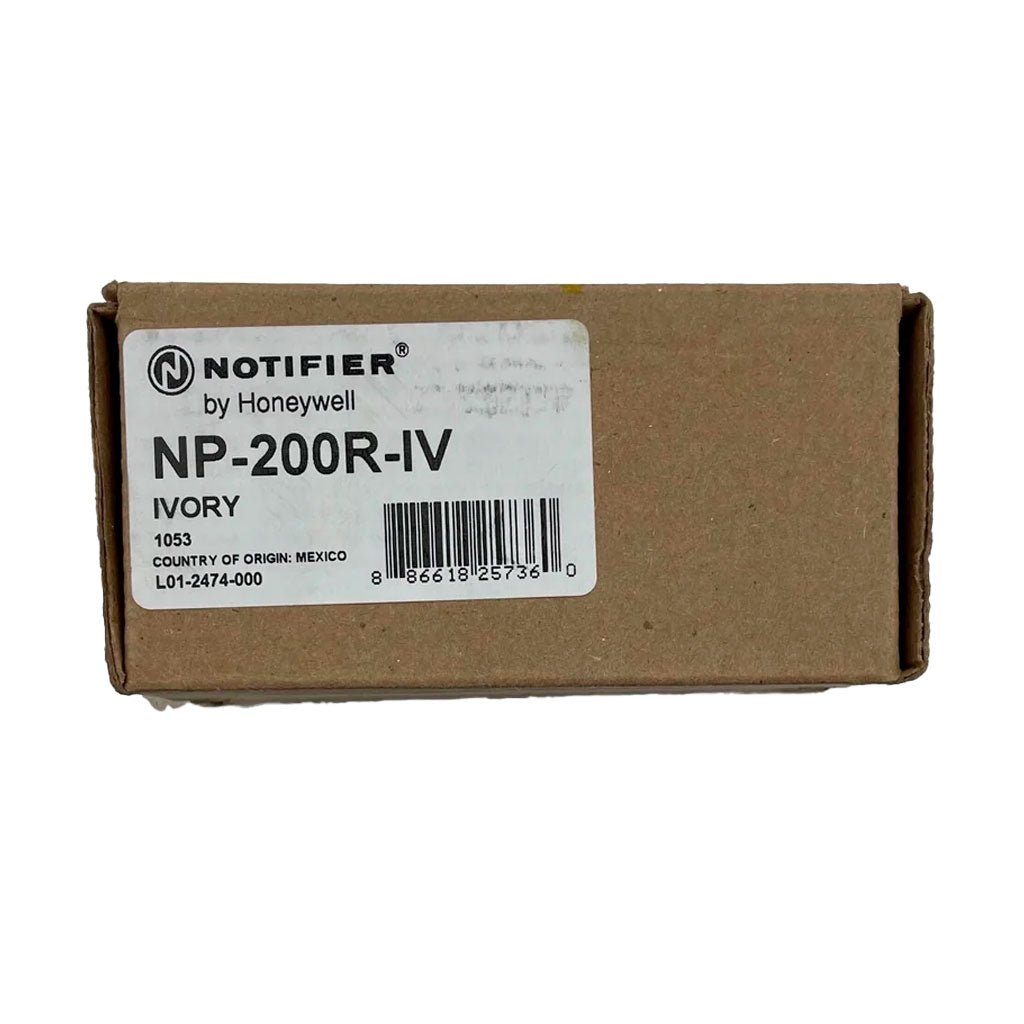

Notifier NP-200R-IV — ivory intelligent photoelectric smoke sensor, remote test capable, for use with DNR and DNRW duct detector housings.

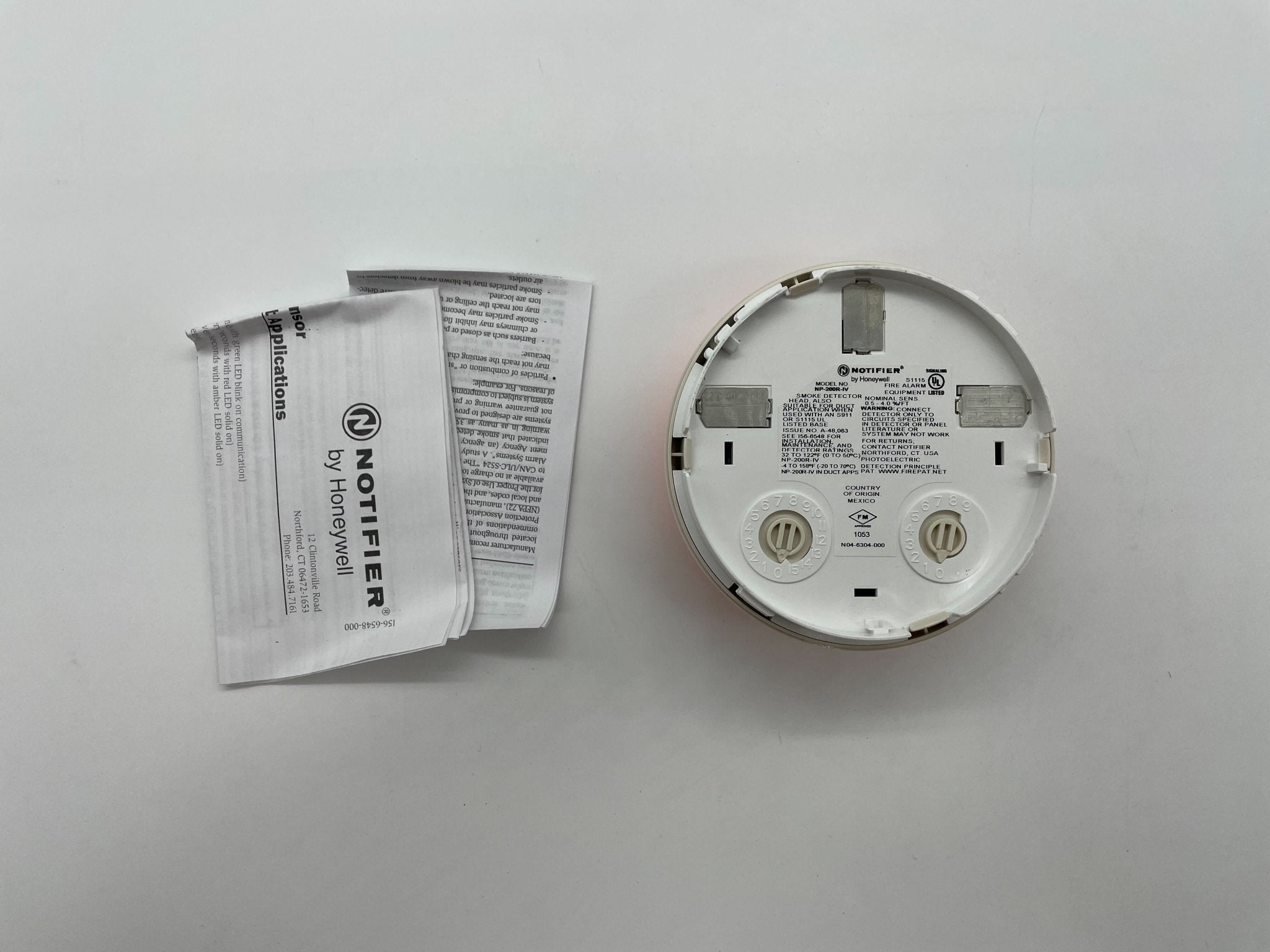

This is a plug-in sensor head, not a finished detector. It takes a separate base such as the B300-6 or B501 for its wiring, and in duct service drops into a DNR or DNRW housing, which Notifier sells without a head. The R designates remote test, run from the panel without reaching the duct.
- Voltage range 15 to 32 VDC peak from the SLC
- Standby 200 µA and maximum 4.5 mA, both at 24 VDC
- Sensitivity 0.5 to 4.0 percent per foot obscuration, UL applications
- Operating temperature -4 to 158 °F inside a DNR or DNRW
- Listed velocity range 0 to 4000 ft/min, suitable for ducts
- Designed to meet UL 268 7th Edition; UL/ULC listing S1115, FM approved
Notifier states the NP-200 Series is exclusively for its FireWarden Series panels, so it is not the head for an ONYX or NFS system. The -IV suffix means two things: ivory finish, and CLIP as well as FlashScan, where the white NP-200R is FlashScan only. A DNR or DNRW with date code 0012 or earlier needs a DCOIL and 24 VDC.
