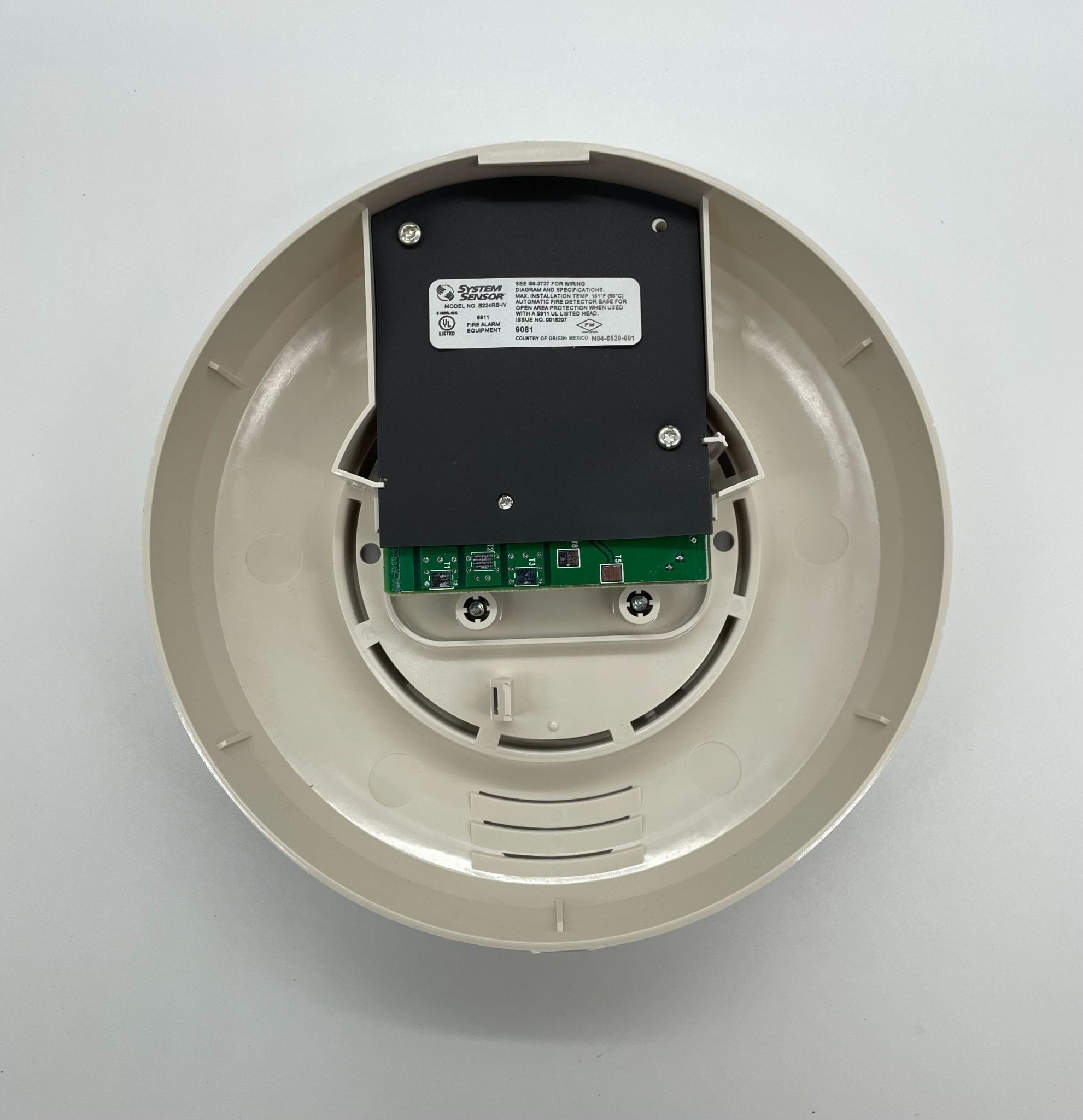

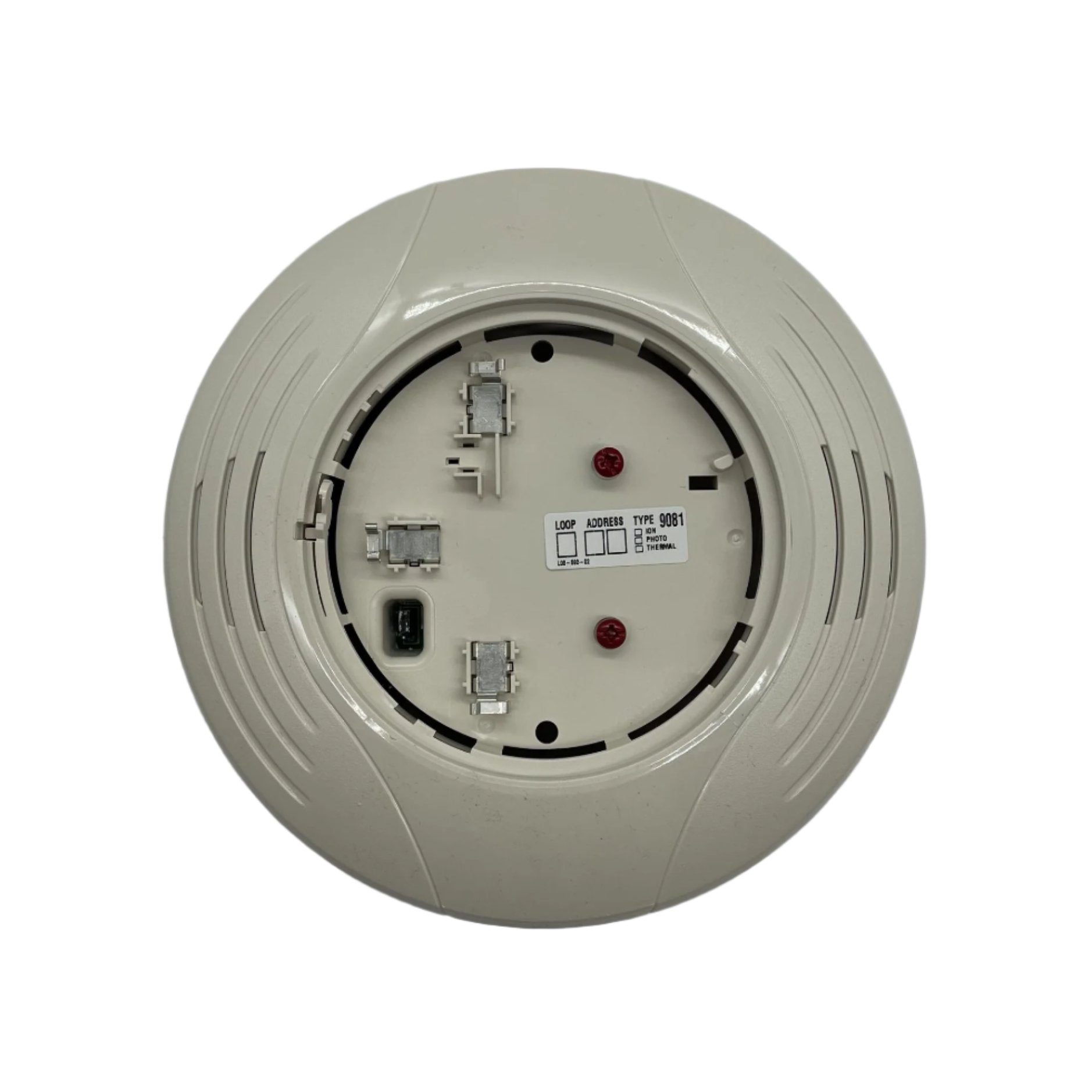

System Sensor B224RB-IV is an ivory relay base for 200 Series detectors. It adds a single Form C relay contact under the detector head, so the alarm system can operate auxiliary equipment such as door closures and elevator recall.

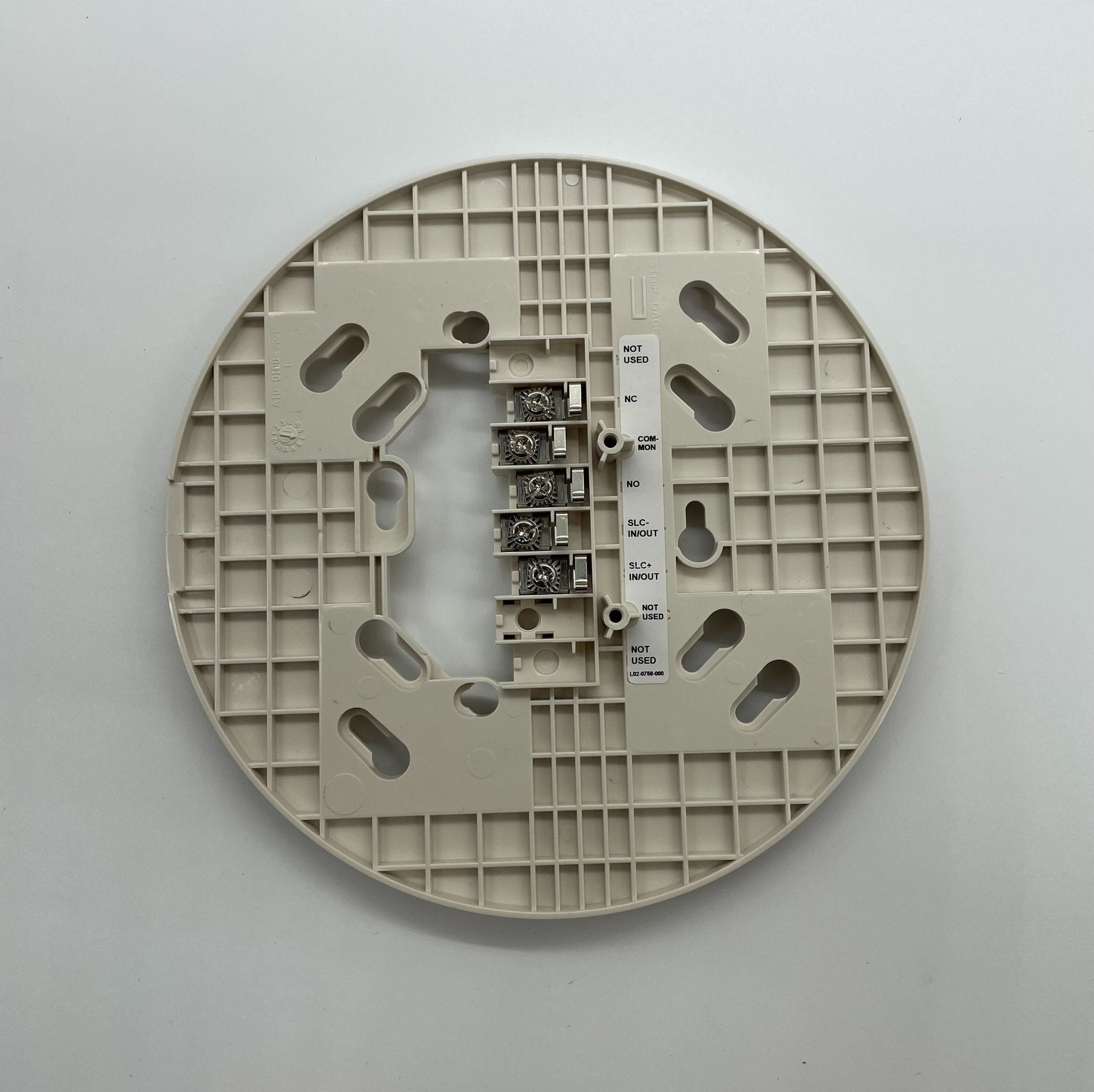

The detector plugs into the base, and field wiring is made at SEMS screw terminals that accept 24 to 12 AWG conductors.
Features
- Single Form C contact relay for auxiliary control functions
- Designed for use with 200 Series detectors
- Plug-in design for quick, secure detector installation
- SEMS screws used for the wiring connections
- Accepts 24 to 12 AWG wire
- Accessory options available for added mounting flexibility
