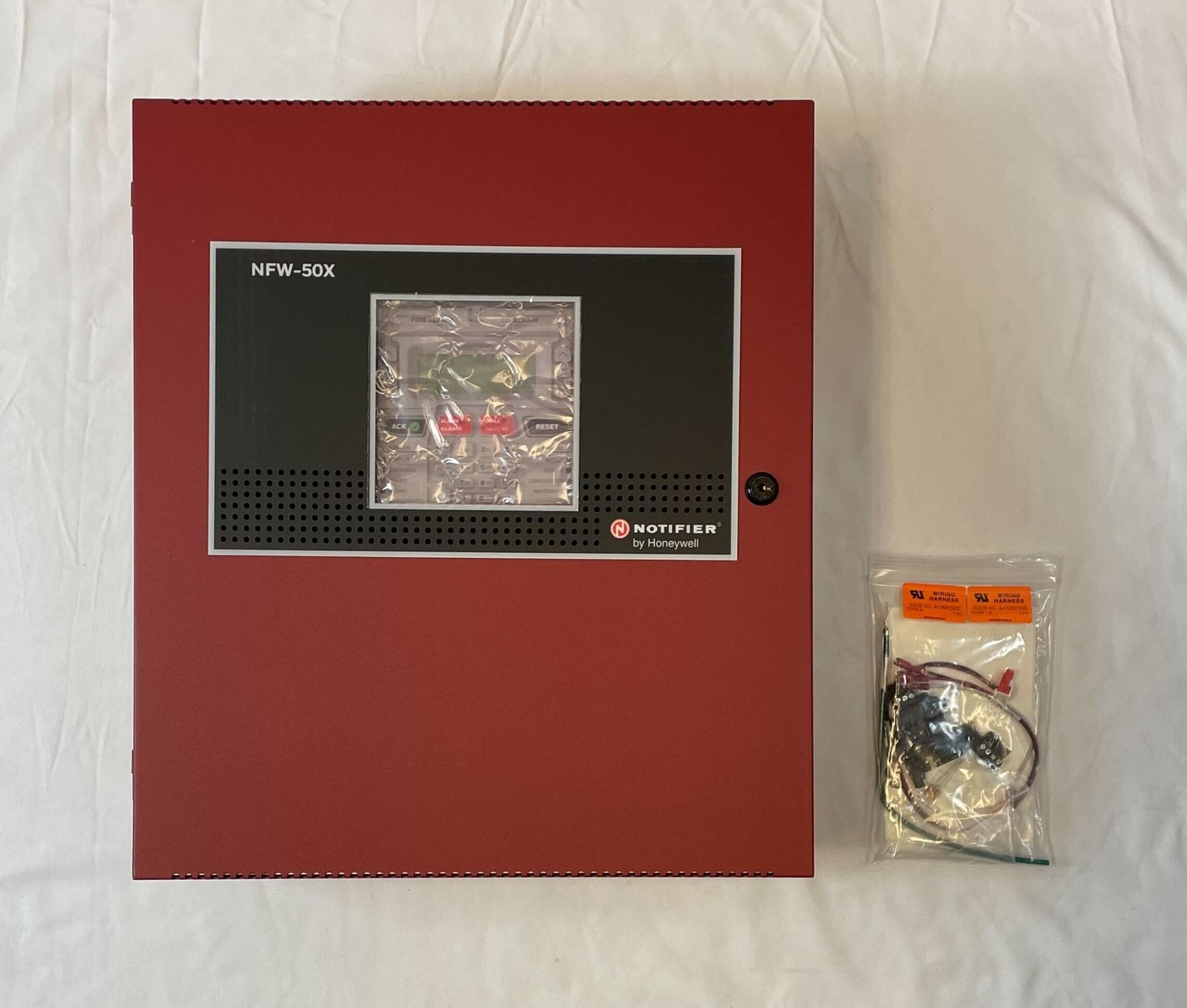

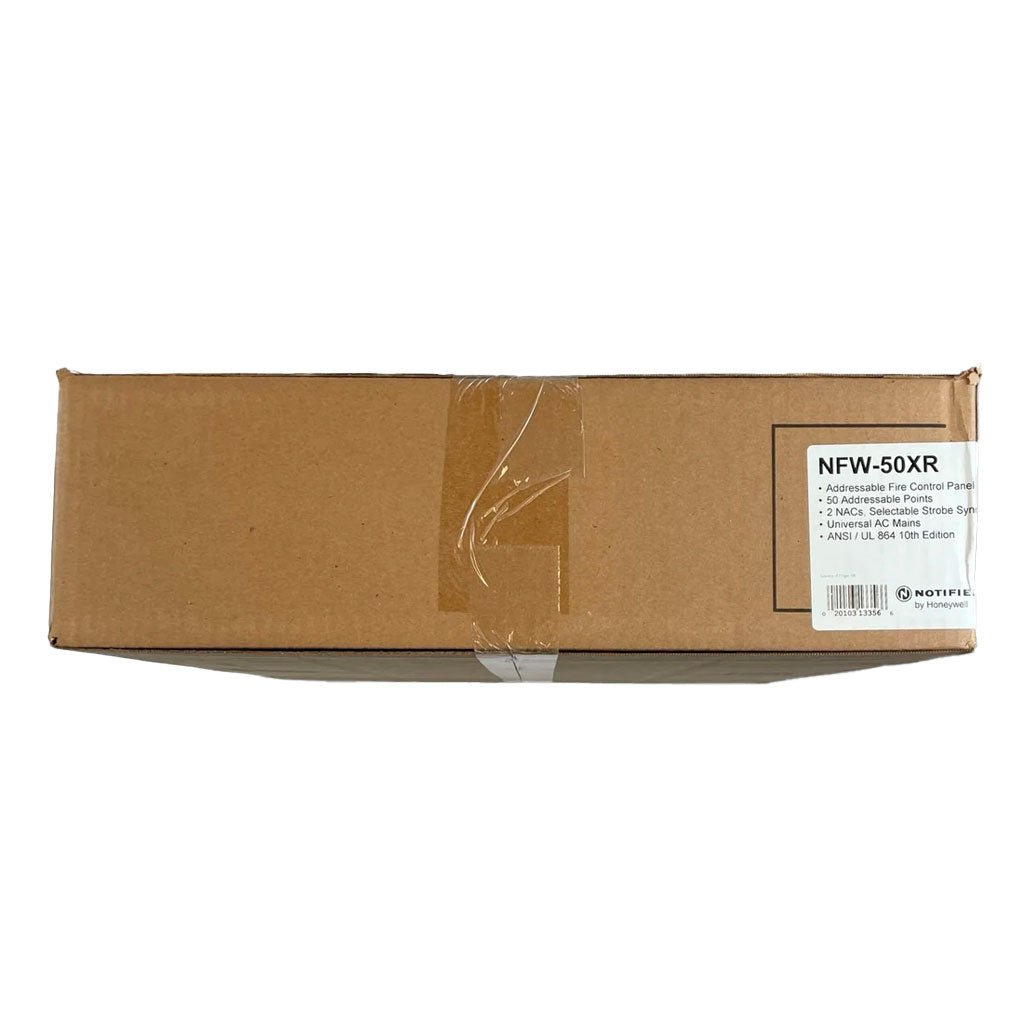

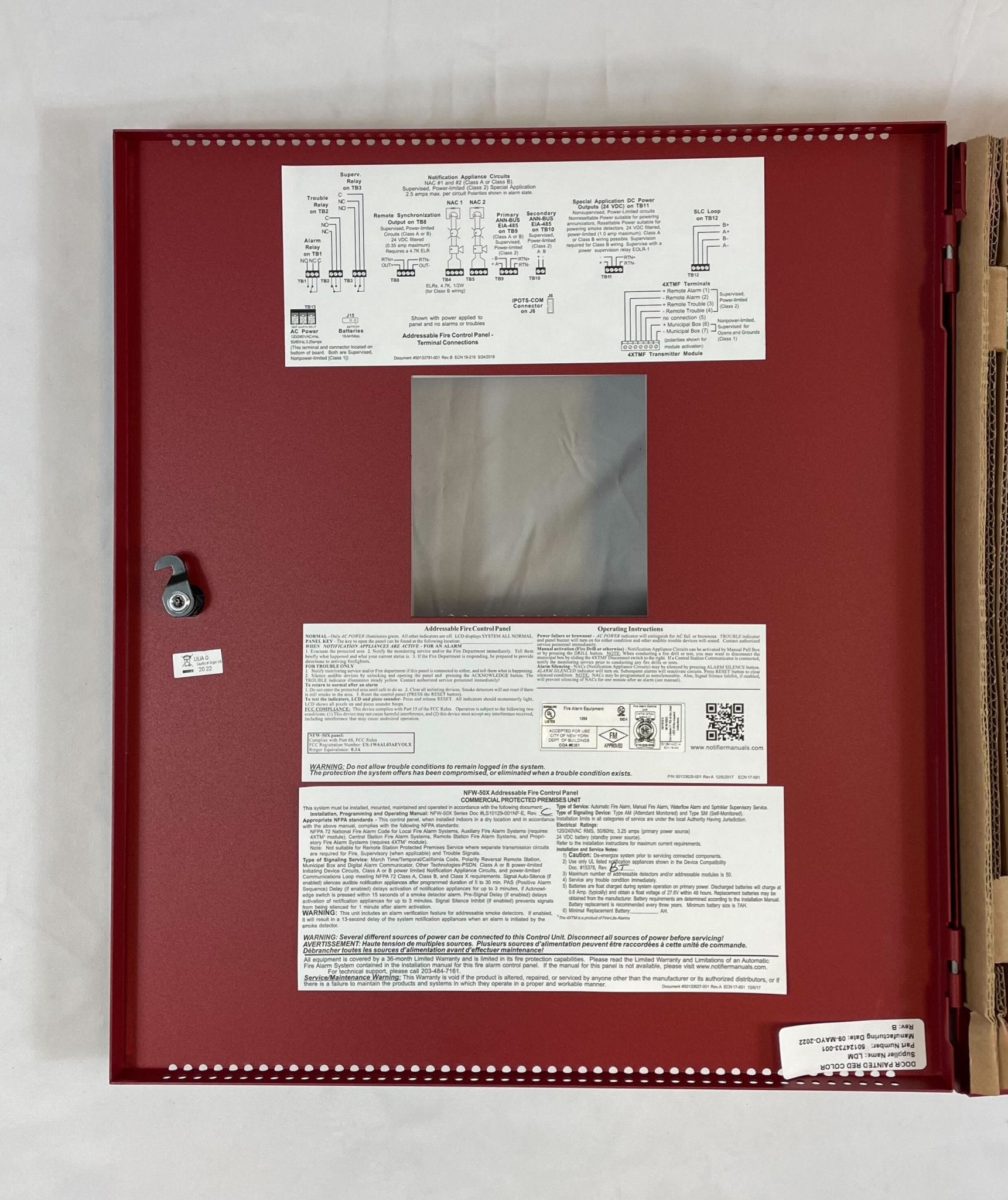

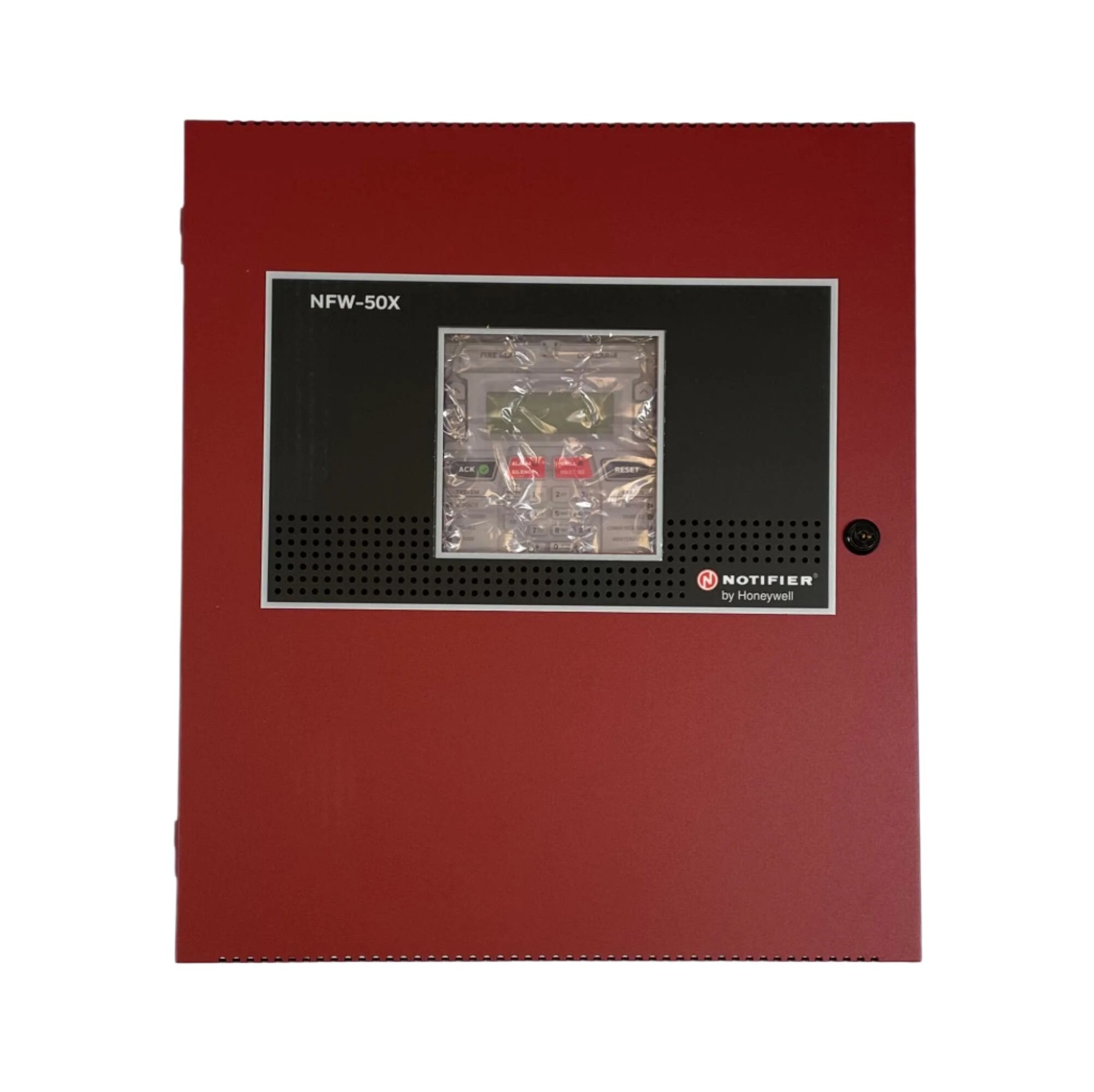

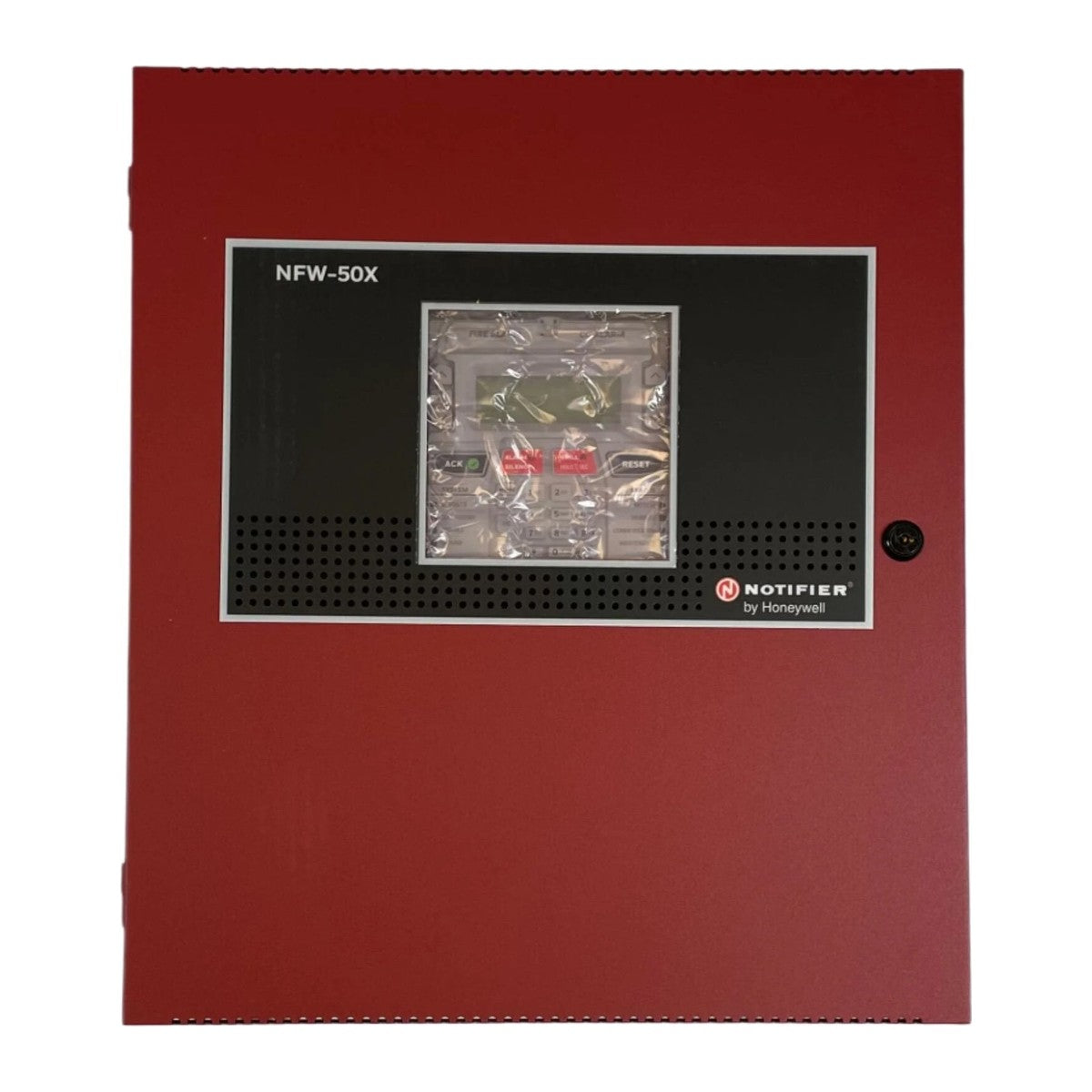

Notifier NFW-50XR — FireWarden-50X intelligent addressable fire alarm control panel with one signaling line circuit, in the red cabinet variant.
The NFW-50X Series is the current FireWarden small addressable platform and a direct replacement for the FireWarden-50. It carries a pre-installed IPOTS-COM communicator reporting to a central station over both a telephone line and the internet.
- One SLC loop, Class B or Class A, 50 addresses in any mix of detectors and modules
- FlashScan and CLIP protocols; the SLC runs to 10,000 ft on twisted unshielded wire in FlashScan
- Two programmable NACs, Class A or B, 2.5 A special application or 250 mA regulated; 2.7 A total shared with the ANN-BUS
- Auto-sensing 120 or 240 VAC, 50/60 Hz, 3.25 A; two 12 V 18 AH batteries, charger 7 to 18 AH
- 50 software zones, 1,000-event history, 80-character LCD, 16 ANN-BUS annunciators, two Form C relays and a trouble relay
- UL 864 10th Edition; works with SWIFT wireless
NFW-50X is the same panel in black and NFW-50XI drops the communicator, shipping a dress panel instead. DP-ES-R is the red dress panel Notifier pairs with it.
