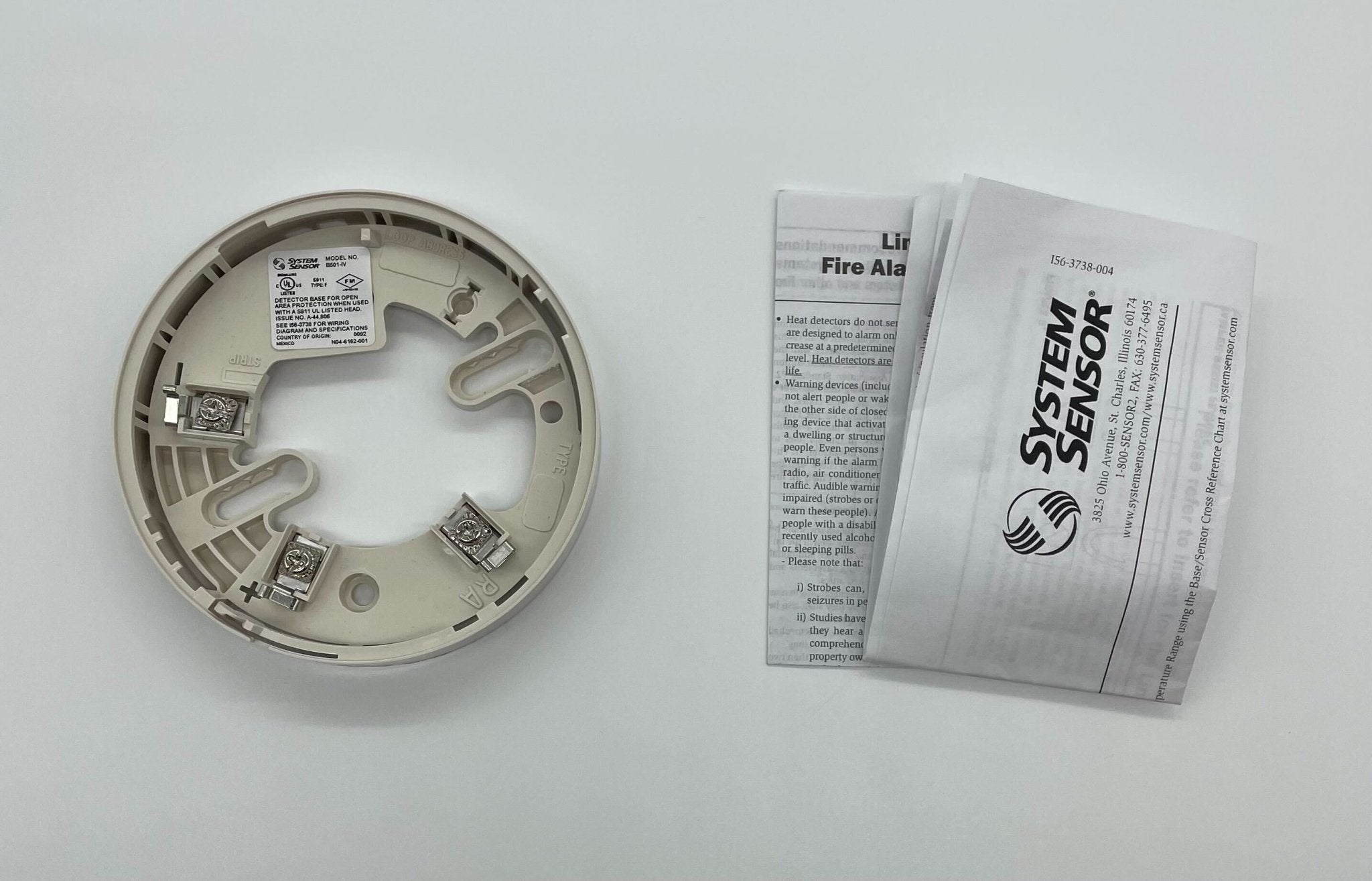

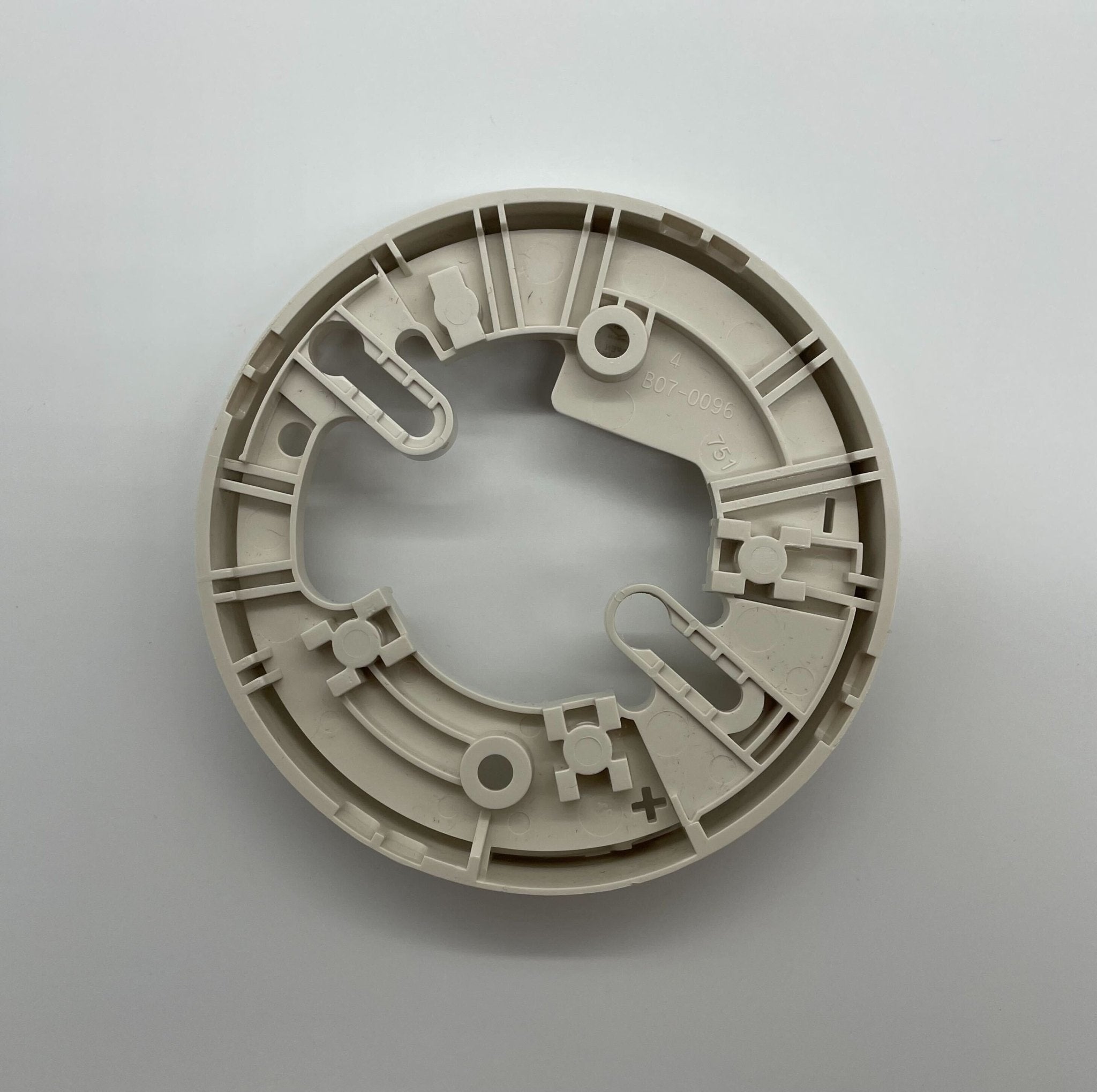

System Sensor B501-IV — 4 in flangeless plug-in detector base, ivory.

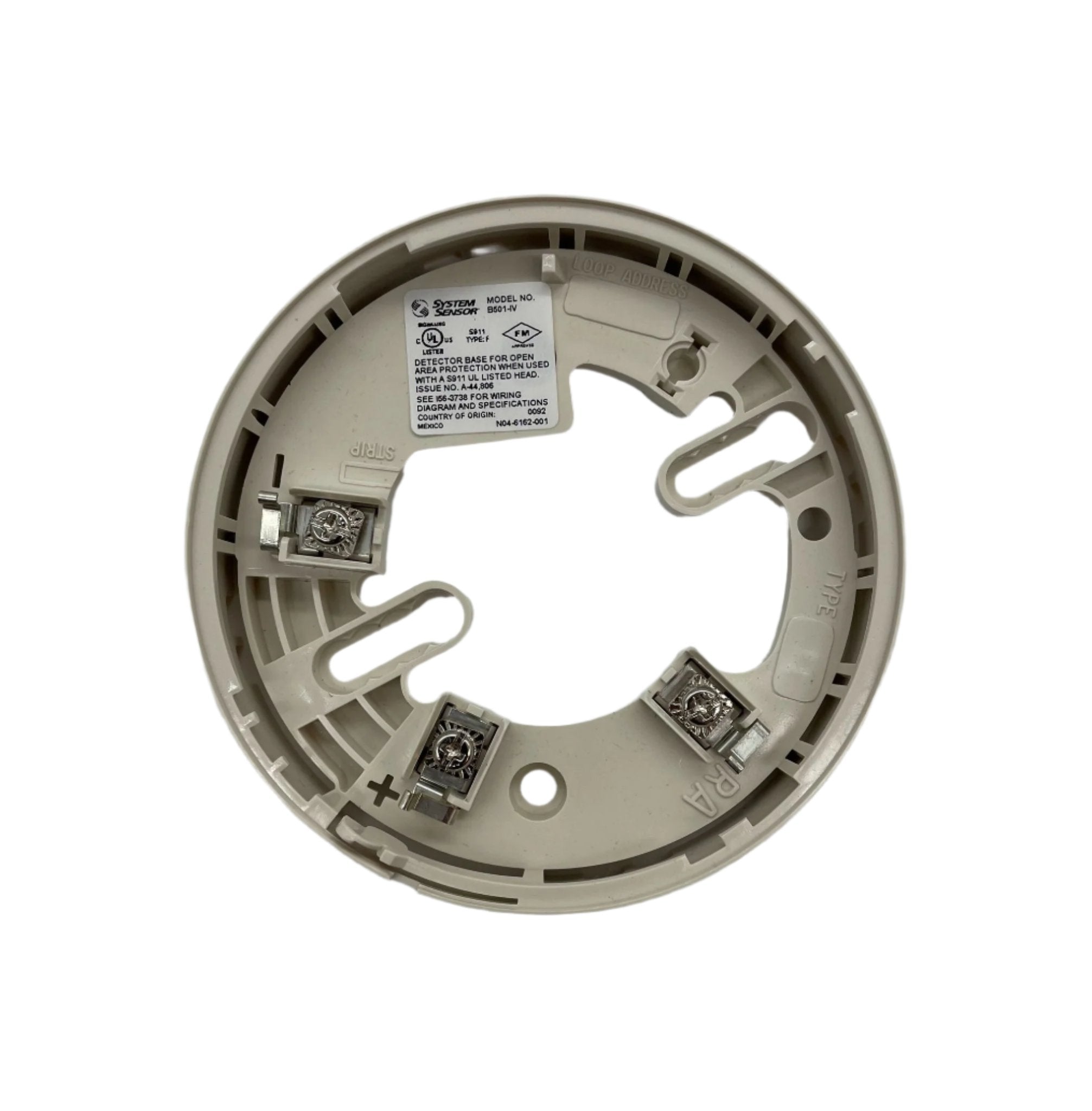

The B501 is the low-profile base used where a 6 in flanged base will not suit the ceiling opening. It is a passive mount: screw terminals bring in power and an optional remote annunciator, and all addressable communication happens through the detector head over the same two conductors.
- Accepts System Sensor 200 Series plug-in intelligent detector heads; equivalent IDP-series heads on compatible Honeywell panels
- 15 to 32 VDC, 150 µA standby (base and detector together)
- 4.0 in (10.2 cm) diameter, 0.74 in (18.8 mm) high; 12–24 AWG wire range
- Breakaway tamper-resist tab prevents removal of the head without a tool
- Supports the RA400Z / RA100Z remote LED annunciator
- UL, ULC, FM and CSFM certified
Check the box before ordering. The B501 mounts to a 3.5 in octagon, to a 4 in square only with a plaster or 3 in mud ring, and to 50, 60 and 70 mm centers — not to a single-gang or a bare 4 in square box.
