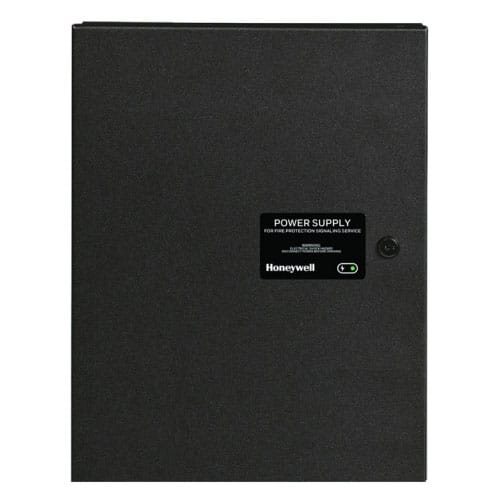

Honeywell HPF-PS10B is a 10.0 A, 120 VAC remote power supply with integral battery charger, in a lockable black metal enclosure.
The HPF-PS Series is the Honeywell remote power supply line and, in the words of its own data sheet, a direct replacement for the PSE and FCPS Series. The HPF-PS10B connects to any 12 or 24 volt fire alarm panel or runs stand-alone, feeding notification appliance circuits and resettable or constant auxiliary power.
Features and specifications
- Seven power-limited outputs set by onboard DIP switch: TB8 to TB11 at 1.5 A regulated, TB12 to TB14 at 0.3 A, 3 A each special application
- 10.0 A maximum total continuous current across all outputs
- Input 120 VAC, 50/60 Hz, 6.2 A max
- Three isolated triggers at 9 to 32 VDC; trouble contacts 4 A at 24 VDC
- Charger float 27.6 VDC at 1.5 A; two 7 AH or 18 AH batteries inside, up to 33 AH externally
- UL 864 10th Edition as a NAC expander, and UL 1481
- Enclosure 20.0 x 14.5 x 3.5 in., black, lockable
- Class A wiring needs the ZNAC-PS card; batteries ordered separately
Compatibility and replacement
The HPF-PS10B replaces PSE and FCPS Series supplies, such as the Notifier PSE-10, and works with any 12 or 24 volt fire alarm panel.
Related models and accessories
-
HPF-PS10: the same 10 A supply in a red enclosure
-
HPF-PS10E: 240 VAC model
-
HPF-PS6B: black 6 A version, with five outputs rather than seven
-
ZNAC-PS: Class A output converter card
FAQ
What does the HPF-PS10B replace? Honeywell's data sheet describes the HPF-PS Series as a direct replacement for the PSE and FCPS Series.
Are batteries included? No. Batteries are ordered separately; the enclosure holds two 7 AH or 18 AH batteries, and larger batteries up to 33 AH mount externally.
What is the difference between HPF-PS10B and HPF-PS10? Enclosure color: the HPF-PS10B is black and the HPF-PS10 is red.
See all fire alarm power supplies and Honeywell products.
