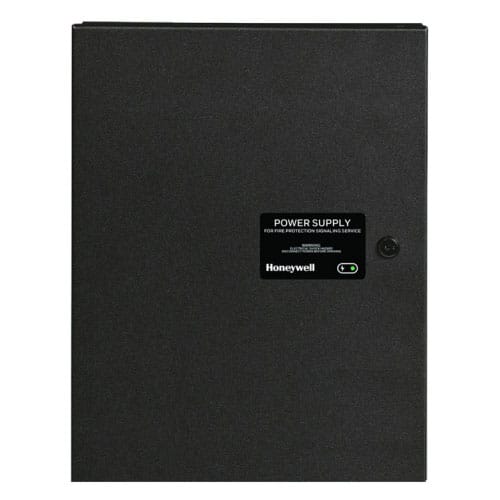

Honeywell HPF-PS6B — 6.0 A, 120 VAC remote charger power supply in a lockable metal enclosure, black.
A remote supply and battery charger for any 12 or 24 volt fire alarm panel, or stand-alone. It powers notification appliance circuits wired Class B or Class A and supplies constant or resettable auxiliary power, all set from DIP switches.
- Five configurable power-limited outputs, 6.0 A total continuous and 3 A maximum per circuit: TB8 and TB9 rated 1 A regulated, TB10 to TB12 rated 0.3 A.
- Primary 120 VAC, 50/60 Hz, 5.0 A max; two isolated inputs, trigger 9 to 32 VDC.
- Charger float 27.6 VDC at 1.5 A; two 7 or 18 AH batteries inside, 33 AH external.
- Two Form C normally closed trouble relays, 4 A at 24 VDC; cabinet 20.0 x 14.5 x 3.5 in.
- UL 864 10th Edition in NAC expander mode and UL 1481, file S24562.
HPF-PS6 is the same supply in red, HPF-PS6E the 240 VAC version, HPF-PS10B the 10 amp black. Class A output needs the ZNAC-PS card and batteries are separate numbers. Honeywell names the replaced line by brand: the Notifier issue says PSE and FCPS, the Silent Knight and Farenhyt issues 5495/5499.
Documents
FAQ
Which panels can the HPF-PS6B work with?
It can be connected to any 12 or 24 volt fire alarm control panel, or used stand-alone. It works with any UL 864 FACP that uses an industry-standard reverse-polarity notification circuit.
How do I get Class A NAC outputs?
Add the ZNAC-PS converter card, sold separately. It converts Class B to Class A wiring without losing any outputs.
What batteries does it hold?
The cabinet holds two 7 Ah or two 18 Ah lead-acid batteries, and the charger can charge up to 33 Ah batteries in a separate cabinet.
Which strobes can it synchronize?
System Sensor, Wheelock, Gentex and AMSECO appliances. Up to four power supplies can be cascaded.
