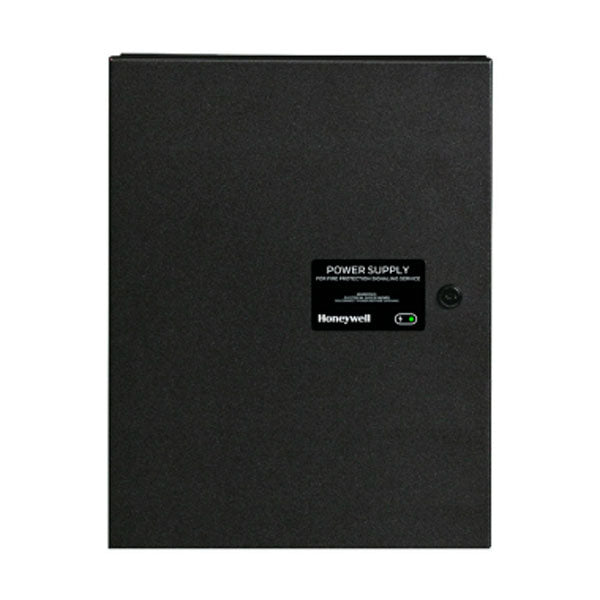

Notifier PSE-10 — 10 amp, 24 VDC remote power supply and battery charger in a locking steel cabinet, replaced by the Notifier HPF-PS Series.
A fire alarm panel runs out of notification power long before it runs out of addresses, and a remote supply adds circuits without a second panel. It connects to any 12 or 24 volt panel or works standalone, and offers seven power-limited outputs, each settable as a notification appliance circuit, as auxiliary 24 V power or as door holder power.
- 10.0 A total continuous, 3 A per circuit; four at 1.5 A, three at 0.3 A
- Three isolated inputs programmable to any output
- Primary 120 VAC, 50/60 Hz, 6.2 A max; two Form C trouble relays
- Charger 27.6 VDC float, 1.5 A max, 18 AH internal, 33 AH remote
- UL certified sync with System Sensor, Wheelock, Gentex, AMSECO
- Cabinet 20.0 × 14.5 × 3.5 in.
- UL 864 10th edition, NAC expander mode, and UL 1481
Class A wiring needs the ZNAC-PS card and the two 12 V batteries are ordered separately. PSE-6 is the 6 amp version, PSE-10R the red enclosure and PSE-10C the ULC model. Read the successor suffix: HPF-PS10 is red, HPF-PS10B black.
Documents
FAQ
What replaces the PSE-10?
Notifier replaced the PSE-10 with the HPF-PS Series. The HPF-PS10 is the red model and the HPF-PS10B the black one.
How much current does it provide?
10.0 A total continuous, with 3 A maximum per circuit across seven power-limited outputs.
Can it drive Class A circuits?
Yes, with the ZNAC-PS Class A converter card.
What batteries does it charge?
Up to 18 AH batteries inside the cabinet or 33 AH in a remote cabinet. The two 12 V batteries are ordered separately.
