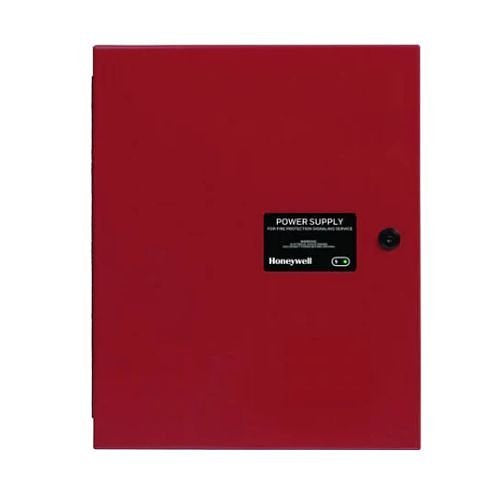

Honeywell HPF-PS10 — a 10.0 A, 120 VAC remote power supply with integral battery charger in a lockable red metal enclosure.
The HPF-PS Series is Honeywell’s remote power supply line and a direct replacement for the HPF24S6/8 and HPFF8. The HPF-PS10 may be connected to any 12 or 24 volt fire alarm control panel or used as a standalone power supply. It provides 24 VDC power for notification appliance circuits configured as either Class B or Class A (Class A requires the ZNAC-PS option card), with multiple sync protocol options, and it also provides auxiliary power, constant or resettable, for detectors, annunciators, door holders and other fire alarm peripherals. Everything is configured with onboard DIP switches, so no extra software is required. The cabinet is heavy gauge steel with a corrosion-resistant powder coat, chip and scratch resistant finish, ten double knockouts and a removable door.
Specifications
| Model |
HPF-PS10 — 10.0 A, 120 VAC remote charger power supply in a lockable, metal enclosure, red |
| Primary (AC) power |
120 VAC, 50/60 Hz, 6.2 A maximum |
| AC wire size |
#12–14 AWG with 600 V insulation |
| Total output current |
10.0 A maximum total continuous current for all outputs |
| Output circuits |
24 VDC filtered. TB8–TB11: 1.5 A regulated, 3 A special applications. TB12–TB14: 0.3 A regulated, 3 A special applications |
| Configurable outputs |
Up to seven independently-configurable, power-limited output circuits |
| Maximum per circuit |
3 A |
| Input / control circuits |
Three fully-isolated input/control circuits, programmable to any output |
| Command input circuit |
Trigger input voltage 9 to 32 VDC; trigger current 2.0 mA (16–32 V), per input 1.0 mA (9–16 V) |
| Relay circuits |
Two Form C normally-closed trouble relays (AC Trouble and General Trouble); trouble contact rating 4 A at 24 VDC |
| Battery float-charge voltage |
27.6 VDC |
| Maximum charging current |
1.5 A |
| Maximum battery capacity in cabinet |
18 AH |
| Maximum battery charging capacity |
33 AH (external cabinet) |
| Battery type |
Lead-acid only; cabinet houses two 7 AH or 18 AH batteries |
| End-of-line supervision |
Wide range, normal 2–27K ohms |
| Terminal blocks |
Removable, accommodate up to 12 AWG (3.1 mm²) wire |
| Dimensions |
20.0"H x 14.5"W x 3.5"D (50.8 x 36.83 x 8.9 cm) |
| Weight |
24 lb (10.9 kg) with two 7 AH batteries; 39 lb (17.7 kg) with two 18 AH batteries |
| Standards |
NFPA 72 National Fire Alarm Code; UL 864 Control Units for Fire Alarm Systems (NAC expander mode); UL 1481 Power Supplies for Fire Alarm Systems |
| Listings |
UL/ULC Listed S24562; CSFM 7315-1637:0505; FDNY COA 2022-TMCOAP-002231-AMND; FM Approved |
| Country of origin |
USA |
Installation notes
-
This is the 10 A, 120 V, red unit: the family shares one datasheet. The HPF-PS10 draws 6.2 A maximum from a 120 VAC branch circuit and delivers 10.0 A total — the 6 A models draw 5.0 A and deliver 6.0 A, and the E models run on 240 VAC. Size the branch circuit from this model’s row.
-
Seven outputs and three inputs: the 10 amp model provides up to seven independently-configurable output circuits and three isolated input/control circuits, against five and two on the 6 amp model.
-
Regulated versus special application: TB8–TB11 are 1.5 A regulated and TB12–TB14 are 0.3 A regulated. The 3 A per-circuit figure is a special-application rating, and total draw across all outputs still cannot exceed 10.0 A.
-
The charger does not scale with the output: charging current is 1.5 A and maximum charging capacity 33 AH on every model in the family, including this one. A bigger power supply does not mean a bigger battery charger.
-
Class A needs a card: converting from Class B to Class A wiring without losing outputs requires the ZNAC-PS converter card, sold separately.
-
Batteries over 18 AH go outside: the cabinet holds two 7 AH or 18 AH batteries; a 33 AH set needs a separate cabinet. For larger batteries the onboard charger can be disabled by DIP switch and an external charger used.
-
Cascading: up to four power supplies can be cascaded, and synchronization can be triggered from FACP NAC or remote sync outputs, a cascaded power supply, or a control module housed within the cabinet.
-
Seismic installations: the SEISKIT-MULTI-1 provides bracket and hardware for two 7 AH or two 18 AH batteries.
Related models
-
HPF-PS10B — identical 10.0 A, 120 VAC unit in a black enclosure.
-
HPF-PS10E — 10.0 A rated for 240 VAC operation, 3.5 A maximum primary current, red.
-
HPF-PS6 / HPF-PS6B — 6.0 A, 120 VAC, 5.0 A maximum primary current, red and black; five output circuits and two input circuits.
-
HPF-PS6E — 6.0 A rated for 240 VAC operation, 2.7 A maximum primary current, red.
-
ZNAC-PS — optional Class A converter card, sold separately.
-
EOLR-1 — 12/24 VDC end-of-line relay for monitoring four-wire smoke detector power.
-
BAT-1270-BP / BAT-12180-BP / BAT-12330 — 12 V 7.0 AH five-pack (two required), 12 V 18 AH two-pack, and 12 V 33 AH batteries.
-
50152254-001 — hardware kit for Canadian applications.
Specifications taken from the Honeywell data sheet "HPF-PS Series — 6 Amp and 10 Amp, 24 Volt Power Supplies," document DH-61094:D (8/15/2023). Manufacturer specifications are subject to change without notice.
