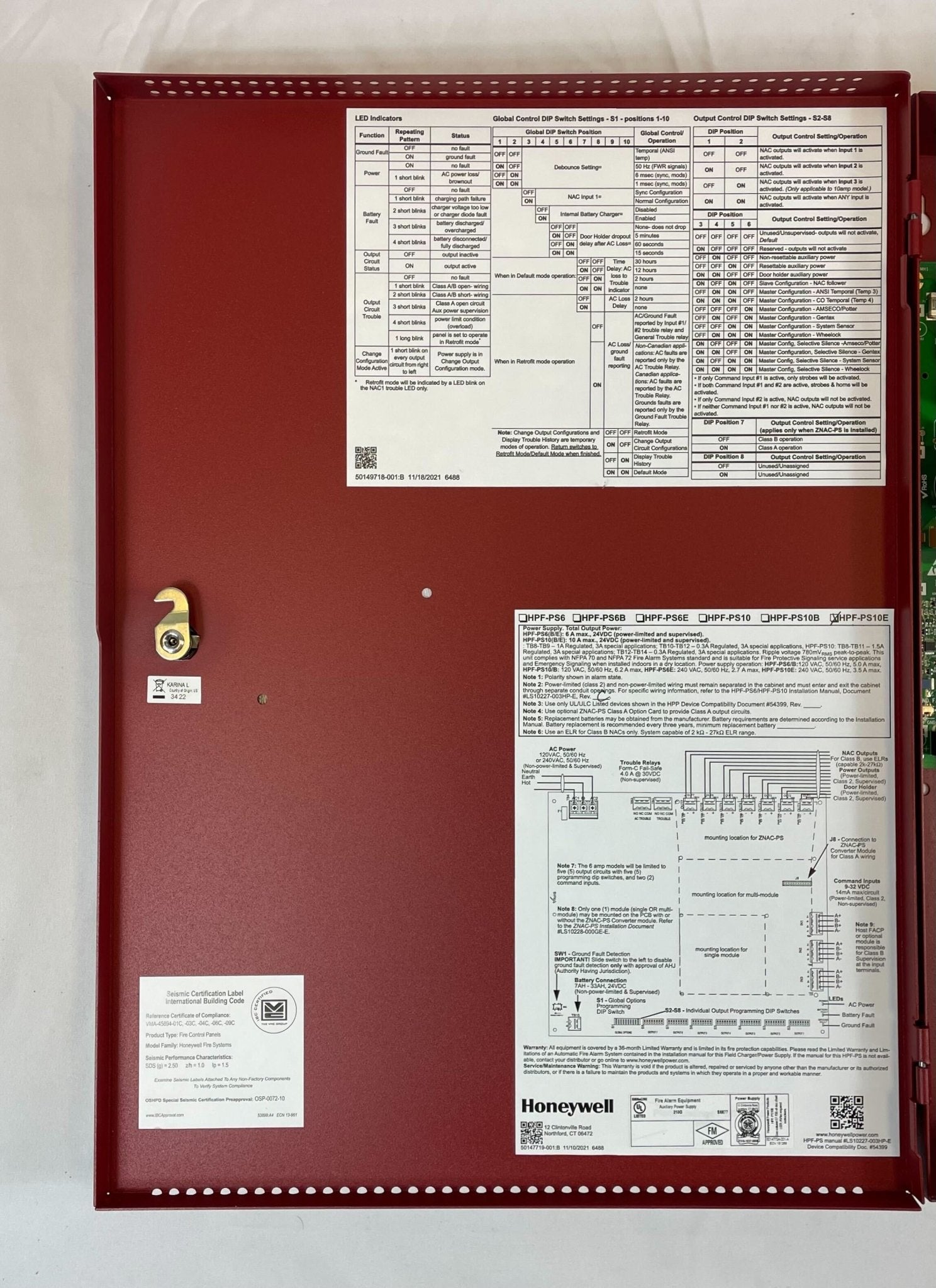

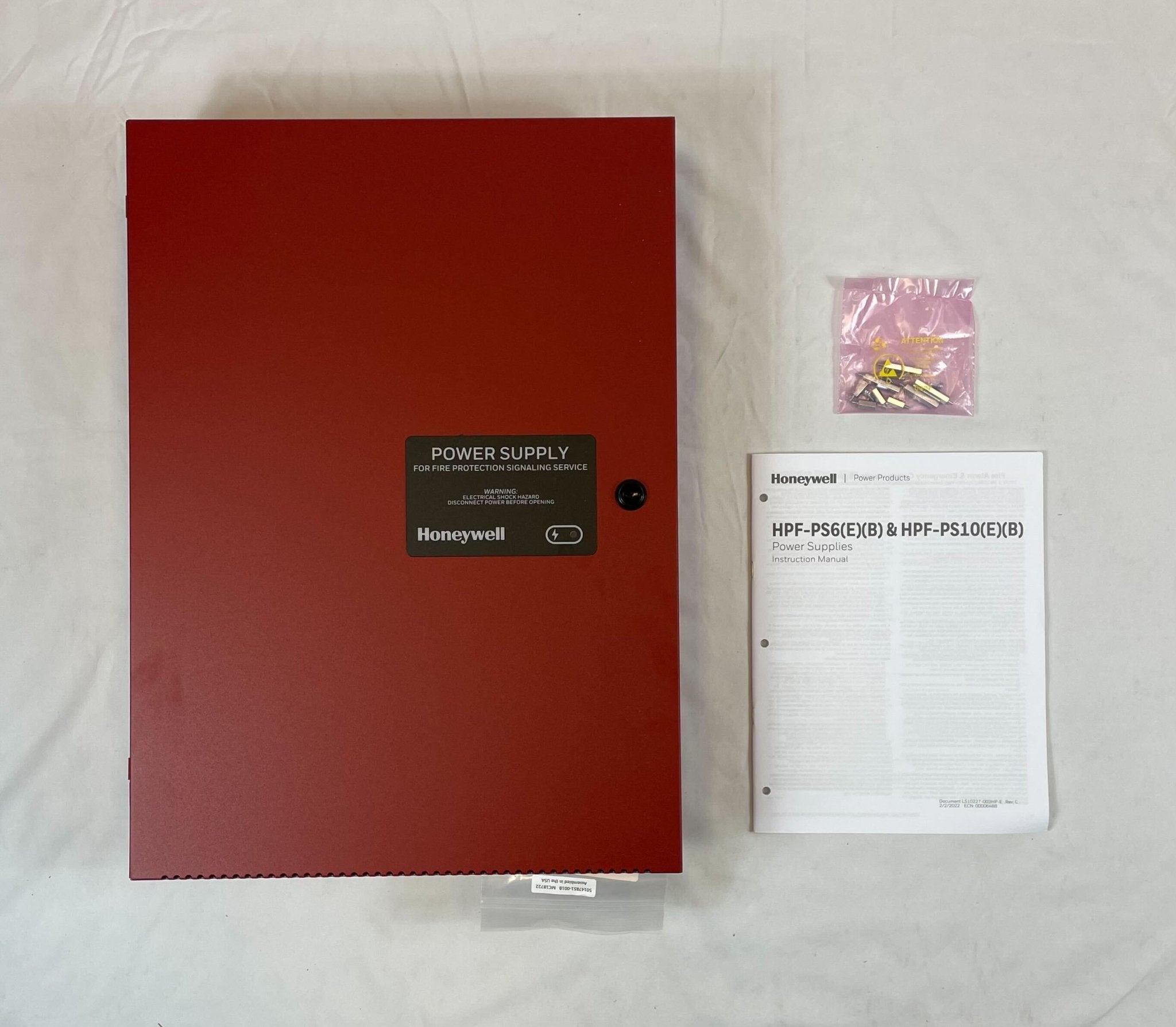

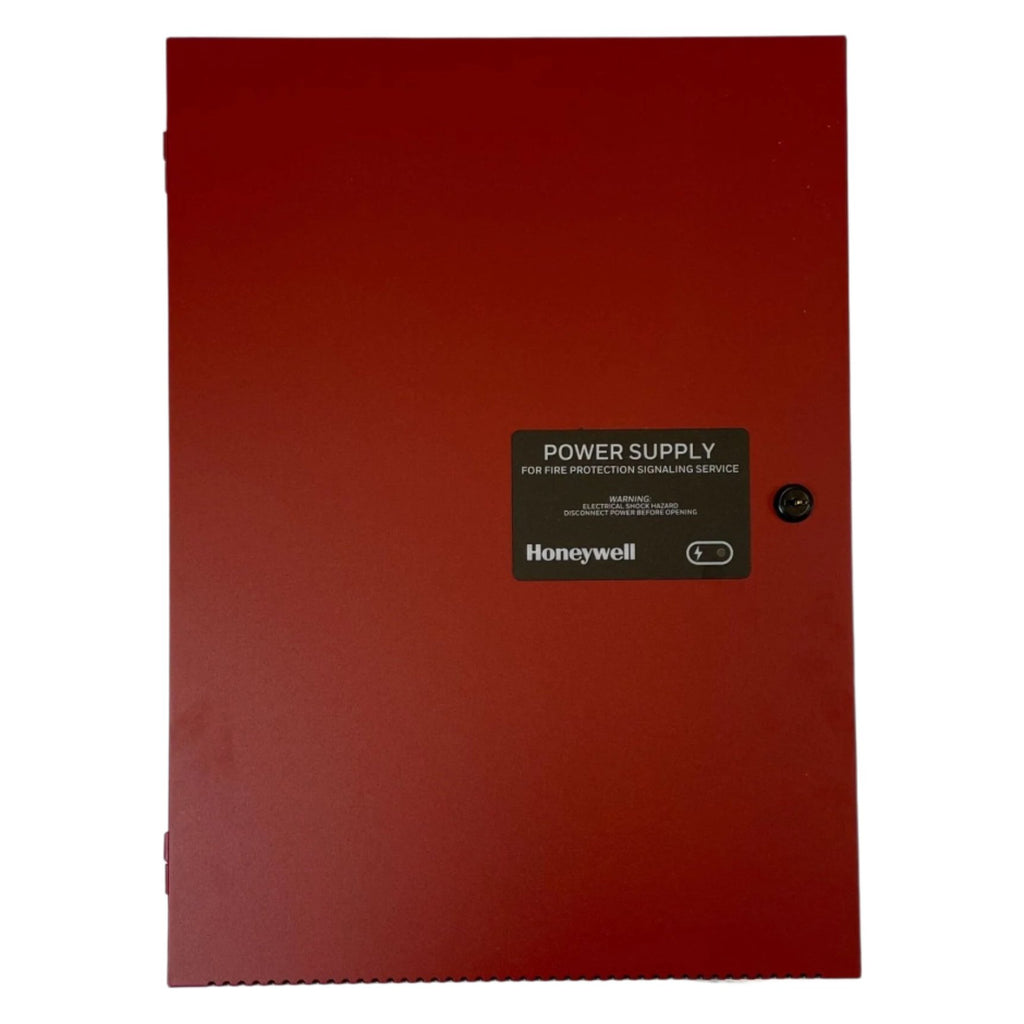

Honeywell HPF-PS10E is a 10 amp, 24 VDC remote power supply with an integral battery charger, rated for 240 VAC input. Part of the HPF-PS Series (the direct replacement for the PSE and FCPS Series), it can be connected to any 12 or 24 volt fire alarm control panel or used as a stand-alone power supply. It powers notification appliance circuits in Class B or Class A (with the ZNAC-PS card) with multiple sync protocols, and provides constant or resettable auxiliary power for four-wire detectors, annunciators and door holders. It ships in a lockable red steel cabinet.
Specifications
| Primary power |
240 VAC, 50/60 Hz, 3.5 A maximum |
| Output |
24 VDC filtered, regulated; 10.0 A maximum total continuous |
| Output circuits |
Up to seven independently configurable, power-limited; 3 A maximum per circuit |
| Input/control circuits |
Three fully isolated; trigger 9 to 32 VDC |
| Trouble relays |
Two Form C (AC trouble, general trouble); 4 A at 24 VDC |
| Battery charger |
Lead-acid only; 27.6 VDC float, 1.5 A max charge |
| Battery capacity |
18 AH inside cabinet; charges up to 33 AH in an external cabinet |
| EOL supervision |
2K to 27K ohms |
| Wire size |
Removable terminal blocks up to 12 AWG; AC input 12-14 AWG, 600 V insulation |
| Dimensions |
20.0 in. H x 14.5 in. W x 3.5 in. D |
| Weight |
24 lb with two 7 AH batteries; 39 lb with two 18 AH batteries |
| Standards |
UL 864 10th Edition (NAC expander mode), UL 1481, NFPA 72 |
| Certifications |
UL and ULC S24562; CSFM 7315-1637:0505; FM Approved |
Features
- Configurable for ANSI Temporal 3 or Temporal 4 coded output
- NAC synchronization for System Sensor, Wheelock, Gentex or AMSECO appliances
- Sync can be triggered from FACP NAC/remote sync outputs, a cascaded power supply or a control module
- Cascade up to four power supplies
- Individual NAC power and trouble LEDs, trouble history modes
- Selectable earth fault detection and AC trouble report delay timer
- Fully configured by onboard DIP switches; no software required
- Charger can be disabled by DIP switch when an external charger is used
Related models
-
HPF-PS10 / HPF-PS10B — the same 10 amp supply for 120 VAC, red or black cabinet.
-
HPF-PS6E — 6 amp, 240 VAC version with up to five output circuits.
-
ZNAC-PS — optional Class A output converter card.
-
EOLR-1 — end-of-line relay for monitoring four-wire smoke detector power.
Documents
FAQ
What is the difference between the HPF-PS10E and the HPF-PS10?
Both are 10 amp, 24 VDC remote power supplies with a battery charger. The HPF-PS10E is the model rated for 240 VAC input (3.5 A maximum); the HPF-PS10 and HPF-PS10B run on 120 VAC.
Which panels can drive it?
Honeywell states it may be connected to any 12 or 24 volt fire alarm control panel or used as a stand-alone power supply, and it works with any UL 864 FACP that uses an industry-standard reverse-polarity notification circuit.
What batteries does it take?
The cabinet holds two 7 AH or 18 AH lead-acid batteries, and the integral charger can charge up to 33 AH batteries housed in a separate cabinet.
Can it run Class A notification circuits?
Yes, with the optional ZNAC-PS converter card, which converts outputs from Class B to Class A without losing any outputs.
