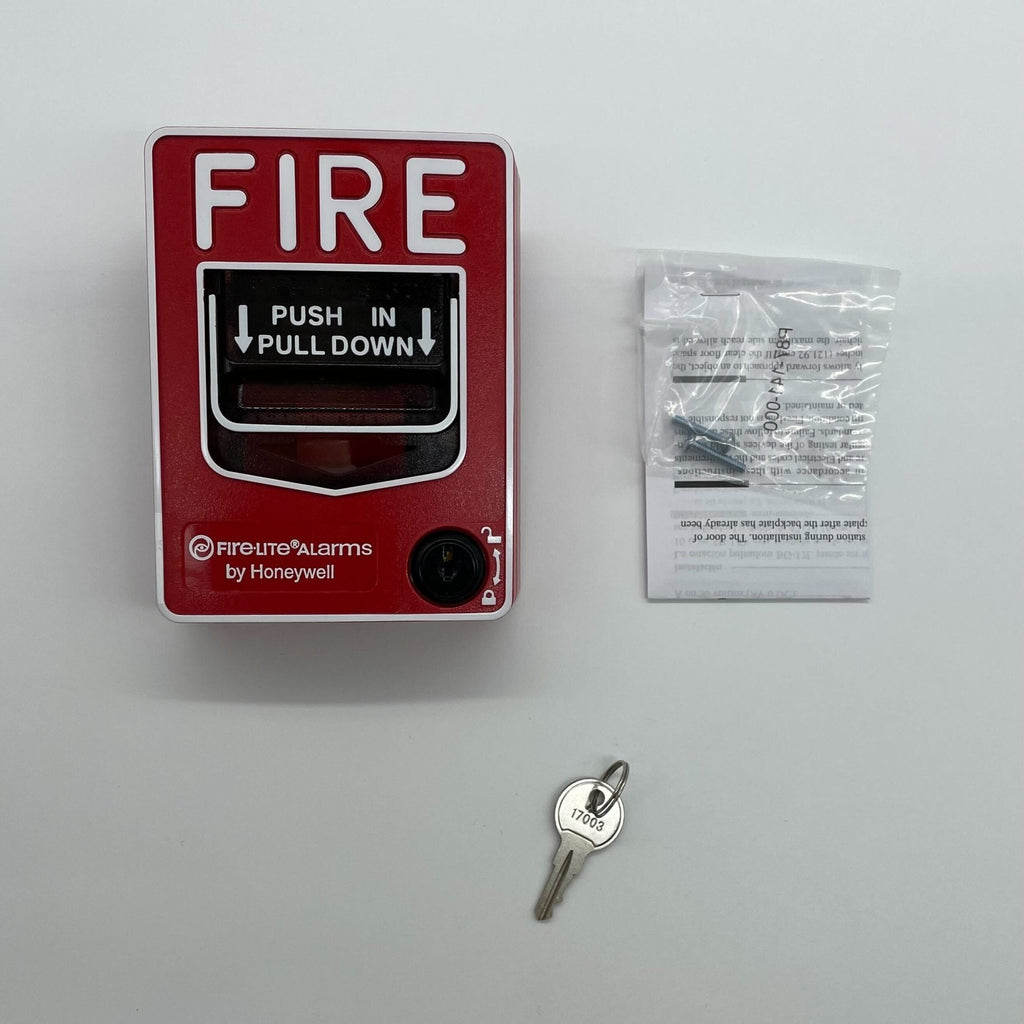

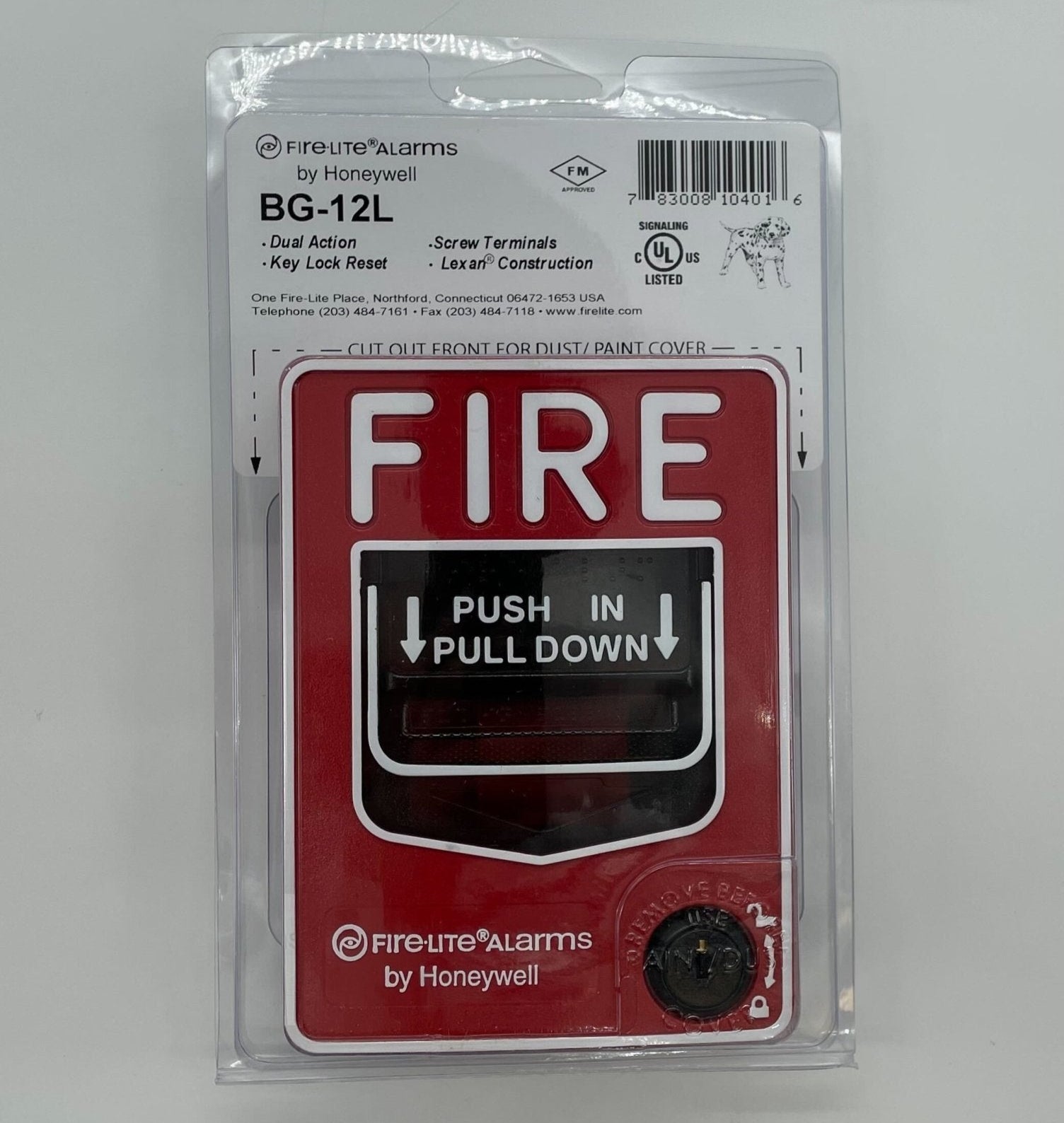

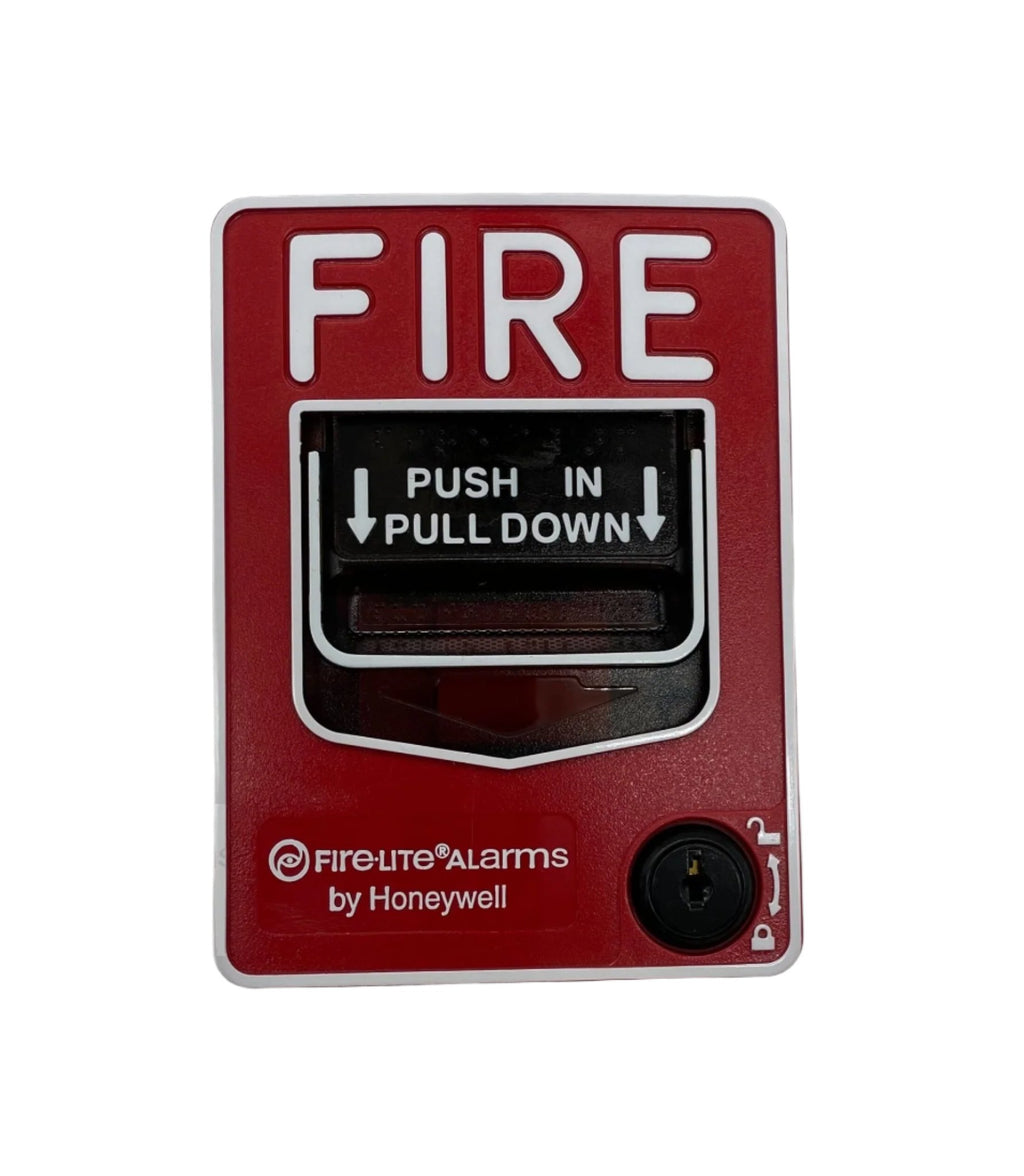

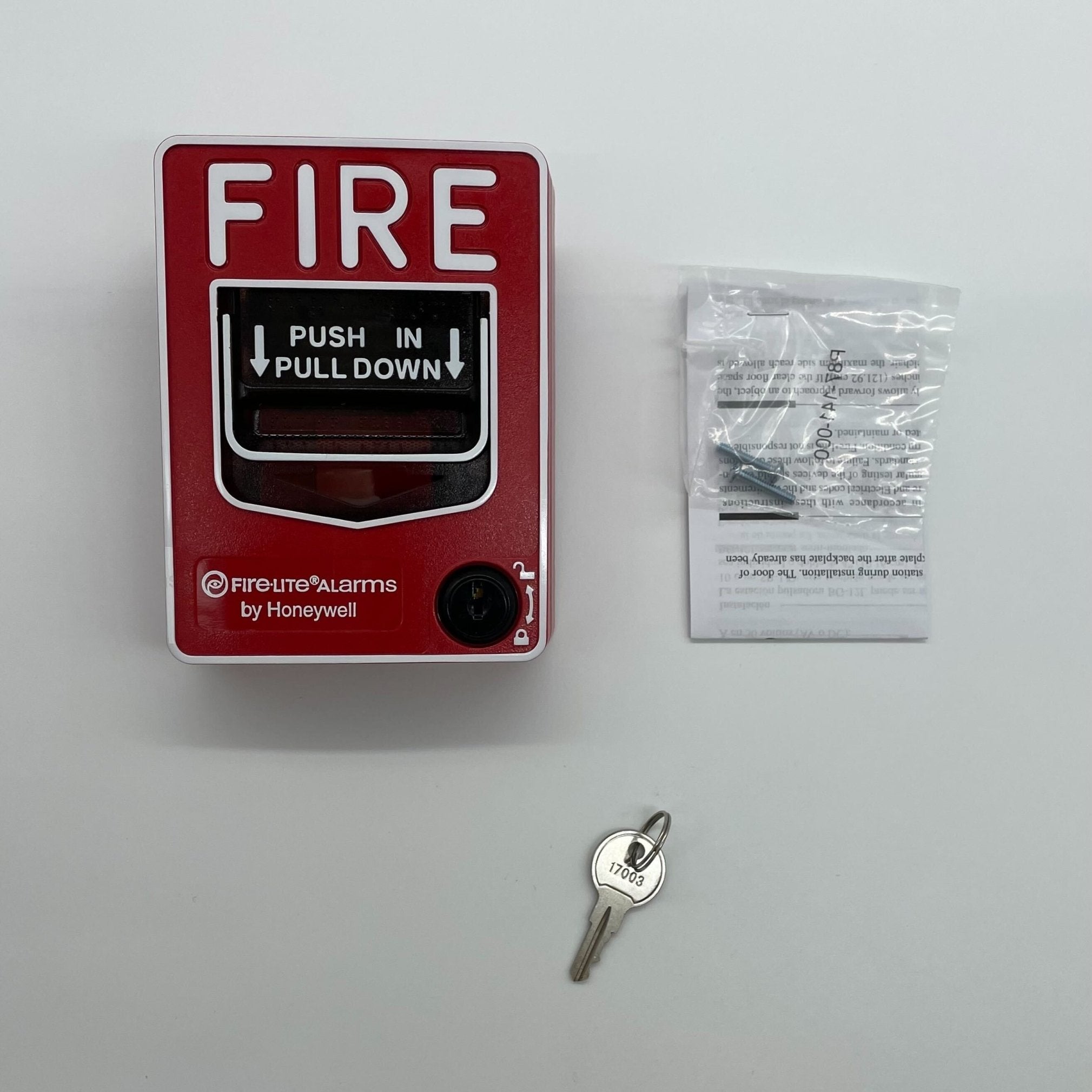

Fire-Lite BG-12L (also written BG12L) is a dual-action manual pull station with an SPST N/O switch, screw terminal connections and a key lock. It belongs to the BG-12 Series of manual fire alarm boxes.
The Fire Lite pull station BG-12 Series is a cost-effective, feature-packed line of manual fire alarm boxes designed for reliability. It was designed to meet multiple applications with the installer and end-user in mind. The BG-12 Series features a variety of models, including single- and dual-action versions.
The BG-12 Series provides Fire·Lite Alarm Control Panels (FACPs) and other manufacturers' controls with a manual alarm initiating input signal. Its innovative design, durable construction, and multiple mounting options make the BG-12 Series simple to install, maintain, and operate.
Features
Aesthetically pleasing, highly visible design and color
Braille text is included on the finger-hold area of the operation handle and across the top of the handle
Multiple hex- and key-lock models are available
Meets UL 38, Standard for Manually Actuated Signaling Boxes
Station can be opened for inspection and maintenance without initiating an alarm
Product ID label is viewable by simply opening the cover; the label is made of a durable, long-life material

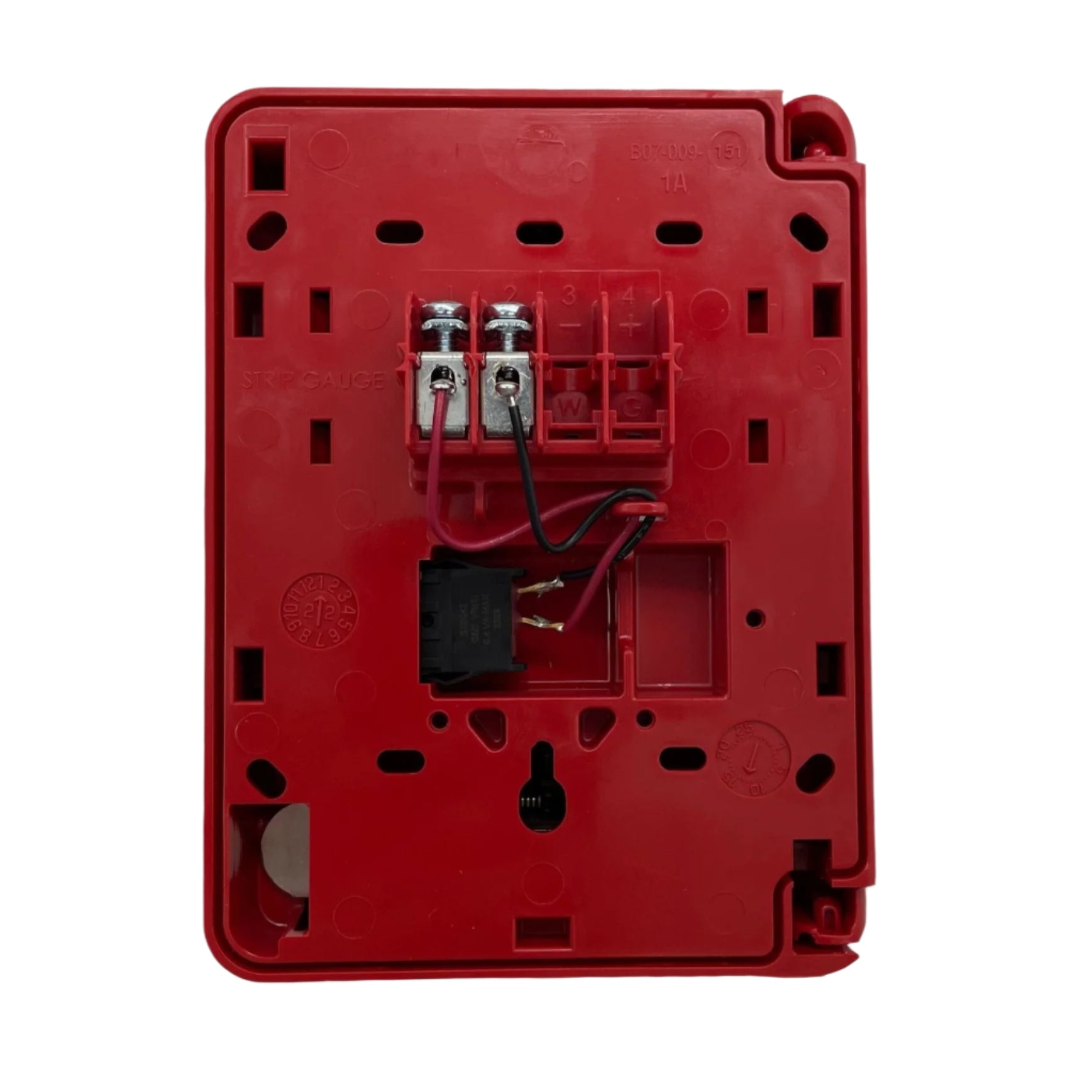

The terminal strip includes Phillips combination-head captive 8/32 screws for easy connection to Initiating Device Circuit (IDC)
Terminal screws backed out at factory and shipped ready to accept field wiring (up to 12 AWG/3.1 mm²)
Terminal numbers are molded into the backplate, eliminating the need for labels
Designed to replace the Fire·Lite legacy BG-10 Series
Compatibility
The BG-12 Series is designed to replace the Fire-Lite legacy BG-10 Series. Related parts on this site:
-
BG-12: dual action pull station in the same series.
-
BG-12S: single-action version with hex lock.
-
BG-12LX: addressable version.
-
SB-10: metal surface mount backbox for BG-12 series stations.
-
BG12TR: trim ring for semi-flush mounting.
FAQ
Can the BG-12L be opened for inspection without sending an alarm?
Yes. The station can be opened for inspection and maintenance without initiating an alarm.
What wire size do the terminals take?
Up to 12 AWG (3.1 mm²), on captive 8/32 screws that are backed out at the factory and ship ready for field wiring.
