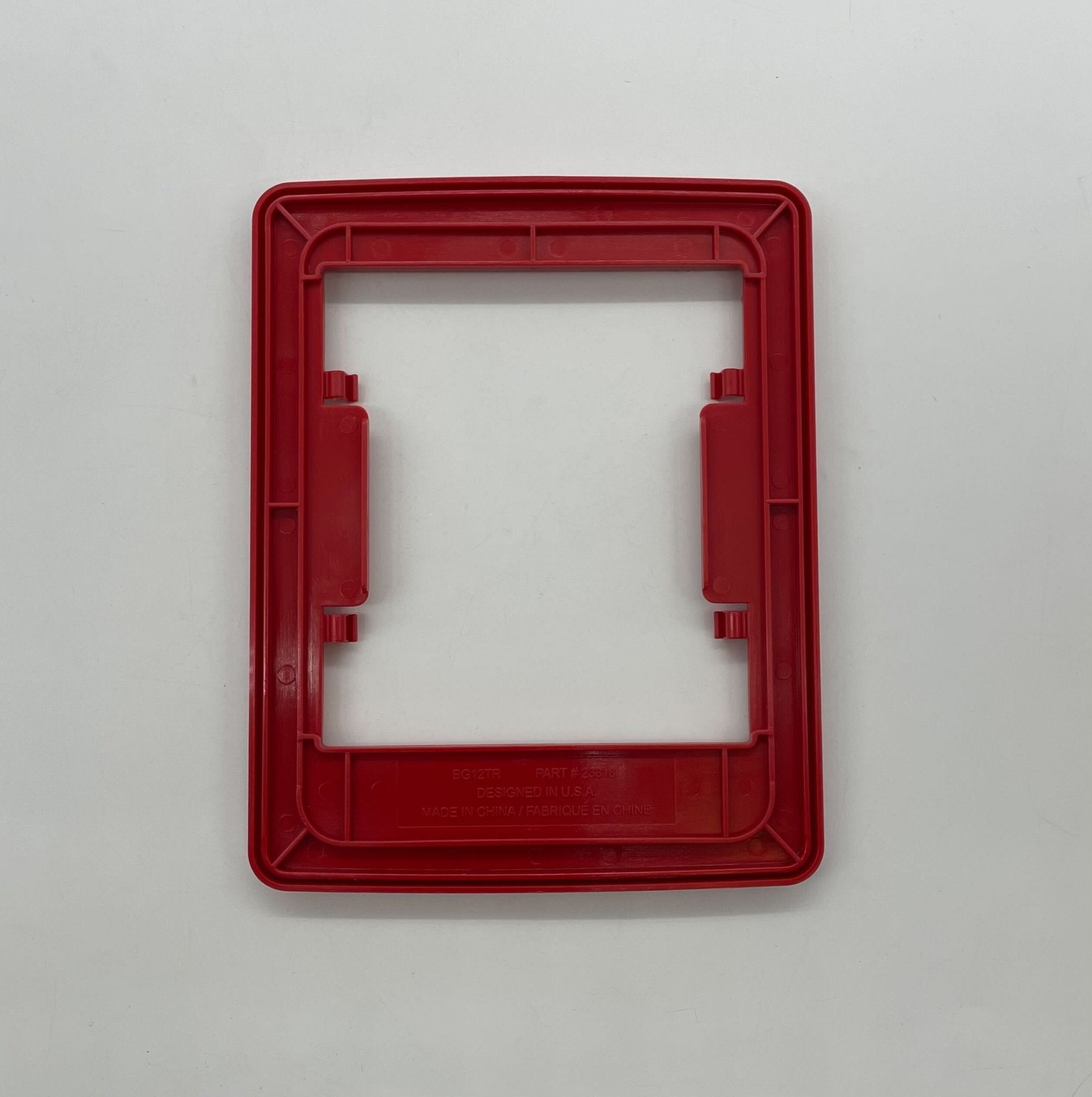

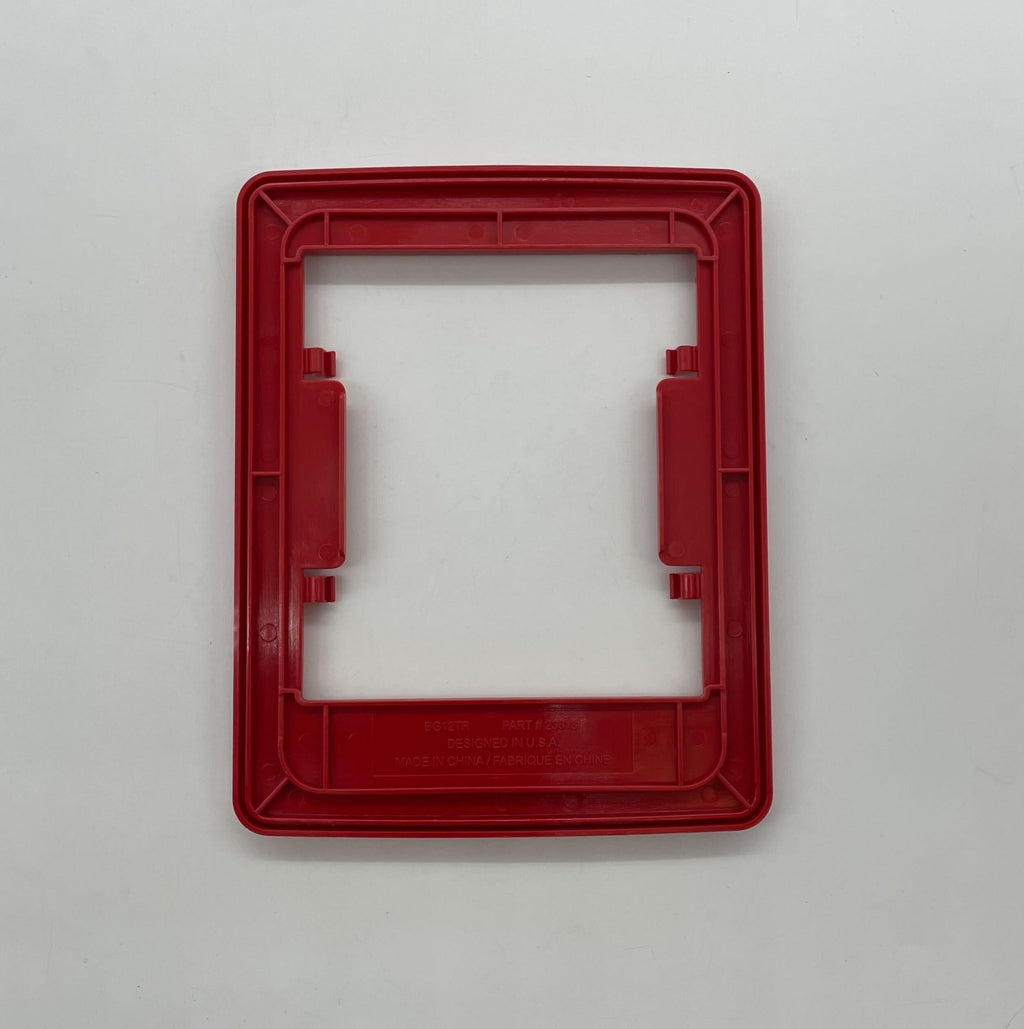

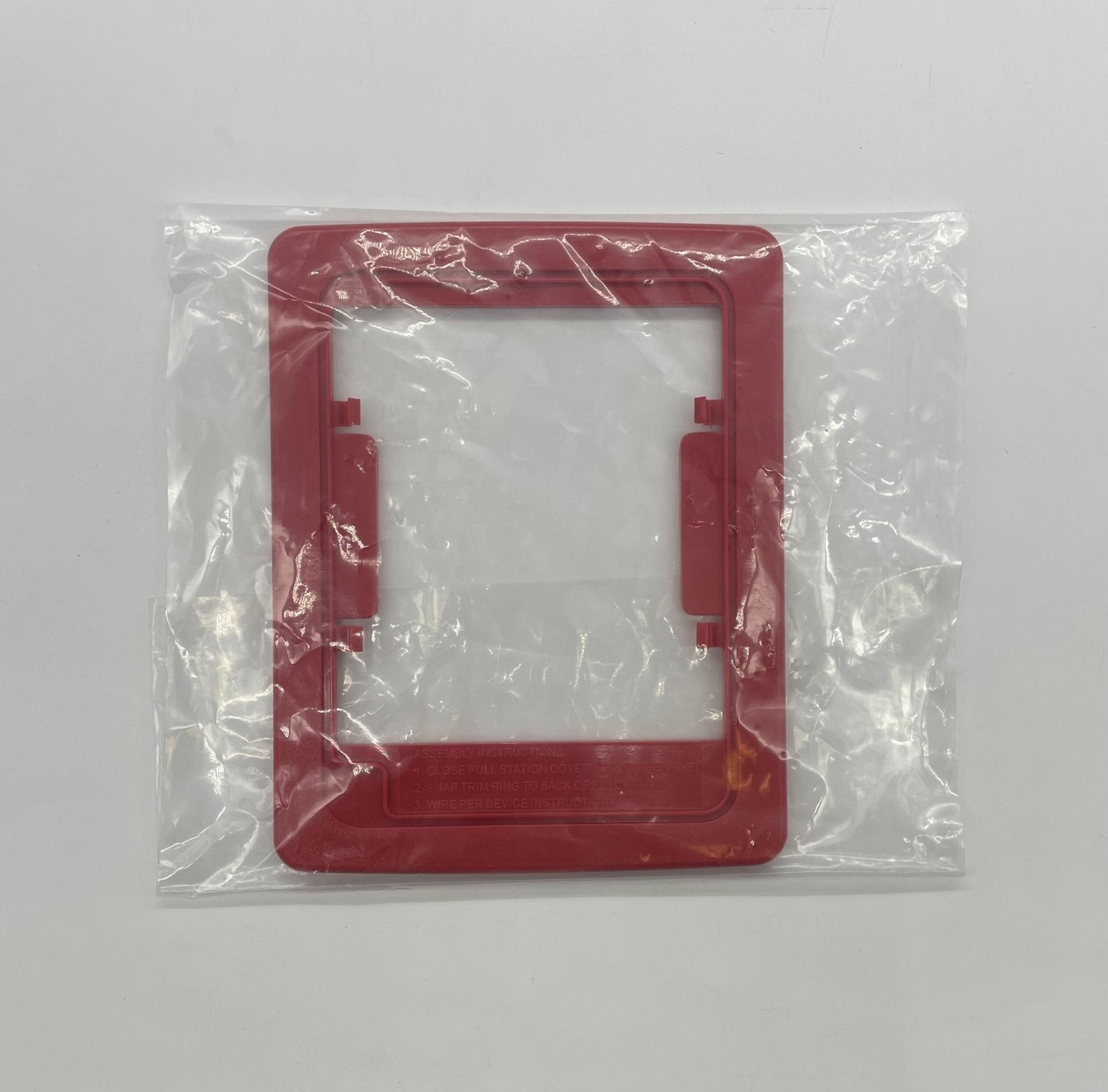

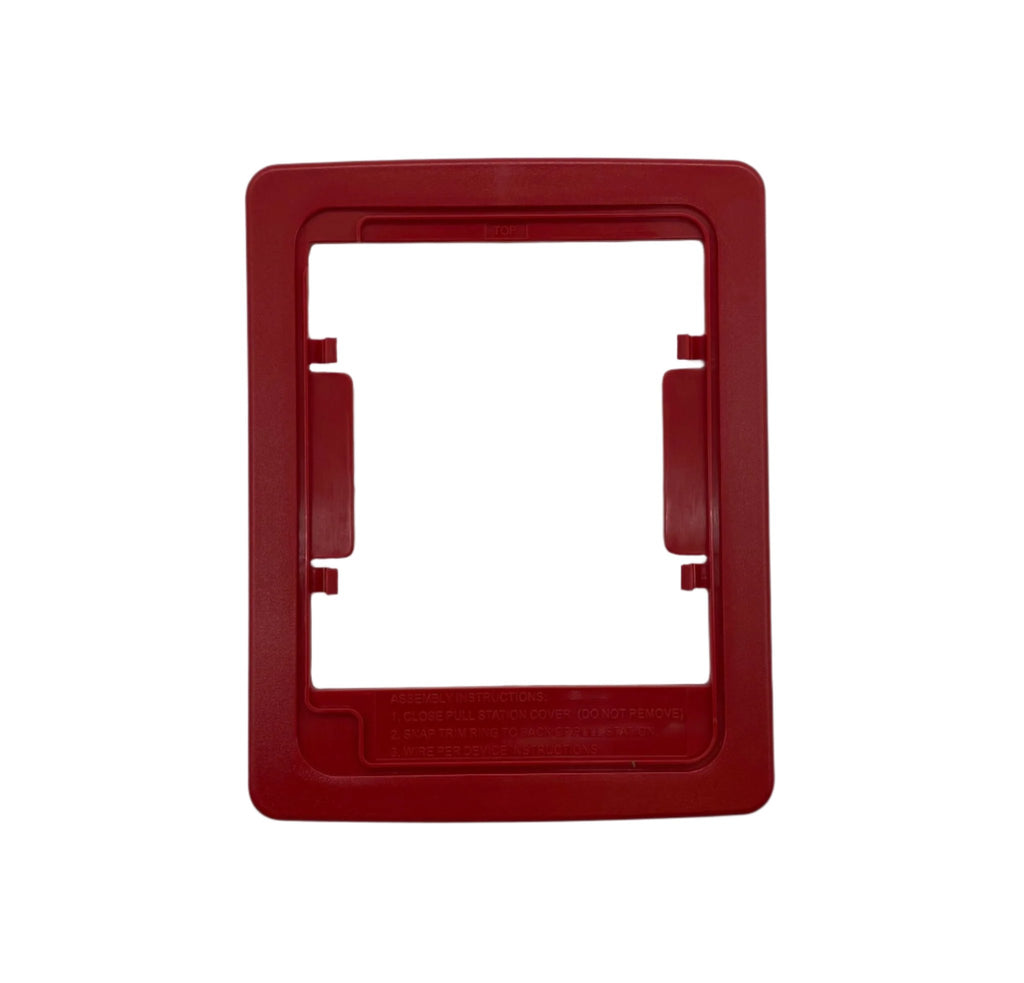

Fire-Lite BG12TR — optional trim ring for semi-flush mounting of BG-12 Series manual pull stations.
BG-12 pull stations either surface-mount on a backbox or mount semi-flush on an electrical box. The BG12TR is the trim ring Fire-Lite lists for the semi-flush option, for both the conventional BG-12 Series and the addressable BG-12LX. For the BG-12LX, Fire-Lite says the ring is usually needed on 4 in. square or double-gang boxes and not on single-gang boxes.
- Optional accessory in data sheet DF-52004 (BG-12 Series) and DF-52013 (BG-12LX)
- For semi-flush mounting only; surface mounting uses the SB-10 metal or SB-I/O plastic backbox instead
- Semi-flush boxes: standard single-gang, double-gang or 4 in. square
- The BG-12 Series backplate overlaps a single-gang box cutout by 1/2 in.
- Called BG-TR in the BG-12S and BG-12SL installation sheets
The pull station and electrical box are separate catalogue items. Do not confuse the ring with the SB-10 and SB-I/O surface backboxes, or with the 17003 key set and 17007 hex lock, the other accessories listed for the BG-12 Series.
