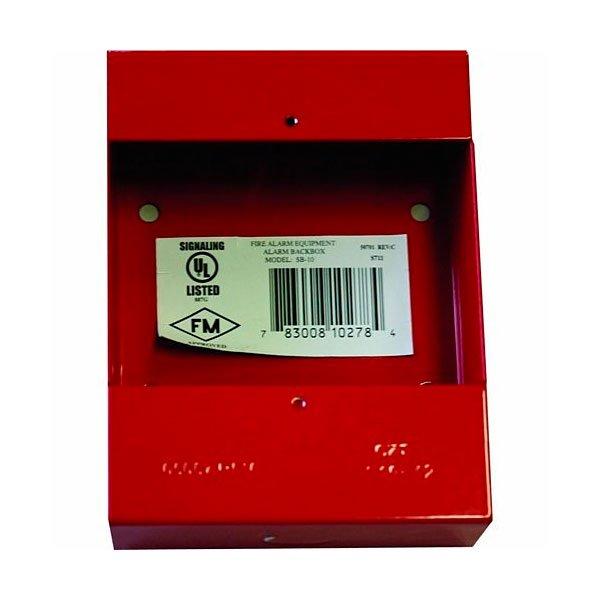

Fire-Lite SB-10 — metal surface-mount backbox for Fire-Lite BG-12 Series and BG-12LX manual pull stations.
A BG-12 or BG-12LX semi-flush mounts into a single-gang, double-gang or 4 in. square electrical box. Where no box is available — masonry, exposed conduit, a retrofit — the station surface mounts onto a backbox instead, and SB-10 is the metal choice. It is an enclosure only, with no electronics or terminals.
- Metal surface-mount backbox, listed by Fire-Lite as SB-10
- 5.5 in. H × 4.121 in. W × 1.375 in. D (13.97 × 10.47 × 3.49 cm)
- Accepts the conventional BG-12 Series: BG-12, BG-12L, BG-12S, BG-12SL, BG-12LSP, BG-12LA, BG-12LPS
- Accepts the addressable BG-12LX, whose data sheet names SB-10 as its surface backbox
- Honeywell lists the same SB-10 in Gamewell-FCI MS-7 Series ordering information
- Not needed for semi-flush work, which uses the BG12TR trim ring instead
Do not confuse it with SB-I/O, the plastic indoor and outdoor box that ships with the BG-12LOB and measures 5.601 × 4.222 × 1.439 in.; with BG12TR, a trim ring and not a box; or with WP-10, named by Gamewell-FCI for MS-7LOB retrofits.
