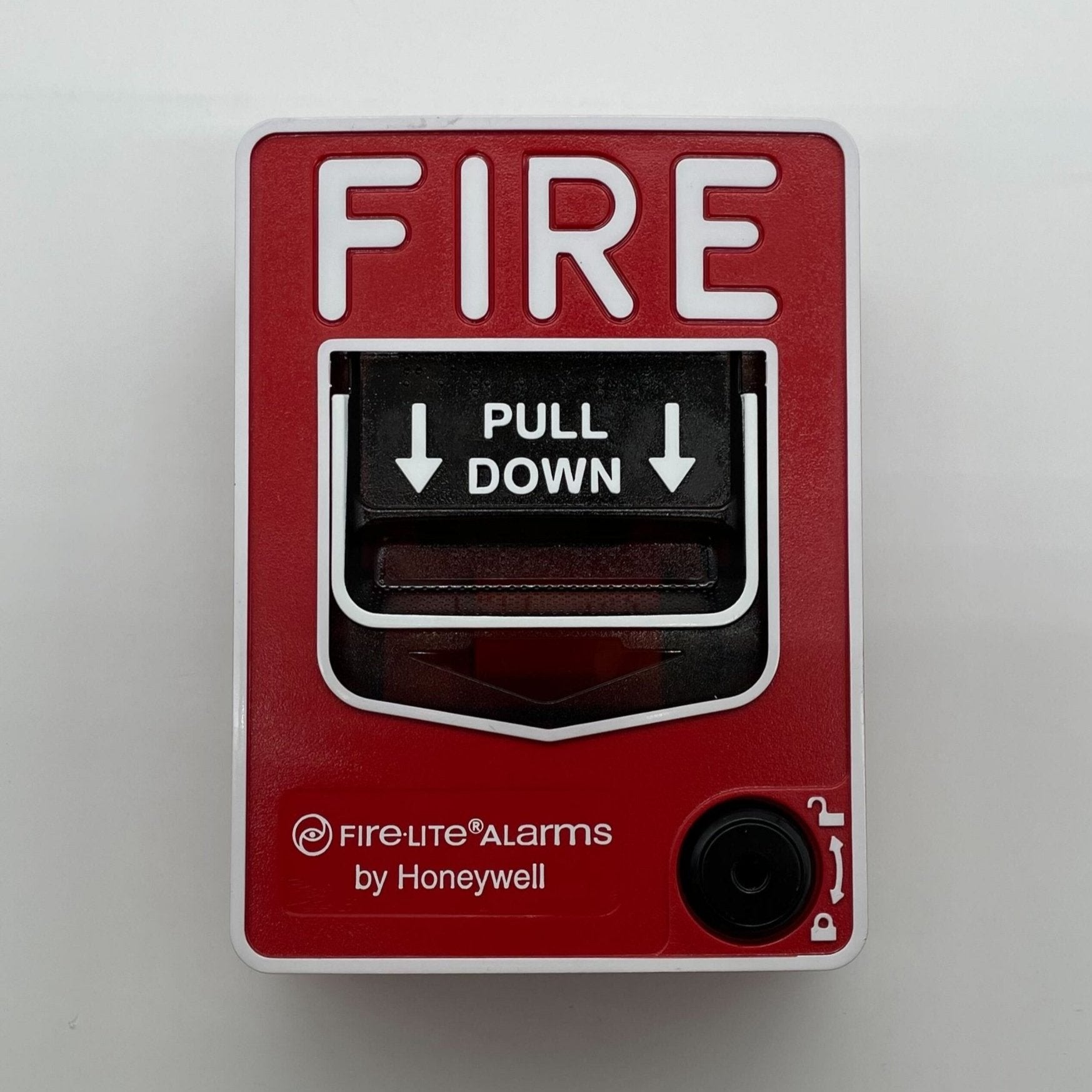

Fire-Lite BG-12S — single-action, non-coded manual pull station with pigtail leads and hex-lock reset.
It gives a Fire-Lite or other panel one normally open alarm input. It is the single-action BG-12: pulling the handle down trips it with no push-in step, and it wires with pigtails where the dual-action models use a screw terminal strip.
- One SPST normally open switch, gold-plated, rated 0.25 A at 30 VAC or VDC

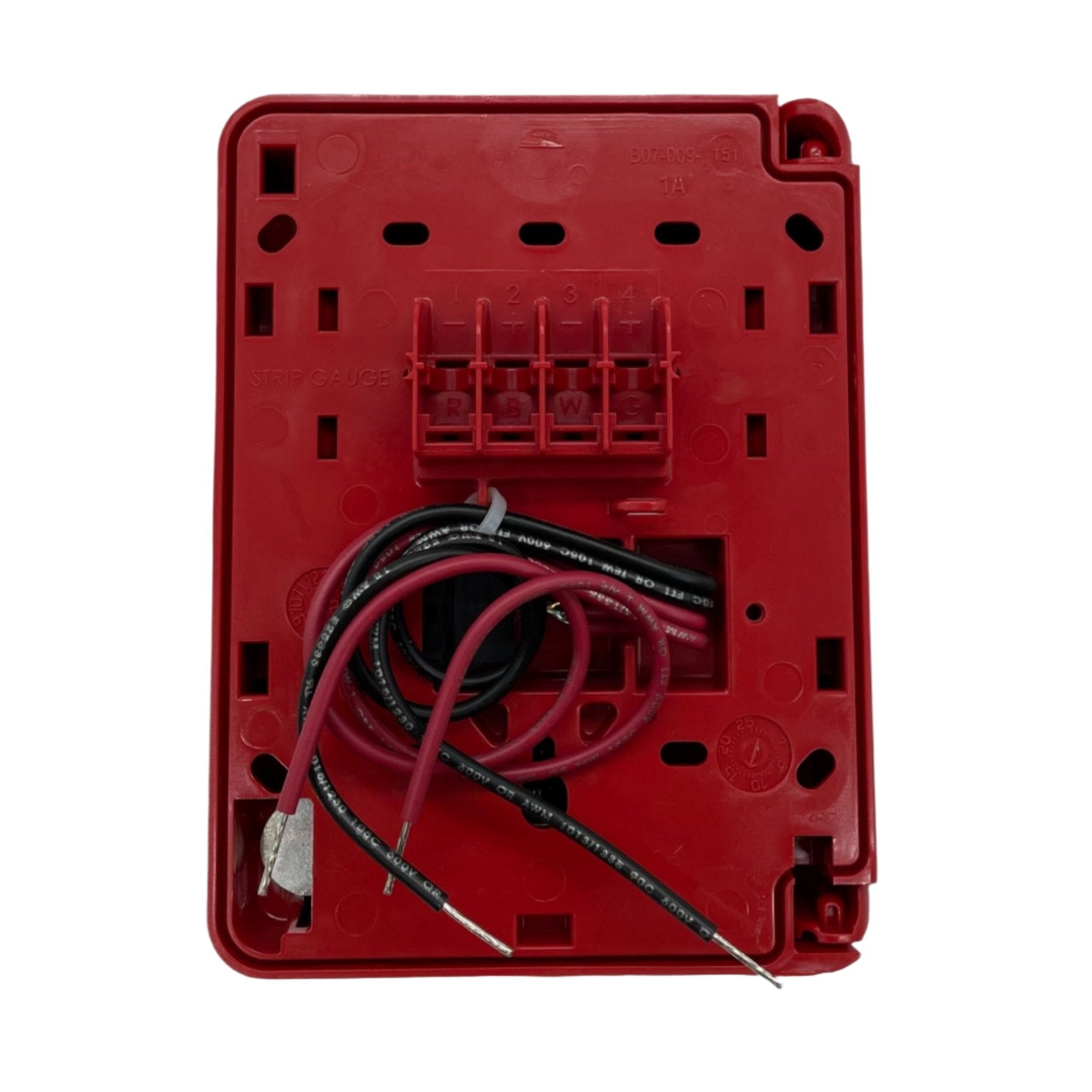

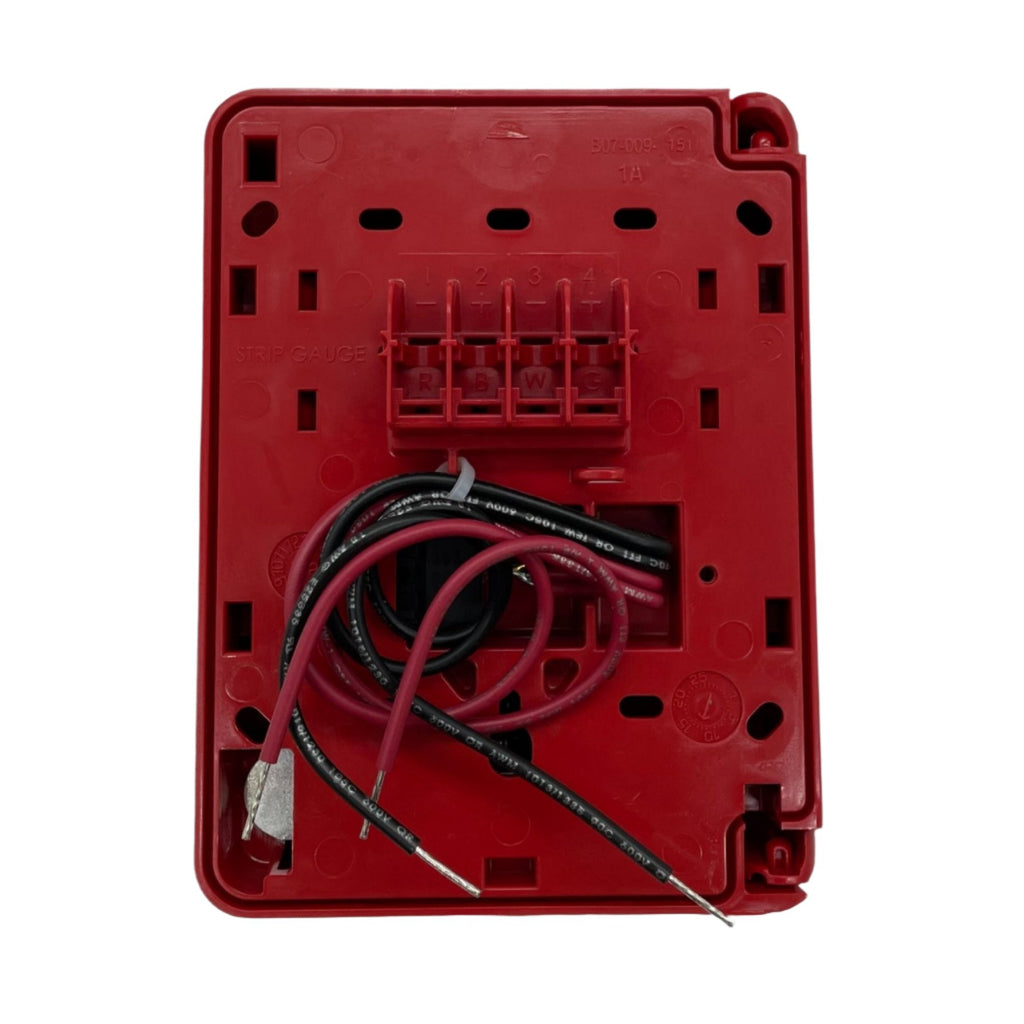

- Red (+) and black (-) in and out pigtail leads to the initiating device circuit

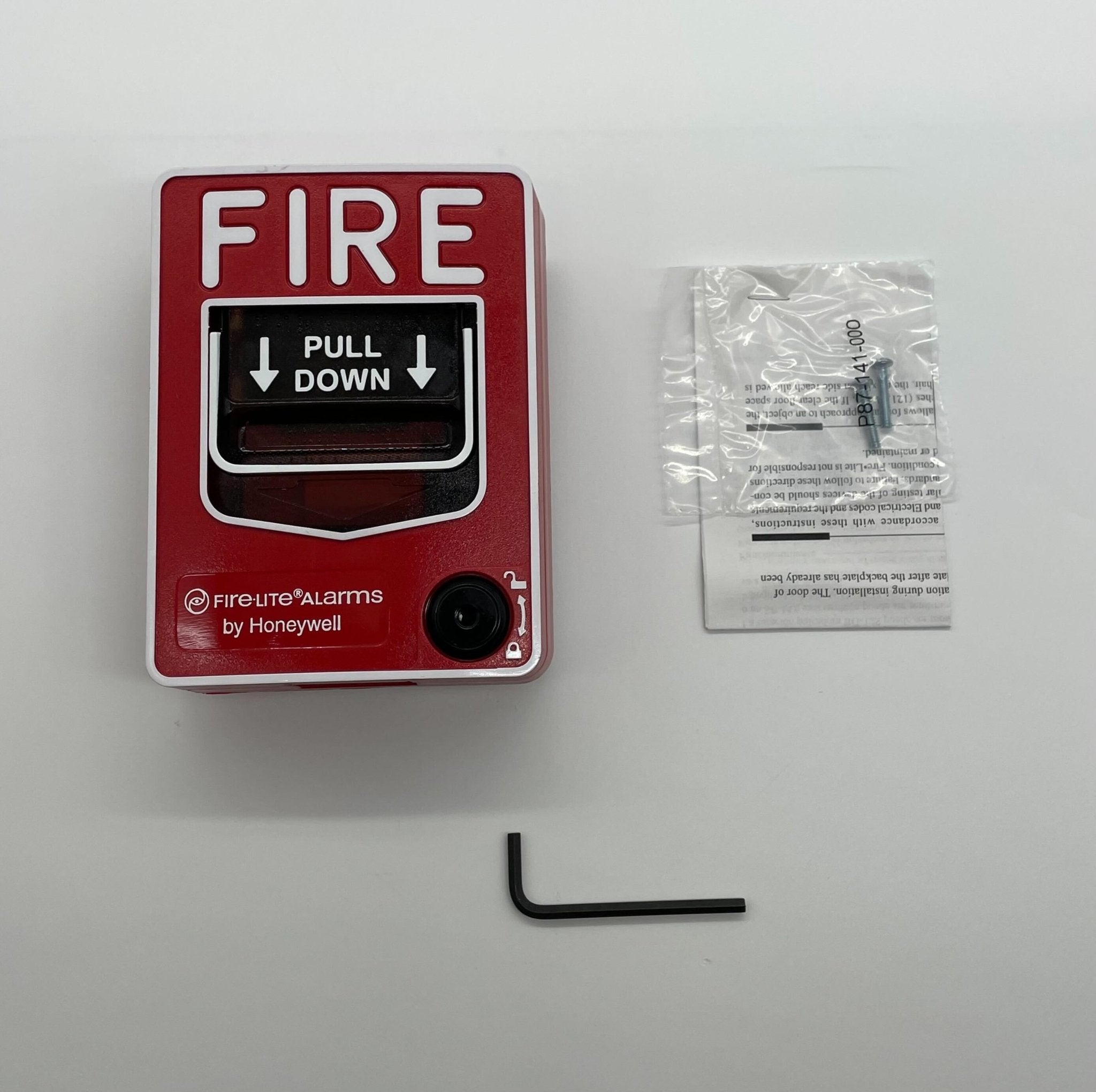

- Handle latches down and shows ACTIVATED; reset with the supplied 9/64 in. hex wrench, a quarter turn
- ADA 5 lb maximum pull force; Braille on the handle
- Surface mount on SB-10 or SB-I/O back box, or semi-flush on a single-gang, double-gang or 4 in. square box
- 5.5 × 4.121 × 1.39 in.; BG-12 Series certifications UL S711, FM, CSFM 7150-0075:184, MEA 67-02-E
BG-12SL is the same station with a key lock (its data sheet row says Same as BG-12, but its installation sheet says single action). BG-12 and BG-12L are dual action with screw terminals, BG-12LO is outdoor listed and BG-12LX is addressable.
