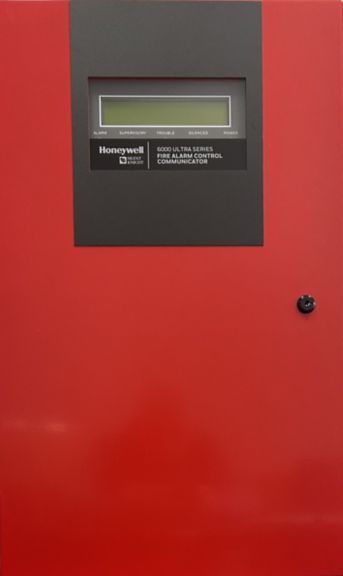

6820U is the Silent Knight 6000 Ultra Series intelligent addressable fire alarm control panel with a built-in dual-technology (IP and POTS) communicator, and is the direct replacement for the 6820/5820XL. One built-in SLC supports 159 System Sensor SK detectors and 159 SK modules, or 127 Hochiki SD protocol devices, expandable to 1110 (SK) or 635 (SD) points. It complies with UL 864 10th Edition and UL 2572 2nd Edition.
Specifications
| SLC |
1 built-in, expandable; 1110 (SK) or 635 (SD) addressable points |
| Software zones / output groups |
999 / 999 |
| Flexput circuits |
8 (8 Class B or 4 Class A NACs, or auxiliary power); 3 A max per circuit, 9 A total; 4.7k ohm EOL for Class B |
| Relays |
Two programmable Form C and one fixed trouble Form C; 2.5 A at 27.4 VDC resistive |
| Communicator |
Built-in DACT, IP and POTS; optional cellular reporting |
| SBUS devices |
24 (16 annunciators, 8 LED modules) |
| AC power |
120 VAC 60 Hz 5 A, or 240 VAC 50/60 Hz 2.8 A |
| Standby / alarm current |
230 mA / 415 mA |
| Communication loop |
Supervised, power-limited, Class A or B, 32 VDC, 150 mA |
| Batteries |
Cabinet holds two 18 Ah batteries; charger capacity 17-55 Ah |
| History |
1,000 events |
| Notification |
23 preset cadence patterns; selectable sync for Amseco, System Sensor, Wheelock and Gentex |
| Dimensions |
16.4 in. W x 26.4 in. H x 4.1 in. D (41.66 x 67.06 x 10.41 cm) |
| Weight / color |
33 lb (15 kg) / red, surface or flush mount |
| Operating environment |
32-120 F (0-49 C), 93% RH non-condensing |
| Listings |
UL S2766; CSFM 7165-0559:0523; FDNY 2026-TMCOAP-000190-CERT; FM Approved; Seismic VMA-45894-05C |
Compatibility and installation notes
- SK/SS and SD devices cannot be mixed in the same system; SWIFT wireless devices work only with SK devices.
- Expand with the 6815 (SK) or 5815XL (SD) SLC expander, 5895XL or 5496 power expanders.
- Up to 17 panels can share a common communications link over copper or, with SK-FML/SK-FSL cards, fiber.
- Program with JumpStart auto programming, the front keypad, or Honeywell Fire Software Suite (HFSS) via USB.
- Optional HW-AV-LTE-M-2 cellular communicator; RBB remote battery box holds batteries up to 35 Ah.
