6860

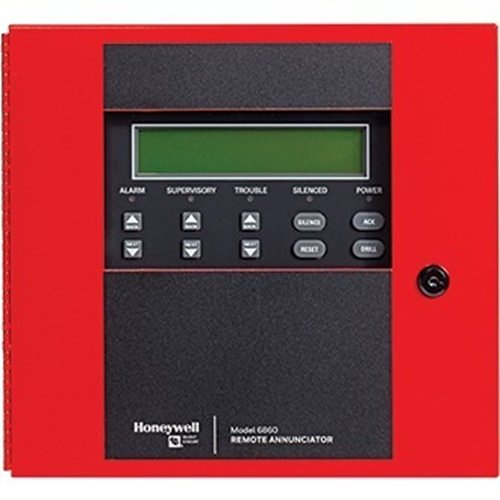

Silent Knight 6860 Remote Annunciator: 160-Character LCD 24V DC

The 6860 remote annunciator can be used to view system status indicators for Honeywell Silent Knight fire alarm control panels (FACPs) from anywhere within the system. It provides a convenient way to view system status indicators.

The 6860 comes in a locked, key-controlled cabinet - combining security with easy access. It does not require a code or firefighter's key to silence or reset a panel, and also has convenient separate scroll buttons for alarm, supervisory and trouble conditions.

The remote annunciator communicates with the main fire alarm control panel through an RS-485 connection.

The 6860 has a large 160-character, 4 x 40 display, and four programmable buttons. These features provide more options for set-up and operation when compared to similar remote annunciators.

The 6860 can be surface or flush-mounted. The RA-100TR trim ring can be used for surface mounts.

Features

• Four-line LCD display with 40 characters per line; 160 characters provides ample space for communicating operating messages
• Larger keypad buttons makes it easier to maneuver for system reset and silencing
• Initiate and end fire drills with a single key press
