Silent Knight RBB — remote battery box for standby batteries too large to fit inside the fire alarm control panel cabinet.

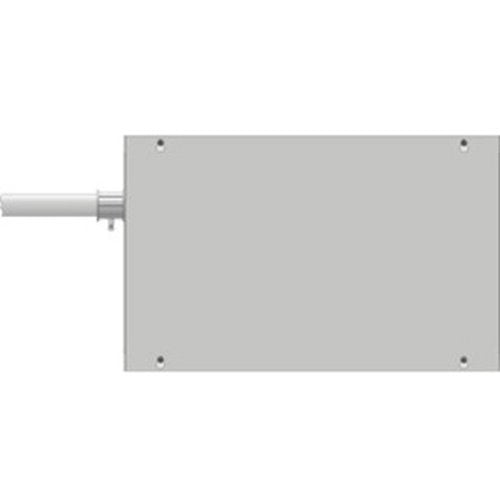

Silent Knight addressable panels charge and supervise sealed lead-acid standby batteries, but the panel enclosure only holds the smaller cases. The RBB is a separate wall-mounted cabinet carrying the larger batteries alongside the panel, wired back to the panel battery leads through conduit so it still charges and monitors them.
- Holds batteries up to the 35 AH size
- Cabinet 16" W × 10" H × 6" D (40.64 × 25.4 × 15.24 cm)
- Documented accessory for the IntelliKnight 5820XL and the 6820 and 6820EVS panels
- Battery cable extenders supplied; with them the box mounts within 18" of the panel
- Four mounting holes; fix to 3/4 in. plywood over drywall or concrete
The RBB is an empty enclosure with cable extenders: batteries are not included and it adds no charging capacity. Do not confuse it with the 5895XL or 5496 Intelligent Power Modules, which add power supply output rather than battery space.
