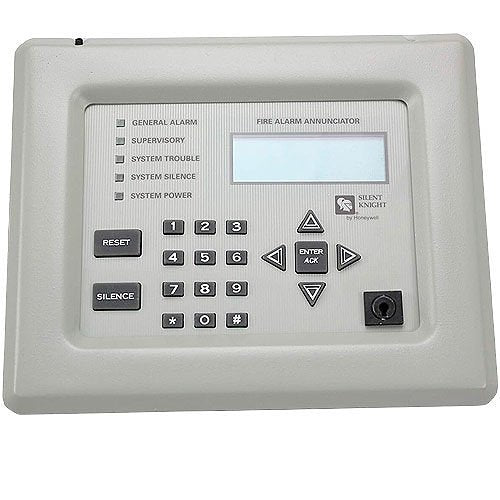

Silent Knight 5860 — gray SBUS remote fire annunciator with an 80-character backlit LCD and a firefighter key switch, duplicating the panel keypad remotely.
It performs the same functions as the onboard annunciator: the system can be fully programmed and operated from any 5860, fire drills start and end with one key press, and event history can be reviewed by alarm, supervisory or trouble. The installation document refers the installer to the panel manual for the supported count.
- 24 VDC; 58 mA standby, 68 mA in alarm
- Connects on the panel SBUS, supervised and power-limited, Class A or B
- DIP switches 1 to 6 set an address from 01 to 63; switch 7 stays ON for SBUS; switch 8 enables end-of-line termination on the last device
- Up to 16 per 5820XL/5820XL-EVS or 6820/6820EVS system (data sheet 350224-I); SBUS runs never exceed 6,000 feet whatever the gauge
- Operating temperature 32 to 120 °F
- Flush opening 8.25" W × 6.625" H; a box must sit 1.375" back from the wall face
The 5860R is the identical annunciator in red. Surface mounting takes the 5860TG gray or 5860TR red trim ring kit.
Documents
FAQ
Which Silent Knight panels support the 5860?
The data sheet lists the 6820/6820EVS, 6808, 6700, 5820XL/5820XL-EVS, 5808 and 5700.
How many 5860 annunciators can one system have?
Up to 8 on a 5700 or 6700, 12 on a 5808 or 6808, and 16 on a 5820XL/EVS or 6820/EVS.
Can it be surface mounted?
Yes. Use the optional 5860TG gray trim ring for surface mounting. For flush mounting, a 4S, single-gang or double-gang box can be used.
How far can it be from the panel?
Wiring runs can be up to 6,000 ft (1.83 km) from the FACP.
