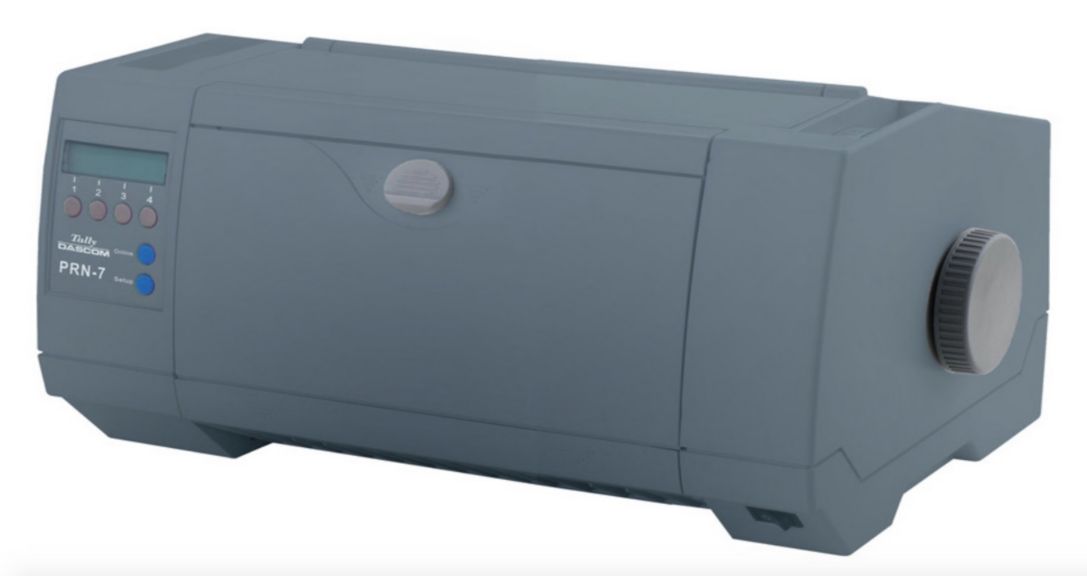

PRN-7 is a 24-pin dot-matrix event printer used with Fire-Lite fire alarm control panels that have printer capability. It produces a time- and date-stamped hard copy of system events and status changes, along with printouts of the system configuration and addressable device parameters. On Fire-Lite MS-5UD and MS-10UD panels it connects through the ANN-S/PG serial/parallel printer gateway module.
Specifications
| Type |
Serial printing, 24-pin matrix print head |
| Printing speed (copy draft) |
333 cps at 10 cpi |
| Character density |
10 cpi standard; 12, 15, 17.1 and 20 cpi selectable from the front panel |
| Columns |
80 columns at 10 characters per inch |
| Graphic resolution |
Up to 360 x 360 dpi |
| Paper |
Standard 9 in. x 11 in. tractor-feed fan-fold paper |
| Ribbon life |
Approx. 6 million characters (DPQ) |
| Acoustic noise |
Approx. 52 dBA |
| Power |
110-230 VAC |
| Housing |
Separate enclosure for desktop, counter or table placement |
| Listing |
UL-listed compatible event printer (per Fire-Lite MRP-2002 data sheet) |
Compatibility and installation notes
- Install no more than 20 ft (6.10 m) of actual cable length from the fire alarm control panel, in a secure area.
- On MS-5UD/MS-10UD panels, connect to the ANN-S/PG module with a standard DB-9 cable and set the printer options listed in the panel manual (for example 9600 or 2400 baud, 7 bit, even parity, 1 stop bit, XON/XOFF).
- The printer needs primary AC power; where a secondary power source is required, use a separate UL-listed UPS or building emergency power that meets NFPA 72.
- Listed as a compatible event printer for the Fire-Lite MRP-2002(E) agent release control panel.
Related models
Documents
Specifications from PRN-7 data sheet 9021-60901 Rev. A, Fire-Lite DF-60238:C3 and Fire-Lite manual 52626:C7. Manufacturer specifications are subject to change.
