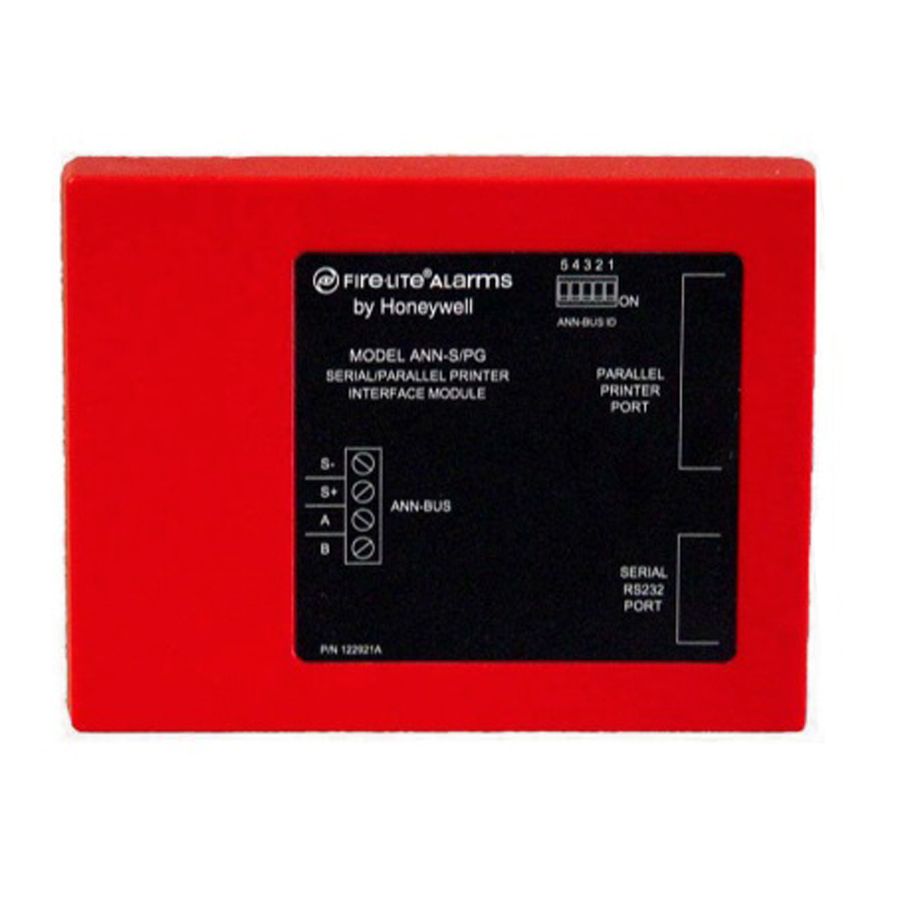

Fire-Lite ANN-S/PG is an interface module that connects a serial or parallel printer to a compatible Fire-Lite fire alarm control panel (FACP). The printer produces real-time logs of system events, detector status reports and event histories.
The module and the panel communicate over a two-wire serial ANN-BUS link. One four-conductor unshielded cable can carry both power and data, and the module can be located up to 6,000 ft (1,829 m) from the panel.
Features
- Auto-configure menu selection brings every device on the ANN-BUS online quickly
- Surface mounts directly to a wall
- Remote location up to 6,000 ft (1,829 m) from the panel
- Powered at 24 VDC from the host panel or from a remote power supply
- Standard printer cable: DB-9 for a serial printer, DB-25 for a parallel printer
Specifications
| Product type |
Interface module |
| Input voltage |
24V DC |
| Operating temperature |
32°F to 120.2°F (0°C to 49°C) |
| Depth |
1.5" |
| Height |
6" |
| Width |
7.8" |
| Approvals |
UL S2424; CSFM 7120-0075:0213; MEA 442-06-E |
