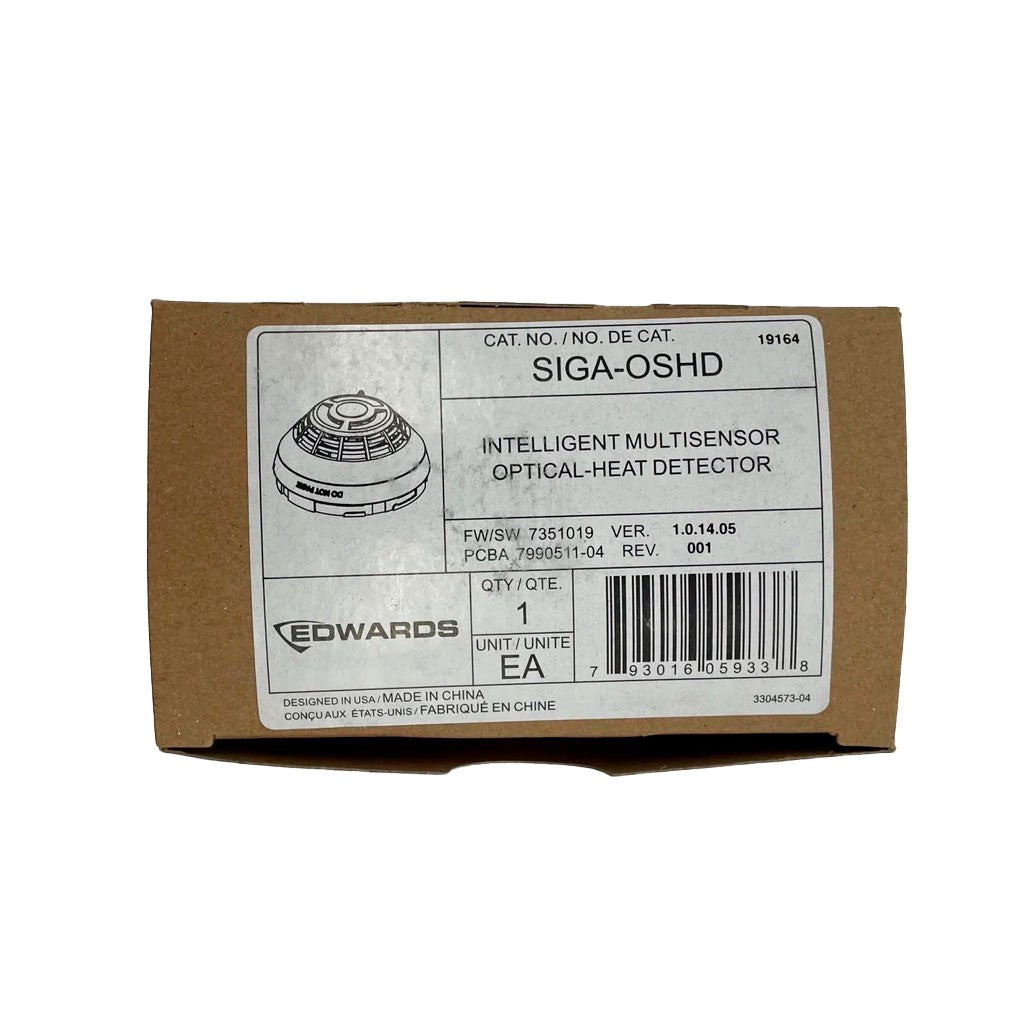

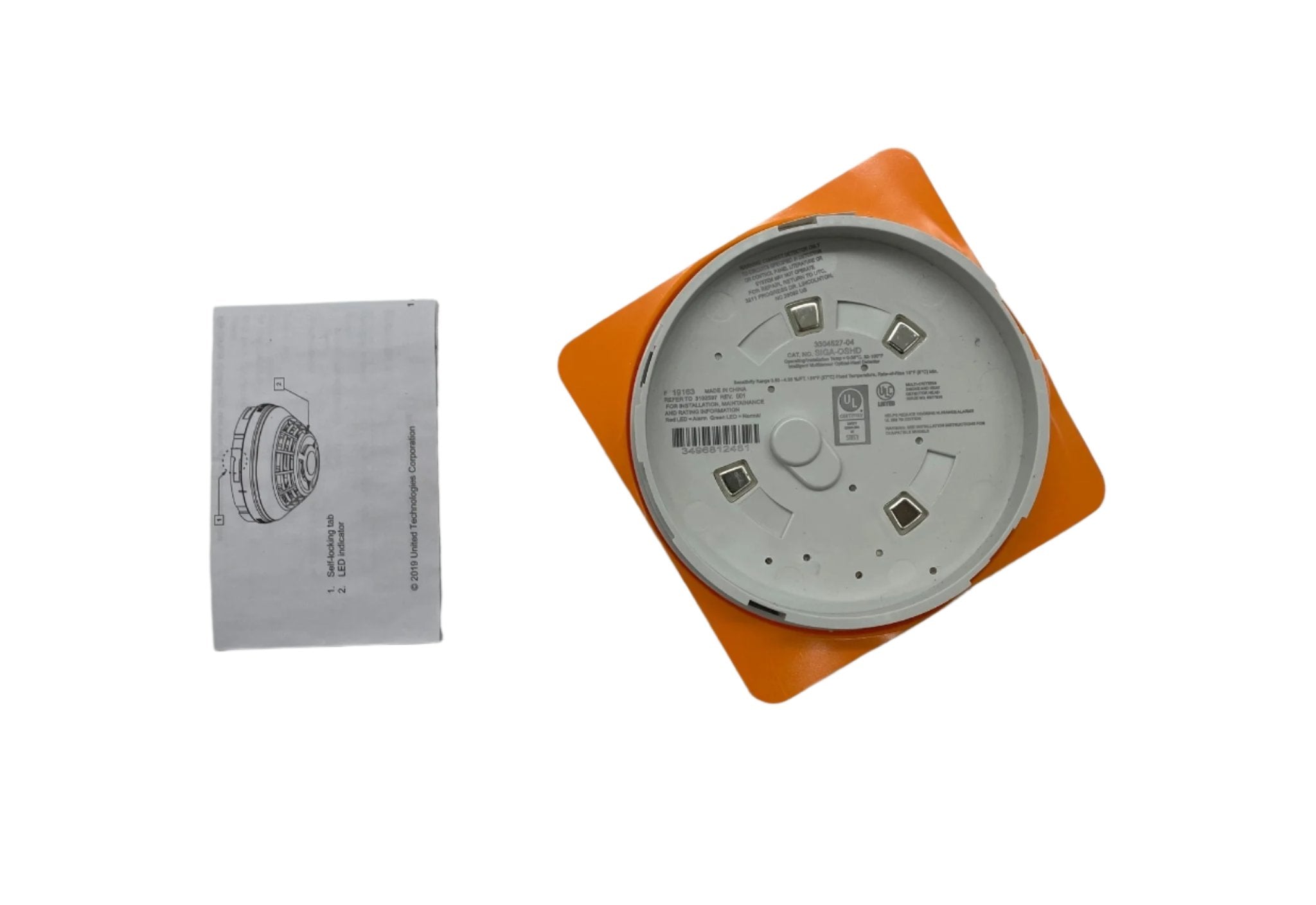

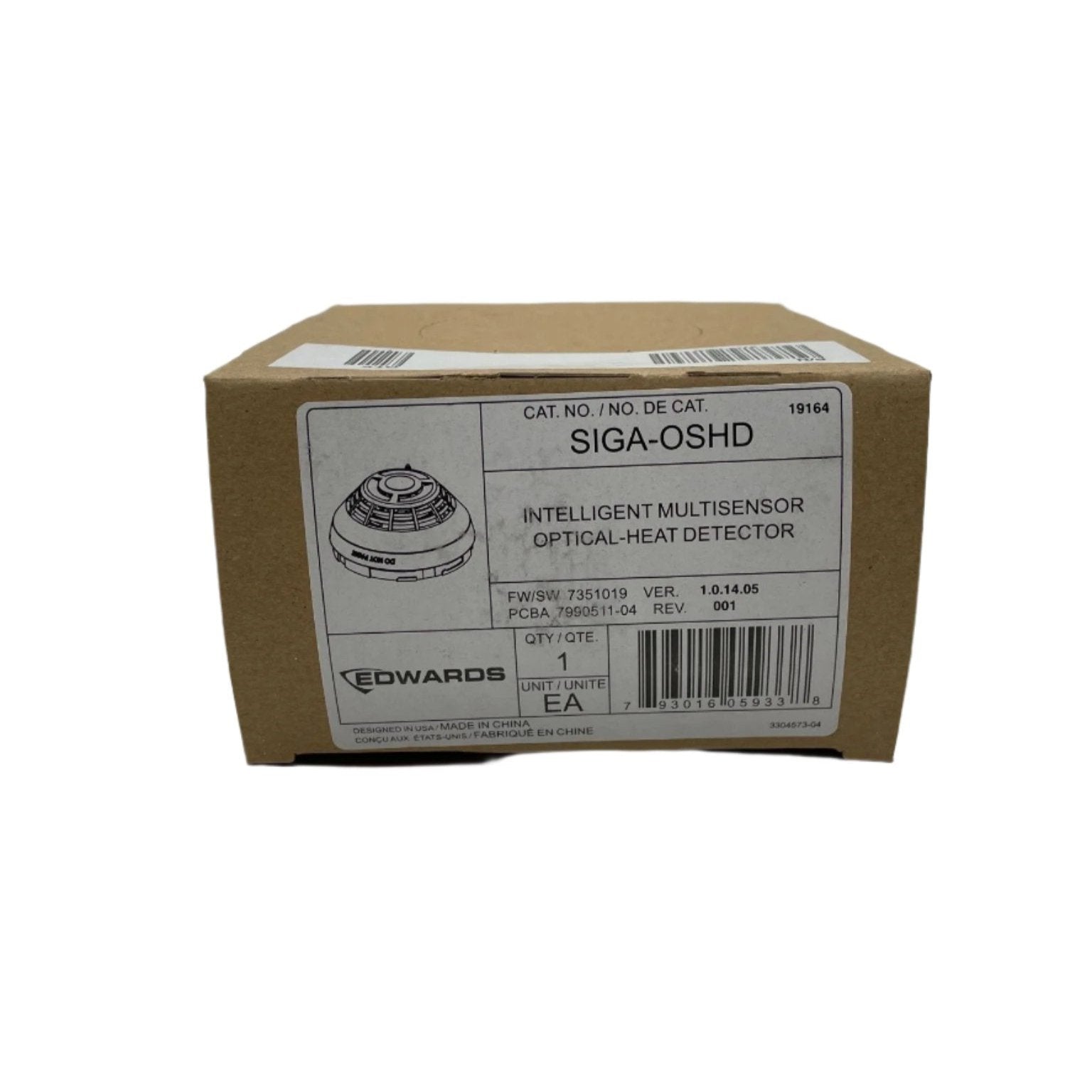

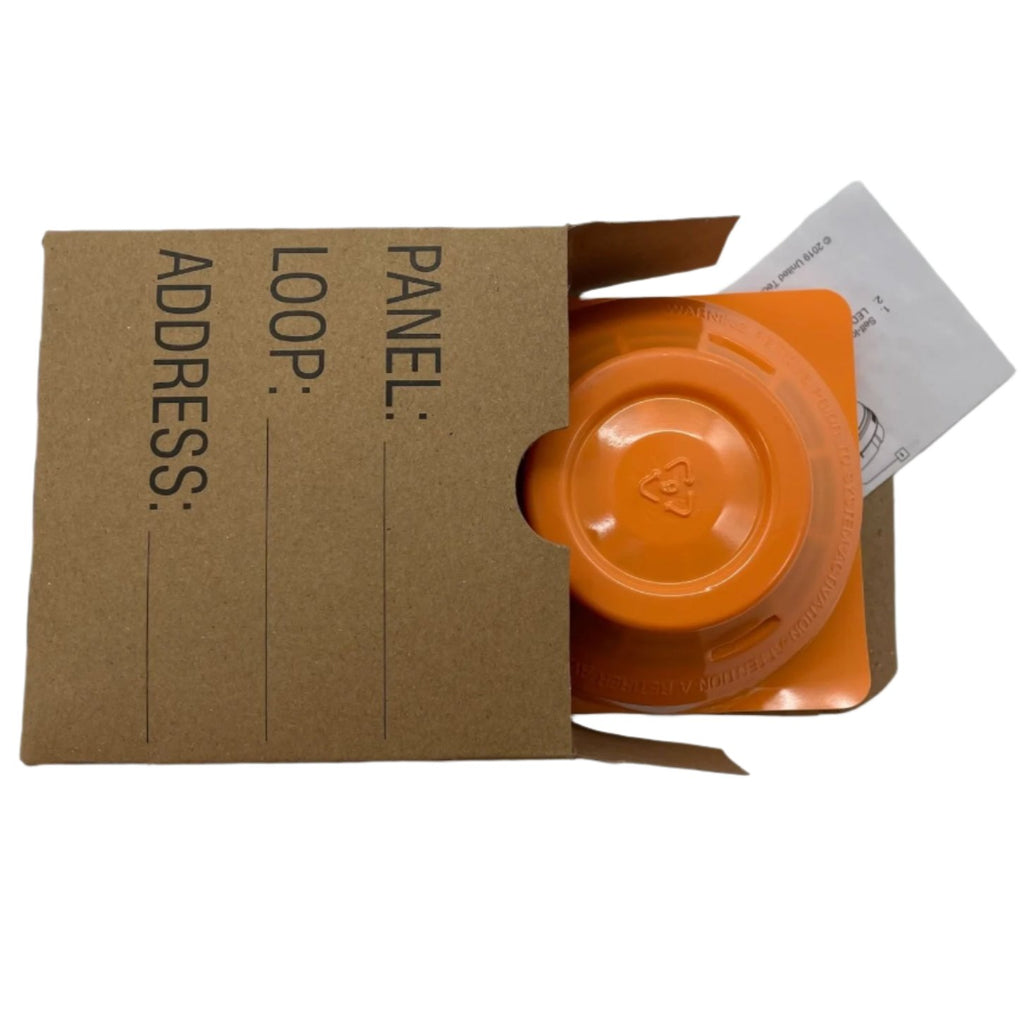

Edwards SIGA-OSHD is a Signature Optica Series intelligent multisensor smoke and heat detector that combines an optical (photoelectric) smoke sensor with a 15°F/min rate-of-rise heat sensor and a 135°F (57.2°C) fixed temperature threshold, for Signature Series loops.
The smoke sensor uses two optical wavelengths and several detection angles, with digital filters and ratio tests that reject nuisance sources such as general cooking particulates. Obscuration is adjustable from 0.5 to 4.36 %/ft with five sensitivity settings, twenty pre-alarm settings and automatic day/night adjustment. The SIGA-OSHD runs continuous self-diagnostics, uses electronic addressing with automatic device mapping, and shows status on a bicolor (green/red) LED. Up to 250 Signature addresses are supported per loop.
Specifications
| Type |
Intelligent multisensor: optical smoke + rate-of-rise and fixed temperature heat |
| Operating voltage |
15.20 to 19.95 VDC |
| Normal / alarm current |
32 µA / 45 µA |
| Smoke sensitivity |
UL/ULC: 0.5 to 4.36 %/ft (1.6 to 13.6 %/m) |
| Heat |
15°F/min (8°C/min) rate-of-rise; 135°F (57.2°C) fixed, alarm point 129°F to 141°F |
| Heat detector spacing |
50 ft (15.2 m) centers max |
| Air velocity |
0 to 4,000 ft/min |
| Operating environment |
32°F to 100°F (0°C to 38°C), 0 to 93% RH, non-condensing |
| Construction |
High impact engineering polymer, white |
| Compatible testers |
Testifire 1000, Testifire 2000 |
| Ship weight |
0.4 lb (0.16 kg) |
| Approvals |
UL 268 7th edition, UL 268A, UL 521, CAN/ULC-S529, CAN/ULC-S530, CSFM |
Installation notes
-
Signature loops only: works only with control panels that use a Signature loop controller.
-
Base ordered separately (see below). Standard bases fit 1-gang, 3-1/2 in. or 4 in. octagon boxes 1-1/2 in. deep; the 4 in. versions also fit 4 in. square boxes.
-
Device mapping: return a head to the same location after cleaning.
-
Do not paint the detector.
Compatible bases and related models
See all multi-criteria detectors or the full Edwards range.
Specifications from the Edwards data sheet E85001-1003 (©2020 Carrier). Manufacturer specifications are subject to change without notice.
FAQ
Is a detector base included with the SIGA-OSHD?
No. The base is ordered separately; standard bases are the SIGA-SB and SIGA-SB4, with relay (SIGA-RB/RB4), isolator (SIGA-IB/IB4) and sounder (SIGA-AB4GT) bases also available.
Which control panels can use the SIGA-OSHD?
Only control panels that use a Signature loop controller. Up to 250 Signature addresses are supported per loop.
What heat detection does it provide?
A 135°F (57.2°C) fixed temperature threshold plus a 15°F/min (8°C/min) rate-of-rise heat sensor, with heat detector spacing of 50 ft centers maximum.
Is there a black version?
Yes. The SIGA-OSHDB is the same detector in black.
