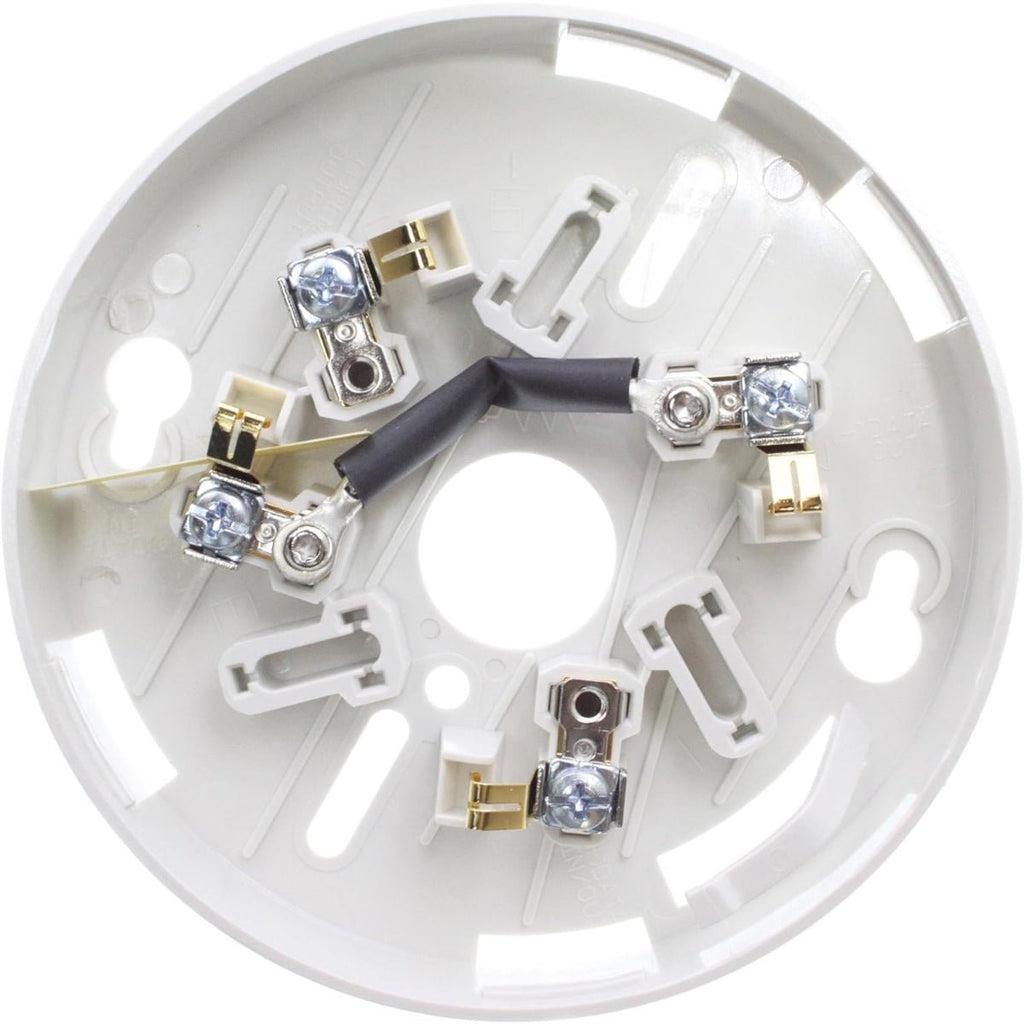

Edwards SIGA-SB — standard mounting base for Signature Series intelligent detectors, with room-side SLC terminals and a remote LED connection.
Every Signature detector head needs a base, and the SIGA-SB is the plain one. It carries the signaling line circuit through the detector position and adds terminals for a SIGA-LED remote alarm indicator, the one function the relay and isolator bases do not offer.
- Supports the SIGA-LED remote alarm LED; resistance per wire not above 10 ohms
- Wire size 12 to 18 AWG, 16 and 18 AWG preferred
- Fits North American 1-gang and 3-1/2 in. or 4 in. octagon boxes, and BESA boxes on 60.3 mm centres
- High-impact engineering polymer housing, white; optional SIGA-TS trim skirt
- 32 to 120 °F (0 to 49 °C), 0 to 93% RH non-condensing; UL 268, UL 521, CAN/ULC-S529
The alternatives change what the base adds, not the detector. SIGA-RB carries a supervised relay with a 1 A pilot-duty contact at 30 VDC and SIGA-IB a line fault isolator for Class A circuits; neither supports the SIGA-LED. SIGA-SB4 is this base sized for a 4 in. square box with a SIGA-TS4 skirt.
Documents
FAQ
Which electrical boxes does the SIGA-SB fit?
North American 1-gang boxes and 3-1/2 in. or 4 in. octagon boxes 1-1/2 in. deep, plus European BESA and 1-gang boxes with 60.3 mm fixing centers. For 4 in. square boxes, use the SIGA-SB4.
Does it support a remote LED?
Yes. The SIGA-LED remote LED connects to the SIGA-SB or SIGA-SB4 standard base only; the relay and isolator bases do not support it.
What wire sizes does it accept?
#18, #16, #14 and #12 AWG, with #16 and #18 AWG preferred. Resistance per wire must not exceed 10 ohms.
What if I need a relay or isolator?
Use the SIGA-RB or SIGA-RB4 relay base (1 A at 30 VDC pilot duty) or the SIGA-IB or SIGA-IB4 isolator base for Class A circuits.
