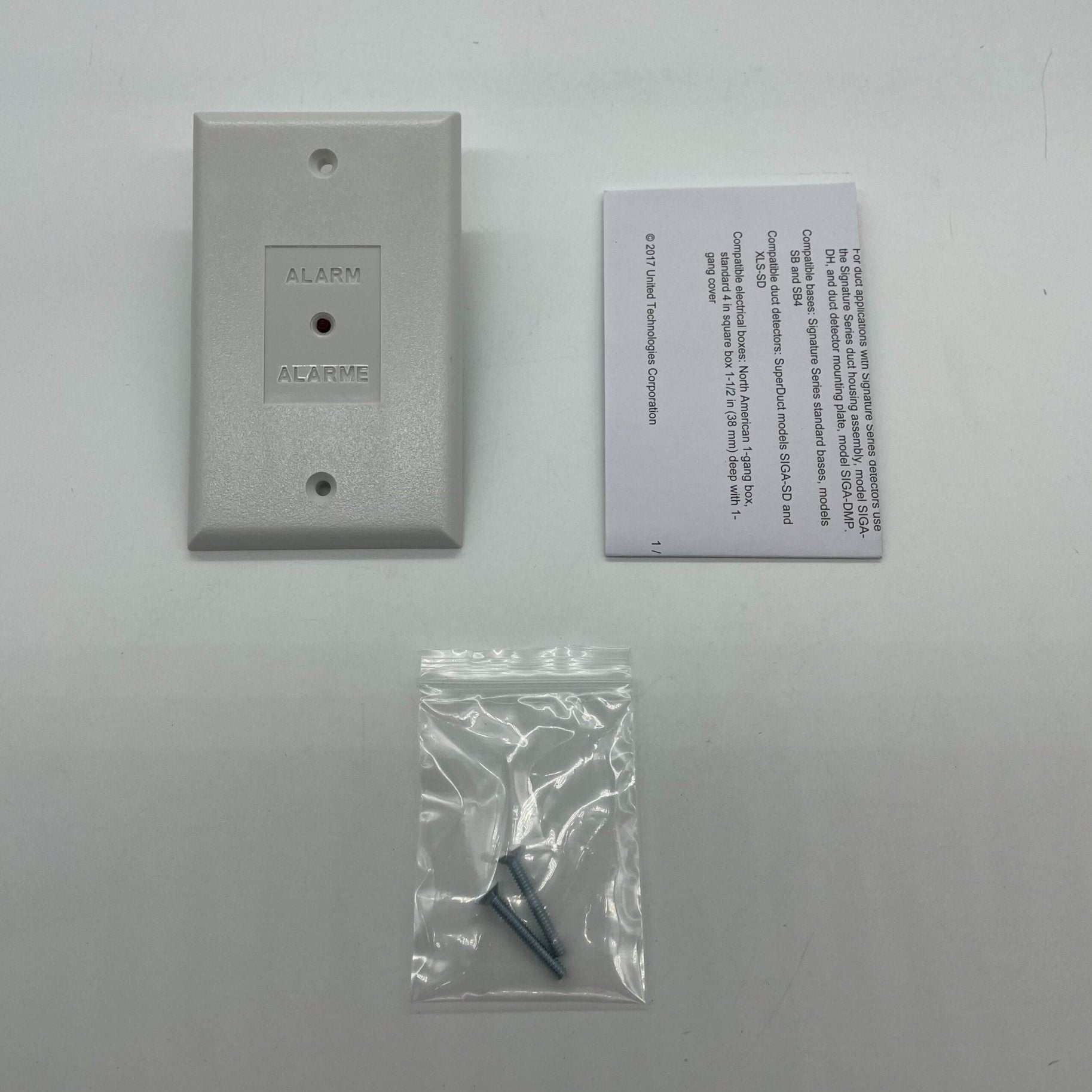

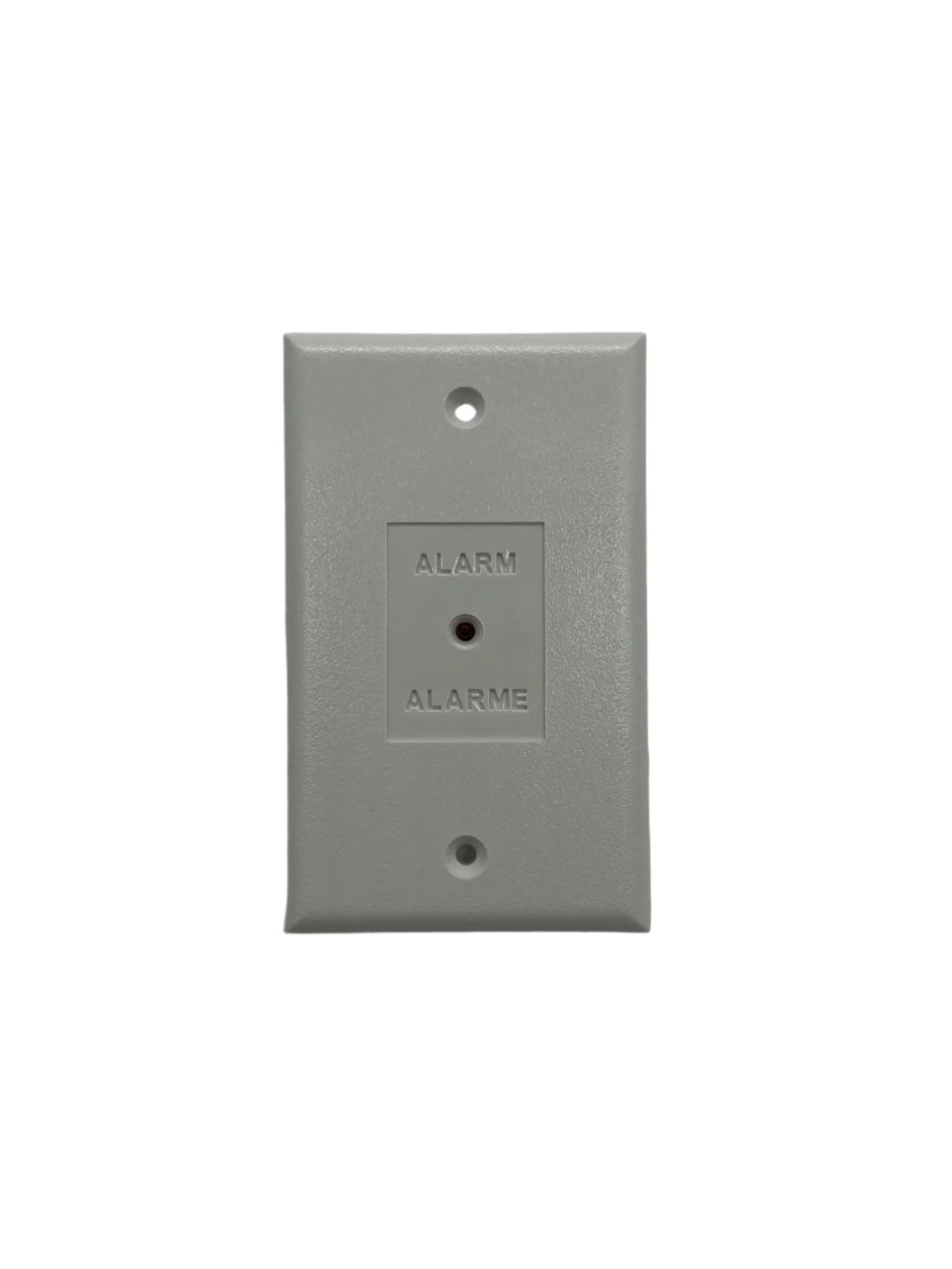

Edwards SIGA-LED — remote alarm LED indicator for Signature Series detectors, on a one-gang white faceplate.
A detector above a ceiling, inside a duct housing or behind a closed door gives no visible sign that it is the device in alarm. The SIGA-LED repeats that one detector at a place people can see: it wires to the two remote LED terminals on the detector base and lights red when that detector alarms.
- Connects to the SIGA-SB and SIGA-SB4 standard bases only
- Not supported by the SIGA-RB or SIGA-RB4 relay bases, or the SIGA-IB or SIGA-IB4 isolator bases
- A maximum of one indicator per detector

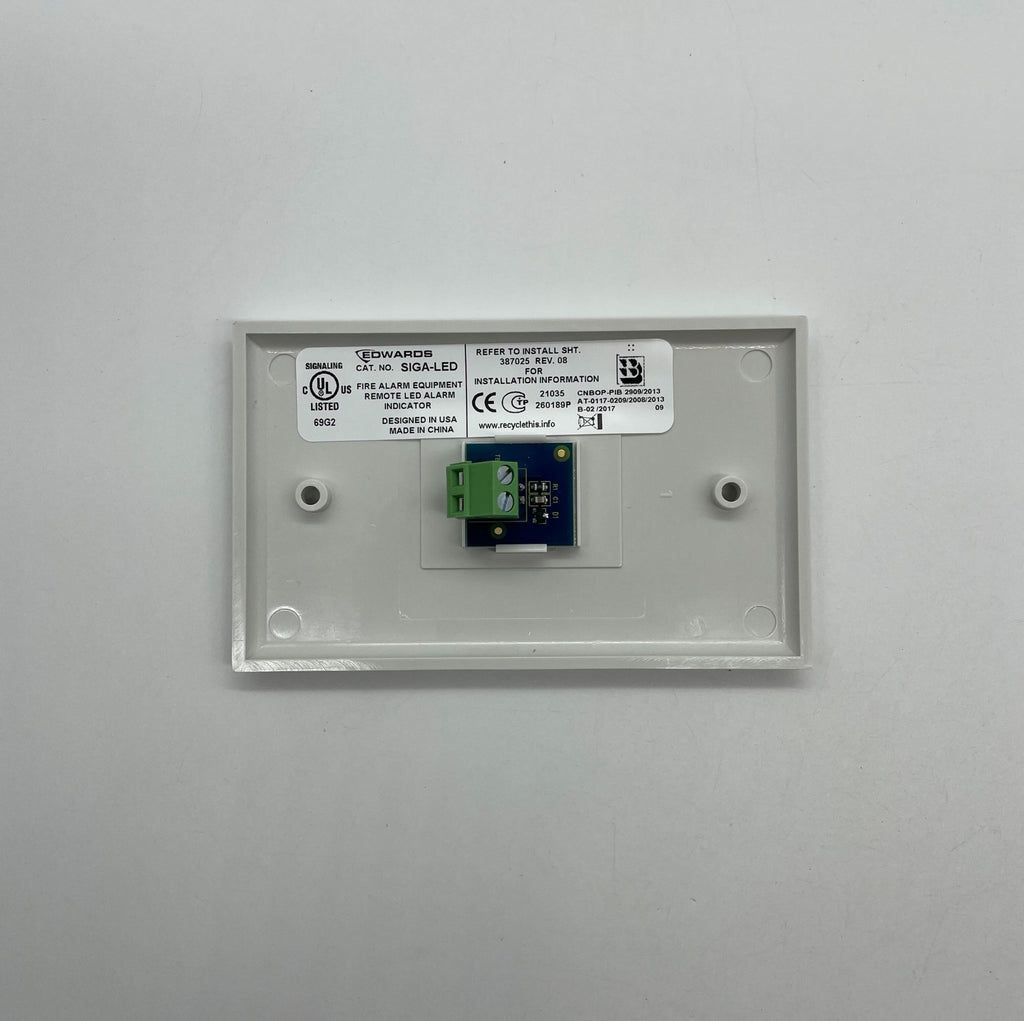

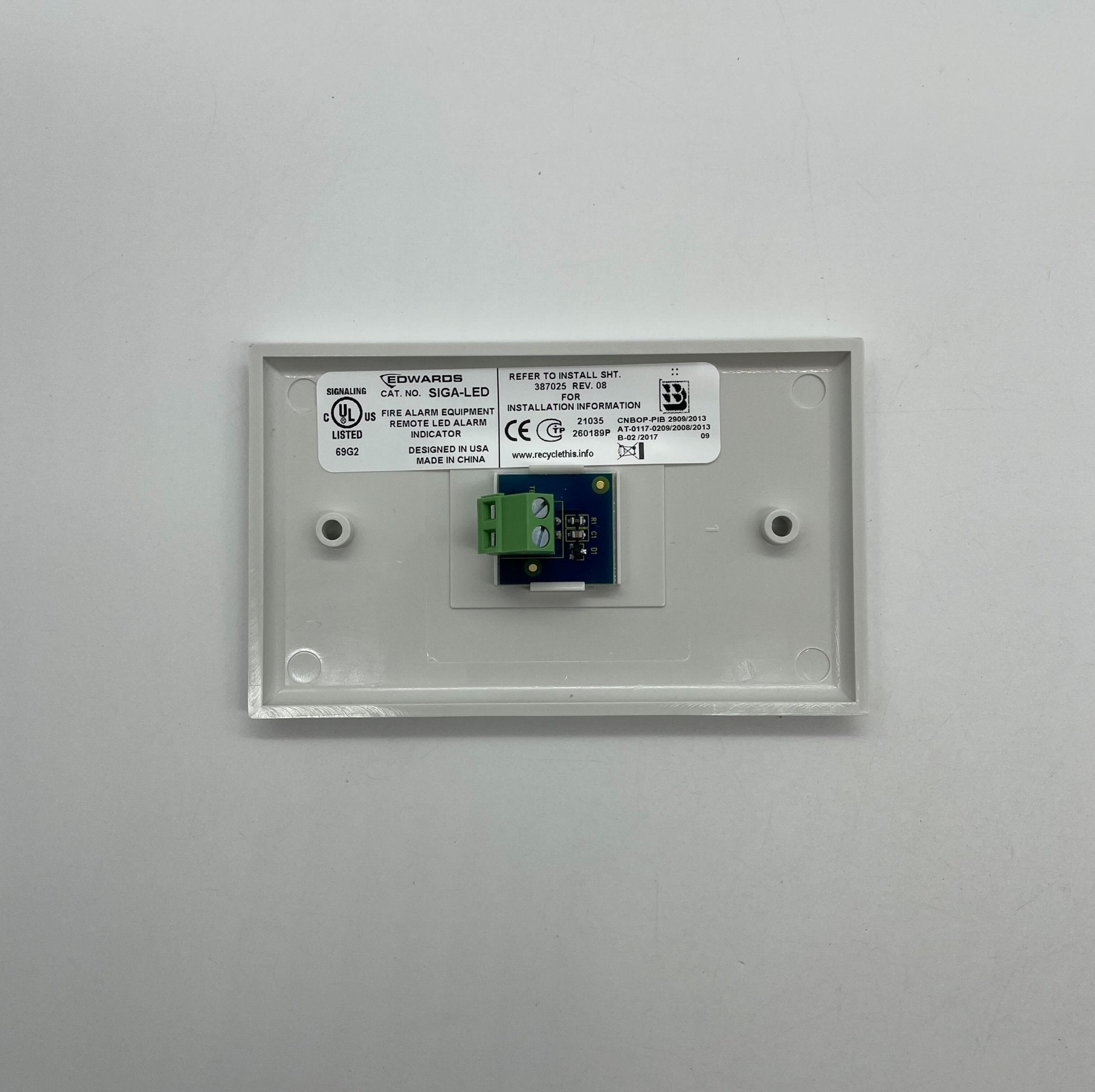

- Wires to base terminals 4 and 5, remote LED negative and positive
- Resistance per wire must not exceed 10 Ω
- North American one-gang plastic faceplate, white finish, red alarm LED; not for EN54 use
- Mounts remotely or directly on the SIGA-DH duct detector housing
It is an indicator, not a base and not a test station. SIGA-SB, SIGA-RB and SIGA-IB are the bases it may or may not sit behind, and the SIGA-DTS duct test station is the two-gang key switch unit that actually initiates a test.
