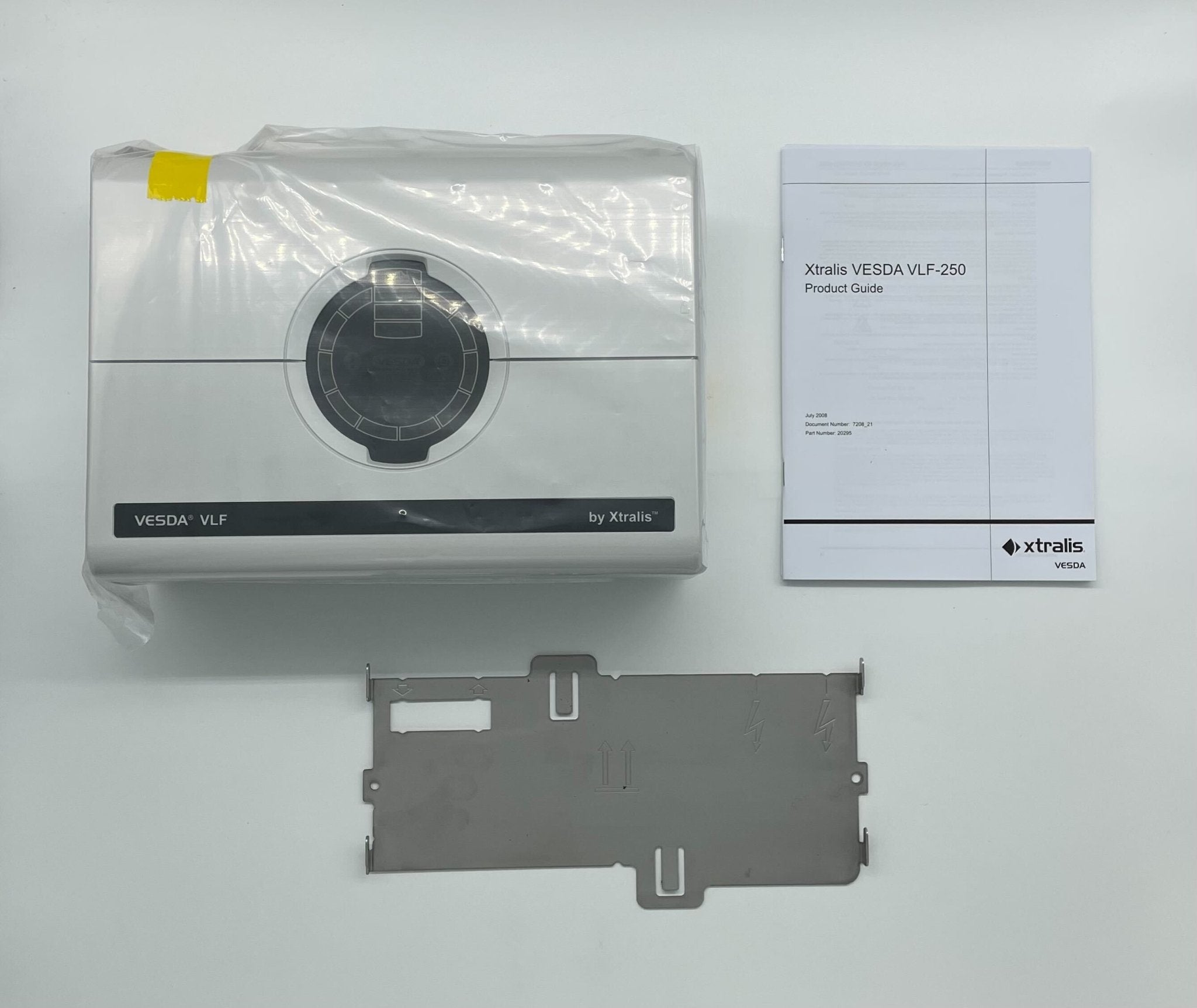

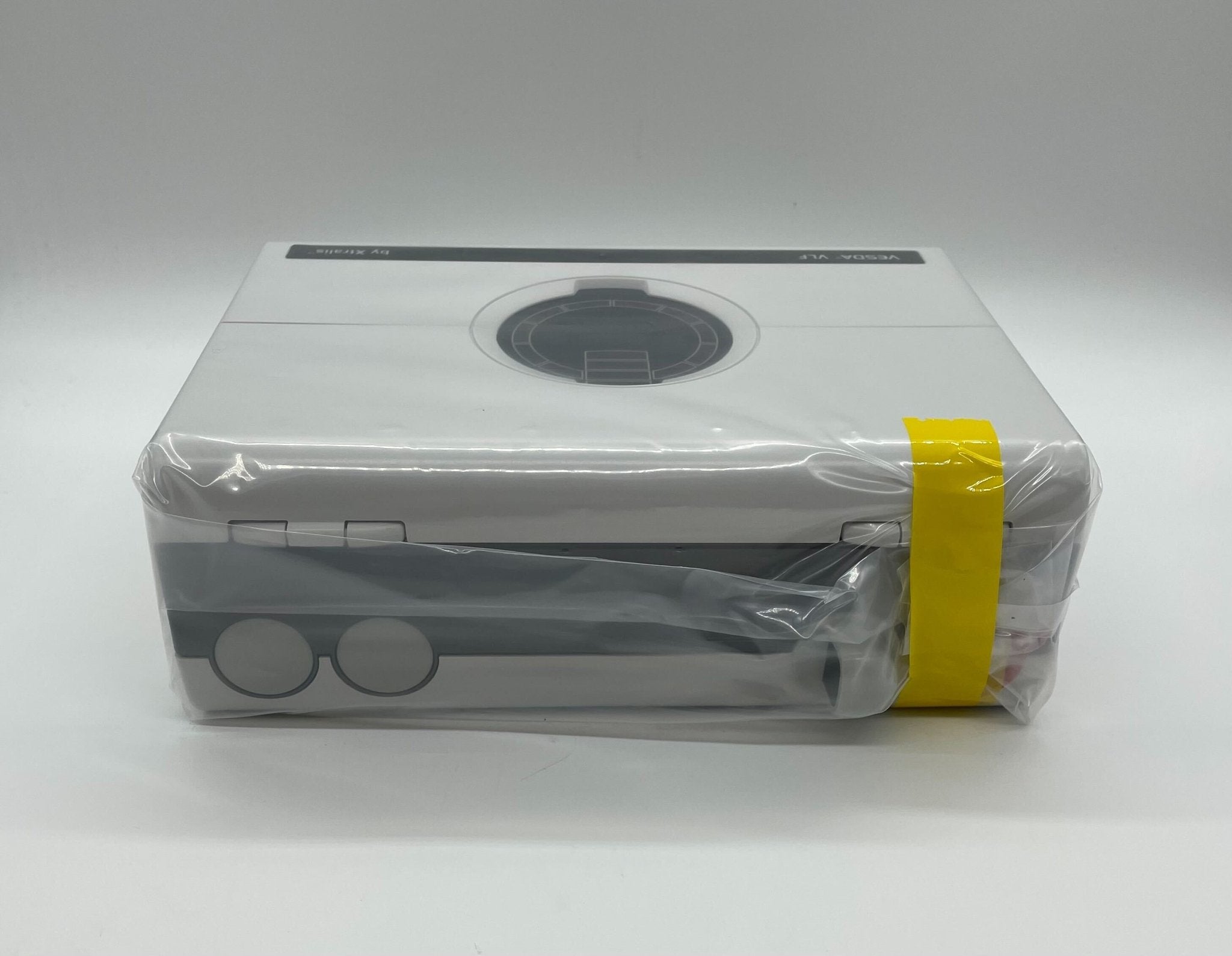

VLF-250-00 — VESDA LaserFOCUS aspirating smoke detector for small business-critical spaces of less than 250 m² (2,500 sq ft).

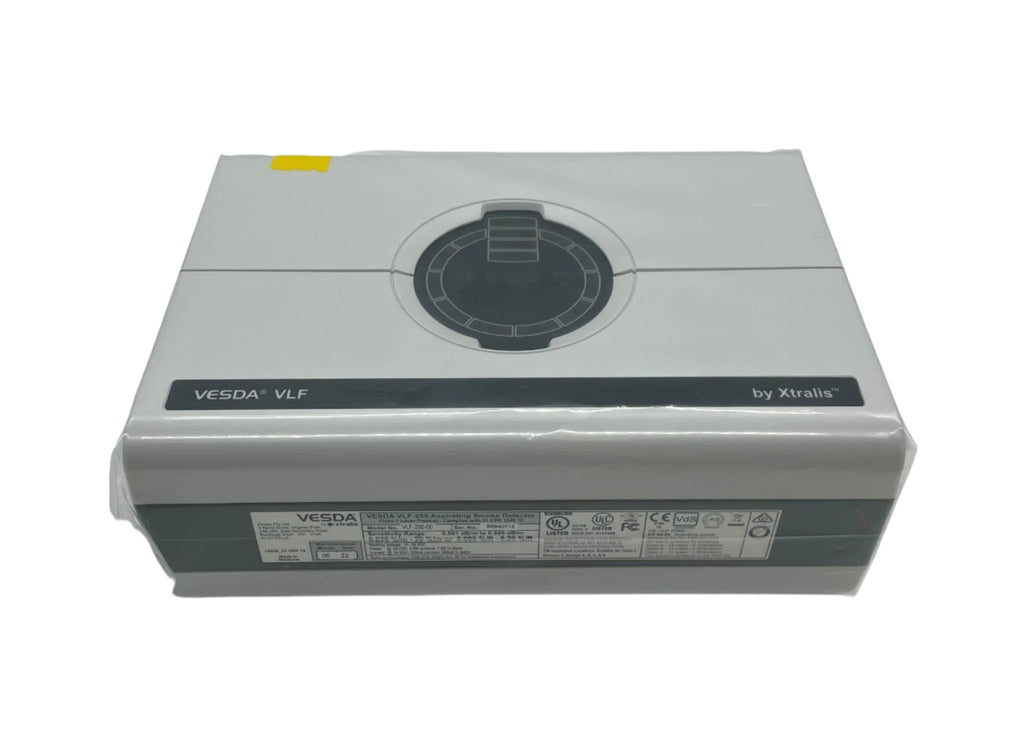

The LaserFOCUS continually draws air from sampling holes in a pipe network, filters it, and passes it into a laser detection chamber where light scattering reveals very small quantities of smoke. It is designed to be installed and commissioned straight out of the box, without a special interface or software programming tool. The Smoke Dial display renders a developing smoke event legible from across a room, and behind the field service access door the Instant Fault Finder converts that same dial into a numbered fault indicator so a technician arrives at the callback already knowing the fault. LaserFOCUS was the first air sampling smoke detector to use ultrasonic flow sensing, which reads sampling pipe flow rate directly and is immune to air temperature and pressure changes and unaffected by contamination.
Specifications
| Order code |
VLF-250-00 — European language set, English display labels |
| Input power |
24 VDC nominal (18 to 30 VDC); 220 mA nominal, 295 mA in alarm at 24 VDC |
| Dimensions (W x H x D) |
256 mm x 183 mm x 92 mm (10-1/16 in x 7-1/5 in x 3-2/3 in) |
| Weight |
Approx. 2 kg (4.4 lb) |
| IP rating |
IP30 |

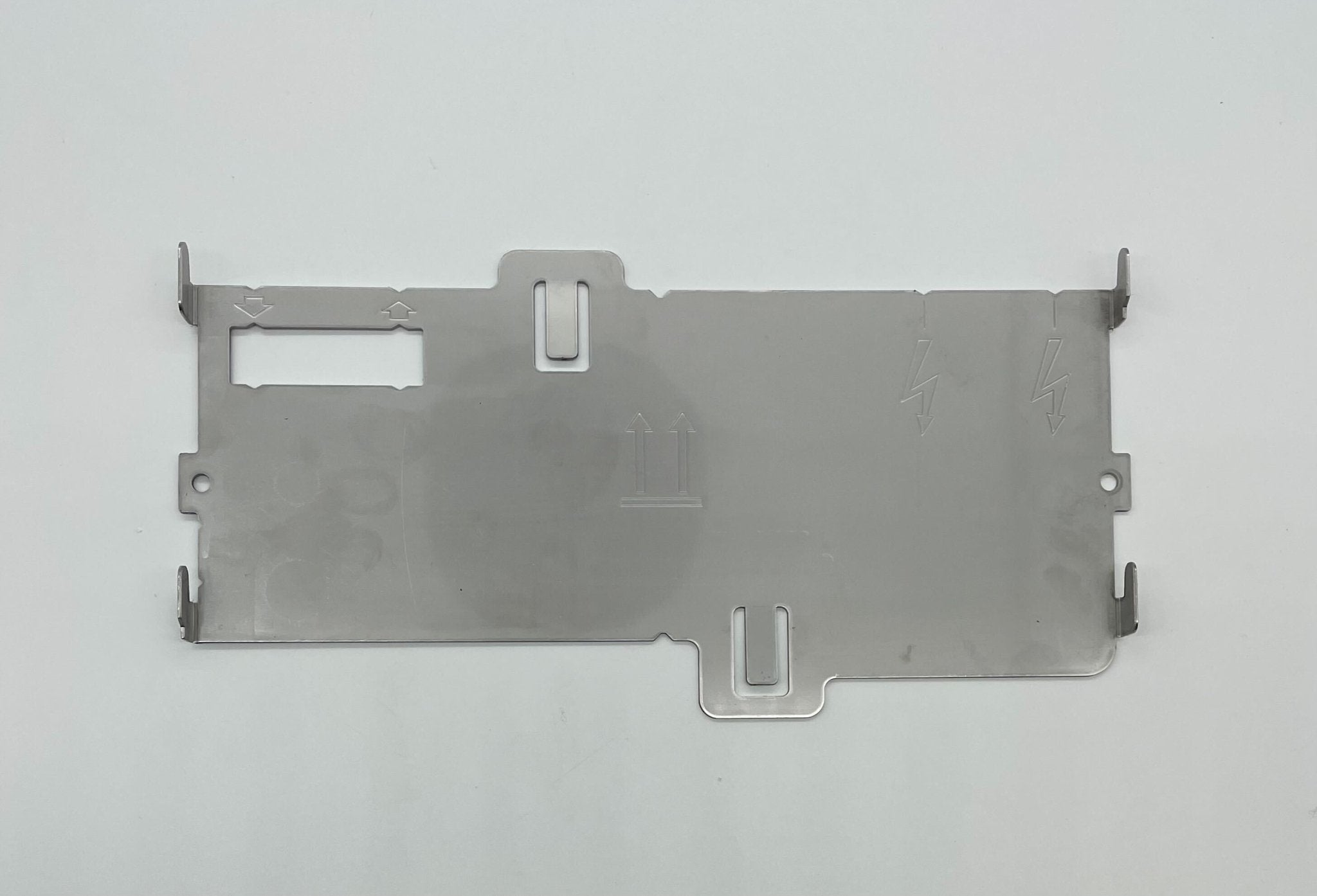

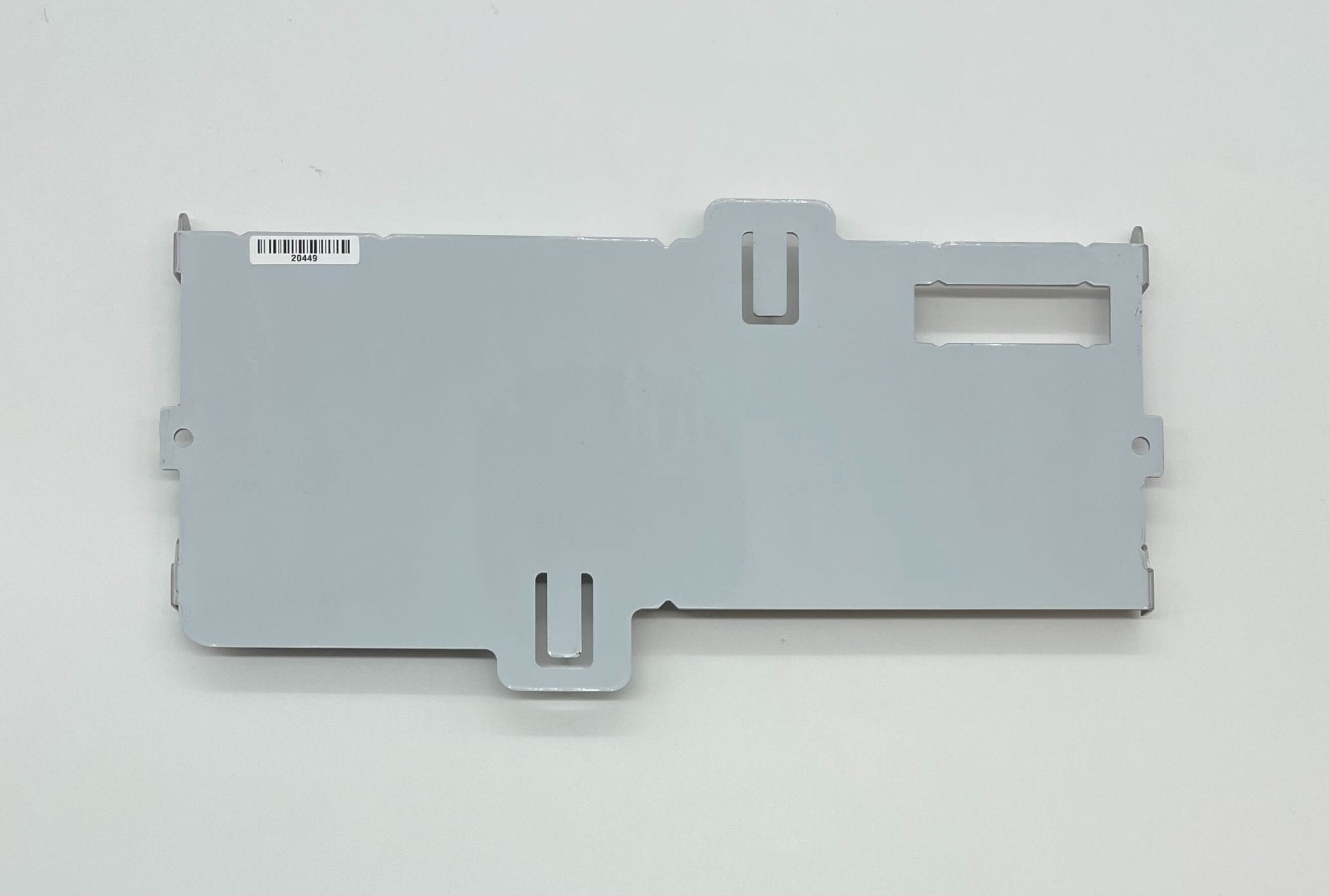

| Mounting |

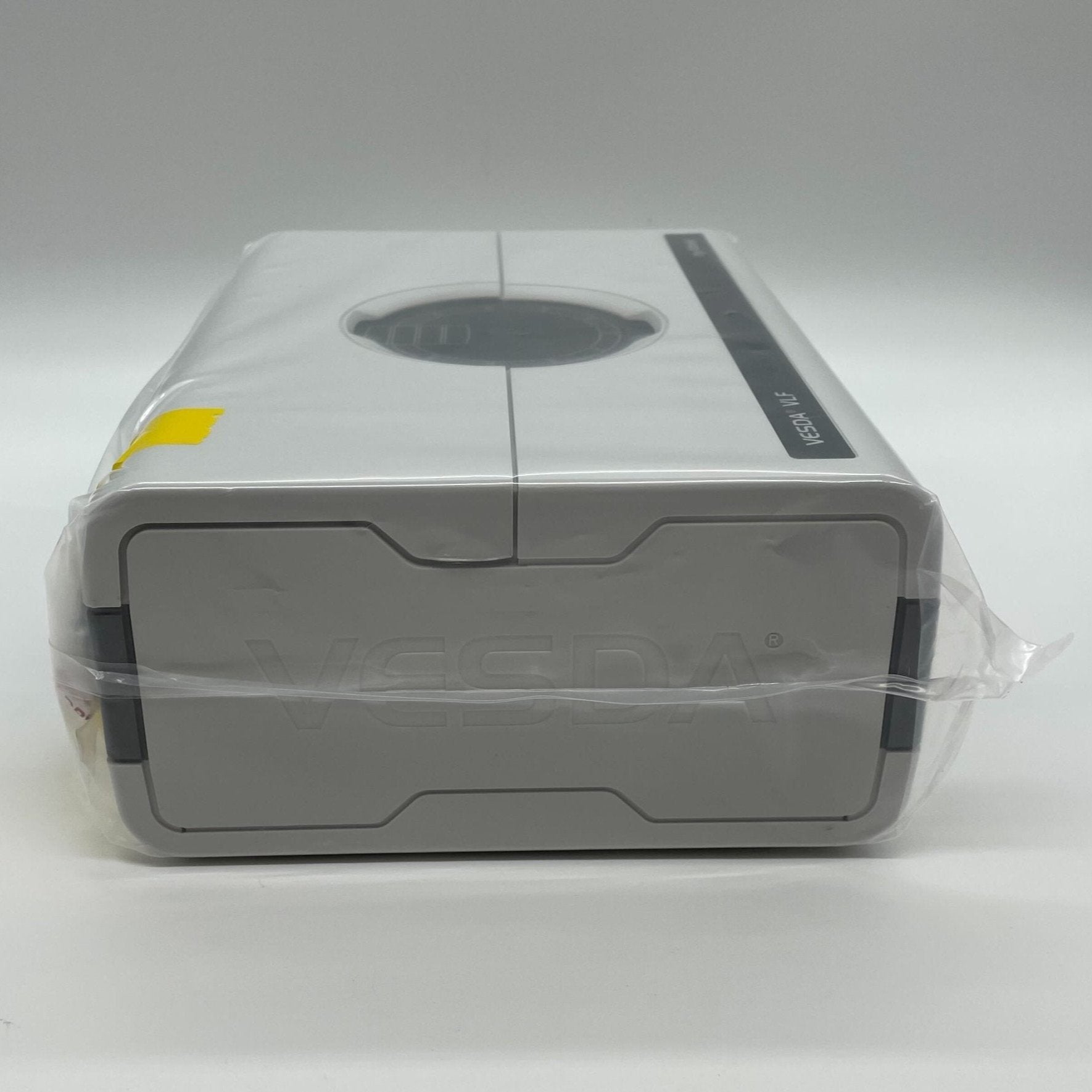

Upright, inverted or horizontal |
| Operating conditions |
Ambient 0°C to 39°C (32°F to 103°F); tested to -10°C to 55°C (14°F to 131°F); sampled air -20°C to 60°C (-4°F to 140°F); humidity 5% to 95% RH, non-condensing. UL listed for use from 0°C to 38°C. |
| Area coverage |
Up to 250 m² (2,500 sq ft), depending on local codes and standards |
| Sampling network |
1 x 25 m (80 ft) single pipe, maximum 12 holes; or 2 x 15 m (50 ft) per branch, maximum 6 holes per branch |
| Air inlet pipe |
Metric 25 mm (1.05 in) or American IPS 21 mm (3/4 in) |
| Relay outputs |
3 changeover relays (Fire 1, Action, Fault), contacts rated 2 A at 30 VDC max, NO/NC |
| Cable access |

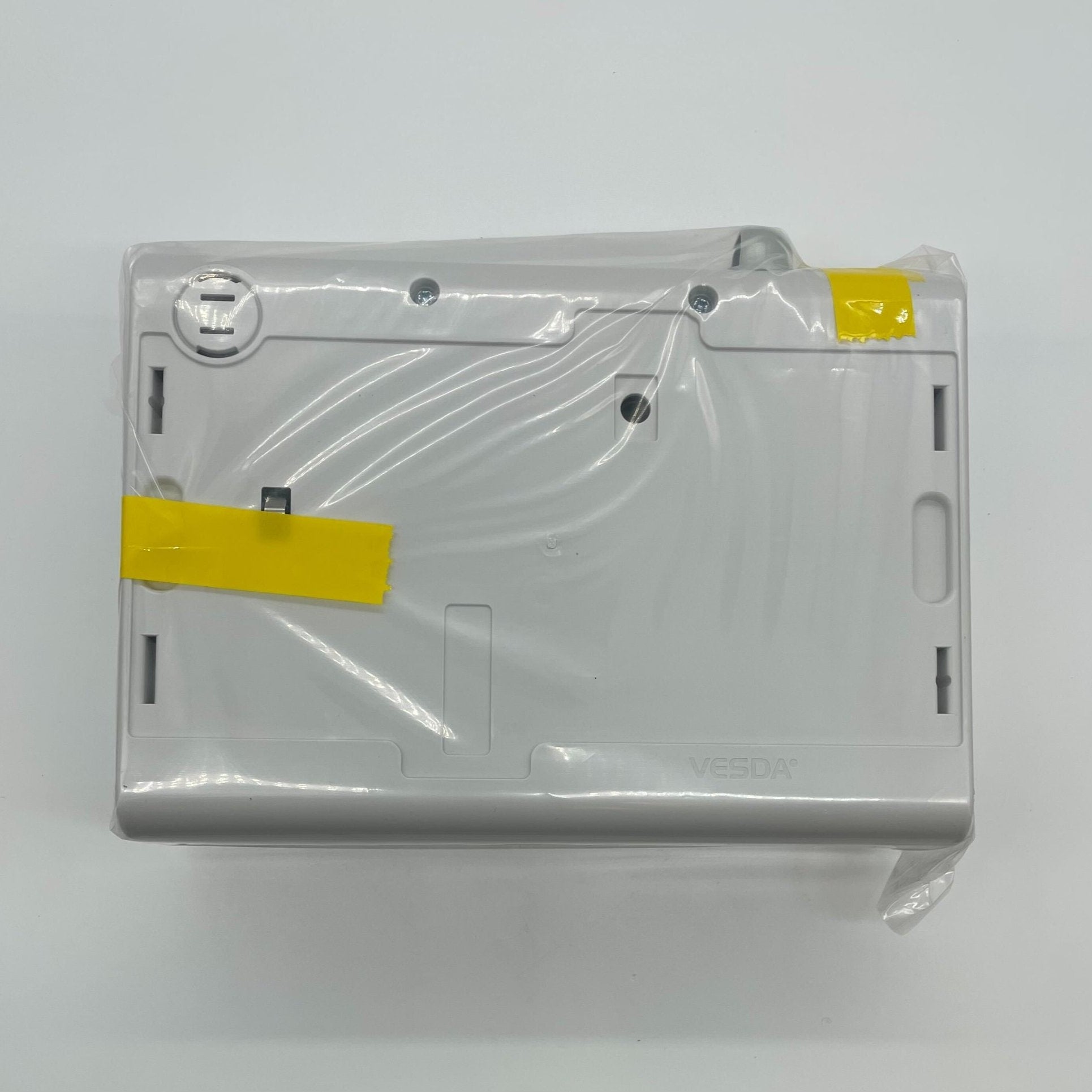

3 x 25 mm (1.05 in) entries — 1 rear entry, 2 top entry |
| Cable termination |
Screw terminals 0.2 to 2.5 mm² (30 to 12 AWG) |
| Alarm threshold range |
Alert and Action 0.025 to 2.00% obs/m (0.008 to 0.625% obs/ft); Fire 1 and Fire 2 0.025 to 20.00% obs/m (0.008 to 6.25% obs/ft) |
| Alarm delays |
0 to 60 seconds, individually settable; two threshold sets, time or GPI based |
| Interfaces |
Terminal block plus RS232 programming port; GPI offers Reset, Disable, Standby, Alarm set 1, Alarm set 2 and External Input |
| Event log |
Up to 18,000 events, time and date stamped in separate non-volatile logs for smoke level, flow level, detector status and faults |
| AutoLearn smoke and flow |
Minimum 15 minutes, maximum 15 days, default 14 days; thresholds are not changed from pre-set values during AutoLearn |
| Warranty period |
2 years |
| Listings and approvals |

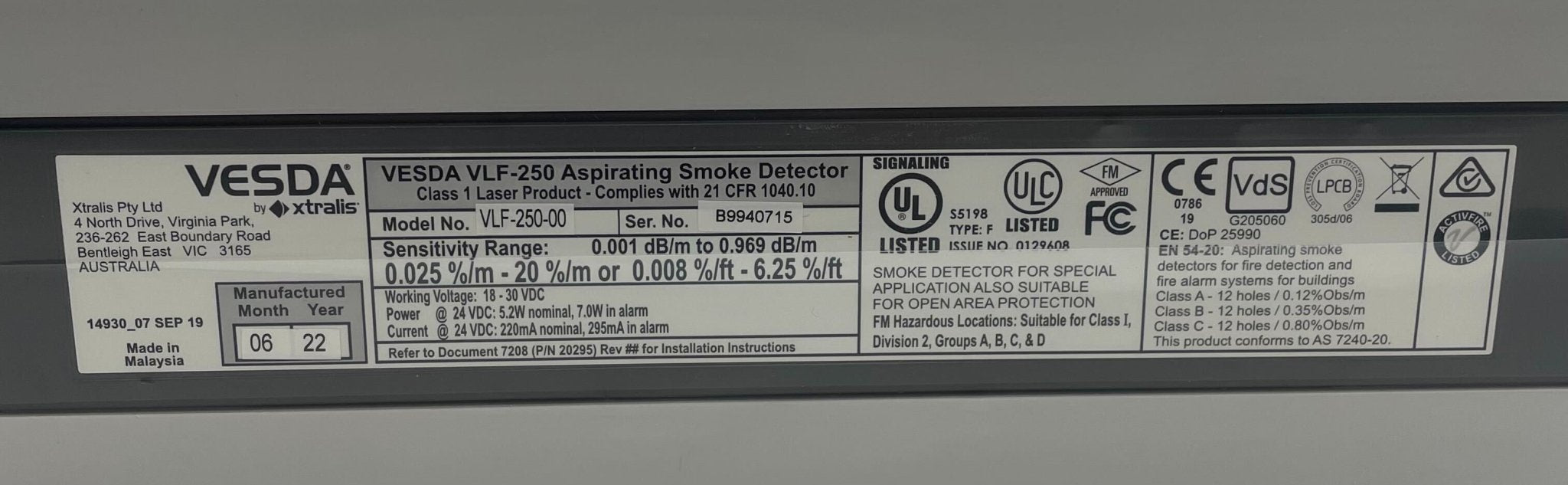

UL, ULC, FM, CFE, LPCB, VdS, VNIIPO, AFNOR, ActivFire, CE (EMC and CPD) |
| EN 54-20 classification |
Class A 12 holes / 0.12% obs/m; Class B 12 holes / 0.35% obs/m; Class C 12 holes / 0.80% obs/m — classification of any configuration is determined using ASPIRE2 |
Installation notes
-
Hole count is the hard limit: 12 sampling holes on a single 25 m pipe, or 6 per branch on a two-branch network. Pipe runs are either the pre-engineered option or modelled in ASPIRE2 — there is no third route to a compliant design.
-
The last two digits are a language set: VLF-250-00 carries the European language set with English display labels. The -01, -02, -04 and -05 codes are the same detector with international display labels and different language sets.
-
VESDAnet is an add-in card: the detector reports over three relays as shipped. Networking requires the VIC-010 VESDAnet Interface Card; VIC-020 and VIC-030 add Multifunction Control Card functions.
-
Consumables are model-specific: the filter cartridge is VSP-005, but the aspirator for the VLF-250 is VSP-722 — the VLF-500 uses VSP-715 instead.
-
Not a Flair detector: the LaserFOCUS uses laser-based light scattering with ultrasonic flow sensing. Flair imaging detection belongs to the later VESDA-E range (VEP, VES, VEU).
Related models
-
VLF-500-00 — same enclosure and controls, rated to 500 m² with a 50 m single pipe and up to 24 holes; draws 410 mA nominal against the VLF-250's 220 mA.
-
VLF-250-01 / -02 / -04 / -05 — language set variants with international display labels.
-
VIC-010 — VESDAnet Interface Card for the VLF-250 and VLF-500.
-
VSP-005 / VSP-025 — replacement filter cartridge, single unit and 20-pack.
Specifications taken from the Xtralis data sheet "VESDA VLF VLF-250," document 07854_15, part number 20293. Manufacturer specifications are subject to change without notice.
