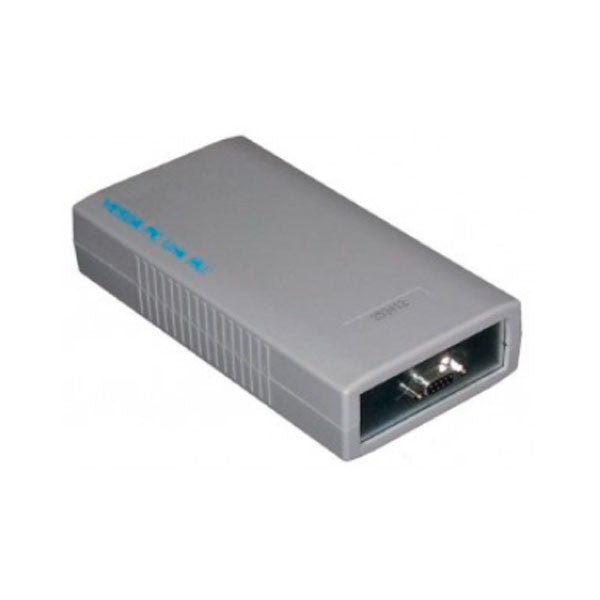

VESDA VHX-0420 — Modbus Type 3 High Level Interface, standard version, for VESDAnet aspirating smoke detection networks.
The Modbus Type 3 HLI acts as a proxy for every VESDA device on a VESDAnet network, letting a building management system or fire panel read status and write control and configuration through Modbus registers. Standard is genuine Xtralis wording for the unenclosed unit, which needs a VESDAnet socket interface to reach the network.
- 24 VDC supply; 70 mA quiescent current; 1.68 W quiescent power
- Supports up to 100 VESDA detectors on one VESDAnet network
- Covers VESDA VLP, VLS, VLC, VLF, VLI, VFT-15 plus VESDA-E VEU, VEP, VES, VEA
- Reports alarm and fault status, smoke level and thresholds; allows reset, disable, silence, alarm test and normalise
- 188 × 98 × 40 mm (7.4 × 3.9 × 1.6 in.); 0.4 kg (0.9 lb)
- Supplied with VESDAlink RS-232 9-way and VESDAnet RS-485 15-way cables
VHX-1420 is the same Type 3 interface in a wall-mounted metal box with a built-in VESDAnet interface. Do not confuse it with the earlier Modbus HLIs: VHX-0400 is Type 1 and VHX-0410 Type 2, both capped at 40 detectors with no VESDA-E.
