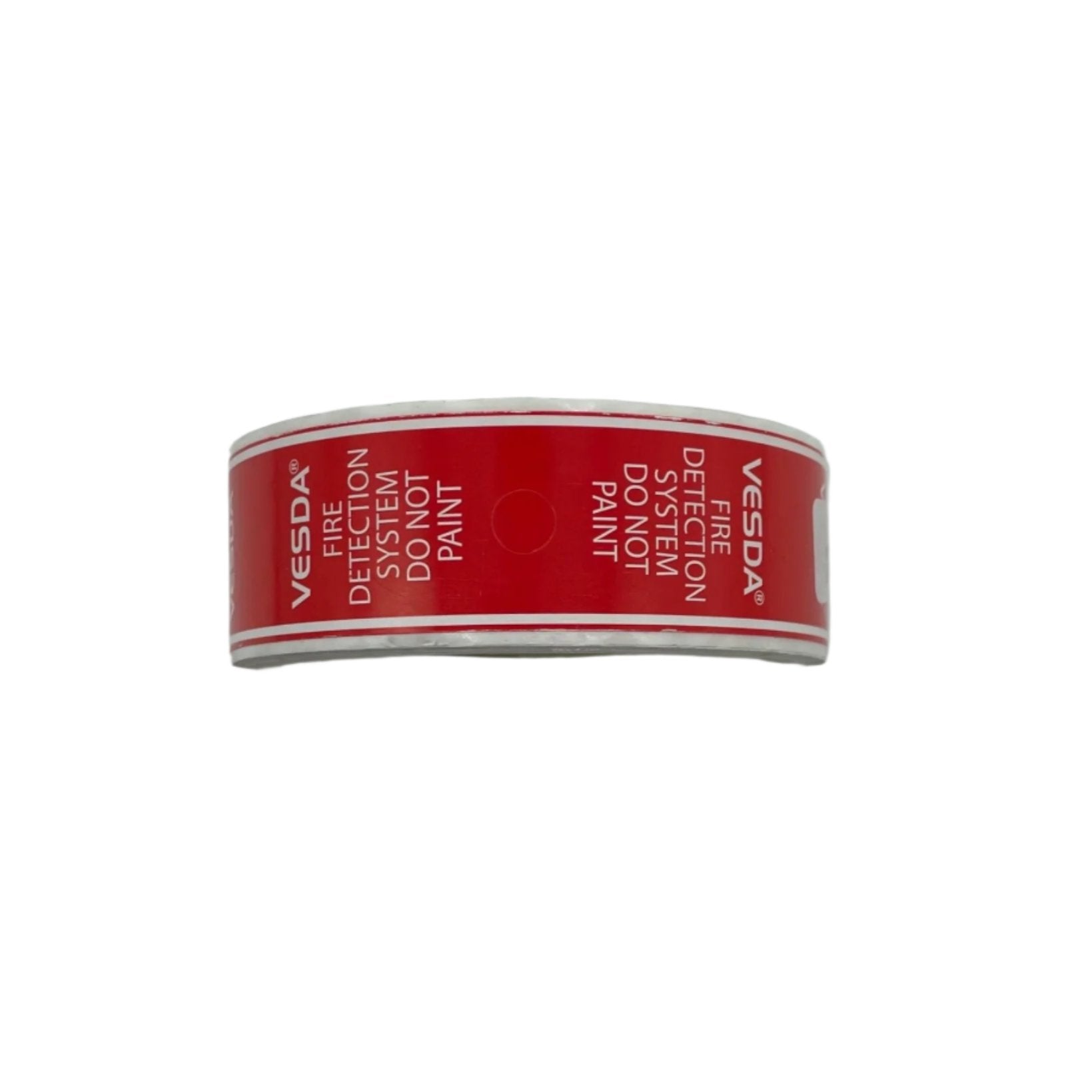

VESDA E700-SP-DCL — wrap around sampling point decal that marks a drilled sampling hole on VESDA air sampling pipe.
An aspirating detector draws air through a pipe network, and each zone is sampled through small holes drilled into the pipe at calculated positions. Those holes are easy to lose sight of once the pipe is run, and an unmarked or painted-over hole is an undocumented change to a designed network.
- Wrap around style, applied around the diameter of the pipe
- Center hole aligns to the sampling hole drilled into the pipe

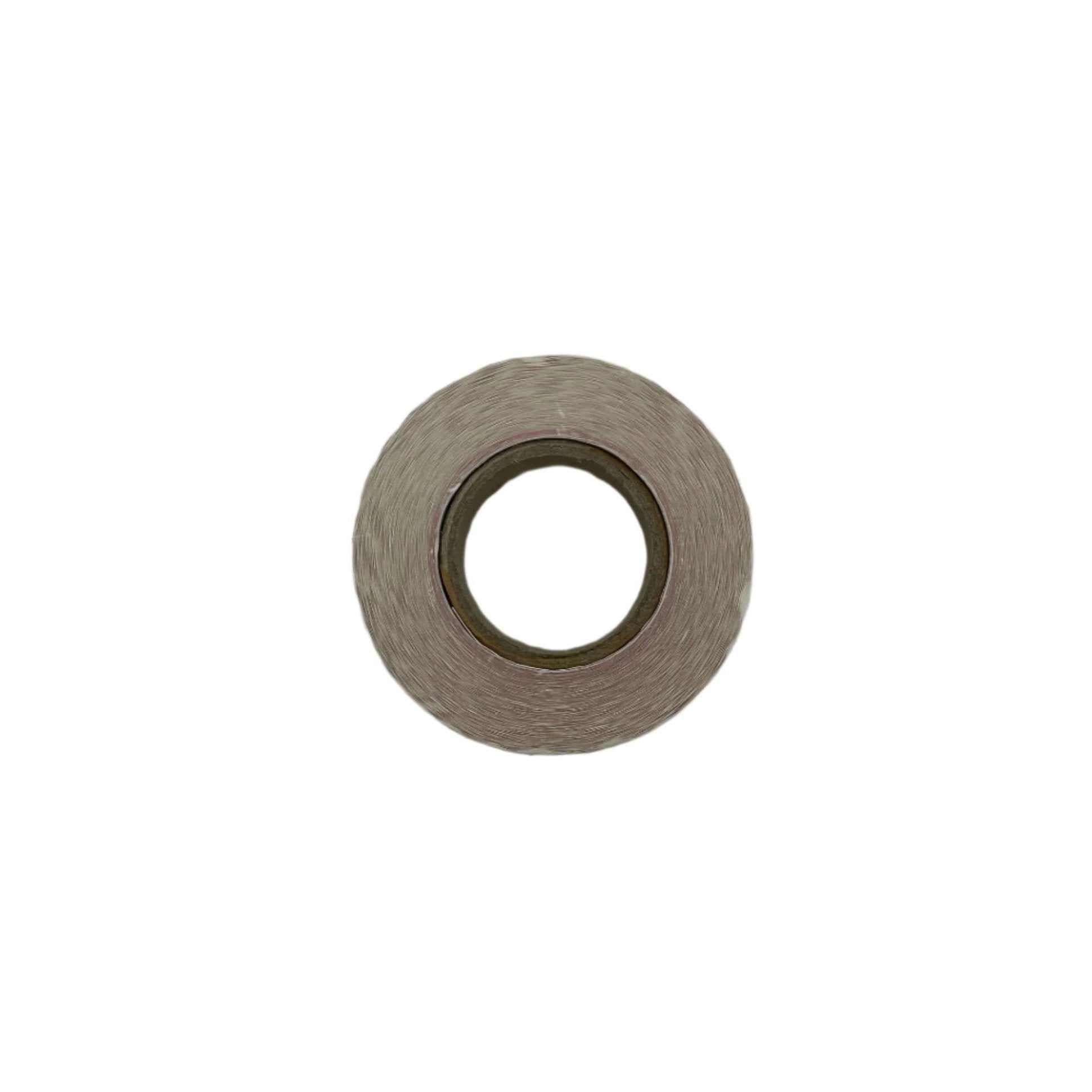

- Supplied 200 per roll, stated in both the Americas and the Europe VESDA pipes and fittings catalogues
- One of three VESDA markers, with the round miniature sampling point label and the pipe label that warns against tampering
Do not cross it with the other labels on the same ordering page. E700-SP-DCL-PNT is the sampling point label at 50 per roll, E700-SP-DCL-PIPE the pipe label at 35 per roll, E700-SPLR red at 10 per sheet and E700-SPLG grey at 8 per sheet, and 128-014-XTR the round miniature label of the Europe range.
