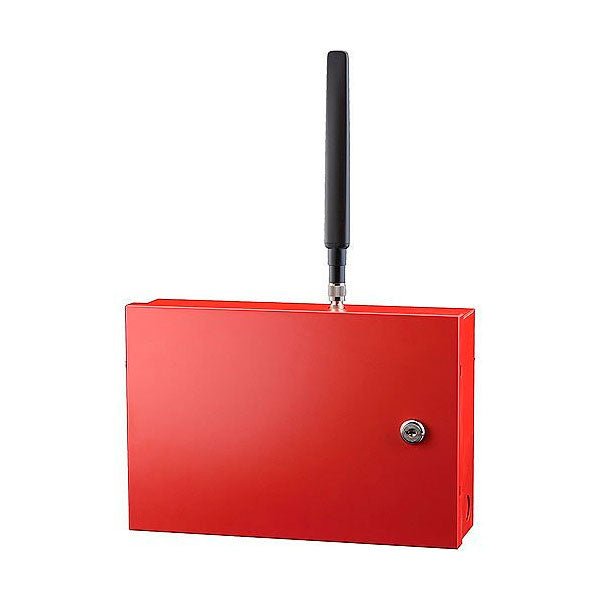

Telguard TG-7FE Commercial Cellular Ethernet or sole path fire cellular alarm communicator for AT&T 5G (LTE-M) network
The TG-7FE-A is the AT&T version of the Telguard TG-7FE, a dual-path commercial fire alarm communicator that sends signals over a wired LAN/Internet connection and over LTE-M cellular. It can be set for cellular-primary, LAN-primary or cellular-only (sole path) operation, and it connects to the fire panel through a single DACT connection. It runs on the panel's 12/24 V auxiliary power or the included plug-in transformer.
Key Features
- Two communication paths: wired LAN/Internet and LTE-M cellular, with automatic failover
- Modes: cellular primary with LAN backup, LAN primary with cellular backup, or cellular only (sole path)
- Powers from the fire panel's 12 V / 24 V auxiliary supply or the included plug-in transformer
- Single DACT connection; use the TG-PEM accessory when the panel has no DACT
- Link supervision available at 60-minute and 5-minute intervals for sole-path use
- UL 864 Commercial Fire and UL 1610 Central Station
- ULC S559 and ULC S304 (AT&T model); in Canada cellular data may be carried by Rogers, Bell, Telus or SaskTel
Specifications
| Network |
AT&T LTE-M plus Ethernet LAN |
| Current draw, standby |
18 mA @ 24 VDC; 40 mA @ 12 VDC |
| Current draw, transmit |
110 mA @ 24 VDC; 200 mA @ 12 VDC |
| Compatible formats |
CID (Contact ID), SIA, Pulse (4x2, 3x1), Radionics Modem (IIe/3a2,4), DMP |
| Antenna port |
50-ohm TNC connector (female) |
| Size (without antenna) |
7.5 H x 11.5 W x 3.5 D in (19.05 x 29.21 x 8.89 cm) |
| Listings |
UL 864, UL 1610, ULC S559, ULC S304 |
| LAN cabling |
Straight-through Cat-5 or higher Ethernet |
Compatible With
- Fire alarm control panels with a DACT
- Telguard TG-PEM Power & Expansion Module
- Telguard high-gain/directional antennas and ACD antenna cables
