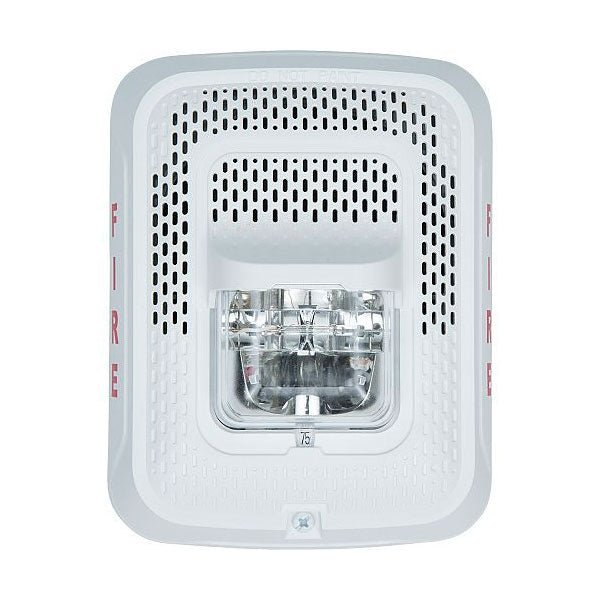

System Sensor SPSWL-BP10 is a bulk pack of ten SPSWL L-Series indoor speaker strobes. Each unit is a wall-mount appliance with a white housing and FIRE marking for voice evacuation systems.

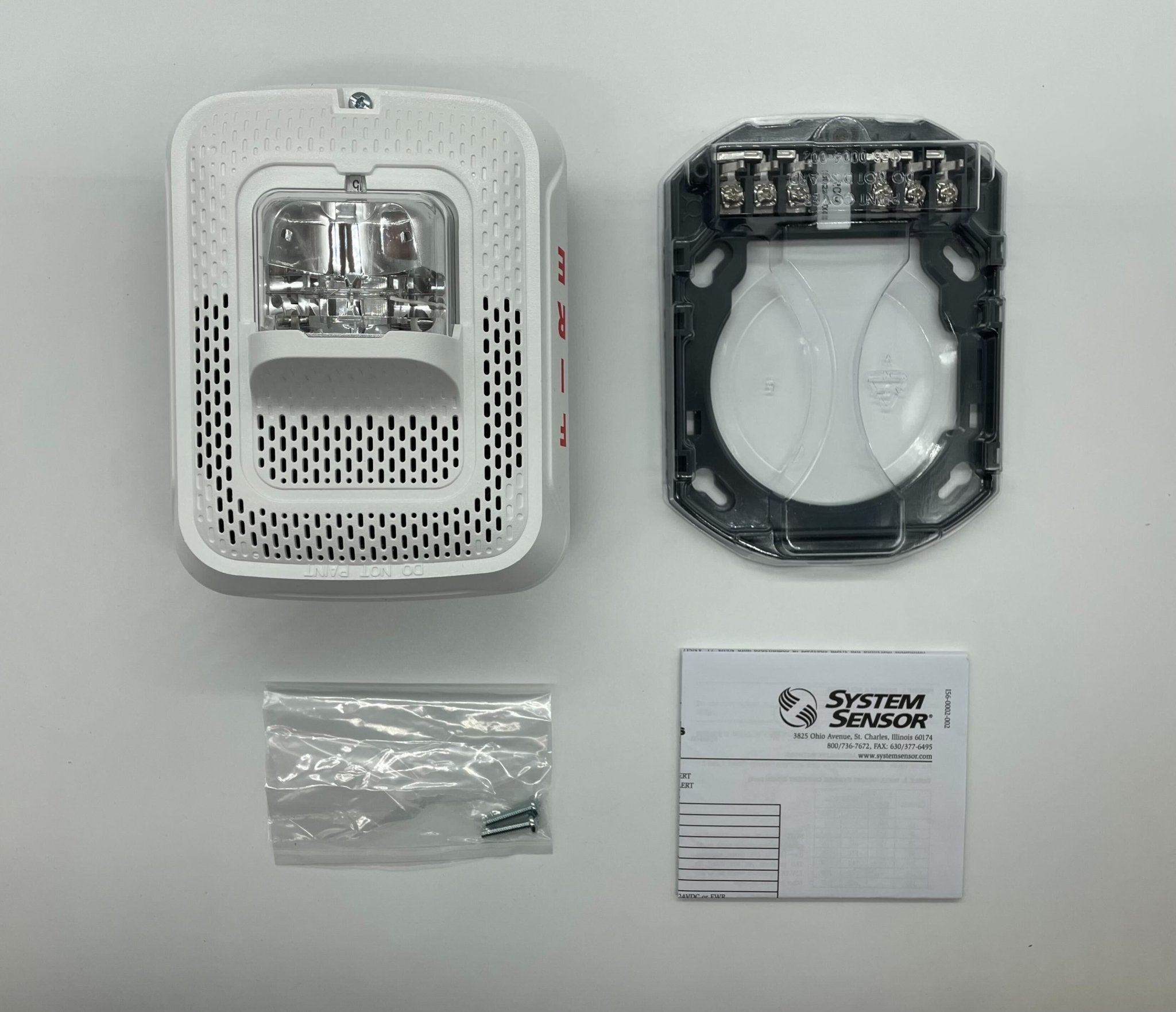

The speaker taps, power level and strobe candela are set with rotary switches, and a plug-in mounting plate with shorting springs allows a continuity check before installation.
Features

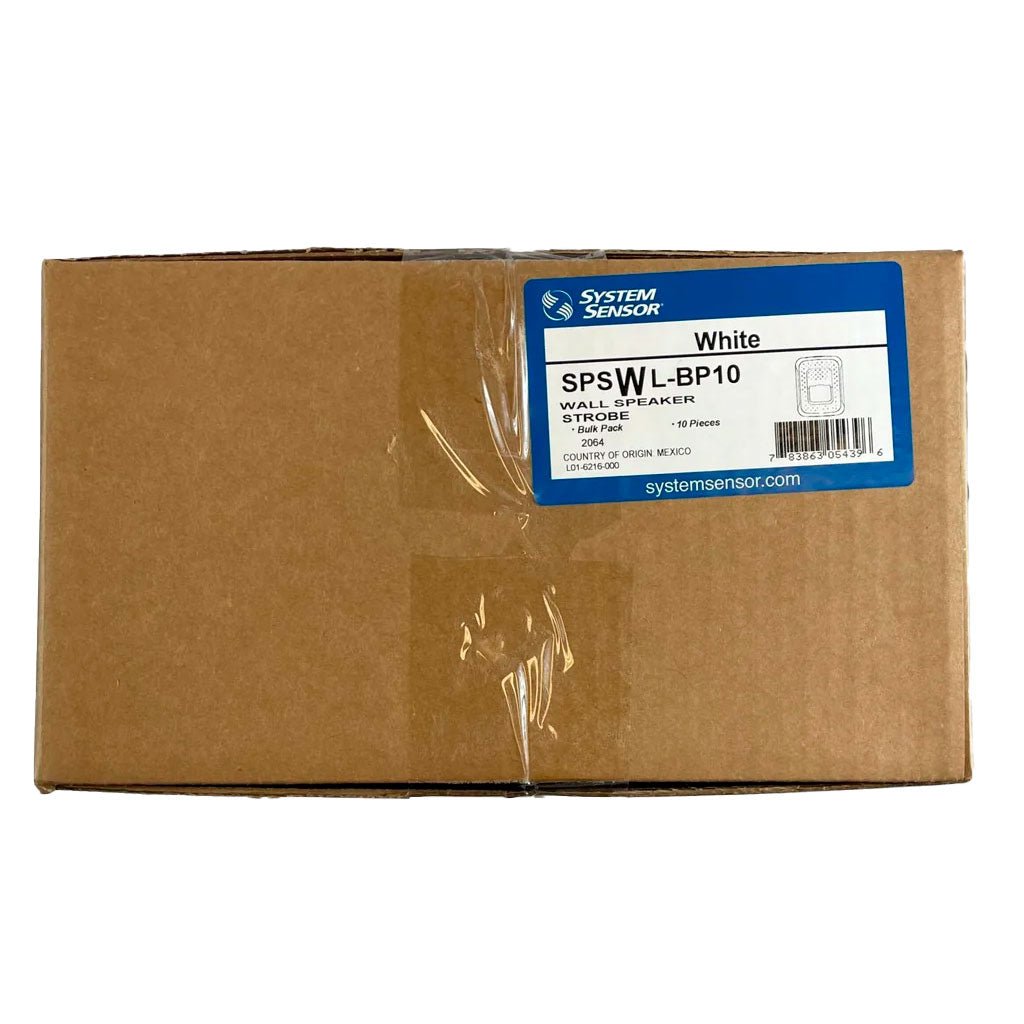

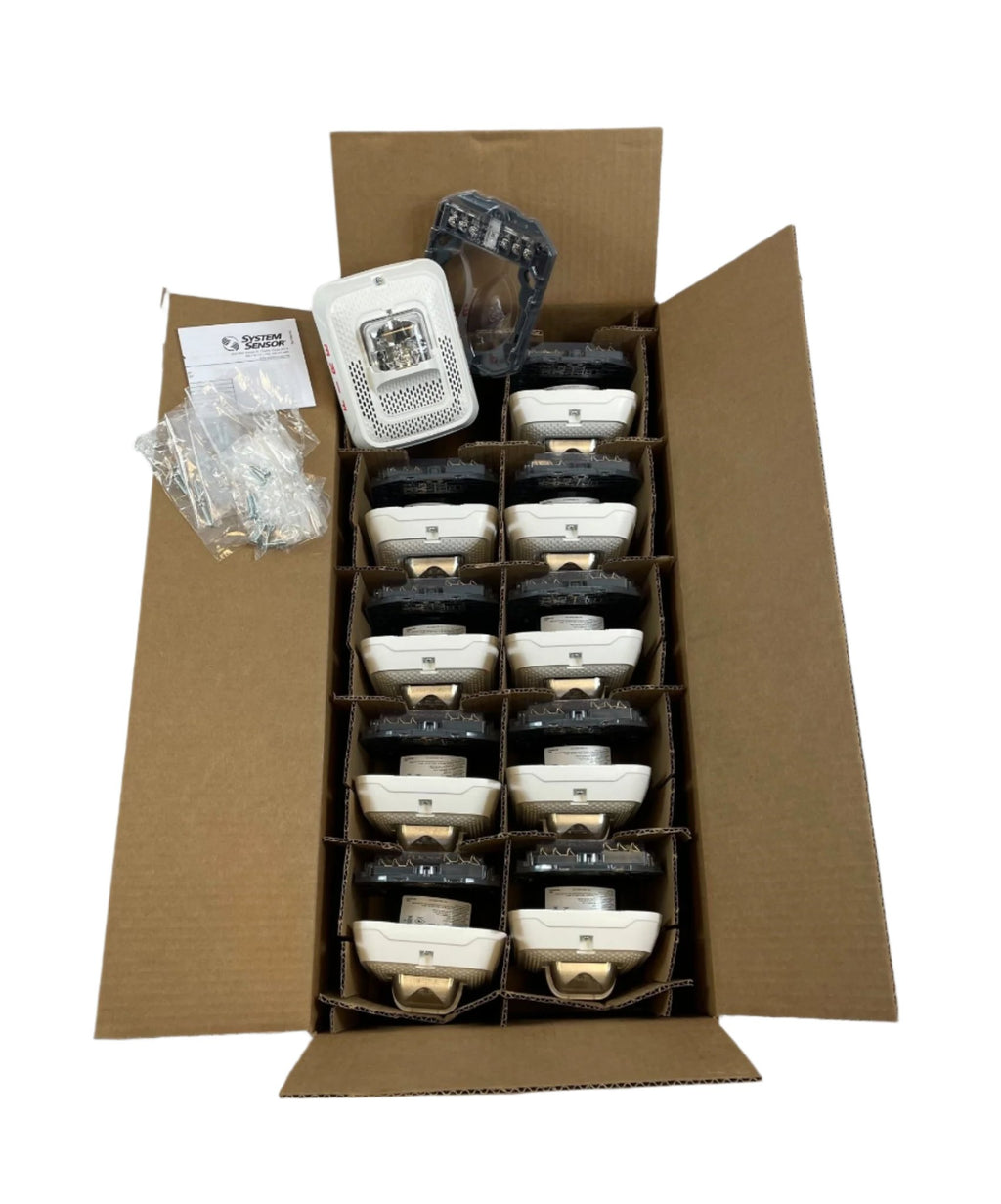

- Pack of 10 wall speaker strobes, white, marked FIRE
- Strobe selectable at 15, 30, 75, 95, 110, 135 or 185 candela on wall units
- Speaker taps for 25 or 70.7 Vrms at 1/4, 1/2, 1 or 2 W
- Frequency range 400 to 4000 Hz
- Electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-Series devices at 16 to 33 VDC
- Synchronizes through System Sensor sync power supplies or the MDL sync module
Specifications
| Pack size |
10 units |
| Mounting |
Wall, indoor |
| Strobe voltage |
Regulated 24 VDC, 16 to 33 VDC |
| Dimensions (with lens) |
6.5 in. L x 5.00 in. W x 2.3 in. D (165.1 x 127 x 58.4 mm) |
| Operating temperature |
32 to 120 °F (0 to 49 °C) |
| Humidity |
10 to 93%, non-condensing |
| Terminals |
12 to 18 AWG |
