Simplex 742-351 — replacement service part for the Power Distribution Interface, the board carrying power and communications across the back of a 4100U or 4100ES expansion or remote bay.
PDI stands for Power Distribution Interface. It is not the system power supply and not the power distribution module. One is fitted to the back of every expansion and remote bay, and it solves the interconnection problem created by the small slave cards those bays use.
- Distributes power and communications in 4100U expansion and remote bays
- Back plane with connector ports for up to eight 4 in. × 5 in. slave cards
- Full-length motherboards mount over it and interconnect by header, as in a CPU bay
- Always occupies the same location across the back of the bay

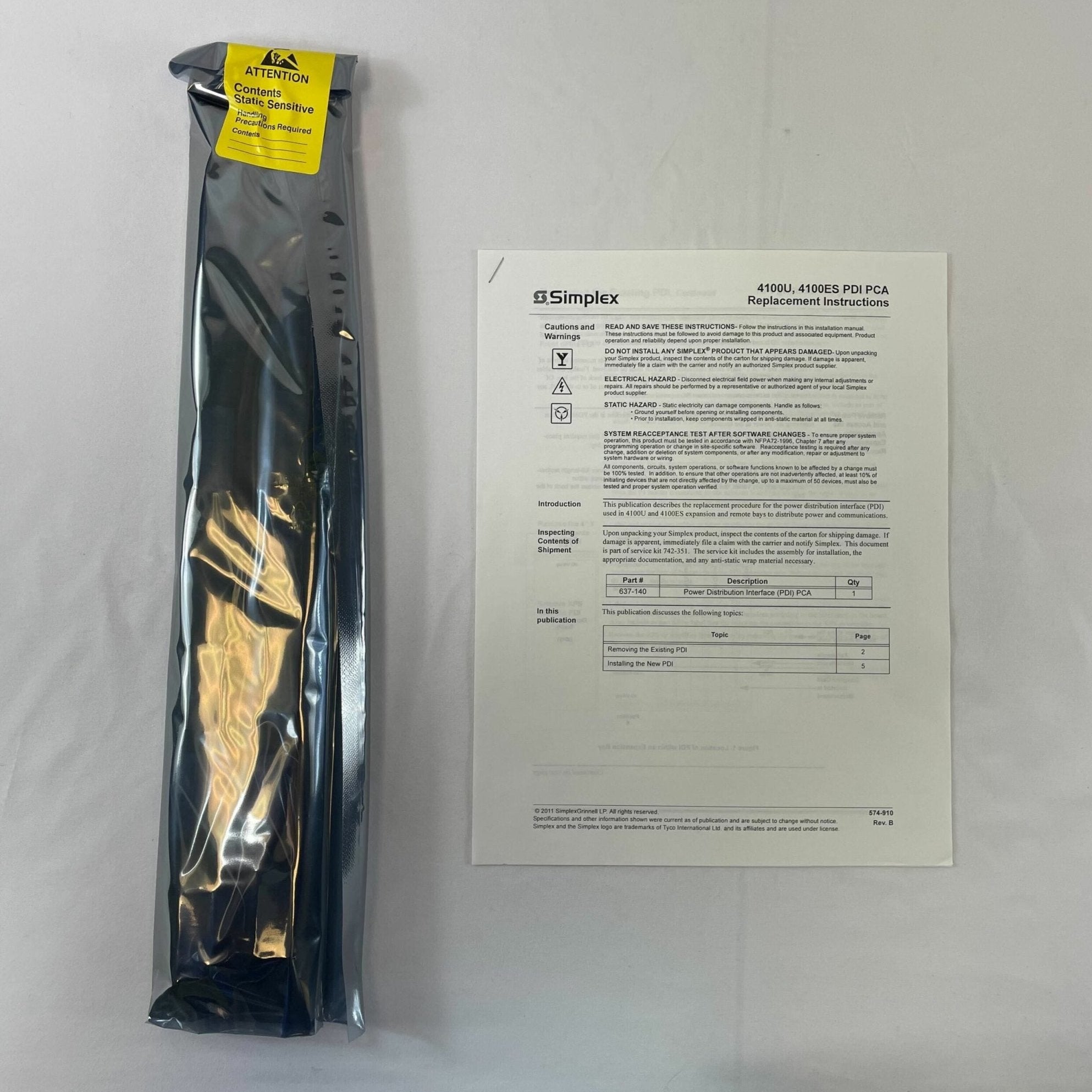

- Supplied as a service kit holding the assembly, documentation and anti-static wrap
- Installation instructions 574-910; in both the 4100U and 4100ES service parts lists, with no sales feature PID
The neighbouring service numbers are easy to cross. 742-394 is the Master Controller PC Assembly and 742-590 the 2X40 Master Operator Interface, so a listing calling 742-351 a master controller board has taken an adjacent row. 742-396 is the Power Distribution MODULE, a different item.
