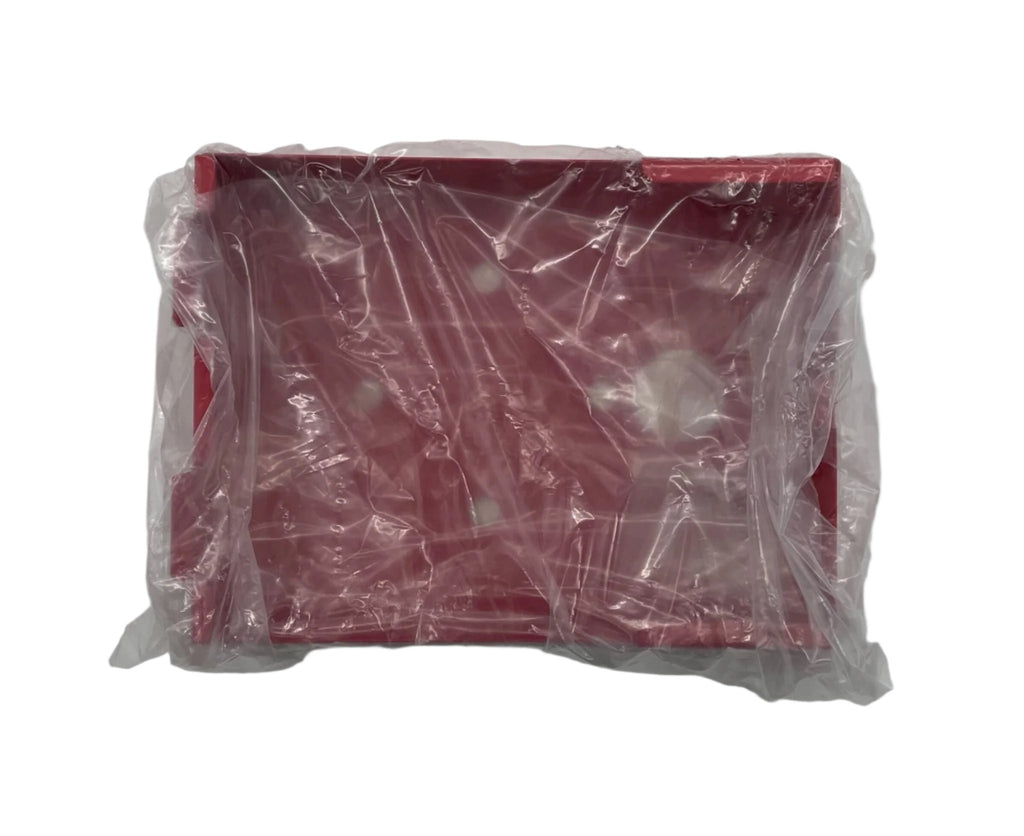

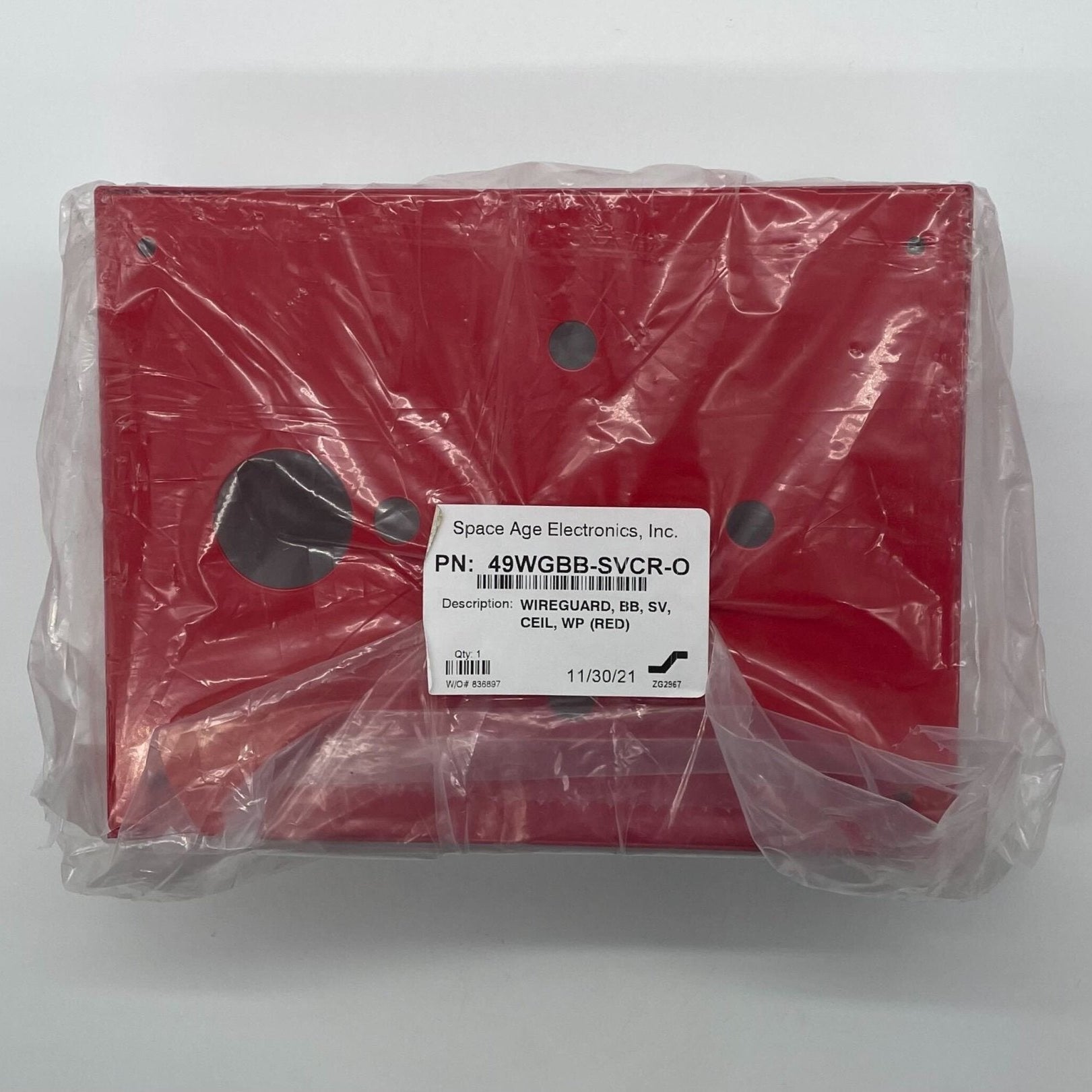

Simplex 49WGBB-SVCR-O is the wire guard back box, ceiling, red, weatherproof, listed in Simplex's data sheet for TrueAlert ceiling mount addressable speaker visible (S/V) notification appliances. Those appliances are powered, addressed and controlled over the panel's IDNAC signaling line circuit, with audio from a separate Simplex audio NAC. Simplex sells appliances, covers, back boxes and wire guards separately.
Specifications
| SKU |
49WGBB-SVCR-O |
| Description |
Wire guard back box, ceiling, red, WP |
| Appliance family |
TrueAlert ceiling mount addressable S/V appliances (S49SVC-0001) |
| Companion wire guard |
49WG-SVWCR, wire guard, ceiling, red |
Compatibility and installation notes
- Weatherproof ceiling S/V appliances (49SVH-APPLC-O, or 49SVH-APPLC-CO for Canada) are ordered as the appliance only; a cover and a surface or WP box are selected separately.
- Weatherproof covers are ordered separately and are required with APPLC-O models (for example 49SVC-CRFIRE-O, red FIRE).
- For surface or weatherproof mounting without a wire guard, Simplex lists the 49WPBB-SVCR (red) and 49WPBB-SVCW (white) back boxes.
- Weatherproof appliance installation instructions: 579-1241.
Related models
- 49WG-SVWCR: ceiling wire guard, red
-
49WPBB-SVCR: surface or WP back box, red
-
49WPBB-SVCW: surface or WP back box, white
Documents
Specifications from Simplex data sheet S49SVC-0001 Rev. 14, 2/2026, Ceiling Mount Addressable Speaker Visible (S/V) Notification Appliances. Manufacturer specifications are subject to change.
