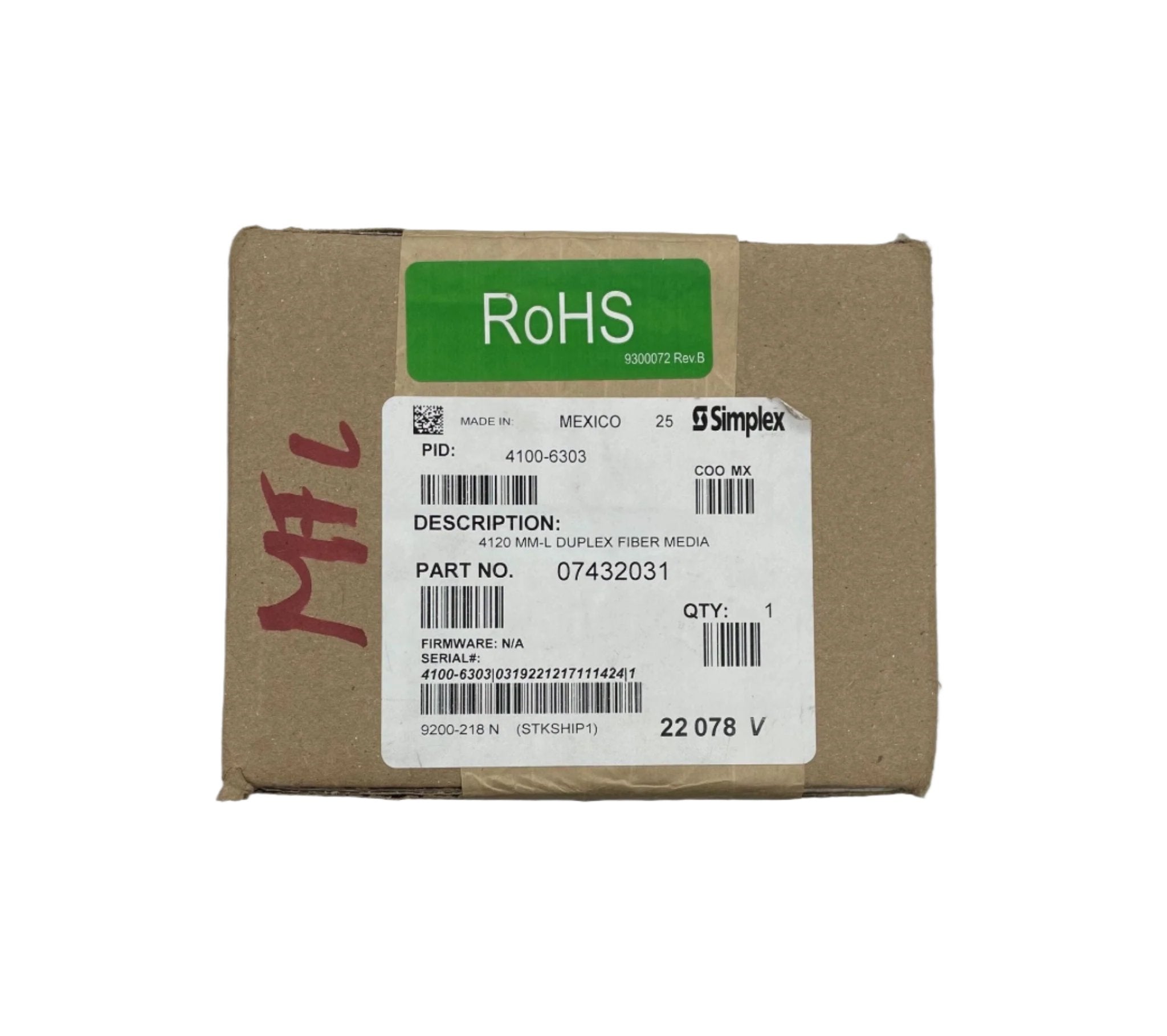

Simplex 4100-6303 is the 4120 network duplex fiber media card for the 4100ES and 4100U, multi-mode, left port. It mounts on the panel's modular network interface card and carries 4120 network communications over a single fiber. Each modular network interface takes at most one left-port and one right-port duplex fiber card, and field connections pair a left port to a right port.
Specifications
| Type |
4120 duplex fiber media card, multi-mode, left port |
| Mounts on |
4100-6078 (master controller) or 4100-6061 (redundant master controller) modular network interface |
| Current |
55 mA |
| Fiber |
Multi-mode 50/125 µm or 62.5/125 µm graded index; one fiber per link |
| Connector |
Type SC |
| Optical launch power |
-8 dBm (159 µW) minimum; 0 dBm (1000 µW) maximum |
| Wavelengths |
1310 nm and 1550 nm (transmit on one, receive on the other, by port) |
| Maximum distance |
16,400 ft (5 km) |
| Maximum total attenuation |
18 dB |
| Connections allowed |
No limit |
Compatibility and installation notes
- Order the matching right-port card for the other end of the link; Simplex requires fiber media cards of the same type at both ends, and replacing one end with a different type means replacing the other as well.
- Distance is set by total loss (fiber, connectors, splices, power margin) or 5 km, whichever is smaller; Simplex allows up to 0.75 dB per mated connector pair and 0.30 dB per fusion splice.
- Retrofit service kits for existing multi-mode ST-connector fiber: 650-2013 (62.5/125 µm) and 650-2014 (50/125 µm), each with a left and right card, ST-to-SC patch cords and couplers.

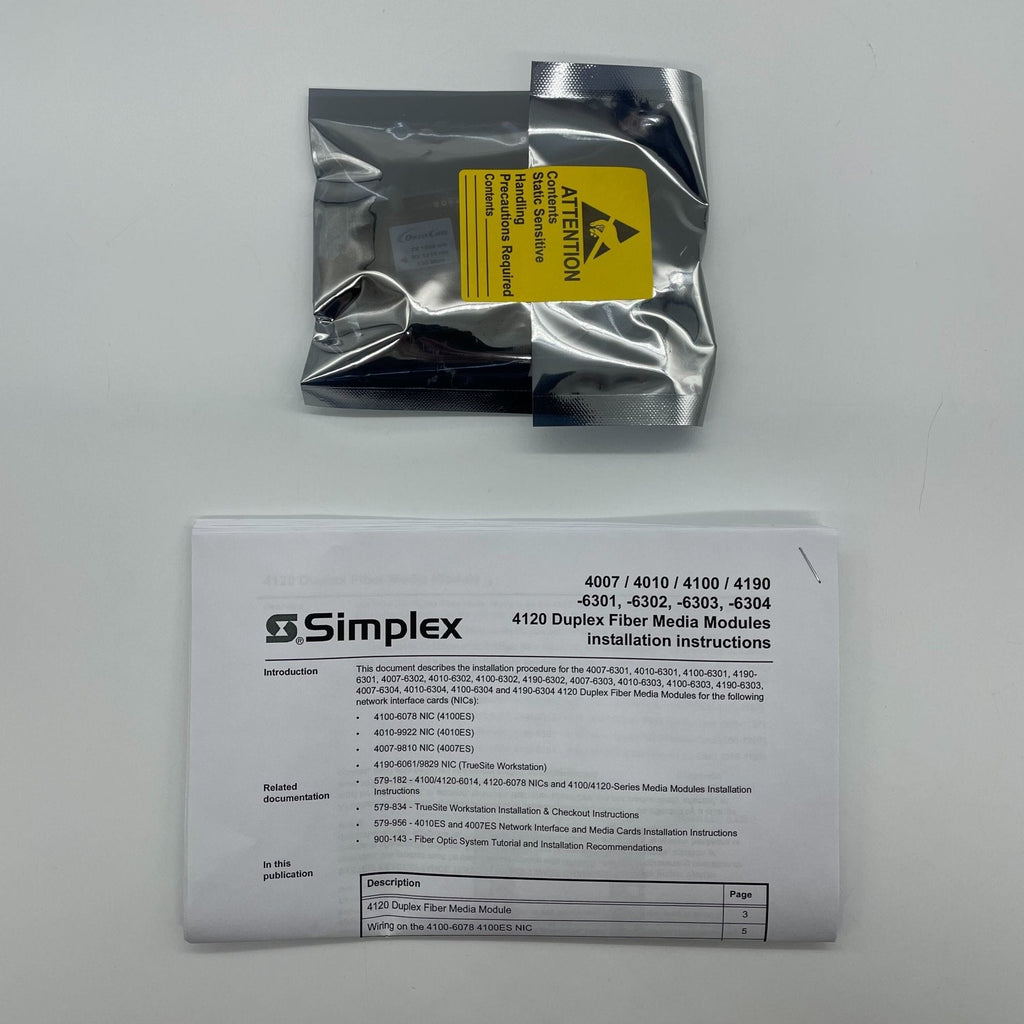

- Installation reference: 579-1238.
Related models
Documents
Specifications from Simplex data sheet S4100-0056 Rev. 11, 4/2019, 4120 Network Applications, Communications, Options and Specifications. Manufacturer specifications are subject to change.
