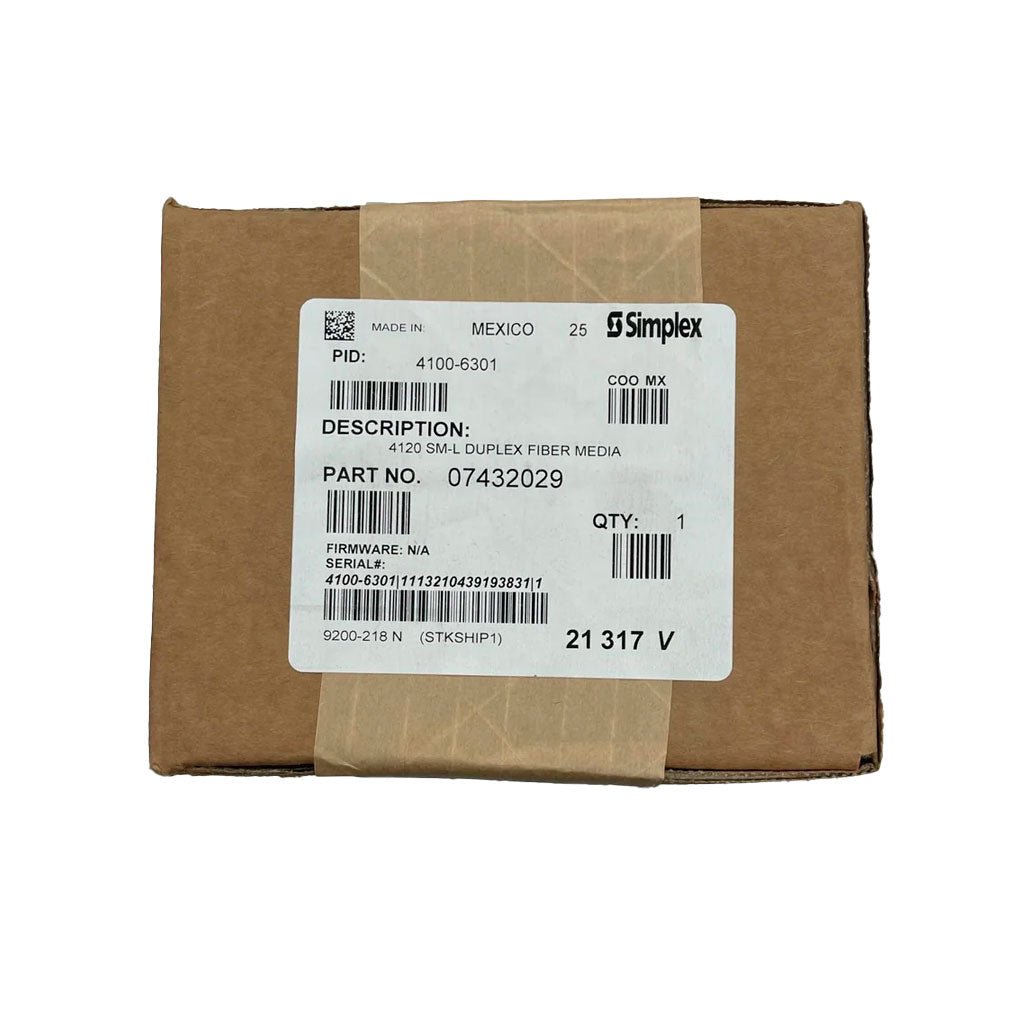

Simplex 4100-6301 — 4120 SM-L Duplex Fiber Media Card, the single-mode left-port half of a fiber network link.
On a 4120 network, nodes chain right port to left port, and each span needs a matched pair of transceivers running opposite wavelengths over one fiber. This is the left-port single-mode card: it transmits at 1550 nm and receives at 1310 nm, so it mates with a right-port card at the far end. It mounts on the 4100-6078 modular NIC in the left media position (P5); a second media card can occupy the right position (P6).

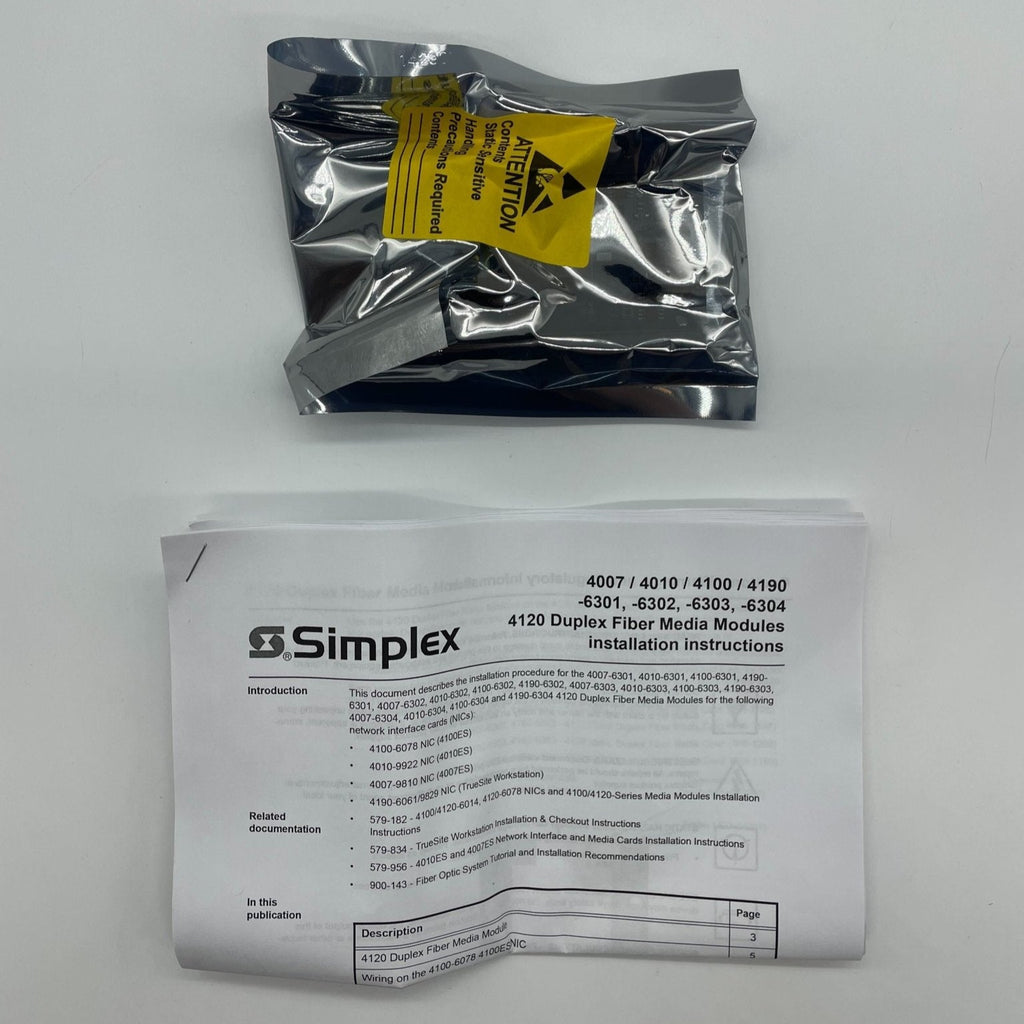

- PC board 566-1198; installation instruction 579-1238
- Single-mode 9/125 µm fiber, SC connector
- Optical budget 22 dB, up to 25 km
- 1550 nm transmit, 1310 nm receive
- 5 VDC at 220 mA max, or 24 VDC at 55 mA max
- 32° to 120°F (0° to 49°C), 10–93% RH
- Also hosts: 4010-9922, 4007-9810, 4190-6061/9829
Order by port and fiber type. Left and right are different boards, not a setting, and this single-mode card cannot be paired with a multi-mode card on the same span.
Documents
FAQ
Which network interface cards does the 4100-6301 mount on?
The 4120 duplex fiber media modules install on the 4100-6078 NIC (4100ES), the 4010-9922 NIC (4010ES), the 4007-9810 NIC (4007ES) and the 4190-6061/9829 NIC (TrueSite Workstation).
What does it pair with at the other end of the fiber?
A right-port card. The left-port card transmits at 1550 nm and receives at 1310 nm, and the right-port card uses the opposite wavelengths, so a link runs over a single fiber. The single-mode right-port version is the 4100-6302.
How much power does the card draw?
The duplex fiber media card is rated 5 VDC at 220 mA maximum, or 24 VDC at 55 mA maximum.
Does the fiber link need acceptance testing?
Yes. Simplex calls for an initial acceptance test of each fiber link as stated in NFPA 72, measured with an OTDR; single-mode links are measured at 1310 nm and 1550 nm.
