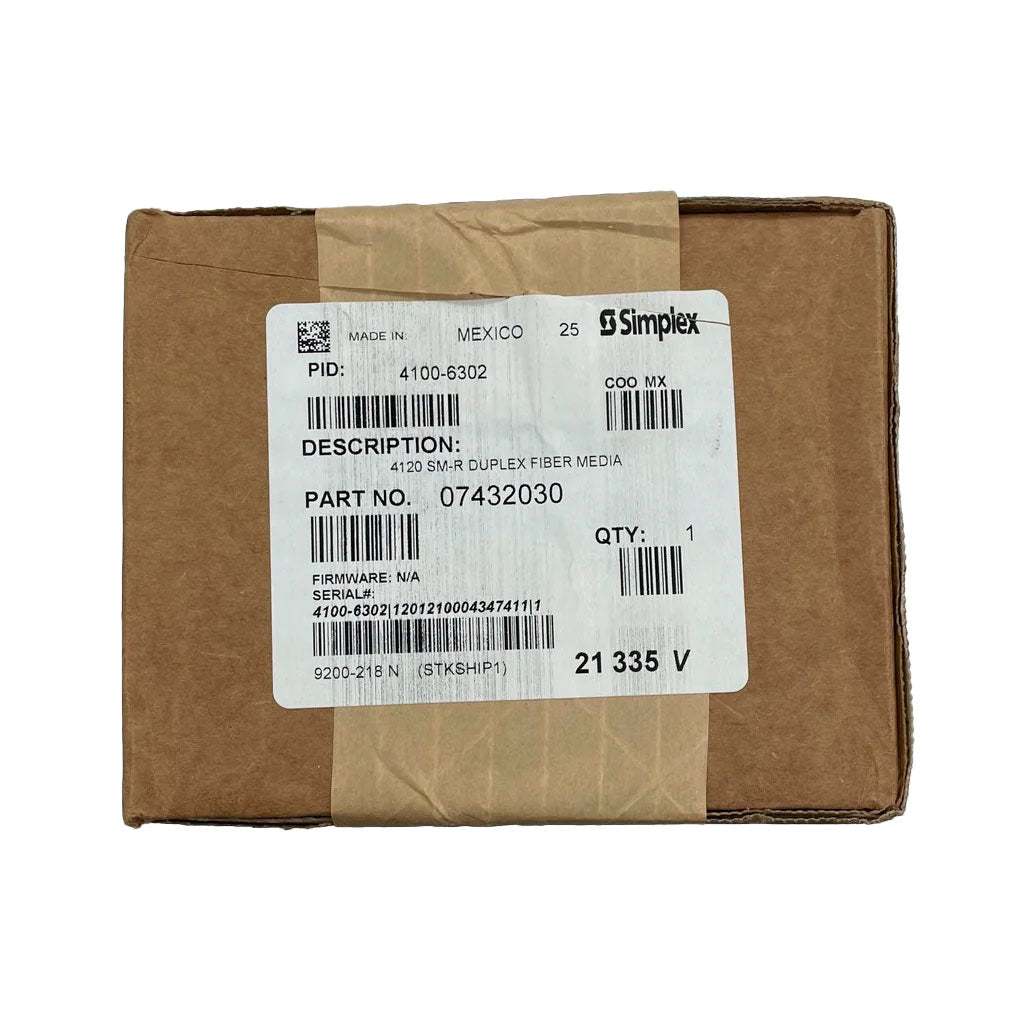

Simplex 4100-6302 is the 4120 SM-R single-mode duplex fiber media card (assembly 566-1197), the right-port card used to link 4120 network nodes over fiber-optic cable. It mounts on a 4120 modular network interface card in a 4100ES panel, and one left card and one right card can be fitted per network card.
Specifications
| Card |
4120 SM-R duplex fiber media card, right port |
| Assembly |
566-1197 |
| Fiber type |
Single-mode 9/125 µm |
| Connector |
SC |
| Wavelength |
Transmit 1310 nm, receive 1550 nm |
| Allowed loss / distance |
22 dB / 25 km |
| Power |
24 VDC at 55 mA max. (or 5 VDC at 220 mA max.) |
| Operating temperature |
32 °F to 120 °F (0 °C to 49 °C) |
| Humidity |
10% to 93% RH at 90 °F (32 °C) |
Installation notes
- Right cards insert in the right port of the network interface card; left cards (-6301, -6303) insert in the left port
- Field connections pair a left port to a right port
- Do not mix single-mode and multi-mode cards on the same link
- These duplex cards are not compatible with dual fiber optic media cards; replace the cards at both ends of the link
- On retrofit jobs where fibers with ST connectors are already installed, use the fiber media service kits
Related models
The 4100-6301 is the single-mode left-port card. The 4100-6303 and 4100-6304 are the multi-mode left and right cards (50/125 or 62.5/125 µm, 18 dB / 5 km). The same cards are offered for the 4010ES (4010-630x), 4007ES (4007-630x) and TrueSite Workstation (4190-630x).

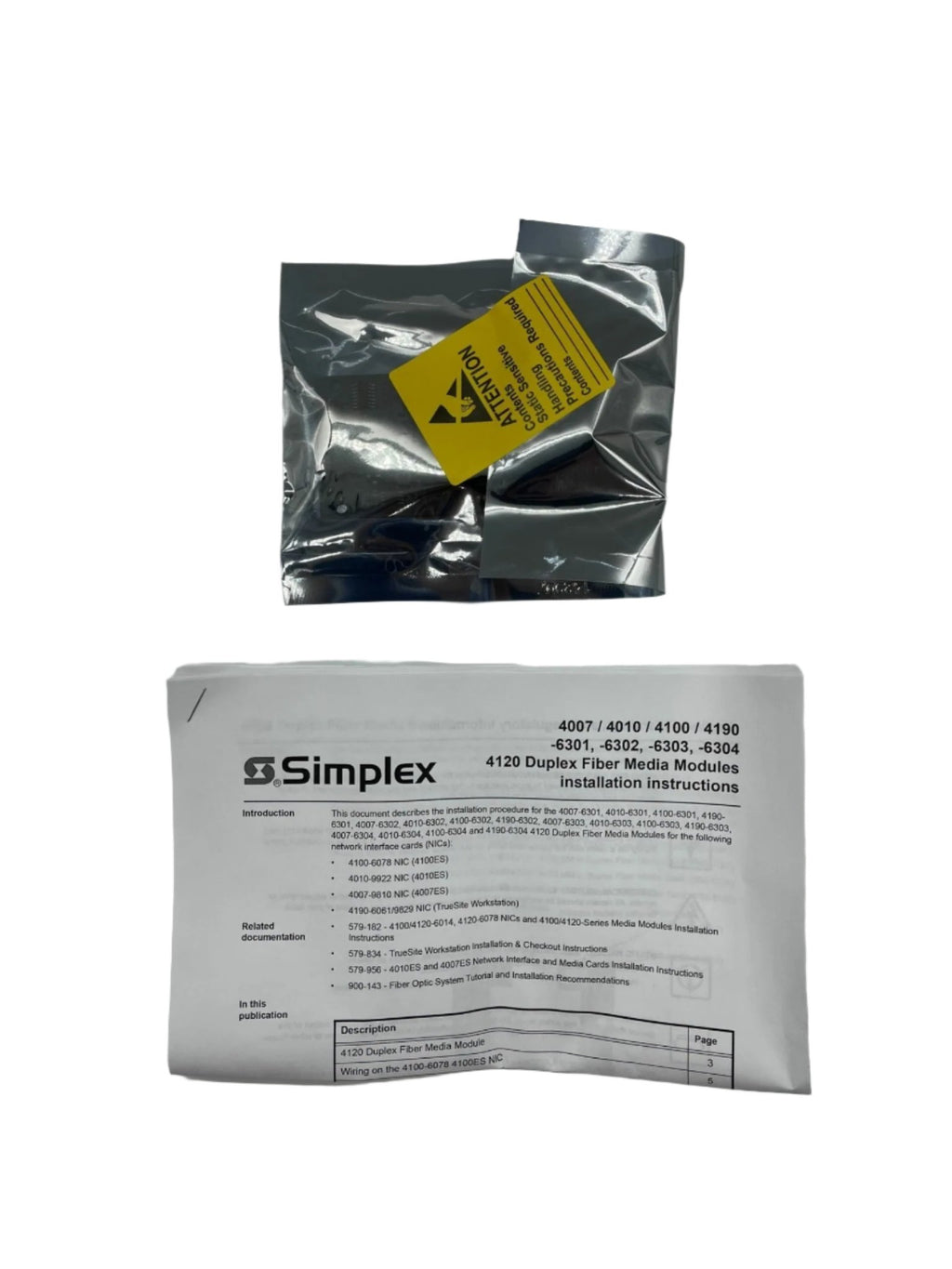

Documents
FAQ
How far can the 4100-6302 link two nodes?
With single-mode 9/125 µm fiber, the allowed loss is 22 dB and the maximum distance is 25 km. The actual distance depends on fiber, connector and splice losses.
Which card does it pair with?
It is a right-port card, and field connections pair it with a left-port card such as the single-mode 4100-6301 at the other node. Do not mix single-mode and multi-mode cards on one link.
Can it replace older dual fiber media cards?
Not on its own. The duplex cards are not compatible with dual fiber optic media cards, so the cards at both ends of the link must be replaced.
What connector does it use?
SC connectors. Service kits are available for retrofit jobs where fibers with ST connectors are already installed.
