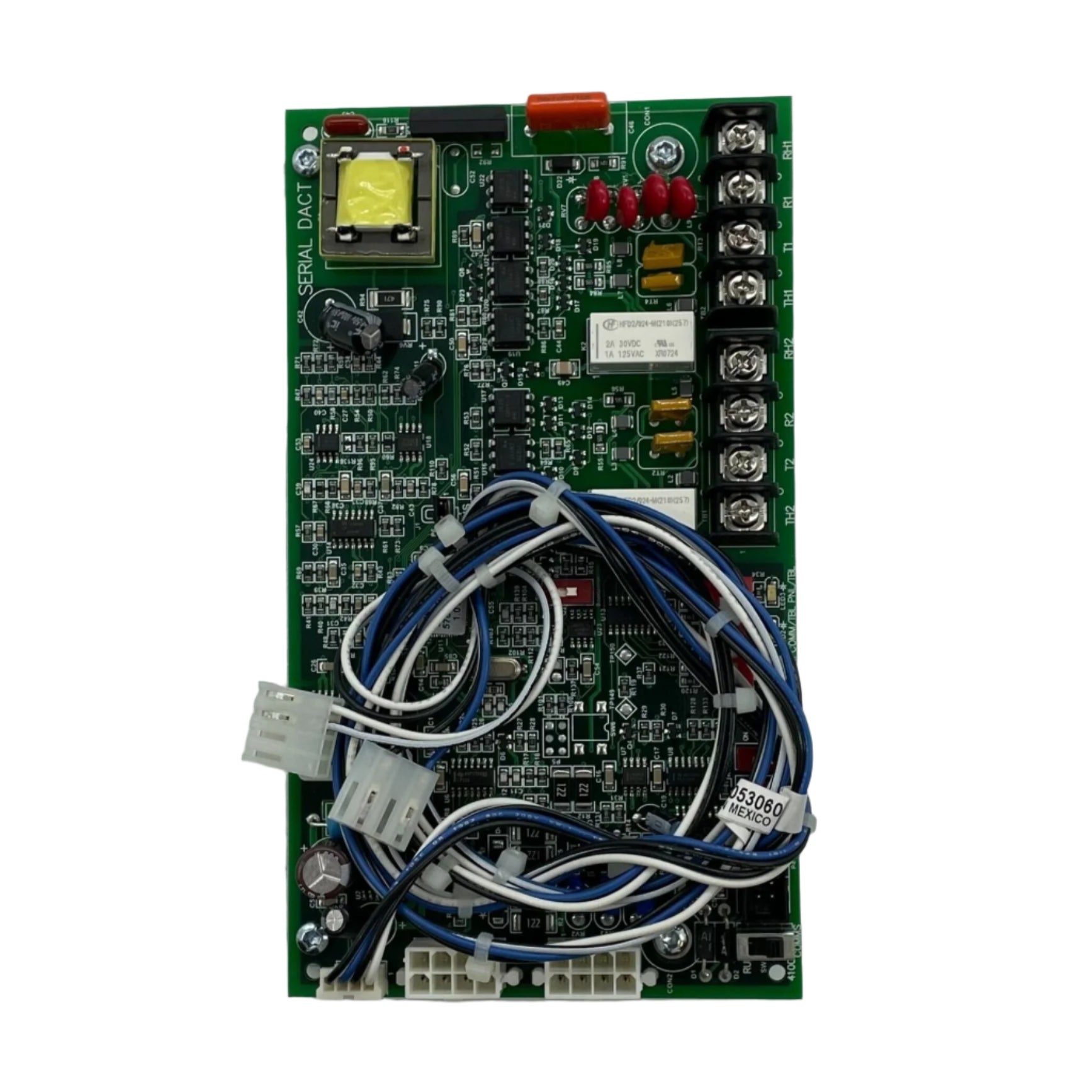

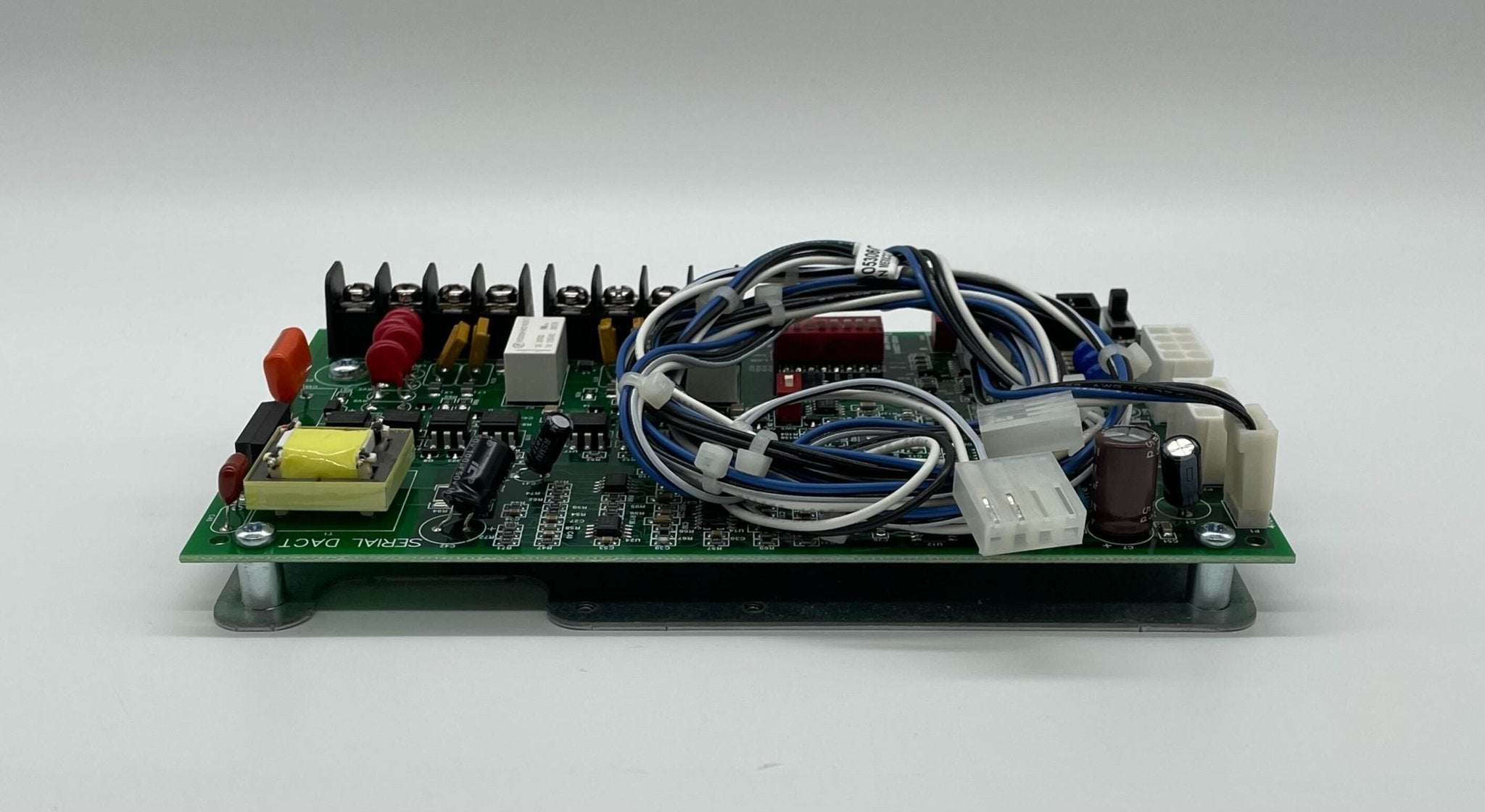

Simplex 4100-6080 — serial DACT (SDACT) for point or event reporting, mounted inside a 4100ES with ES Power Supply.
The DACT is how the panel reaches the outside world: it seizes two supervised phone lines and dials the central station with alarm, supervisory and trouble signals. Talking serially to the panel CPU rather than through dry contacts, it reports point level detail in Contact ID — which waterflow switch, not just that the building is in alarm.
- Dual line interface; two RJ31X jacks, Data Certified POTS lines
- Formats: Contact ID (preferred), 3/1 and 4/2 pulse, BFSK, SIA level 1
- Programmable 6 hour test call; ten events per call
- 18–32 VDC; 30 mA standby, 40 mA reporting
- UL 864 Central Station Service and UL 1459

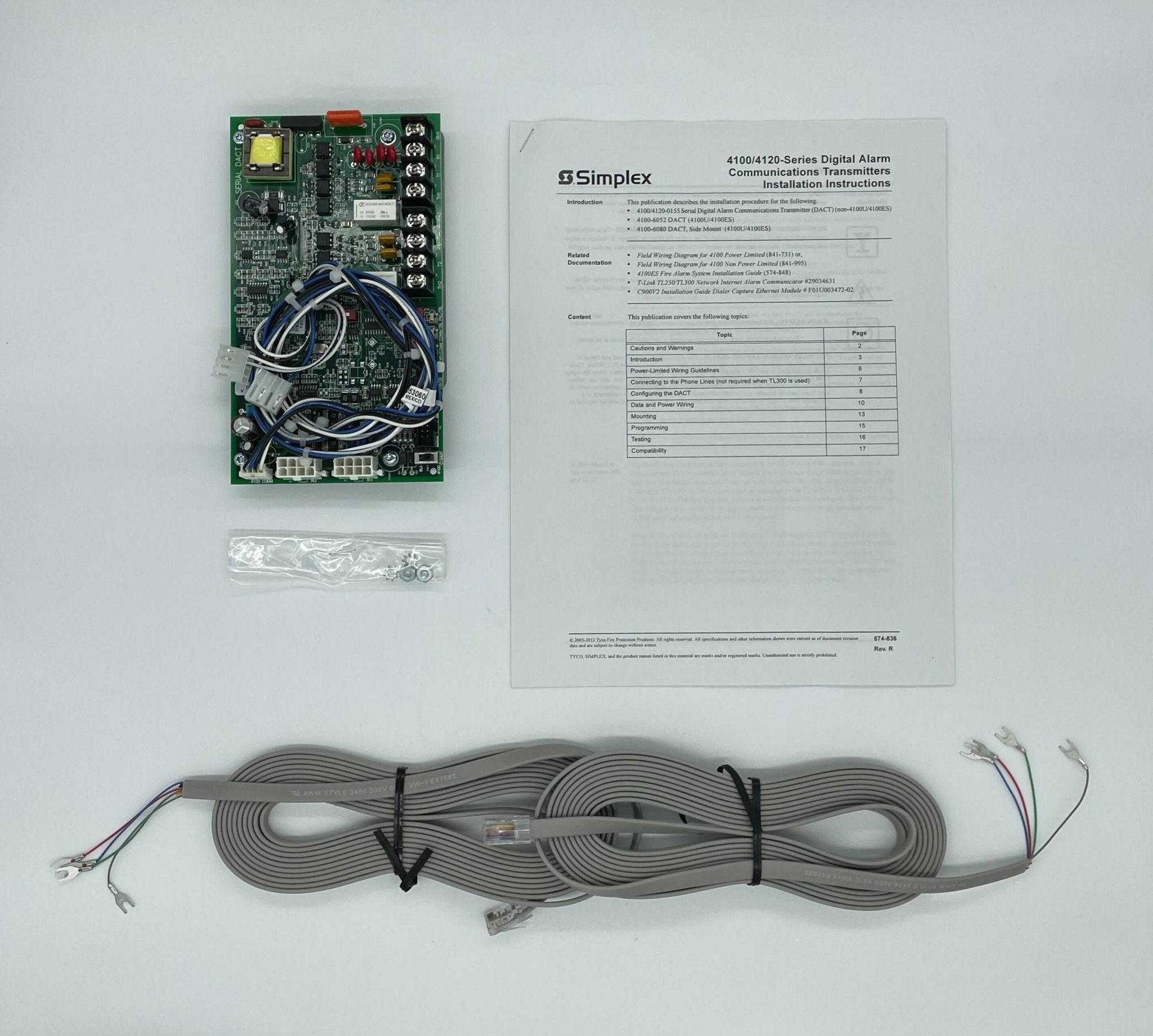

- Two 2080-9047 cables, 14 ft (4.3 m), included; two max per system
Caution: the -6080 is the side mounted version for a 4100ES with ES Power Supply. Panels needing a 2 in. slot module take the 4100-6052; 4010ES, 4010 and 4007ES use their own part numbers.
