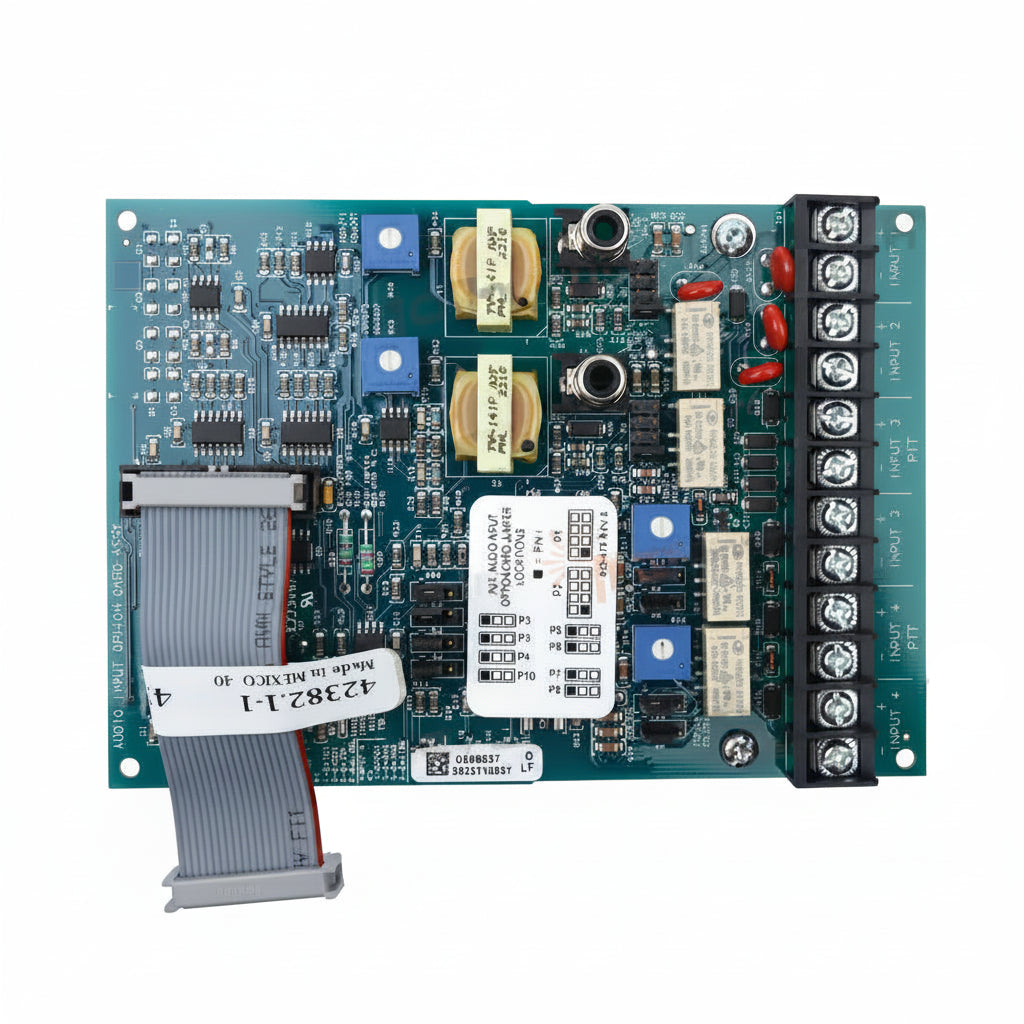

Simplex 4100-1240 — Auxiliary Audio Input Module that adds four unsupervised audio inputs to a 4100ES or 4100U emergency voice system.
The audio controller handles the master and remote microphones on its own, but a building often needs more sources: background music, a house paging amplifier, a mass notification feed or extra microphones. This card is the expansion path, and with two fitted a system supports up to six microphones and eleven distinct audio inputs.
- Four additional unsupervised inputs per module
- Two modules maximum per audio system
- Each input accepts 10 VRMS, 25 VRMS, 70.7 VRMS, line level (0.707 VRMS) or microphone
- Occupies 1 Block, a 4" W × 5" H (102 mm × 127 mm) card area
- Current draw 10 mA
- Listed for 4100ES and also for 4100U series control panels
Do not confuse it with 4100-1241 and 4100-1242, the 8-minute and 32-minute message memory expansions that mount on the audio controller, or with 4100-1243 and 4100-1244, the master and remote microphone modules. This card adds inputs only.
