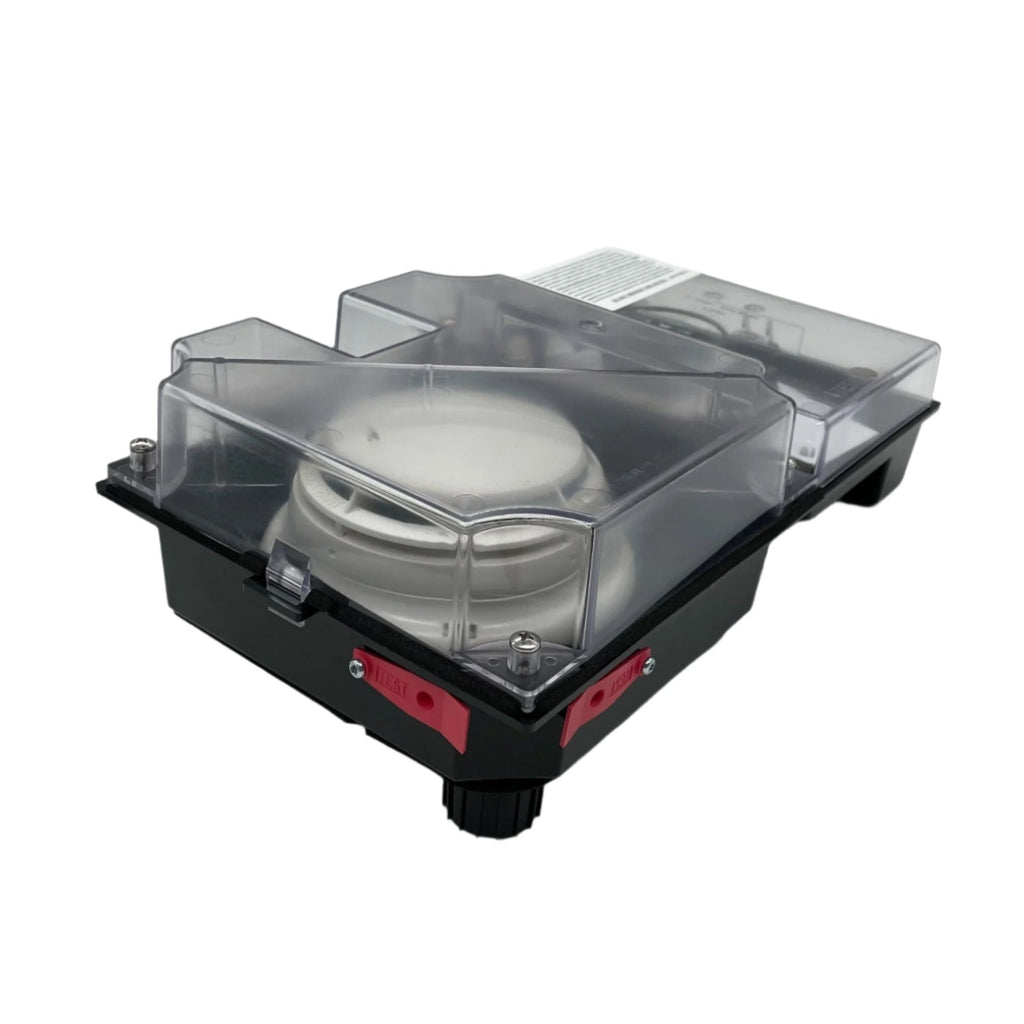

The Simplex 4098-9687 is a duct detector housing for HVAC ducts that must be monitored without a fire alarm control panel. It comes with a factory-installed 4098-9601 TrueAlarm photoelectric smoke detector. Its own relay can shut down fans or trigger other equipment when smoke is detected in the duct.
Key Features
- Input power of 120 VAC, 24 VAC or 24 VDC
- Fail-safe Form C relay stays energized in normal operation and transfers on alarm, loss of power or detector removal

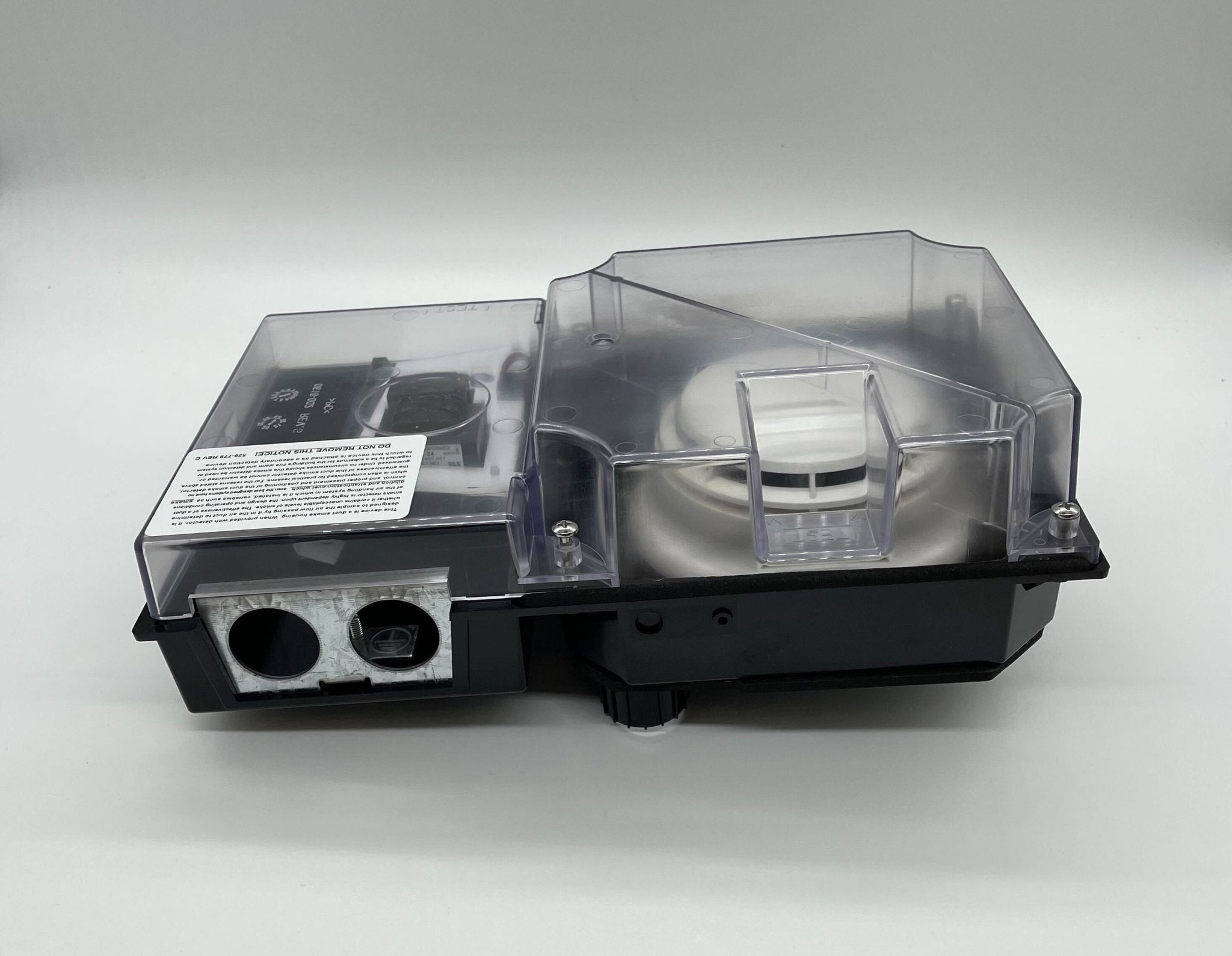

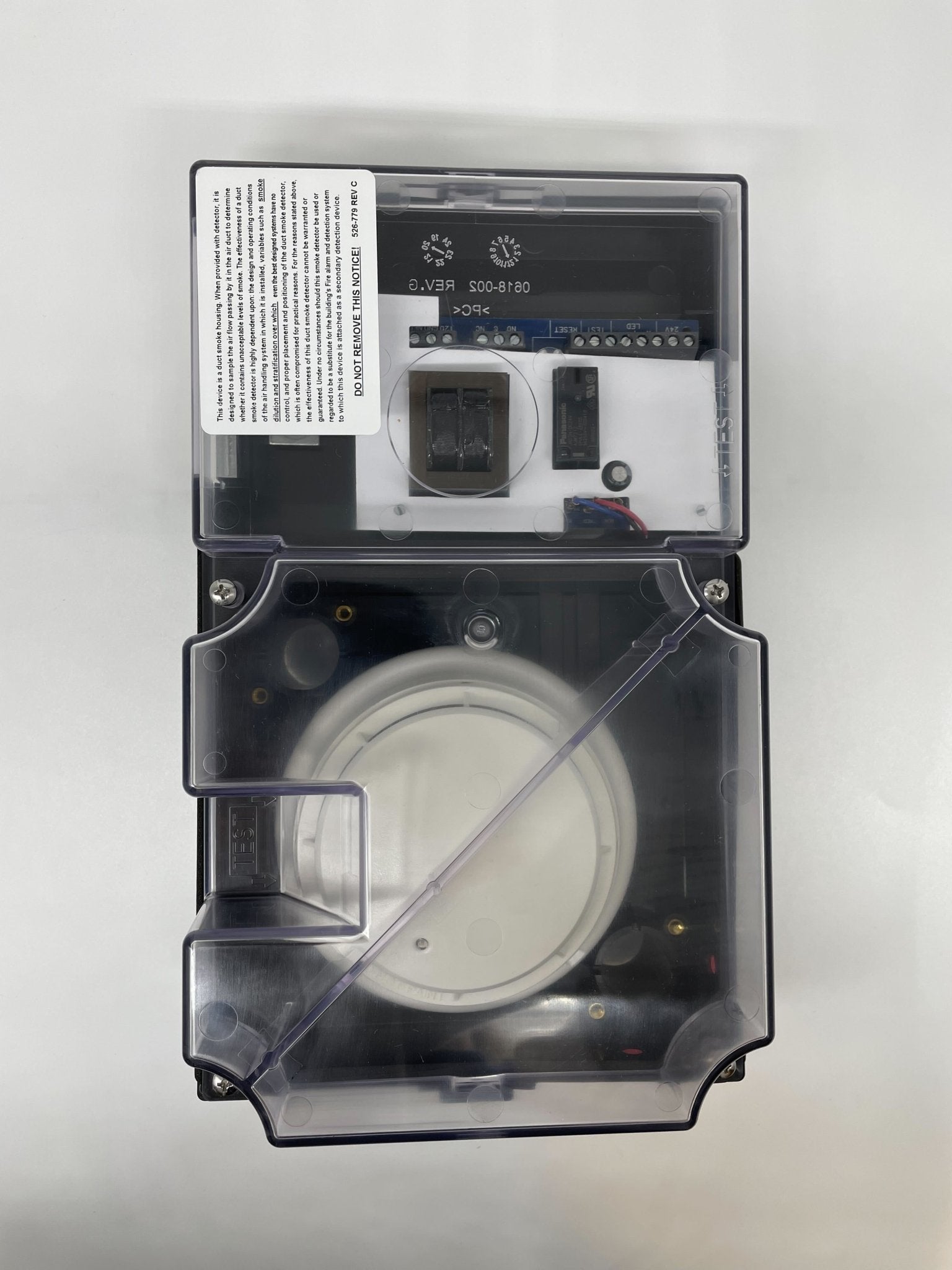

- Clear cover lets you see the detector and its status LED, and test ports allow smoke testing with the cover in place
- Magnetic test starts an alarm and shows the detector's dirt accumulation status
- TrueAlarm sensitivity drift compensation

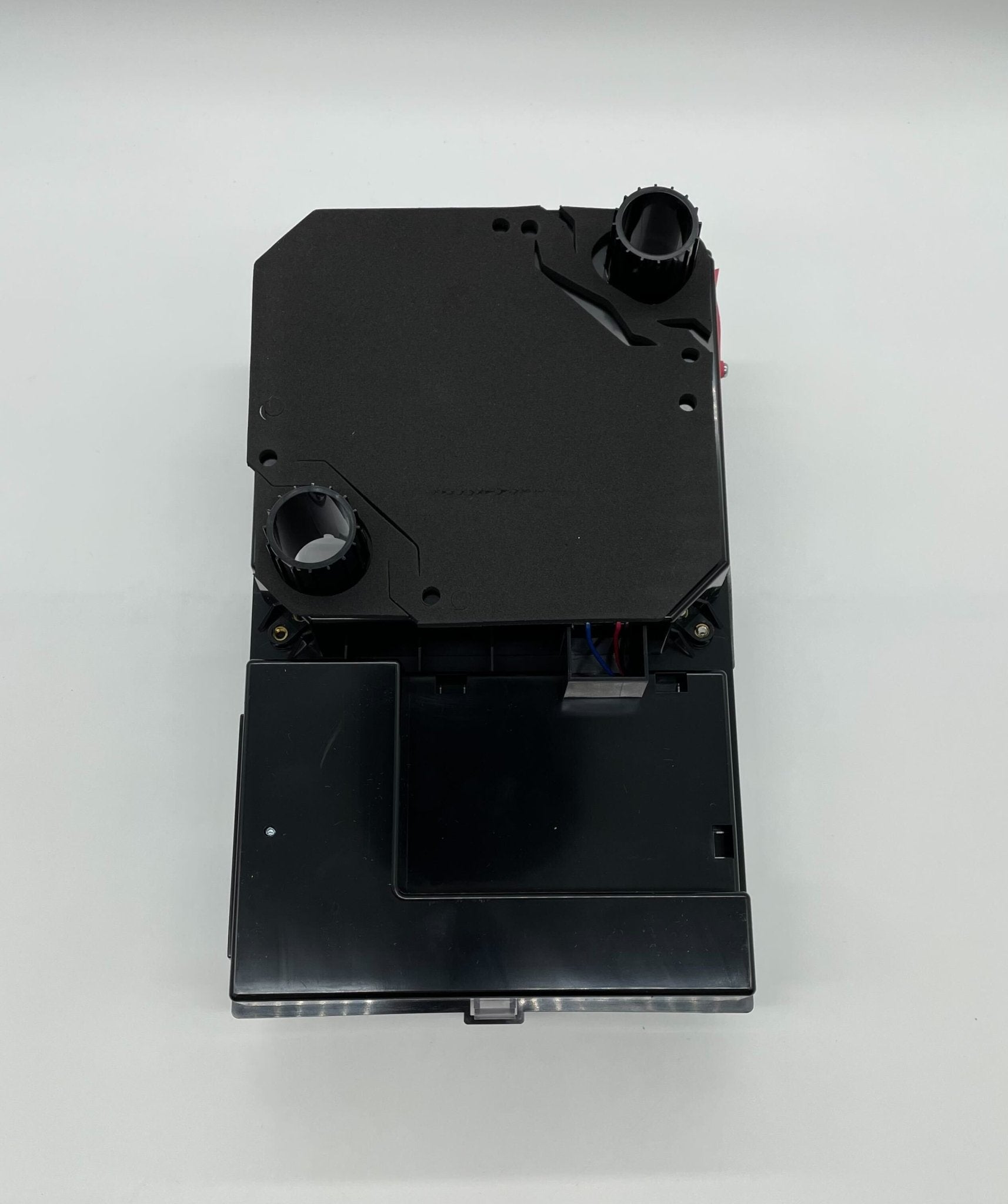

- Mounts to rectangular or round ducts

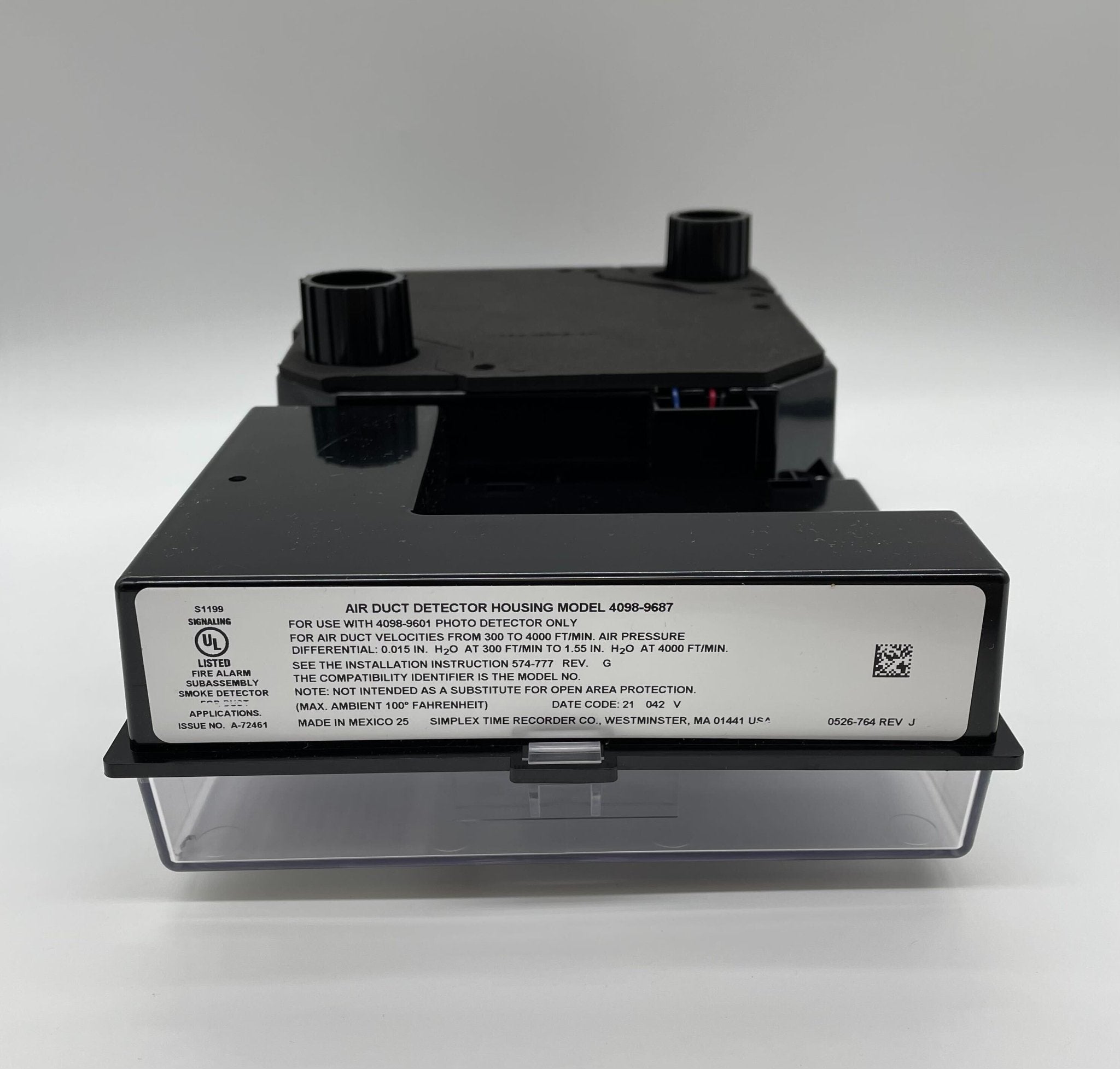

Specifications
-
Manufacturer: Simplex
-
Part Number: 4098-9687
-
Type: Stand-alone duct smoke detector housing
-
Detector: 4098-9601 TrueAlarm photoelectric (factory installed)
-
Input Power: 120 VAC, 24 VAC or 24 VDC
-
Relay Contacts: Form C, 5 A at 120 VAC or 28 VDC, resistive
-
Minimum Duct Size: 8 in (203 mm) square or 18 in (457 mm) diameter
-
Listings: UL 268A; CSFM 3240-0026:241
Compatibility

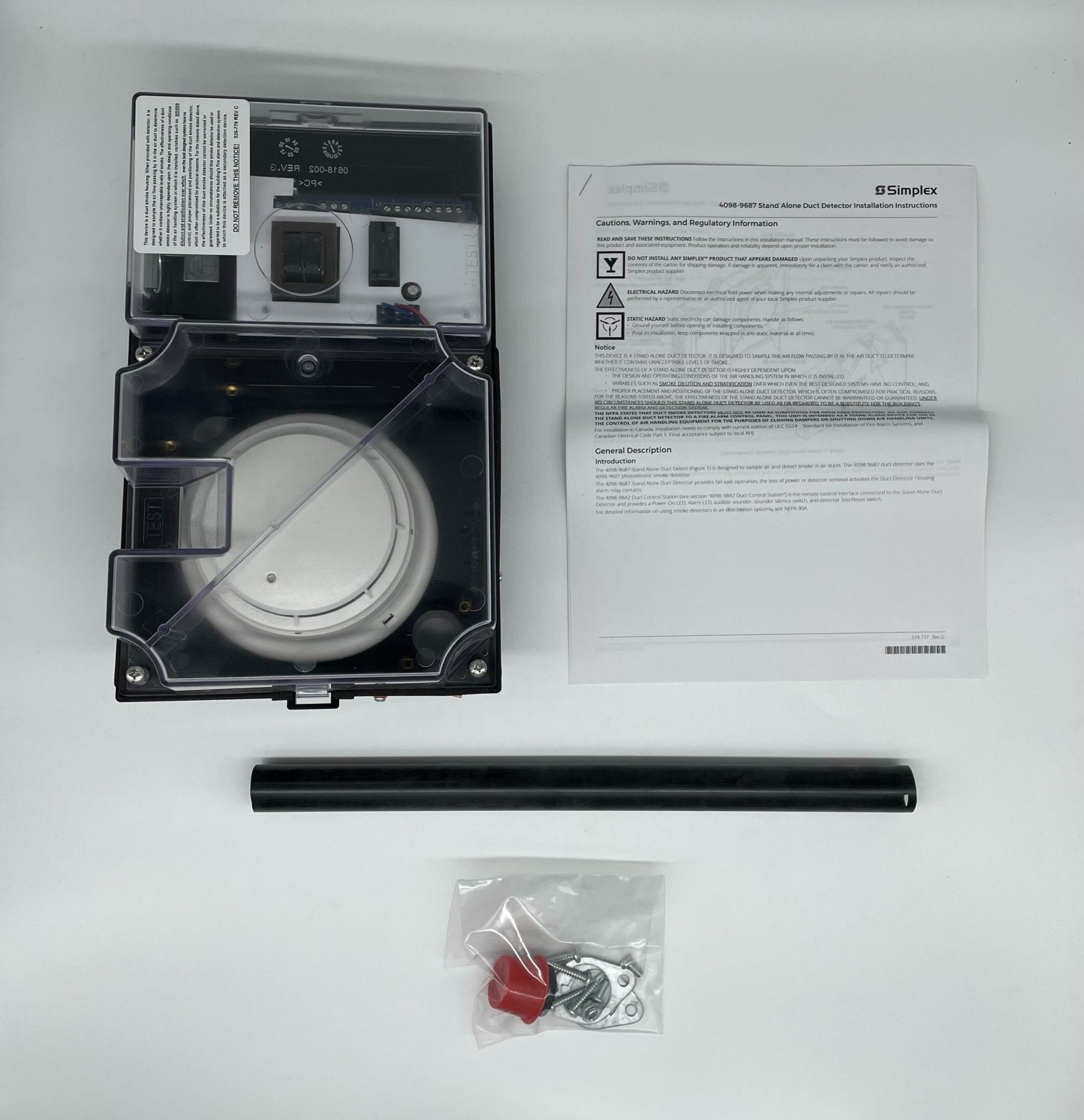

Requires the 4098-9842 control station, ordered separately. It provides a green power LED, a red alarm LED, a tone-alert with silence switch and a keyed test/reset switch. A sampling tube sized to the duct width (4098-9854 through 4098-9858) is also ordered separately. Duct detection supplements area smoke detection but does not replace it.
