Simplex 4090-9806 — semi-flush trim plate with LED viewing window for the 4090-9001 Supervised IAM.
The 4090-9001 sits inside a single-gang box and flashes a communications LED that disappears the moment a blank plate goes over it. This cover finishes a semi-flush mounted box and carries a light pipe, so a technician can confirm the module is talking to the loop without unscrewing anything. The surface-mount equivalent is the 4090-9807, and the two are routinely listed under each other's numbers.
- For semi-flush mounted boxes; the 4090-9807 is the surface-mount version
- Trim plate with LED viewing window
- Requires the 4090-9810 mounting bracket, ordered separately

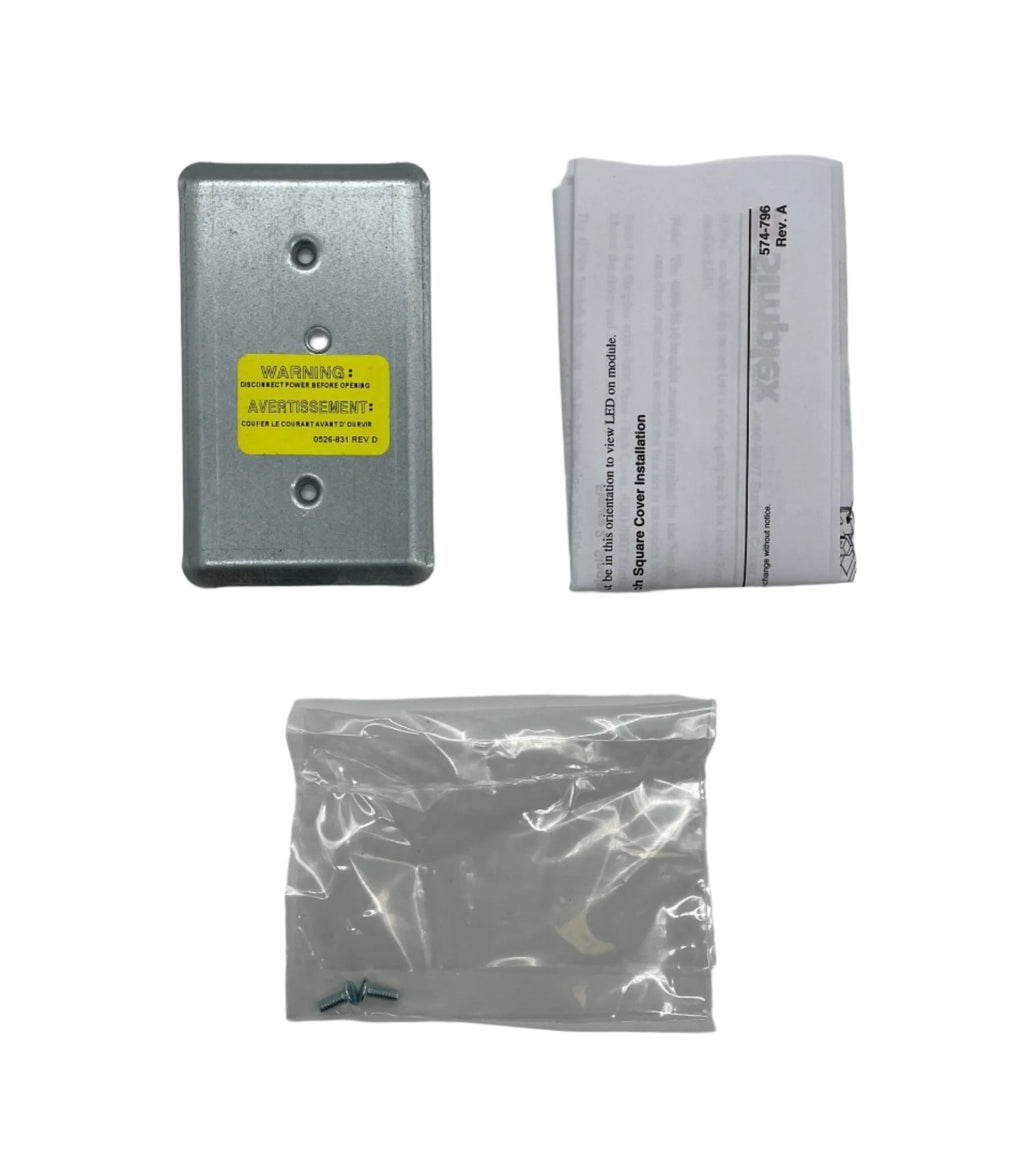

- Includes mounting screws; galvanized steel
- For the 4090-9001 Supervised IAM (the encapsulated 4090-9051 has no LED)
Order the 4090-9810 bracket with this plate unless the box already has one — the bracket provides the screw holes the trim plate fastens to. The IAM module and the electrical box are not included.
