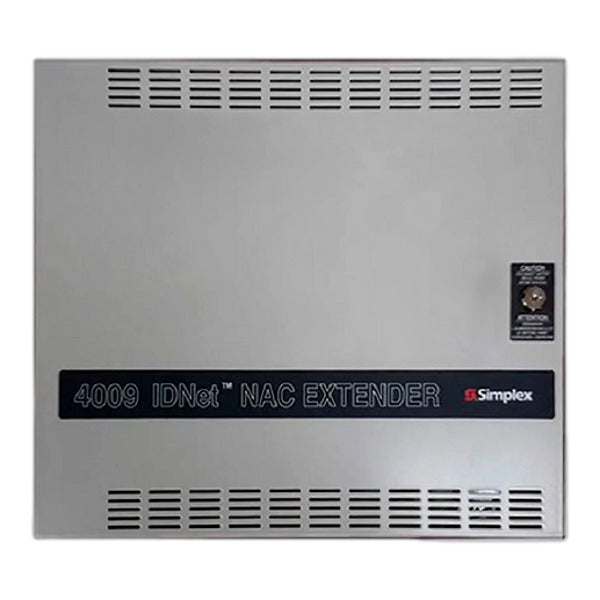

Simplex 4009-9301 is the 240 VAC input model of the 4009 IDNet NAC Extender, with four Class B NACs and an 8 A power supply and battery charger. It adds notification appliance power where the host panel cannot supply enough, and can be mounted next to the panel or remotely. It is controlled either over IDNet from a 4007ES, 4010, 4010ES, 4100U or 4100ES panel, using one address, or from one or two conventional 24 VDC NACs.
Specifications
| AC input |
1.5 A at 204 to 264 VAC, 50/60 Hz |
| Standard NACs |
Four Class B, 2 A each, reverse polarity |
| Total output |
8 A for special application appliances; 6 A regulated 24 DC appliance power |
| Battery charging |
Internal batteries up to 12.7 Ah, or up to 18 Ah in an external cabinet |
| Strobe synchronization |
Up to 33 strobes per NAC |
| Auxiliary output |
500 mA at 24 VDC nominal |
| Hardwire control input |
5 mA maximum, 16 to 33 VDC |
| IDNet |
One address; up to 10 extenders per 4007ES, 4010ES, 4100U or 4100ES channel, 5 on a 4010; 2,500 ft (762 m) maximum from the IDNet source |
| Operating environment |
32 °F to 120 °F (0 °C to 49 °C); 10% to 90% RH |
| Wiring |
Terminal blocks for 18 AWG stranded to 12 AWG solid |
| Listing |
UL listed to Standard 864 |
Compatibility and installation notes
- Option modules installed on site: 4009-9807 four additional Class B NACs (one maximum), 4009-9808 dual Class A adapter (up to four), 4009-9809 IDNet repeater, 4009-9810 (Class B) or 4009-9811 (Class X) fiber optic receiver.
- Batteries are ordered separately; 18 Ah batteries need the 4009-9801 external battery cabinet.
- Supports TrueAlert SmartSync two-wire horn/strobe control under IDNet or NAC input control.
- 4100U needs revision 11 software or higher; 4010 needs revision 2 or higher.
- Installation instructions 574-181; field wiring diagram 842-068.
Related models
Documents
Specifications from Simplex data sheet S4009-0002 Rev. 15, 9/2019, 4009 IDNet NAC Extender for Control with IDNet Communications or Conventional NACs. Manufacturer specifications are subject to change.
