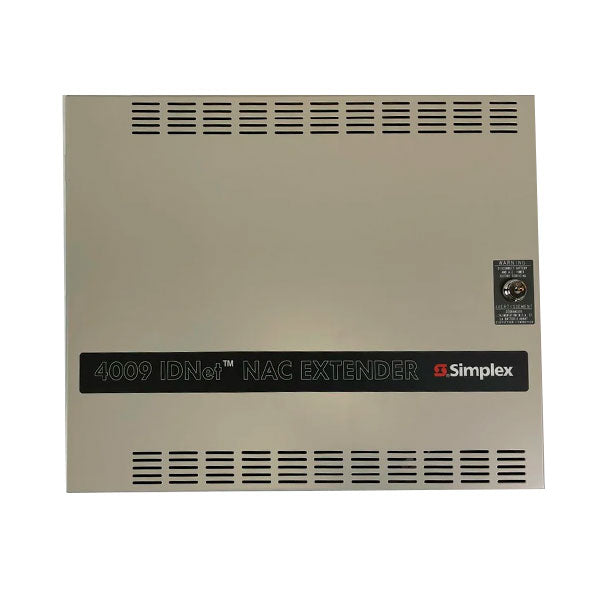

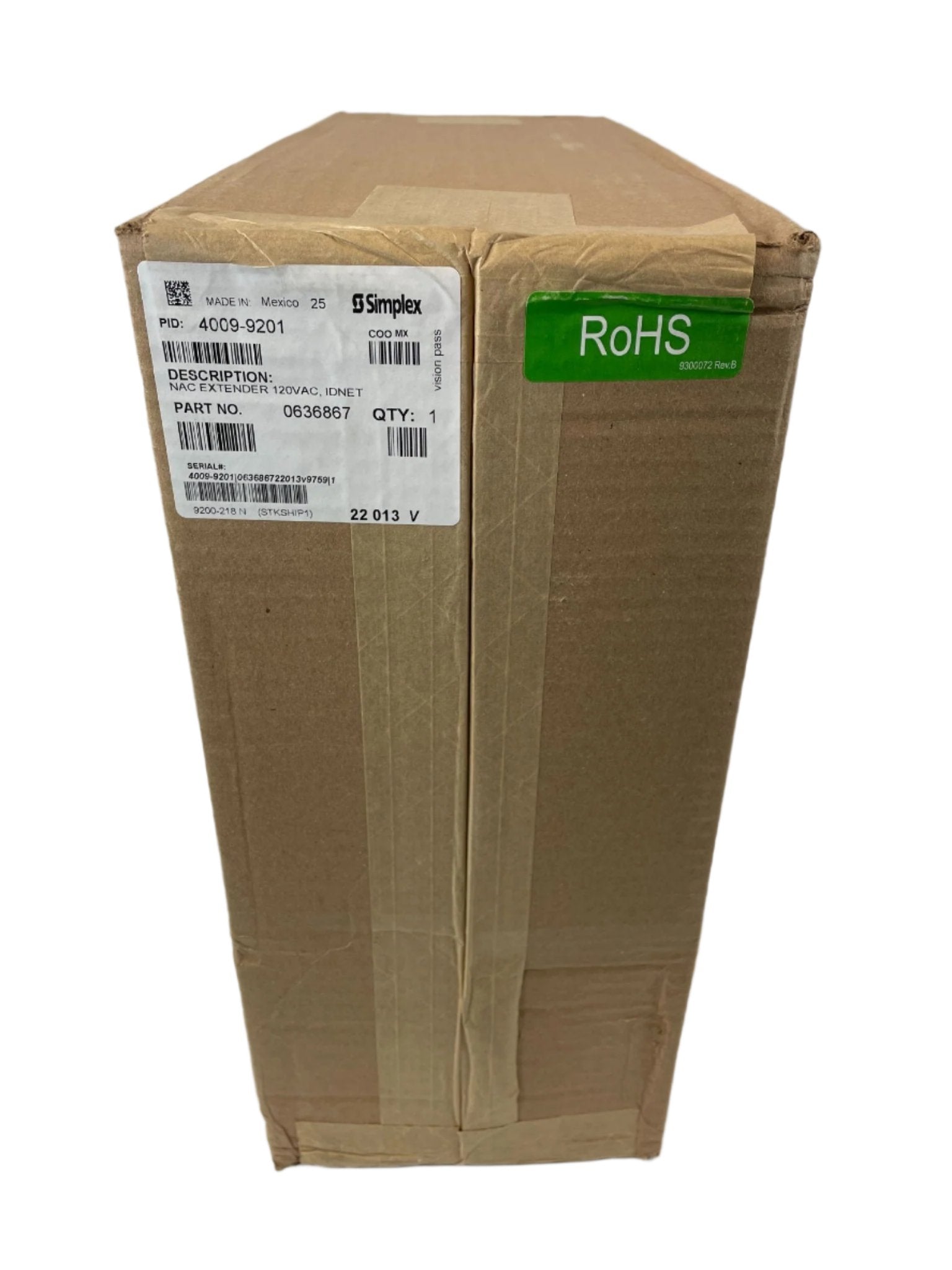

Simplex 4009-9201 — a 120 VAC 4009 IDNet NAC Extender: a self-contained adjunct panel with four Class B notification appliance circuits and an 8 A power supply and battery charger.
Meeting ADA notification requirements often needs more appliance power than the fire alarm control panel itself can deliver. The 4009 IDNet NAC Extender supplies up to 8 A across up to eight supervised reverse-polarity NACs, and it can be mounted next to the host panel or placed remotely for convenient power distribution. It accepts two quite different forms of control. Over IDNet addressable communications from a 4007ES, 4010, 4010ES, 4100ES or 4100U, each output NAC can be individually controlled for general alarm or selective area notification while consuming only a single point address per extender, and troubles are reported back in detail — including support for IDNet device-level earth fault location. Alternatively it can be driven directly from one or two conventional 24 VDC NACs, which is the retrofit path when an existing circuit simply needs more power. Either way the extender supervises itself and each output NAC for troubles including earth faults, and WALKTEST is available with both input choices. Output NACs can also be selected to provide Simplex strobe synchronization or to run TrueAlert non-addressable appliances in SmartSync two-wire mode.
Specifications
| Model |
4009-9201, 120 VAC input, four Class B NACs, 8 A power supply |
| AC input rating |
3 A at 102 to 132 VAC, 60 Hz |
| Total output rating |
8 A for Special Application appliances; 6 A for Regulated 24 DC appliance power |
| Standard NACs |
Four, Class B, 2 A each, Special Application or Regulated 24 DC appliance power |
| Optional NACs (4009-9807) |
Four additional Class B, 1.5 A each Special Application; 1 A each Regulated 24 DC |
| Auxiliary output |
500 mA at 24 VDC nominal |
| Strobe synchronization |
Up to 33 strobes per NAC can be synchronized; output NACs configured for Simplex synchronized strobe operation are synchronized to each other |
| Hardwire control input requirements |
Conventional reverse polarity operation, 5 mA maximum, 16 to 33 VDC |
| Panel supervisory current |
85 mA (basic panel) |
| Panel alarm current |
185 mA (basic panel) |
| Battery charging |
Internal batteries up to 12.7 Ah, or up to 18 Ah in the 4009-9801 external cabinet; two 12 VDC batteries required for 24 VDC operation |
| IDNet channel loading |
Up to ten extenders per 4007ES, 4010ES, 4100ES or 4100U IDNet channel; up to five on the 4010 channel; one point address per extender |
| Operating temperature |
32°F to 120°F (0°C to 49°C) |
| Operating humidity |
10% to 90% RH from 32°F to 104°F (0°C to 40°C) |
| Wiring connections |
Terminal blocks for 18 AWG stranded to 12 AWG solid (0.82 mm² to 3.31 mm²) |
| Cabinet |
16-1/4 in. W x 13-1/2 in. H (413 mm x 343 mm), 4-1/4 in. (108 mm) deep, with a 5/8 in. (16 mm) thick door |
| Seismic |
Seismic tested and certified to IBC and CBC standards and to ASCE 7 categories A through F; requires battery brackets per data sheet S2081-0019 |
| Certifications |
UL certified to Standard 864; ULC certified model is 4009-9202CA; FM approved; CSFM Listing 7300-0026:214; MEA (NYC) acceptance |
Installation notes
-
Host software revisions: the 4100U requires revision 11 software or higher and the 4010 requires revision 2 software or higher for compatibility.
-
Hardwire input mapping: with conventional NAC control the input-to-output mapping is selectable — NAC 1 to outputs 1 & 2 and 5 & 6 with NAC 2 to 3 & 4 and 7 & 8; or NAC 1 to outputs 1-4 with NAC 2 to 5-8; or NAC 1 to all outputs 1-8.
-
Two inputs for split control: separate audible and visible output control, or SmartSync output operation, requires two input NACs. NAC 1 is on-until-reset and NAC 2 is on-until-silenced. In SmartSync mode NAC 1 is strobe control and NAC 2 is horn control for all outputs.
-
Conventional versus SmartSync is per-NAC only under IDNet: with IDNet control each output NAC can be individually set to conventional or SmartSync operation. With hardwire NAC input control, all output NACs must be one or the other.
-
Synchronizing several extenders: to synchronize strobe flash across up to four extenders, feed them from a Synchronized Flash Module (4905-9914 Class B, 4905-9922 Class A) or from a NAC selected for synchronized strobe output. Do not use a NAC selected for SmartSync operation for this.
-
Local coding: each NAC input can be selected to track the input or to generate a local code. Local coding gives Temporal or 60 beats/min March Time output, one code selection per extender, and the input NACs must be continuous on with alarm.
-
Class A costs slots: Class A operation in either mode requires the 4009-9808 dual Class A adapter, four maximum.
-
IDNet repeating is once only: repeated communications can pass through only one series-connected repeater or fiber optic receiver, carrying up to 100 devices on the repeater output within a 250-device channel total, at up to 2,500 ft (762 m) to the farthest device.
-
Trouble behavior on conventional control: an extender wired to a conventional NAC signals trouble by opening the path to the NAC end-of-line resistor while retaining the ability to respond to a reverse-polarity alarm.
-
Conduit entry: the recommended conduit entrance varies with module selection — check installation instructions 574-181 and field wiring diagram 842-068 before drilling.
Related models
-
4009-9301 — the same extender with 240 VAC input, rated 1.5 A at 204 to 264 VAC, 50/60 Hz
-
4009-9202CA — the ULC certified version for Canada
-
4009-9807 — additional four-point Class B NAC module, one maximum, 40 mA supervisory and alarm
-
4009-9808 — dual Class A adapter covering two NAC outputs, four maximum
-
4009-9809 / 4009-9810 / 4009-9811 — IDNet repeater (Class A or B), Class B fiber optic receiver, and Class A/Class X fiber optic receiver
-
4009-9801 — external battery cabinet for up to 18 Ah batteries, 16-1/4 in. W x 13-1/2 in. H x 5-3/4 in. D
-
4009-9805 — red appliqué for the door; 2975-9801 / 2975-9802 semi-flush trim kits in beige and red
Specifications taken from the Simplex data sheet "LifeAlarm Fire Alarm Controls — 4009 IDNet NAC Extender for Control with IDNet Communications or Conventional NACs," document S4009-0002-14 (9/2015). Manufacturer specifications are subject to change without notice.
Documents
FAQ
How is the 4009-9201 controlled?
Either over IDNet from a 4007ES, 4010, 4010ES, 4100ES or 4100U panel, using one point address per extender, or directly from one or two conventional reverse-polarity NACs.
How much notification power does it provide?
Up to 8 A total. The four standard Class B NACs are rated 2 A each, and the optional 4009-9807 module adds four more NACs.
What batteries does it hold?
It charges internal batteries up to 12.7 Ah, or up to 18 Ah when they are installed in the 4009-9801 external battery cabinet.
Can the NACs be wired Class A?
Yes, with the 4009-9808 dual Class A adapter, which covers two NAC outputs; up to four can be fitted.
