Simplex 2099-9756 — non-coded, non-addressable double action manual fire alarm station of the push type, in the moulded 2099 Series.

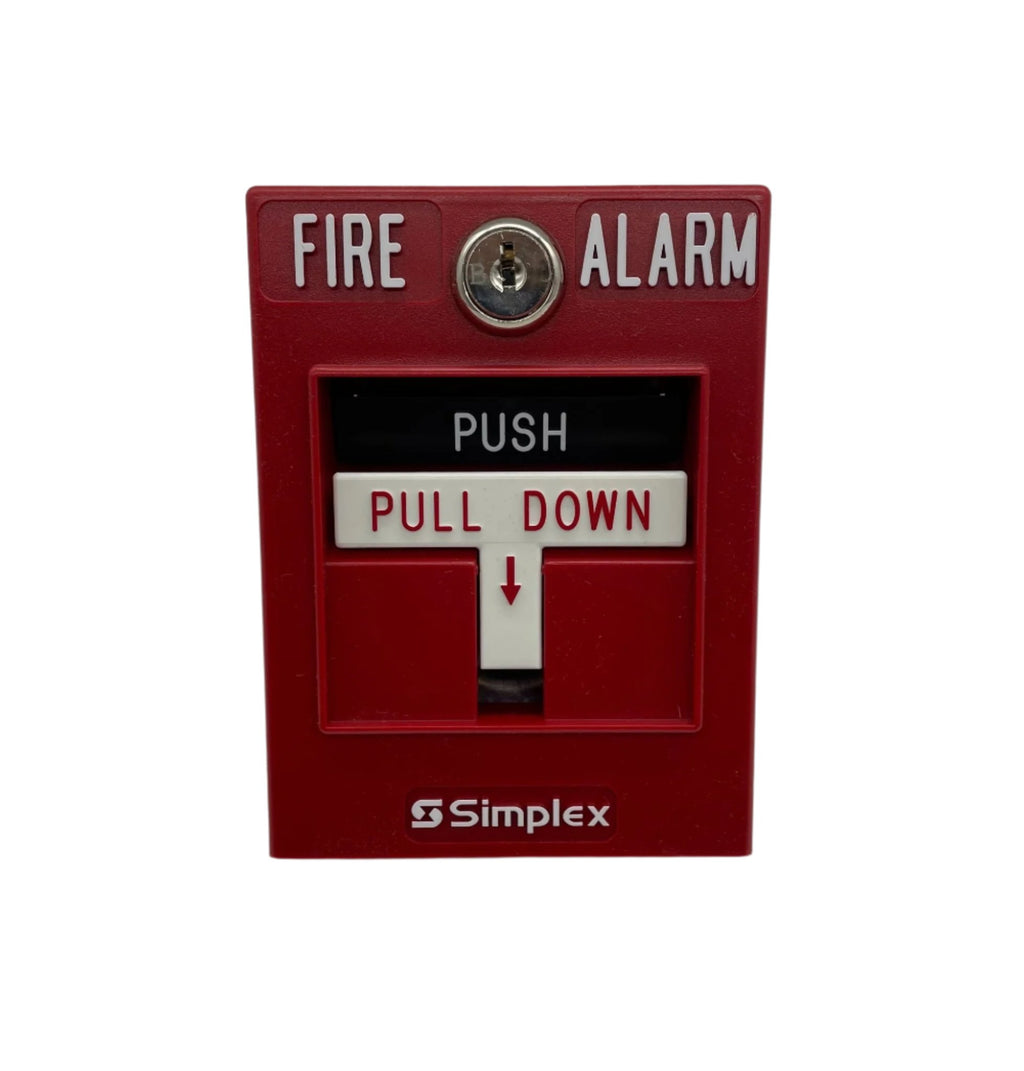

Double action means two motions before the alarm switch operates, and Simplex builds that second motion two ways. This number is the push version: a spring loaded plate marked PUSH is pushed back to expose the recessed lever, which then operates as a single action station.
- Double action push type; no pre-signal and no annunciator contacts on this number

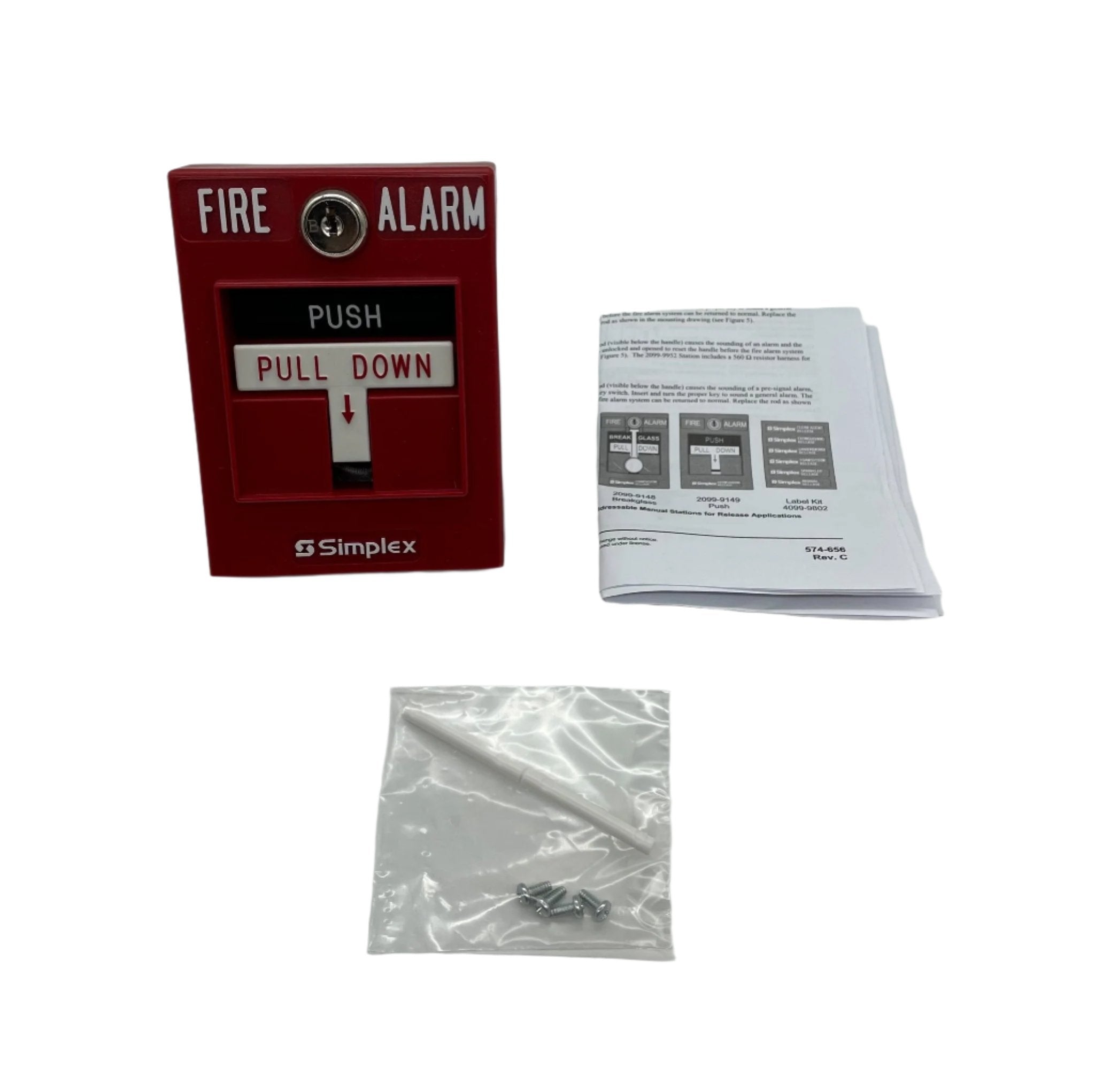

- Break-rod supplied, its use optional; replacement is 2099-9804

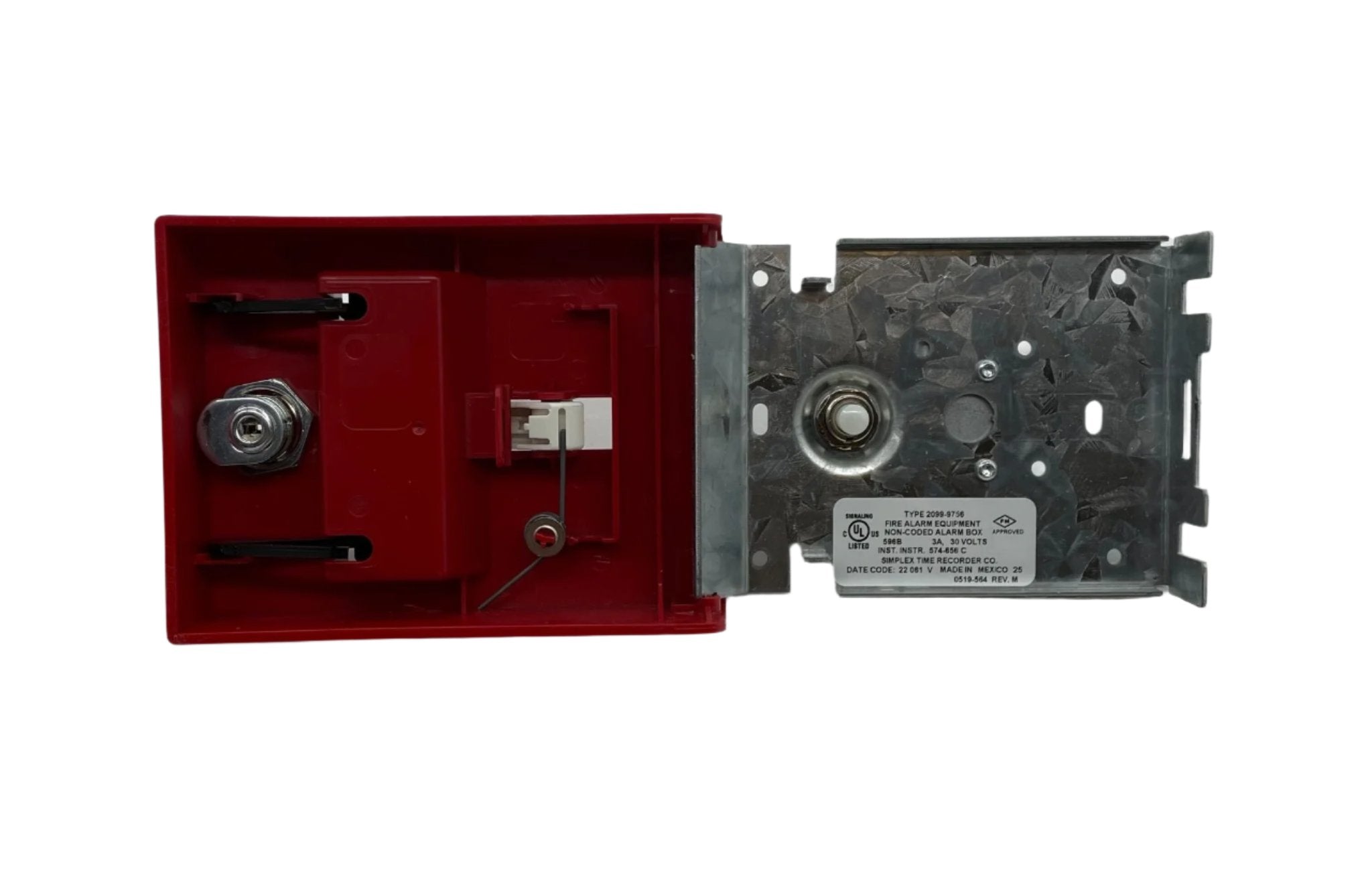

- Key reset, keyed the same as Simplex cabinets; the B key is catalogued as 252-019
- Screw terminals for in and out wiring, 18 to 14 AWG
- 5 in. H × 3 3/4 in. W × 1 in. D, high impact polycarbonate, red
- 32 °F to 120 °F indoor; UL listed to Standard 38, with ULC, CSFM, FM and MEA

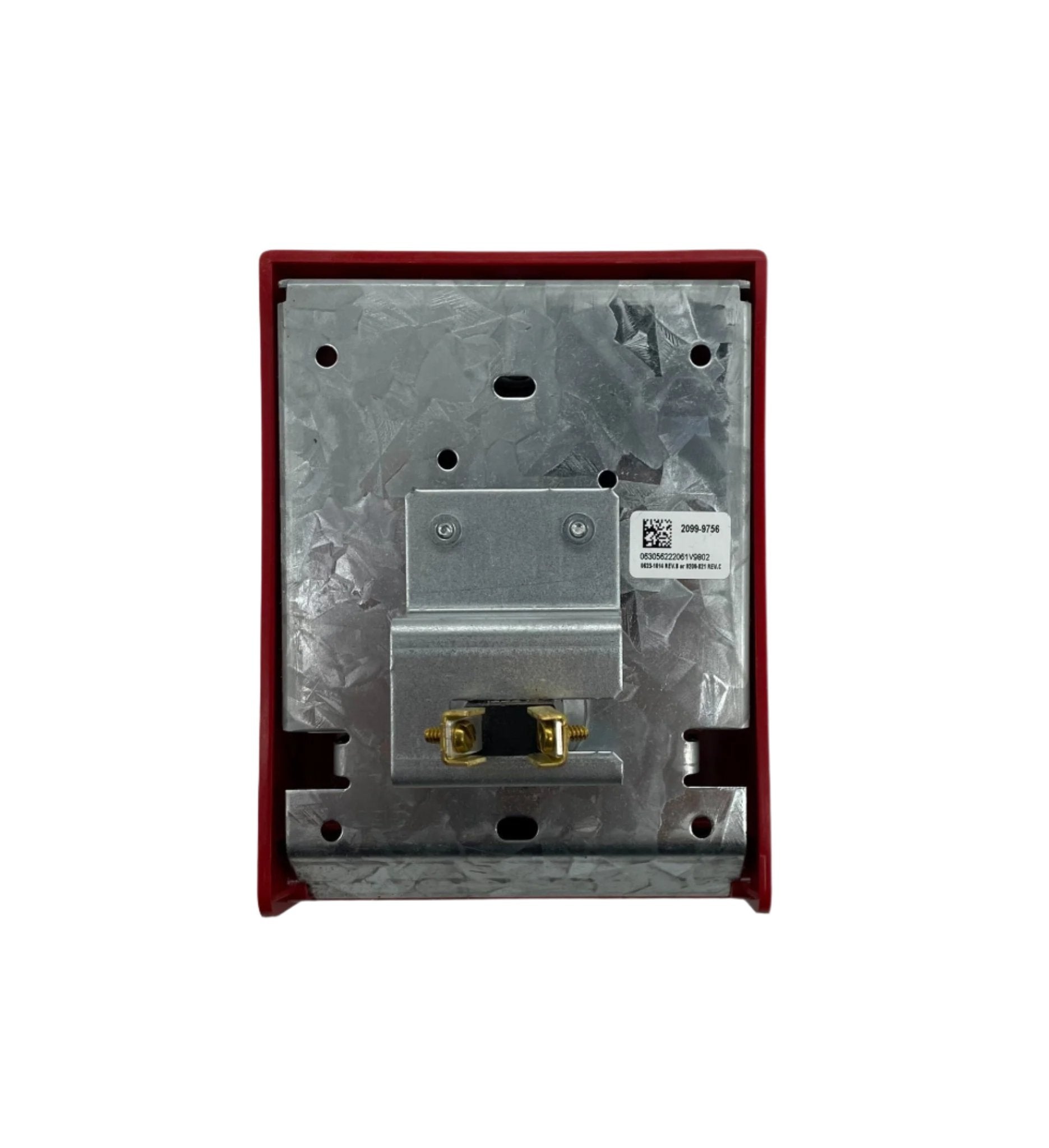

- Surface or semi-flush on standard or Simplex boxes; flush with kit 2099-9819 or -9820
2099-9757 and 2099-9758 are the same push station with annunciator contacts. 2099-9103 and 2099-9104 are the breakglass models, and they are the ones taking replacement breakglass 2099-9803, which a push station does not use. Cast metal and releasing stations are separate sheets.
