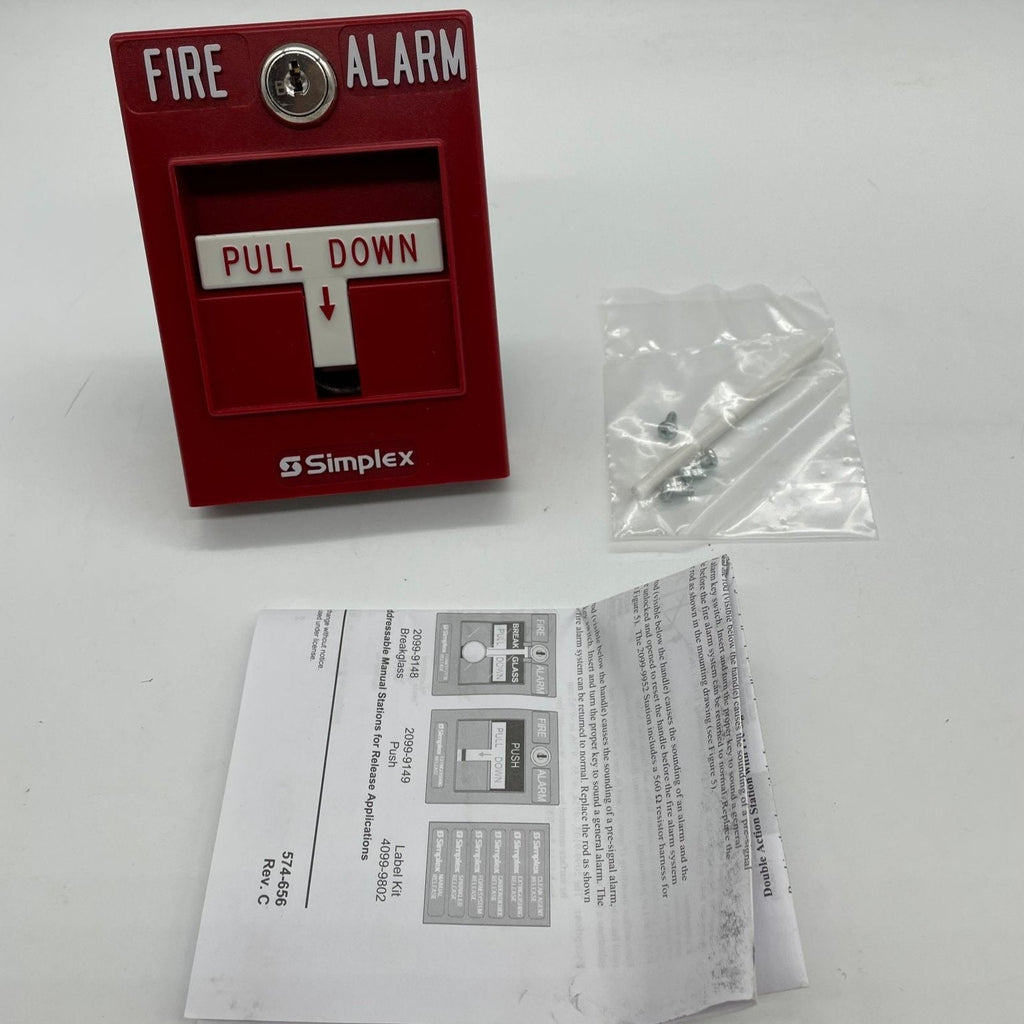

Simplex 2099-9754 — single action, non-coded, non-addressable manual pull station for general alarm service.
A firm downward pull operates the alarm switch and breaks an internal plastic break-rod below the lever; the lever then latches and stays extended as a visible indication. In the 2099 table this is the base general-alarm model, with no pre-signal, annunciator contacts or cover option.
- Screw terminals for in and out wiring, 18 to 14 AWG
- Break-rod supplied, use optional; replacement break-rod is 2099-9804
- Tamper resistant reset key lock, keyed as Simplex fire alarm cabinets; B key 252-019
- High impact polycarbonate, red housing with white raised lettering
- 5 in. H × 3 3/4 in. W × 1 in. D (127 mm × 95 mm × 25 mm)
- 32 °F to 120 °F (0 °C to 49 °C) indoor, humidity to 93% RH
- UL listed to Standard 38; also ULC and CSFM listed, FM approved, MEA New York City acceptance
Semi-flush mounting uses a standard single gang 2 1/5 in. deep box, which must not be recessed. The 2099-9755 adds a local alarm cover and the 2099-9762 an institutional cover; the 2099-9756 is the double action push version.
