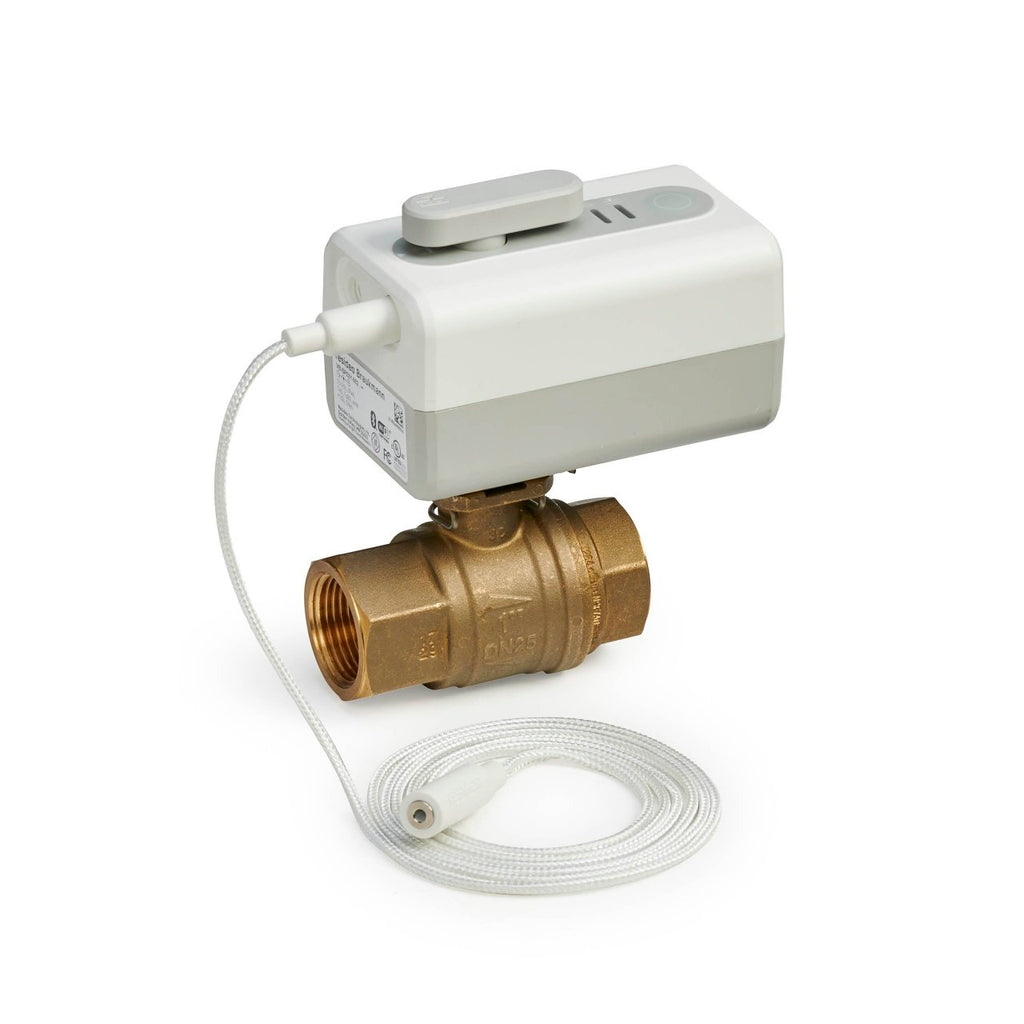

Resideo VWS02Y-3/4 — Braukmann L5 WiFi water leak shutoff valve, an electric actuator factory matched to a 3/4 in. NPT lead-free ball valve.
The actuator sits on the ball valve through an ISO flange interface and drives it a quarter turn closed when the attached sensing cable wets out, or on command from a phone. It is a potable-water device for the domestic supply, downstream of the main shutoff.
- 3/4 in. NPT lead-free ball valve; mounts in any orientation
- Actuator output up to 6 Nm torque, 90 degree travel, under 10 seconds runtime
- Power adapter input 100 to 240 V ac, 50/60 Hz, 0.6 A, Class II
- Ships with valve, adapter, mounting clip and a 5 ft sensing cable, extendable to 500 ft
- Valve certified to NSF/ANSI/CAN 61, NSF/ANSI/CAN 372 and CSA
- Indoor use only; not to be cycled more than once per 10 minutes
Resideo is explicit that this valve must not be fitted to a fire sprinkler or suppression system. The near neighbours are the VWS01Y kits, identical but adding an L1 WiFi leak detector, the port sizes VWS02Y-1/2, VWS02Y-1 and VWS02Y-11/4, and VB-SP02Y-002, the bare actuator.
